Technical Specifications
| Parameter | Specification |
|---|---|

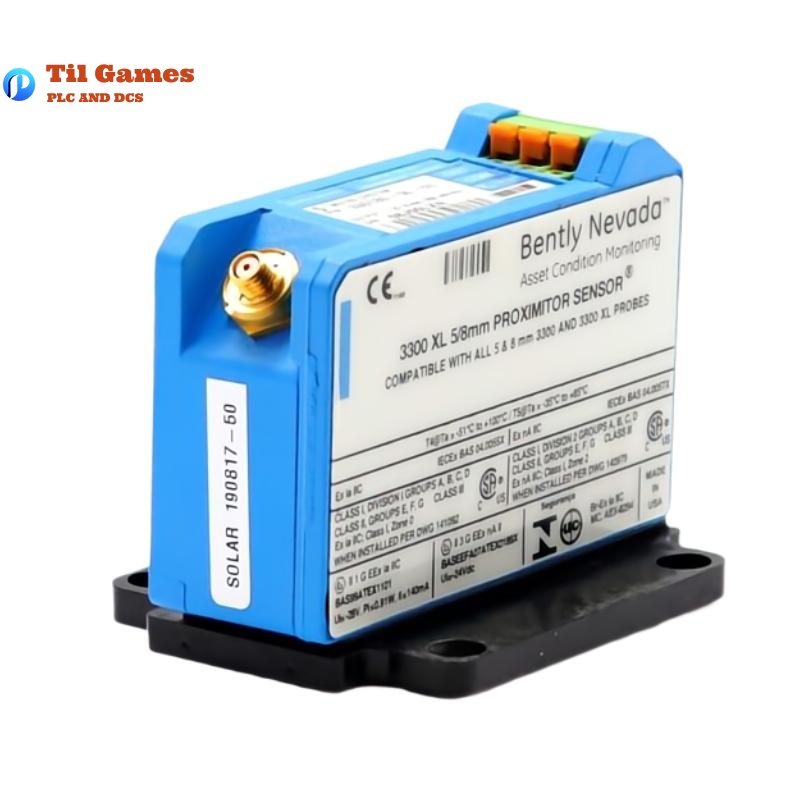

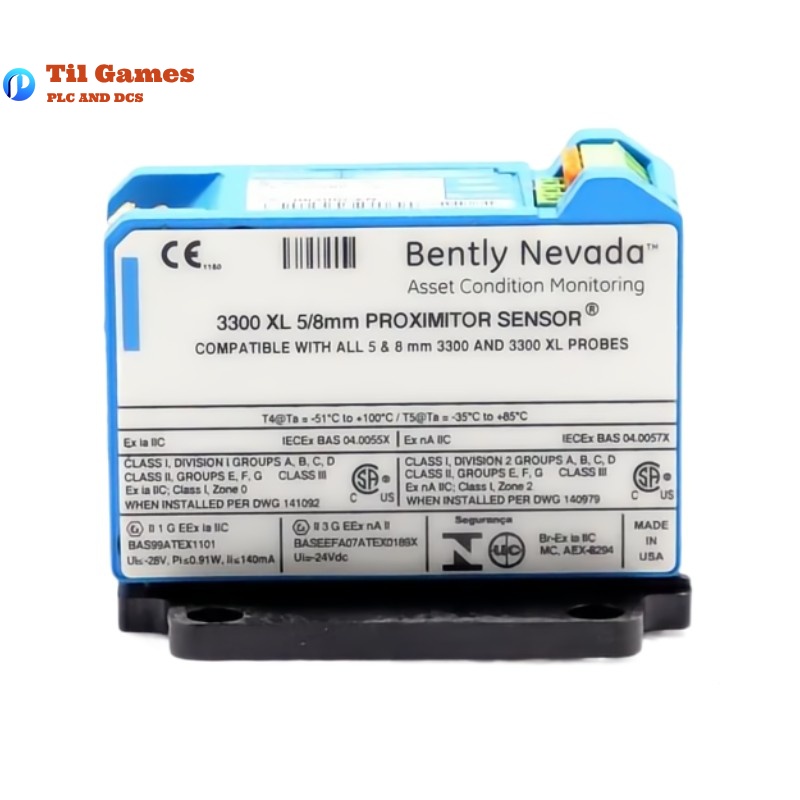

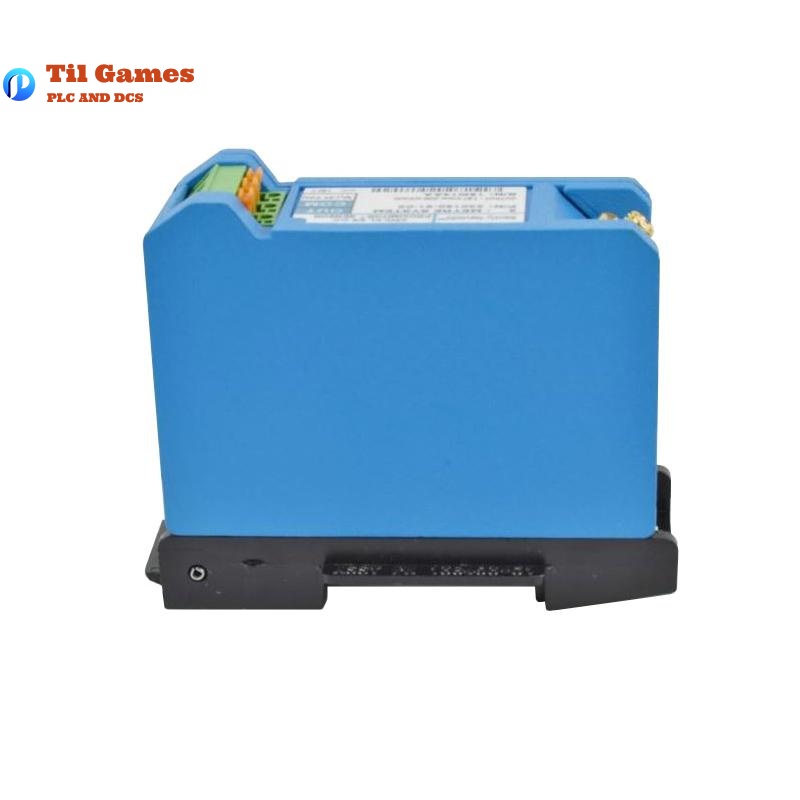

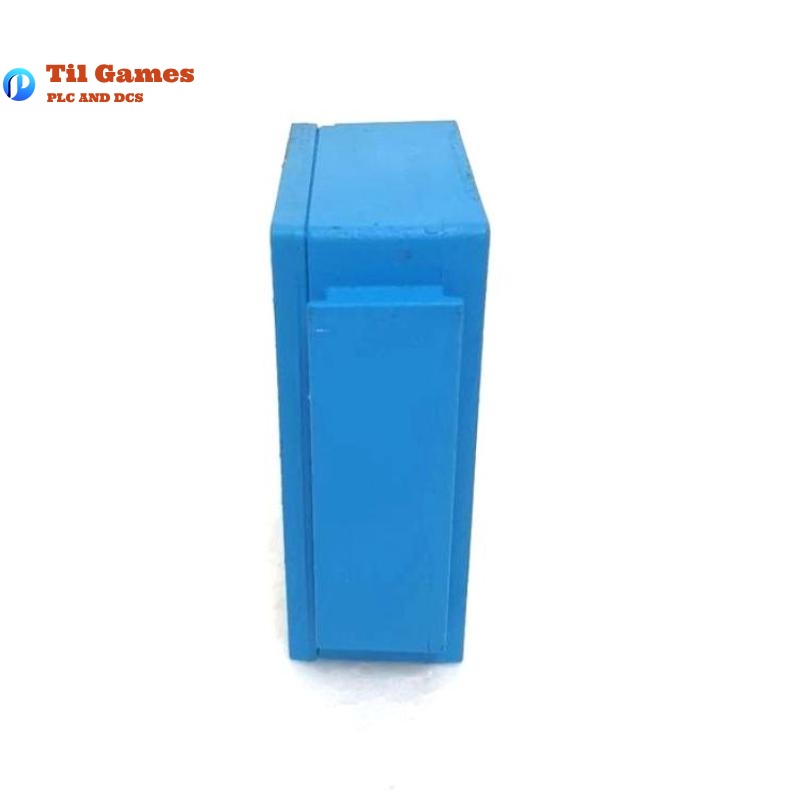

| Model | Bently Nevada 330180-50-CN |
| System Components | 3300 XL 8 mm probe, extension cable, Proximitor sensor |
| Probe Type | Non-contacting eddy current proximity probe |
| Input Voltage | -17.5 Vdc to -26 Vdc |
| Output Resistance | 50 Ω |
| Linear Range | 2 mm (80 mils) from 0.25 to 2.3 mm |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (standard 5m system) |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Storage Temperature (Sensor) | -52°C to +105°C |
| Operating Temperature (Probe) | -52°C to +177°C (Standard), up to 218°C (ETR) |
| Operating Temperature (Cable) | -52°C to +177°C (Standard), up to 260°C (ETR) |
| Humidity Resistance | ≤ 3% change in Average Scale Factor under 93% RH |
| Recommended Shaft Diameter | ≥ 76.2 mm (3 in) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Cable Type | 75Ω triaxial FEP or PFA insulated |
| Connector Type | Gold-plated ClickLoc (finger-tight) |
| System Length | 5.0 meters |
| Weight (Total) | 0.246 kg |
| EMC Compliance | EN 61000-6-2, EN 61000-6-4 |
| RoHS Compliance | Yes |
| Certifications | FCC, CE, ATEX, IECEx, CSA |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 330180-50-CN Proximitor Sensor?
A1: It measures both static (position) and dynamic (vibration) displacement of conductive targets.
Q2: What type of probe does this sensor work with?
A2: It is designed to work with 3300 XL 8 mm proximity probes and extension cables.
Q3: Does the sensor support extended temperature environments?
A3: Yes, it supports probes and cables rated up to 218°C and 260°C respectively (ETR versions).
Q4: Is this sensor compliant with API 670 standard?
A4: Yes, the standard 5-meter system complies with API 670 for mechanical configuration and performance.
Q5: What is the recommended gap voltage setting?
A5: The recommended gap is approximately -9 Vdc, equivalent to 1.27 mm (50 mils).
Q6: Can it be mounted on a DIN rail?
A6: Yes, the Proximitor sensor can be DIN-mounted or panel-mounted using the standard footprint.
Q7: Is it necessary to calibrate individual components before use?
A7: No, all components are fully interchangeable and do not require bench calibration.
Q8: What is the total length and weight of the 330180-50-CN system?
A8: The total length is 5.0 meters, and the total weight is 0.246 kg.
