Technical Specifications
| Parameter | Description |
|---|---|

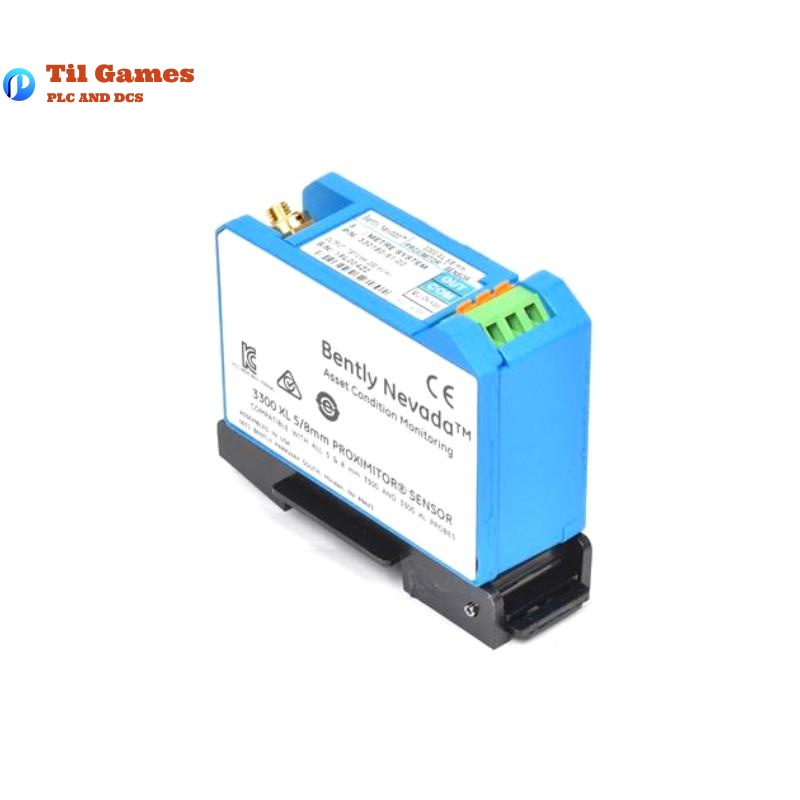

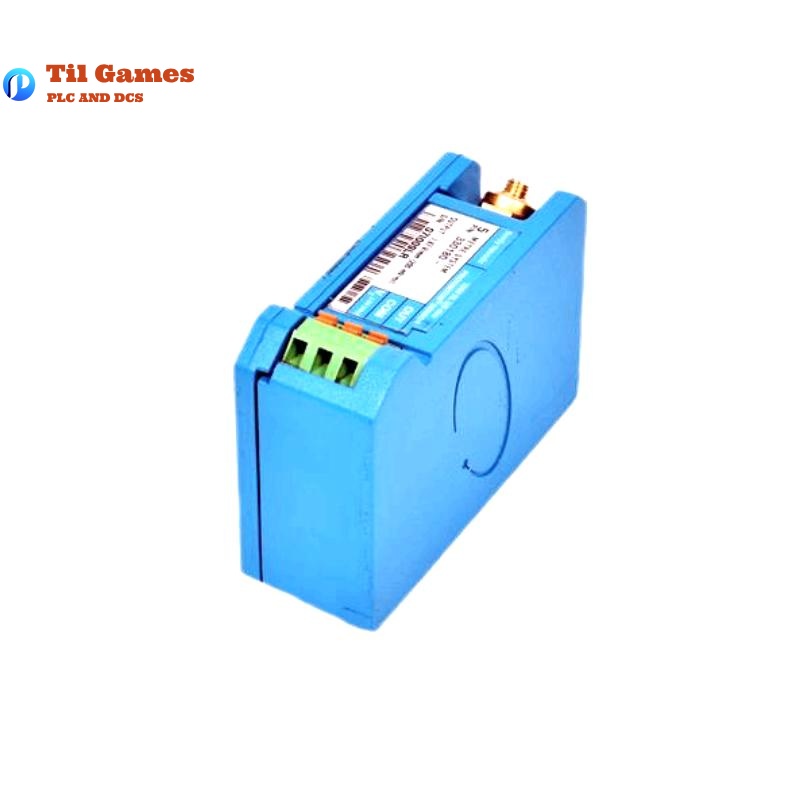

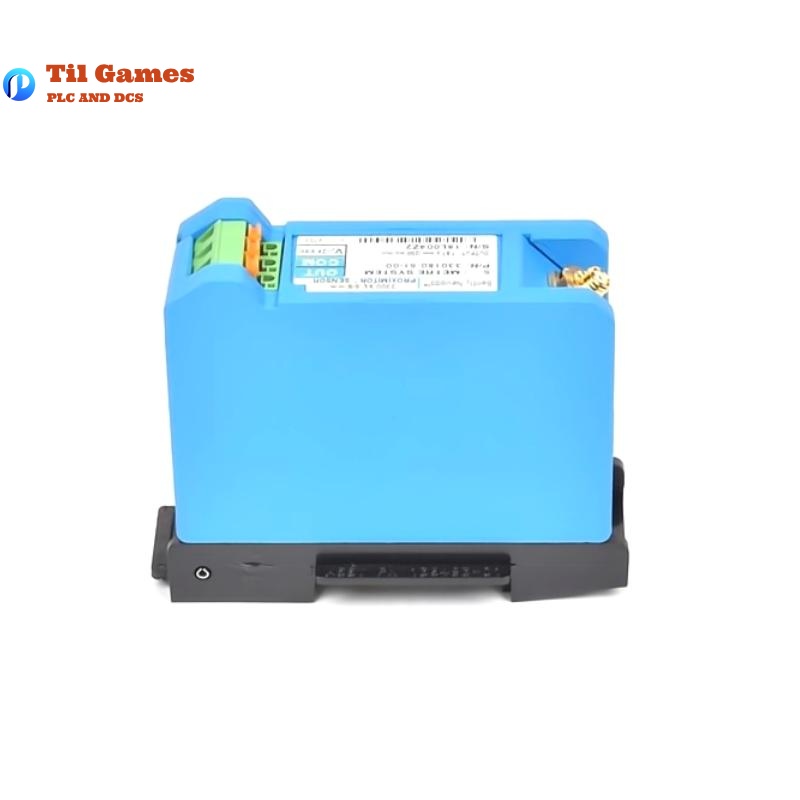

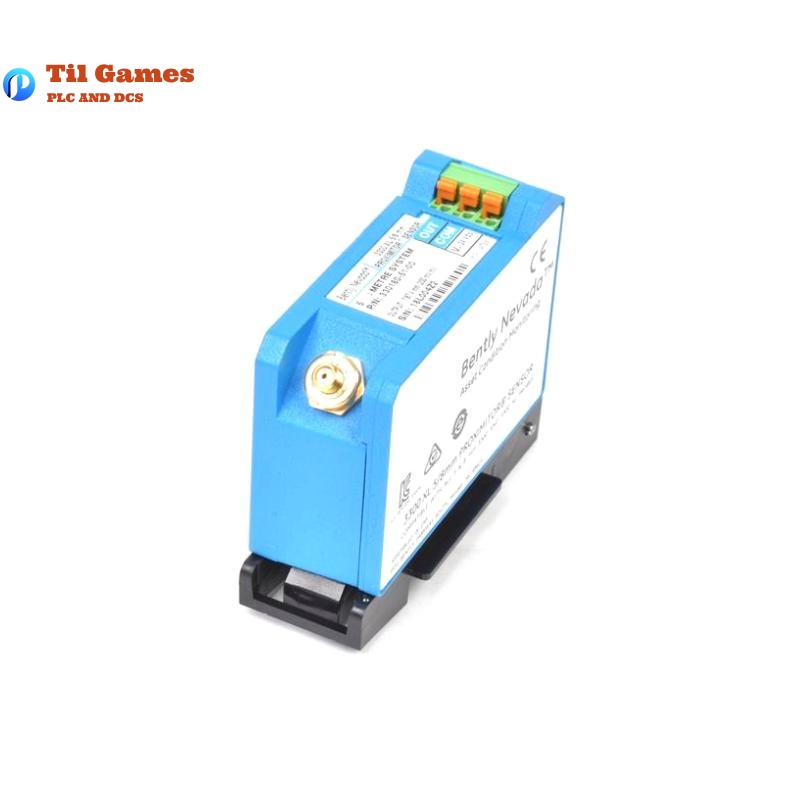

| Product Model | Bently Nevada 330180-51-00 3300 XL Proximitor Sensor |
| System Configuration | Includes Probe, Extension Cable, and Proximitor Sensor |
| Power Supply | -17.5 Vdc to -26 Vdc |
| Output Resistance | 50 Ω |
| Linear Range | 2 mm (80 mils), from 0.25 mm to 2.3 mm |
| Recommended Gap | 1.27 mm (50 mils) corresponding to -9 Vdc output |
| Incremental Scale Factor | 7.87 V/mm ±5% (200 mV/mil ±5%) for 5 m system |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Minimum Target Size | 15.2 mm (0.6 in) flat diameter |
| Recommended Shaft Diameter | ≥76.2 mm (3 in) |
| Probe Temperature Range | -52°C to +177°C (Standard), up to +218°C for ETR |
| Extension Cable Temperature Range | -52°C to +177°C (Standard), up to +260°C for ETR |
| Proximitor Sensor Temperature Range | Operating: -52°C to +100°C, Storage: -52°C to +105°C |
| Humidity Resistance | <3% change in scale factor after 56 days at 93% RH |
| Cable Type | 75Ω triaxial, FEP or PFA insulation |
| Connector Type | ClickLoc gold-plated connectors |
| Mounting Options | DIN rail or panel mount |
| Total Length | 5.0 meters |
| Weight | 0.246 kg (Proximitor Sensor only); Full system approx. 0.7 kg |
| Dimensions (Sensor) | 89.4 mm (3.52 in) length x 36.3 mm (1.43 in) width x 51.1 mm (2.01 in) height |
FAQ
Frequently Asked Questions (FAQ)
Q1: What does the 330180-51-00 sensor do?
A1: It detects shaft vibration and position by measuring the distance between the probe tip and the rotating shaft using eddy current technology.
Q2: Is the sensor compatible with non-XL systems?
A2: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm series components.
Q3: Can this sensor be used in hazardous environments?
A3: Yes, it complies with ATEX, CSA, IECEx standards for hazardous areas including Zone 0 and Zone 2.
Q4: What is the recommended mounting method?
A4: It can be DIN rail-mounted or panel-mounted using a 4-hole footprint compatible with older designs.
Q5: How accurate is the sensor?
A5: The system maintains an accuracy within ±0.025 mm (±1 mil) for 5 m systems at 0°C to +45°C.
Q6: What is the effect of temperature on performance?
A6: The scale factor remains within ±10% over -35°C to +120°C for the probe and 0°C to +45°C for the Proximitor Sensor.
Q7: Is it necessary to calibrate components together?
A7: No, all 3300 XL components are fully interchangeable without calibration.
Q8: How long is the standard cable?
A8: The 330180-51-00 version is configured for 5.0 meters total system length.
