Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330180-51-10 |
| Total System Length | 5.0 meters (includes extension cable) |
| Total Weight | 0.246 kg |
| Probe Tip Material | PPS (Polyphenylene Sulfide), AISI 303 or 304 stainless steel case |
| Probe Cable Type | 75Ω triaxial FEP-insulated cable |
| Cable Pull Strength | 330 N (probe to cable), 270 N (cable to extension connection) |
| Recommended Torque | 11.2 N•m (100 in•lbf) |
| Power Requirements | -17.5Vdc to -26Vdc, max 12 mA |
| Output Resistance | 50 Ω |
| Linear Range | 2 mm (80 mils), recommended gap: 1.27 mm (50 mils) |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (5m system), ±6.5% (9m system) |
| Frequency Response | 0 – 10 kHz (+0, -3 dB), supports up to 305 m of field wiring |
| Recommended Shaft Dia | Minimum 76.2 mm (3 in) |
| Operating Temp (Probe) | -52°C to +177°C (standard), up to +218°C (ETR) |
| Cable Temp Range | -52°C to +177°C (standard), up to +260°C (ETR) |
| Sensor Temp Range | -52°C to +100°C (operation); -52°C to +105°C (storage) |
| Minimum Target Size | 15.2 mm (0.6 in) flat surface |
| EMI/RFI Immunity | CE certified, no shielded housing required |
| Mounting Options | Panel mount and DIN rail mount |
FAQ
FAQ (8 Questions)
Q1: What system is the 330180-51-10 part of?

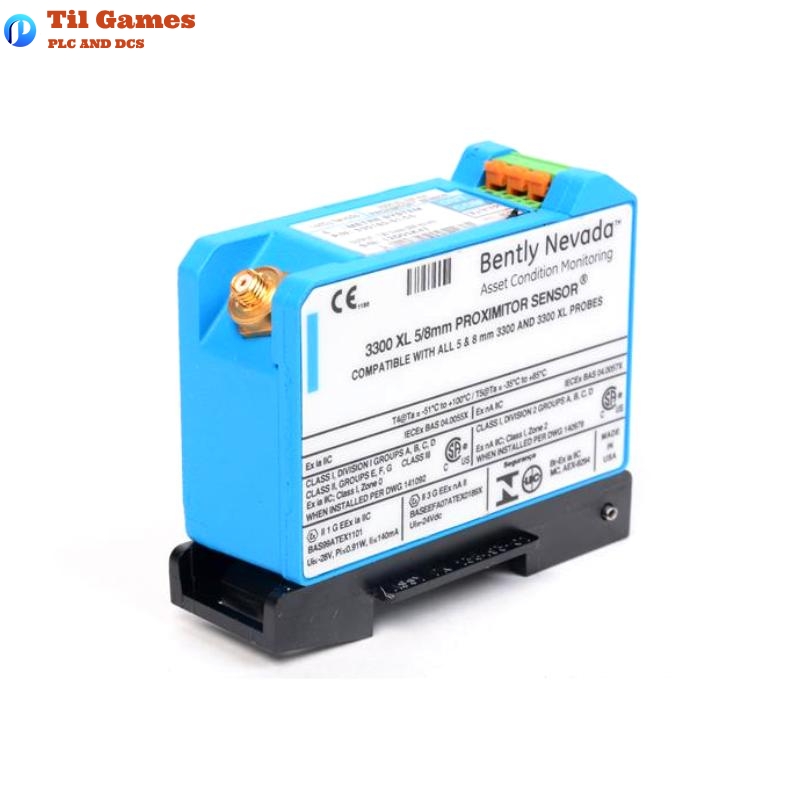

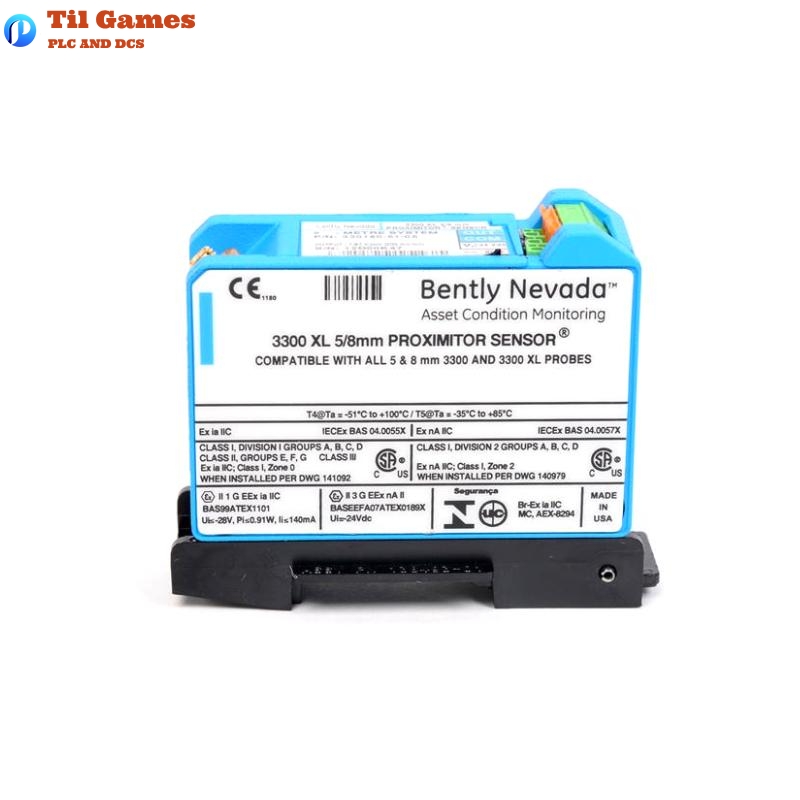

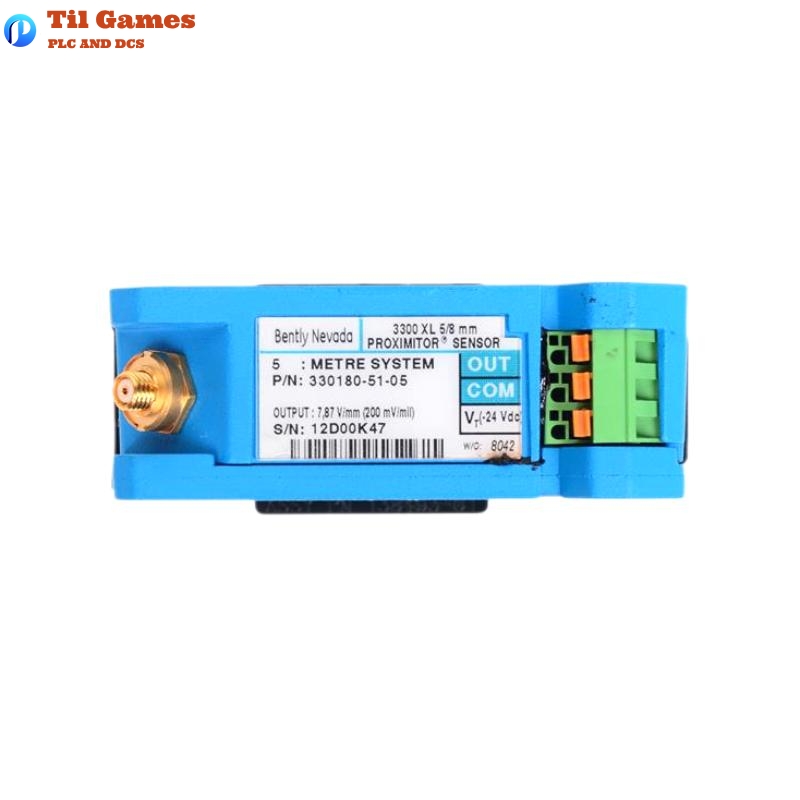

A1: It is the Proximitor Sensor component of the Bently Nevada 3300 XL 8 mm Proximity Transducer System for measuring vibration and displacement.
Q2: What is the linear range?
A2: The linear range is 2 mm (80 mils), with a recommended gap of 1.27 mm (50 mils).
Q3: What kind of machines is this sensor suitable for?
A3: It’s suitable for fluid-film bearing machines such as turbines, compressors, and generators.
Q4: Is it compatible with older 3300-series sensors?
A4: Yes, it is fully compatible both electrically and physically with non-XL 3300 5mm and 8mm components.
Q5: What are the power requirements?
A5: It requires -17.5 Vdc to -26 Vdc with a maximum current draw of 12 mA.
Q6: What is the operating temperature range?
A6: The probe operates from -52°C to +177°C, and up to +218°C in ETR models. The Proximitor sensor handles up to +100°C.
Q7: What mounting options are available?

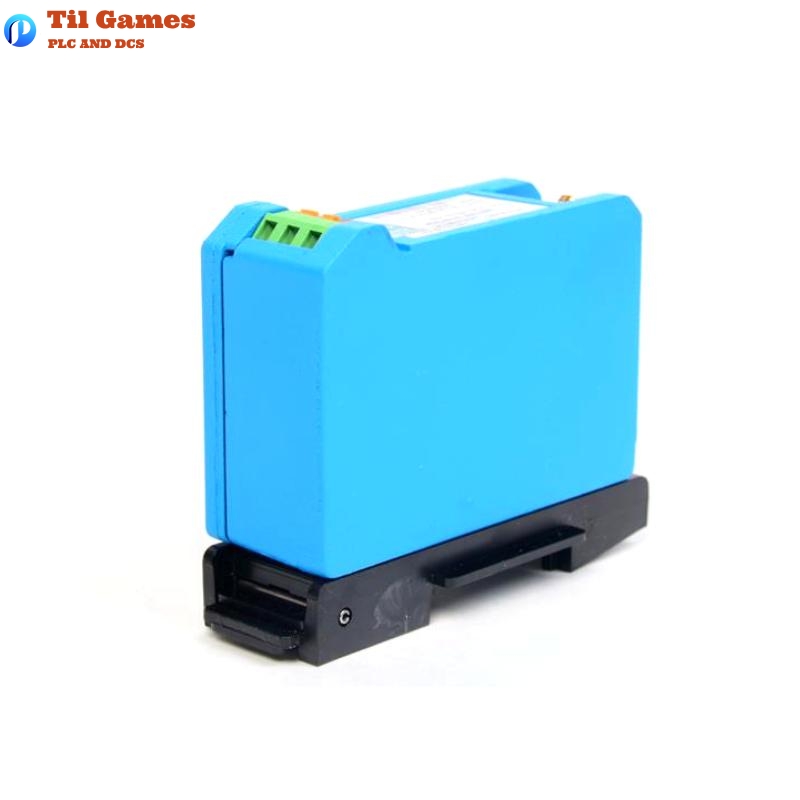

A7: DIN rail and traditional panel mounting options are available, both sharing the standard 4-hole footprint.
Q8: Is this sensor certified?
A8: Yes, it complies with CE, RoHS, ATEX, IECEx, and supports SIL 2 / SIL 3 safety applications.
