📗 Technical Specifications
| Item | Specification |
|---|---|

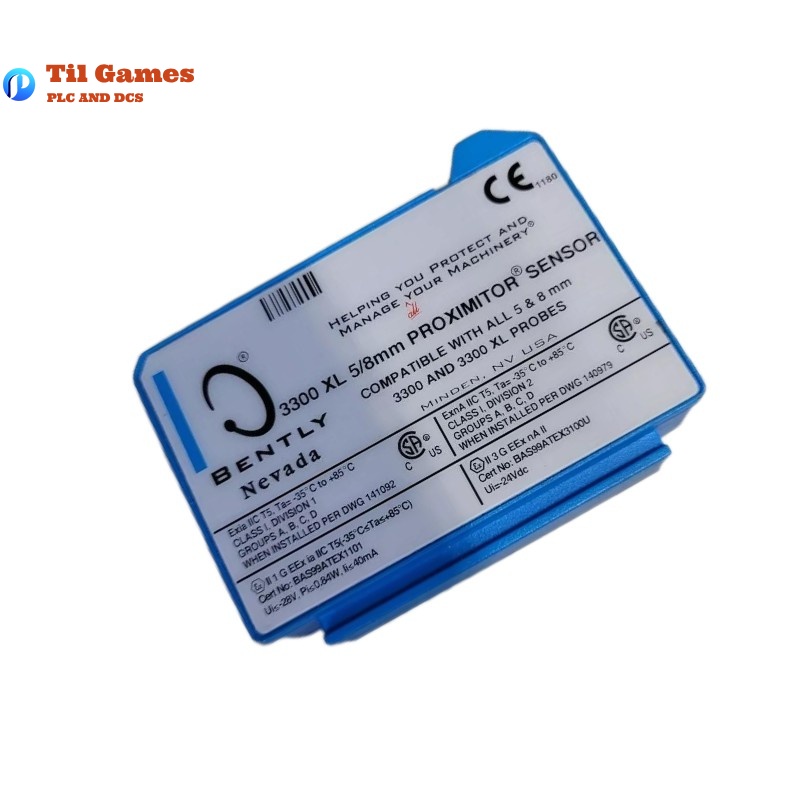

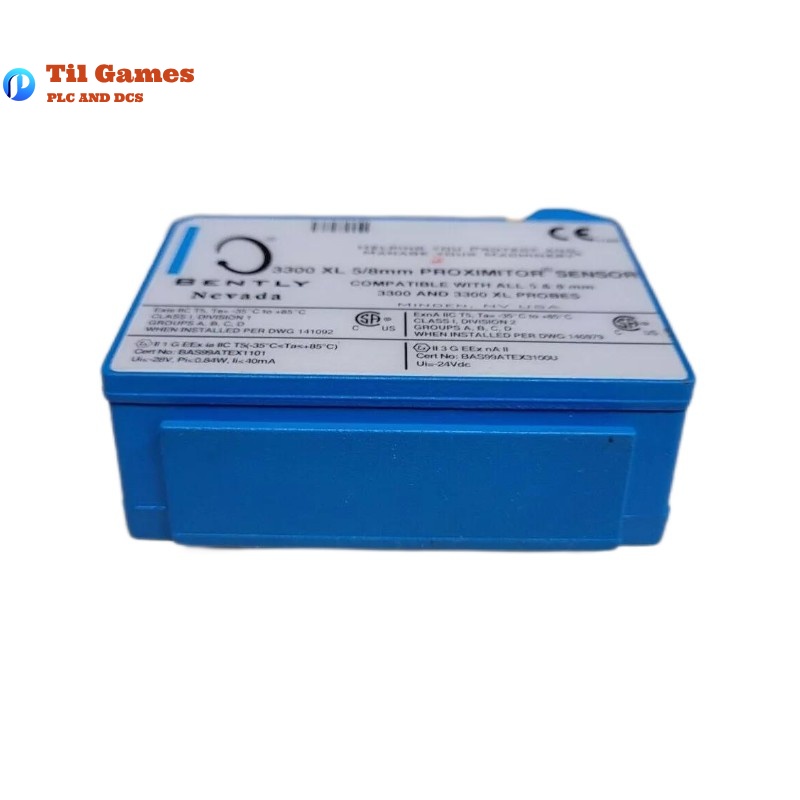

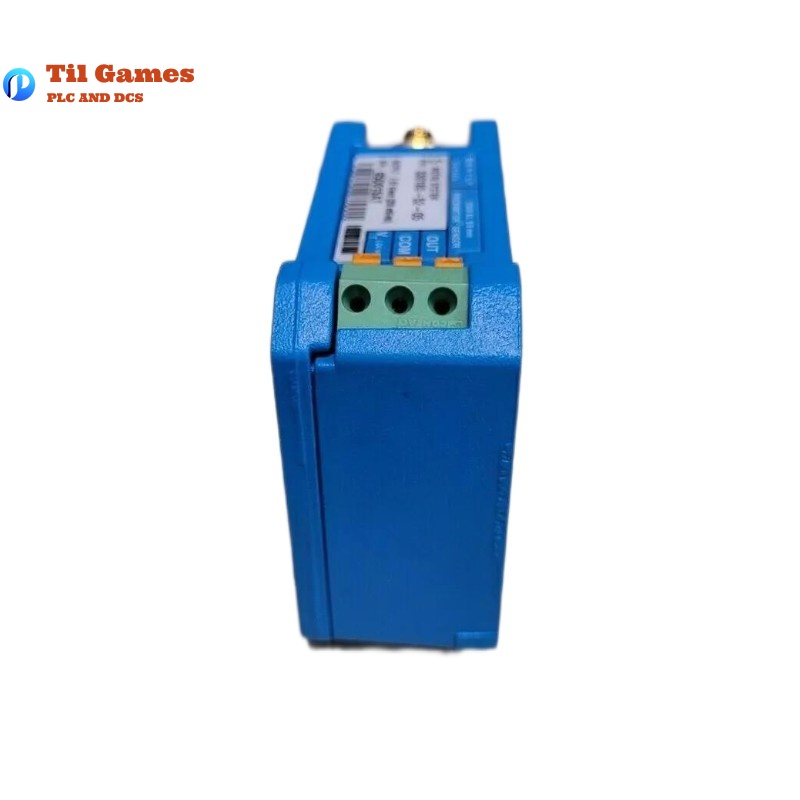

| Model | Bently Nevada 330180-51-CN 3300 XL Proximitor Sensor |
| System Includes | One 8 mm probe, one extension cable, one Proximitor Sensor |
| Power Supply | -17.5 Vdc to -26 Vdc, max current 12 mA |
| Output Impedance | 50 Ω |
| Probe Cable | 75Ω triaxial FEP insulated coaxial cable |
| Probe Diameter | 8 mm |
| Recommended Gap Setting | -9 Vdc (approx. 1.27 mm or 50 mils) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Frequency Response | 0 to 10 kHz, +0, -3 dB |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (5m system), ±6.5% (9m system) |
| Total Length | 5.0 meters |
| Total Weight | 0.246 kg (sensor unit only) |
| Probe Operating Temp | -52°C to +177°C (standard), -52°C to +218°C (ETR version) |
| Cable Operating Temp | -52°C to +177°C (standard), -52°C to +260°C (ETR version) |
| Proximitor Temp Range | -52°C to +100°C operating, -52°C to +105°C storage |
| Minimum Target Size | 15.2 mm diameter (flat target) |
| Minimum Shaft Diameter | 76.2 mm recommended |
| Materials | Probe housing: AISI 303/304 SST; Connector: gold-plated brass or copper |

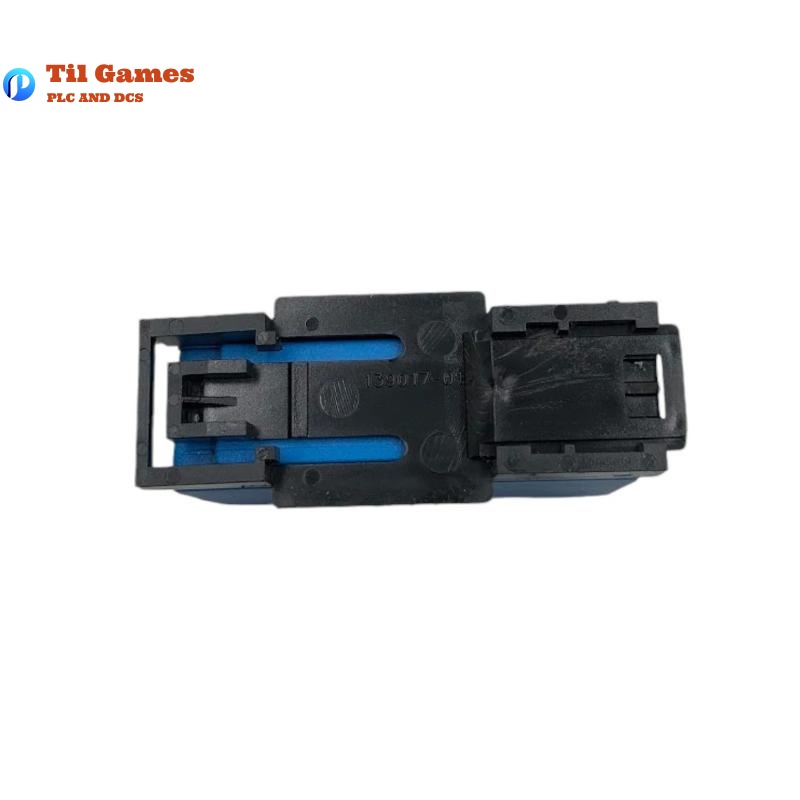

| Mounting Style | DIN rail or panel mount, 4-hole footprint compatible with legacy systems |
FAQ
❓ Frequently Asked Questions
Q1: What is the primary application of the 330180-51-CN sensor?
A1: It is used for measuring vibration and position in fluid-film bearing machines and Keyphasor or speed monitoring.
Q2: Does it meet API 670 standard?
A2: Yes, the 5-meter system meets API 670 specifications for mechanical design, linear range, accuracy, and thermal stability.
Q3: Is it compatible with older 3300 systems?
A3: Yes, it is electrically and physically interchangeable with 3300 5 mm and 8 mm non-XL series components.
Q4: How resistant is it to electromagnetic interference?
A4: It has strong RFI/EMI immunity and meets CE compliance, allowing installation in non-metallic enclosures.
Q5: Are special tools needed for connector installation?
A5: No tools are required. ClickLoc connectors are hand-tightened with an audible click to indicate secure lock.
Q6: Can the system length be customized?
A6: Yes, available in 1 m, 5 m, and 9 m configurations, depending on application and installation requirements.
Q7: Is it suitable for high-temperature environments?
A7: Yes, the ETR (Extended Temperature Range) version supports up to 218°C (probe) and 260°C (cable).
Q8: Is this sensor certified for hazardous areas?
A8: Yes, with proper installation using zener barriers or isolators, it can be used in Zone 0 or Zone 2 environments.
