Technical Specifications
| Item | Specification |
|---|---|

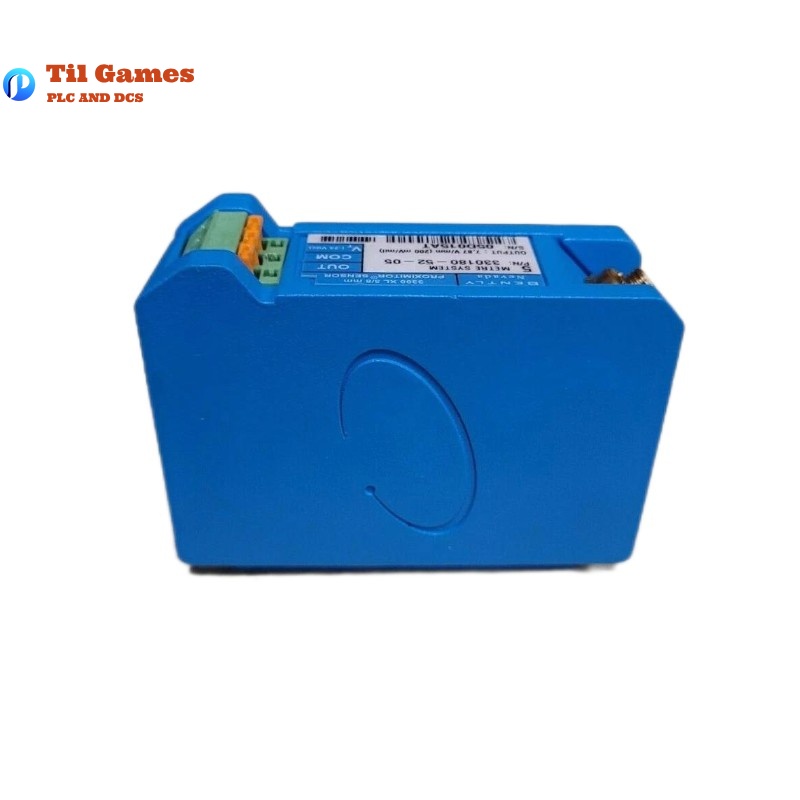

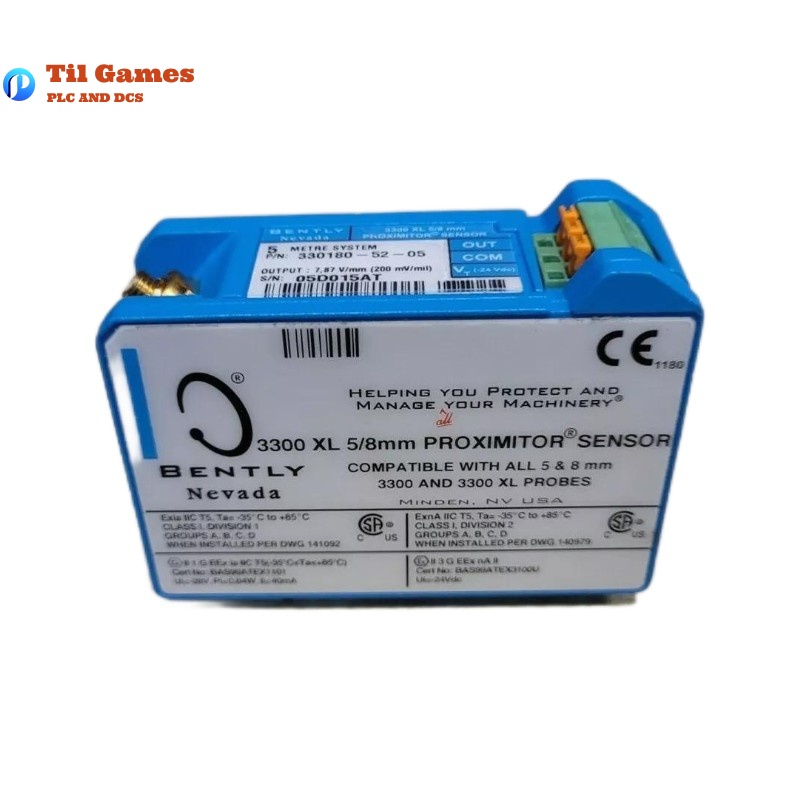

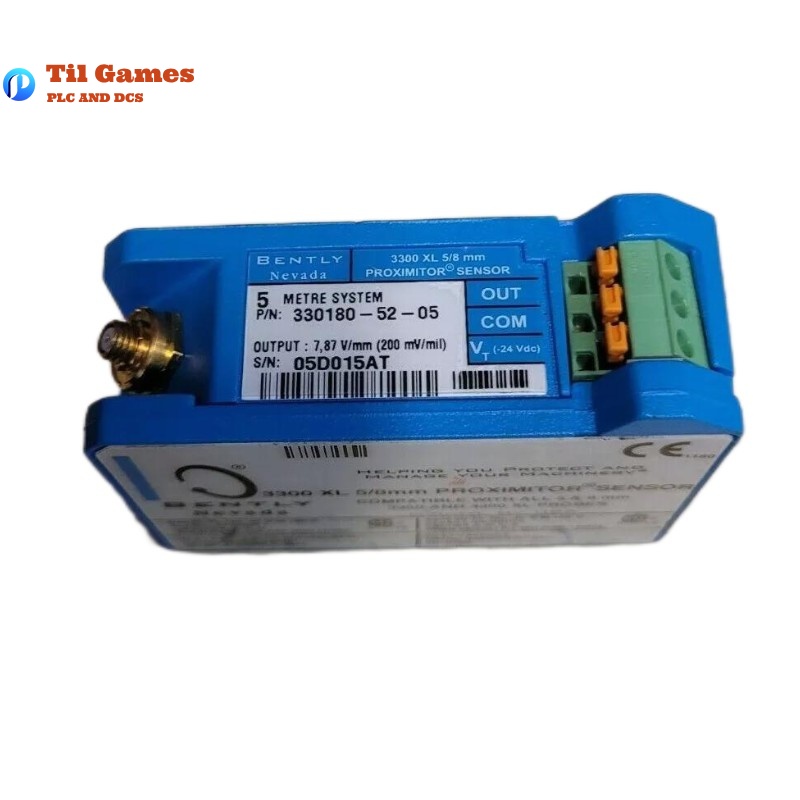

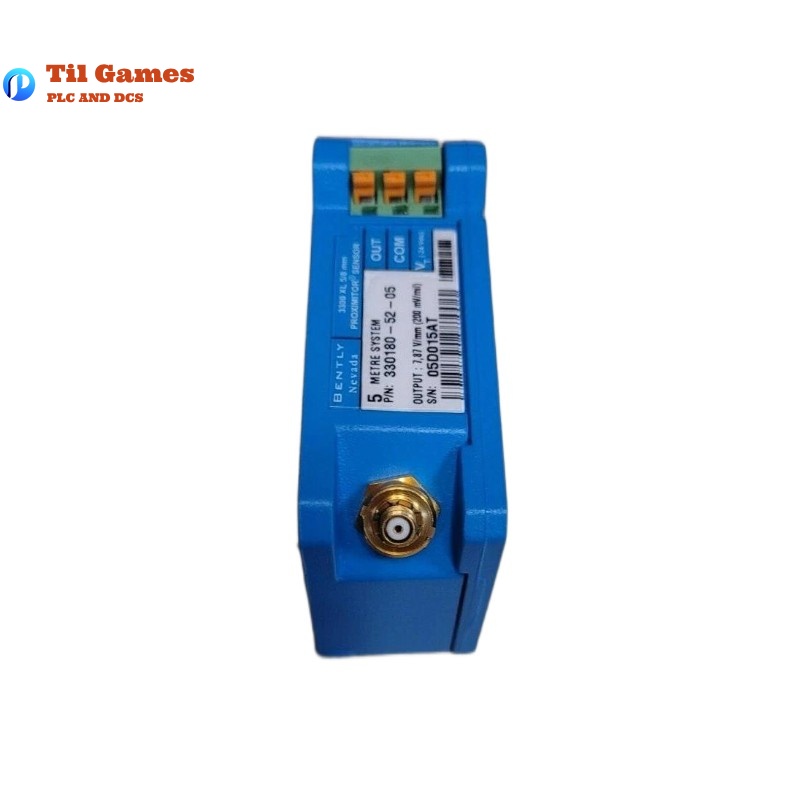

| Model | Bently Nevada 330180-52-05 3300 XL Proximitor Sensor |
| System Composition | Includes 1 probe, 1 extension cable, 1 Proximitor sensor |
| Measurement Type | Static (position) and dynamic (vibration) |
| Power Supply | -17.5 Vdc to -26 Vdc, max 12 mA |
| Linear Range | 2 mm (80 mils), recommended gap: 1.27 mm (-9 Vdc) |
| Incremental Scale Factor | 7.87 V/mm ±5% (for 5 m system) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Output Impedance | 50 Ω |
| Probe Cable Type | 75Ω triaxial FEP insulated cable |
| Probe Materials | PPS tip, stainless steel case |
| Tensile Strength | 330 N (probe tip to lead), 270 N (lead to extension connector) |
| Mounting Options | Panel mount or DIN rail (4-hole footprint) |
| Interchangeability | Fully interchangeable with non-XL 3300 5 mm and 8 mm systems |
| Operating Temperature | Probe: -52°C to +177°C, Proximitor: -52°C to +100°C |
| Storage Temperature | Proximitor: -52°C to +105°C |
| Humidity Influence | ASF variation <3% in 93% humidity (IEC 68 2 3) |
| Minimum Target Size | 15.2 mm flat conductive surface |
| Recommended Shaft Diameter | Minimum: 50.8 mm, Recommended: 76.2 mm |
| Minimum Probe Spacing | Radial: 38 mm, Axial: 40 mm |
| Minimum Cable Bend Radius | 25.4 mm |
| Total Length (standard) | 5.0 meters |
| Weight | 0.246 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What measurements does the 330180-52-05 sensor support?
A1: It supports both static (shaft position) and dynamic (vibration) measurements on rotating machinery.
Q2: Is it compatible with non-XL 3300 systems?
A2: Yes, it is fully compatible both electrically and physically with non-XL 5 mm and 8 mm 3300 components.
Q3: What are the mounting options?
A3: The sensor can be panel-mounted or DIN-rail mounted using a 4-hole base.
Q4: What are the operational temperature ranges?
A4: The probe operates from -52°C to +177°C, while the Proximitor sensor operates from -52°C to +100°C.
Q5: Does each component need individual calibration?
A5: No, components are interchangeable and factory-calibrated to AISI 4140 steel.
Q6: How is the output related to the measured distance?
A6: The output voltage is directly proportional to the distance between the probe tip and target surface.
Q7: Does power voltage affect signal output?
A7: The power supply sensitivity is <2 mV/V, so there is negligible effect.
Q8: Does the system comply with API 670?
A8: Yes, the system fully meets the API 670 standard for mechanical configuration, linearity, and thermal stability.
