📘Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330180-90-00 |

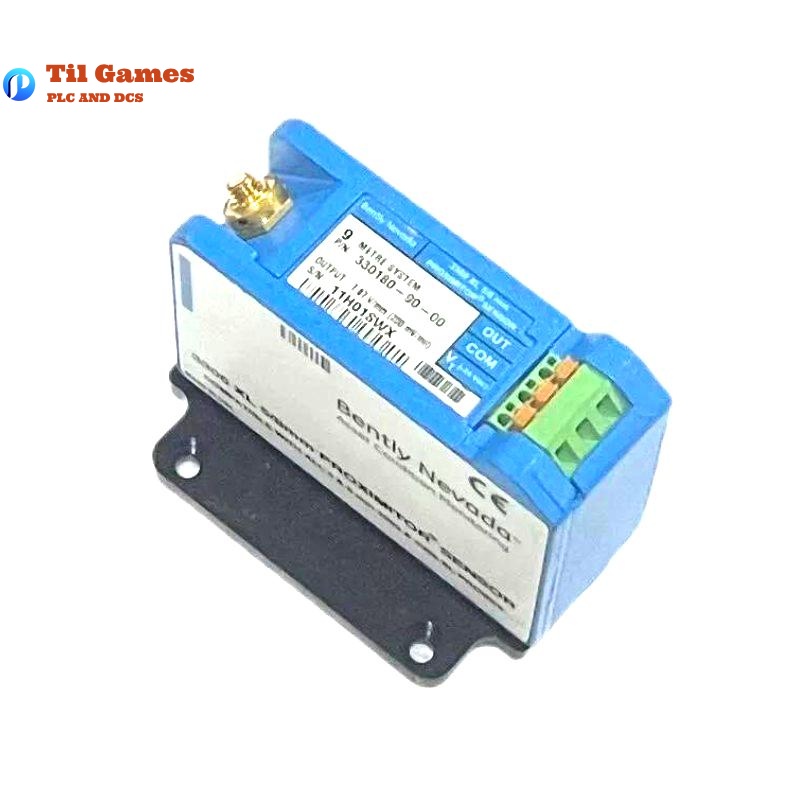

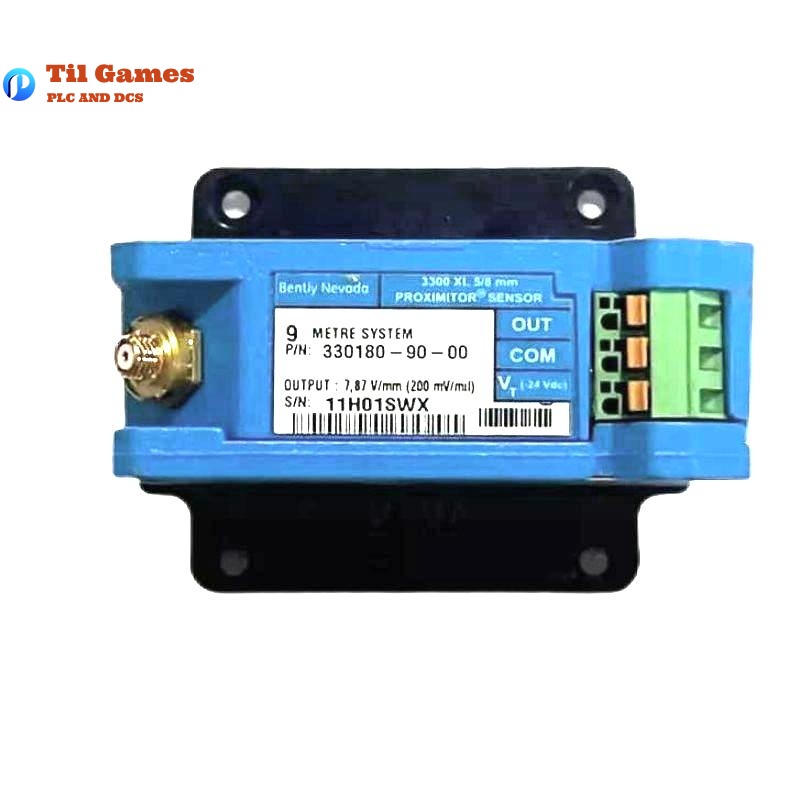

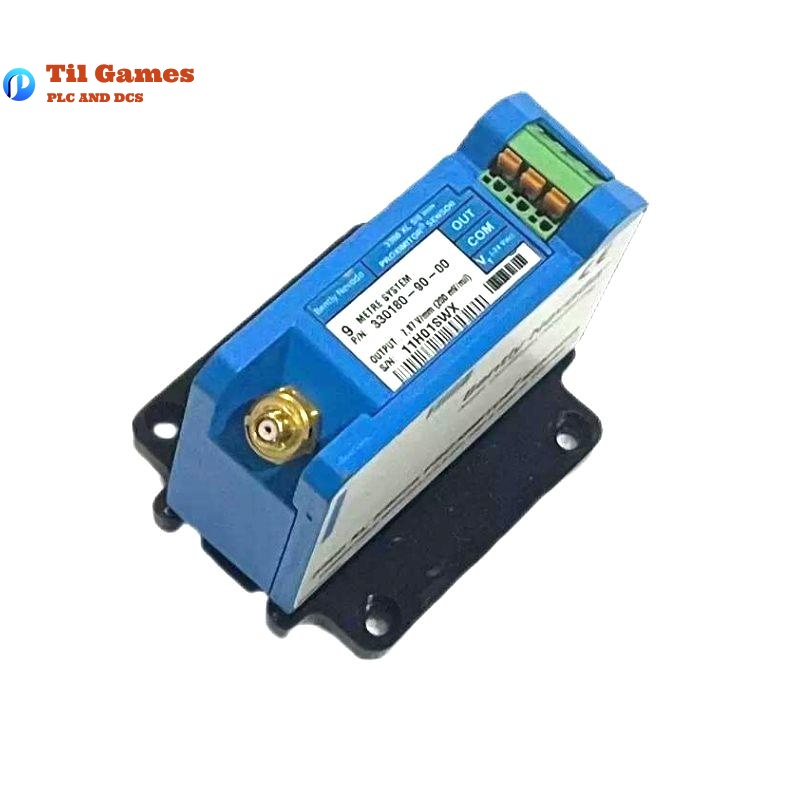

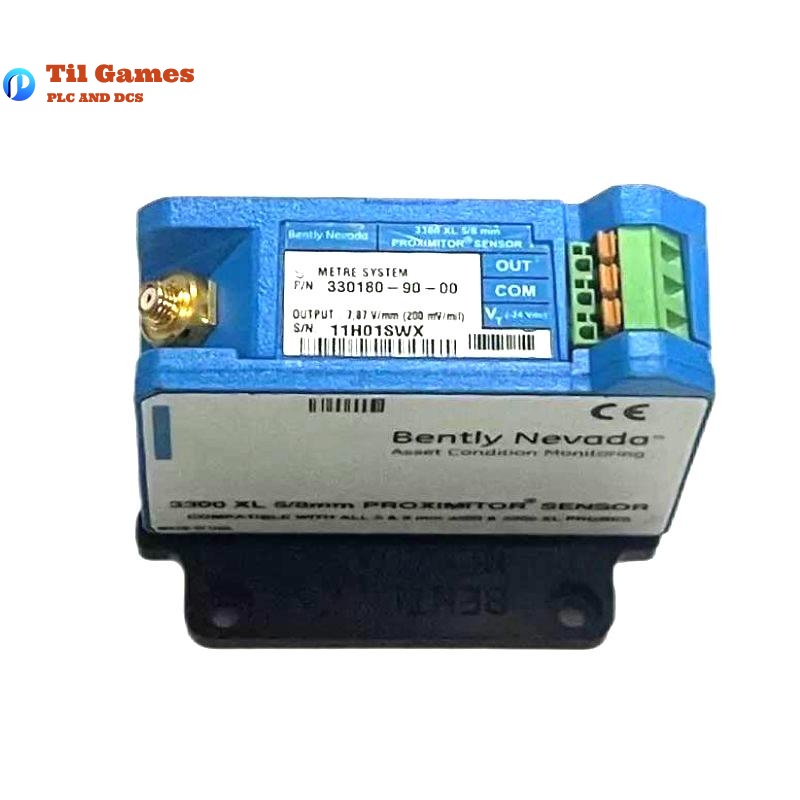

| Product Type | 3300 XL 8 mm Proximitor Sensor |
| Measurement Range | 0.25 mm to 2.3 mm (10 mils to 90 mils) |
| Linear Range | 2.0 mm (80 mils) |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ±6.5% for 9 m system |
| Deviation from Best Fit Line | ±0.038 mm (±1.5 mil) for 9 m system |
| Frequency Response | 0 to 10 kHz, +0, -3 dB (with up to 305 m field wiring) |
| Supply Voltage | –17.5 Vdc to –26 Vdc |
| Power Consumption | Maximum 12 mA |
| Output Resistance | 50 Ω |
| Cable Capacitance | 69.9 pF/m |
| Minimum Target Size | 15.2 mm (0.6 in) flat surface |
| Minimum Shaft Diameter | 50.8 mm (2 in); recommended ≥76.2 mm (3 in) |
| Operating Temperature (Sensor) | –52°C to +100°C |
| Storage Temperature (Sensor) | –52°C to +105°C |
| Operating Temperature (Probe) | –52°C to +177°C (Standard), up to +218°C (ETR) |
| Extension Cable Temperature | –52°C to +177°C (Standard), up to +260°C (ETR) |
| Relative Humidity | ≤3% change in scale factor at 93% RH |
| Total Length | 9.0 meters |
| Total Weight | 0.246 kg (Sensor only) |
| Sensor Housing Material | Aluminum A308 |
| Connector Type | Miniature coaxial ClickLoc, gold-plated |
| Mounting Options | DIN-rail or panel mount |
FAQ
FAQ
Q1: What is the function of the Bently Nevada 330180-90-00 Proximitor Sensor?
A1: It converts the signal from a non-contact probe to a voltage proportional to the distance from the target, supporting vibration and position measurements.
Q2: Is this sensor compatible with other Bently Nevada probes?
A2: Yes, it is compatible with both 3300 XL 8 mm and non-XL 3300 5 mm and 8 mm probes.
Q3: What is the standard measurement range for this sensor?
A3: It measures from approximately 0.25 mm to 2.3 mm (10 to 90 mils).
Q4: What is the recommended power supply voltage?
A4: –23 Vdc to –26 Vdc is recommended, especially when intrinsic safety barriers are used.
Q5: Can the sensor be installed in high EMI environments?
A5: Yes, the sensor is designed with improved RFI/EMI immunity and meets CE standards without requiring shielded conduit.
Q6: What are the mounting options available?
A6: It can be DIN-rail mounted or panel mounted using a 4-hole base.
Q7: What are the environmental limits for operating the sensor?
A7: It operates from –52°C to +100°C for the sensor body and up to +218°C for the ETR probe tip.
Q8: Is recalibration needed when changing components?
A8: No, the 3300 XL system components are fully interchangeable without the need for recalibration.
