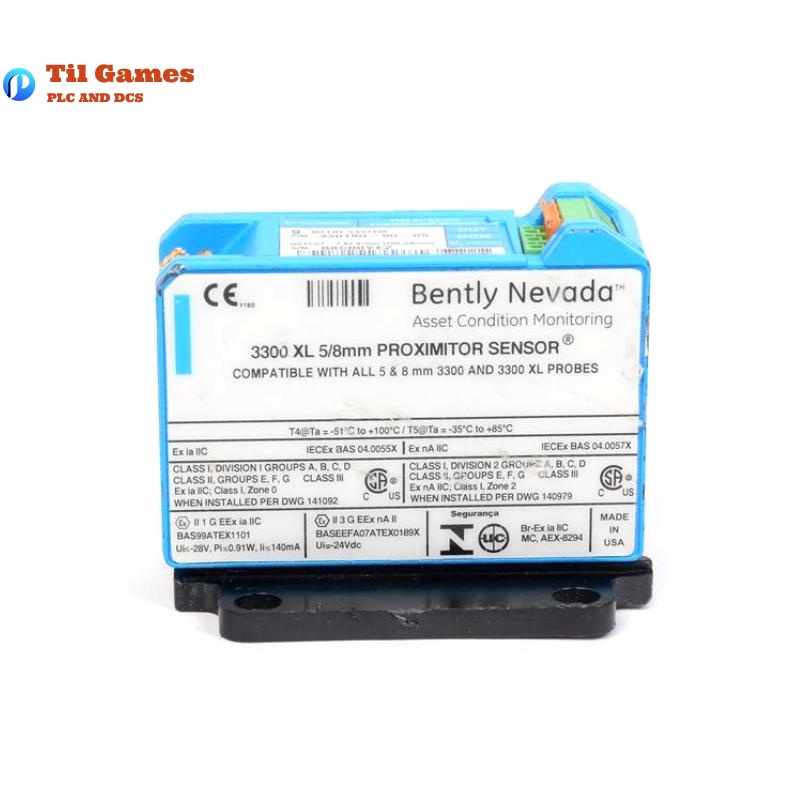

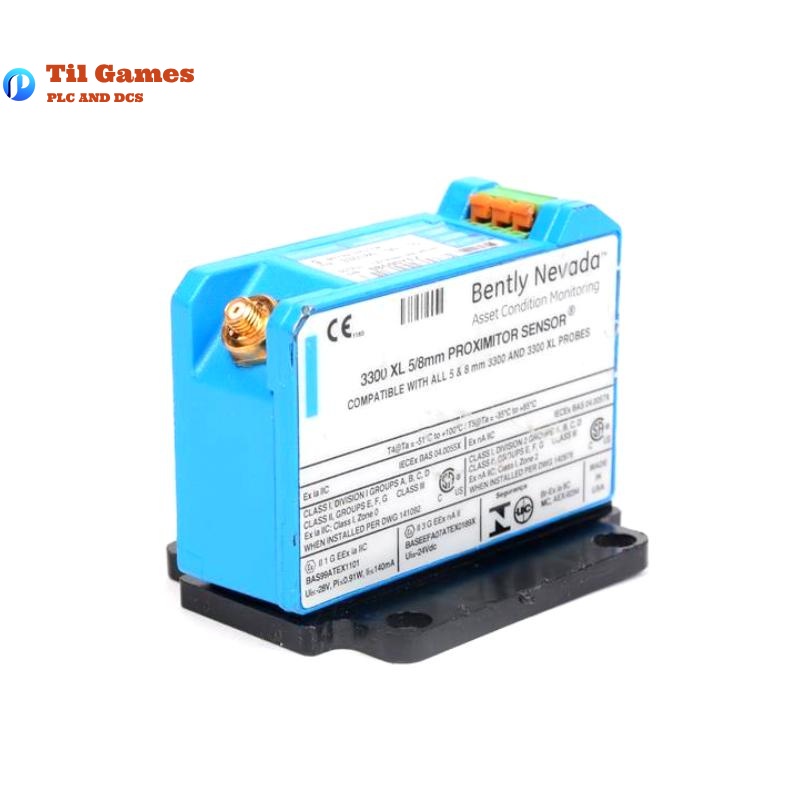

Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330180-90-01 |
| System Total Length | 9.0 meters |
| Probe Diameter | 8 mm |
| Linear Measurement Range | 0.25 mm to 2.3 mm (10 mils to 90 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils), approx. -9 Vdc |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ±6.5% error |
| Output Resistance | 50 Ω |
| Operating Voltage Range | -17.5 Vdc to -26 Vdc |
| Temperature Range (Probe) | -52°C to +177°C (standard) / -52°C to +218°C (ETR probe) |
| Temp. Range (Ext. Cable) | -52°C to +177°C (standard) / -52°C to +260°C (ETR cable) |
| Temp. Range (Sensor) | -52°C to +100°C (operating) / -52°C to +105°C (storage) |
| Recommended Min. Shaft Dia. | 76.2 mm |
| Minimum Target Size | 15.2 mm |
| Protection Rating | IP54 when properly installed |
| Min. Cable Bend Radius | 25.4 mm |
| Total System Weight | 0.7 kg (typical) |
| Sensor Weight | 246 g |
| Dimensions (DIN Mount) | Approx. 89.4 mm L × 35 mm W × 120 mm H |
FAQ
Frequently Asked Questions (FAQ)
Q1: What measurements does the 330180-90-01 support?
A1: It supports non-contact measurements of shaft vibration, axial position, and speed, ideal for fluid-film bearing machines.
Q2: What is the standard linear measurement range?
A2: The linear range is 0.25 mm to 2.3 mm (10 to 90 mils), output voltage from approx. -1 Vdc to -17 Vdc.
Q3: Is it compliant with API 670 standard?
A3: Yes, this model fully meets API 670 requirements for mechanical design, linear range, and accuracy.
Q4: Can it be used with older 3300 series components?
A4: Yes, it is physically and electrically compatible with non-XL 3300 5 mm and 8 mm systems, though performance is limited to the non-XL spec.
Q5: Does the 9-meter system lose accuracy in temperature fluctuations?
A5: Yes, it shows up to ±18% ISF variation and ±0.152 mm DSL error across extended temperature ranges.
Q6: Is the sensor immune to electromagnetic interference?
A6: Yes, the design provides excellent RFI/EMI resistance, suitable for fiberglass housings without additional shielding.
Q7: How are the connectors installed?
A7: The ClickLoc connectors require only finger-tight torque—once you hear a “click”, the connection is secure.
Q8: What is the weight of the system?
A8: Typical total weight is 0.7 kg, with the Proximitor sensor alone weighing approximately 246 g.
