Products Description
| Company Information | |||
| [email protected] | |||
| Mobile | +8613666033393 | ||
| +8613666033393 | |||
| 13666033393 | |||
| Add | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China |
Technical Specifications
| Parameter | Specification |
|---|---|

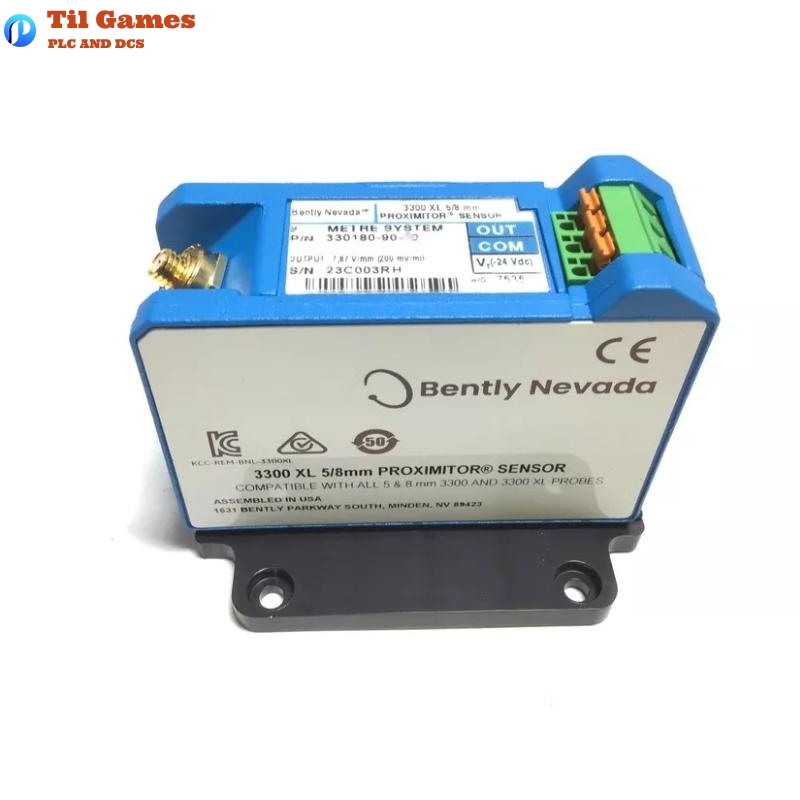

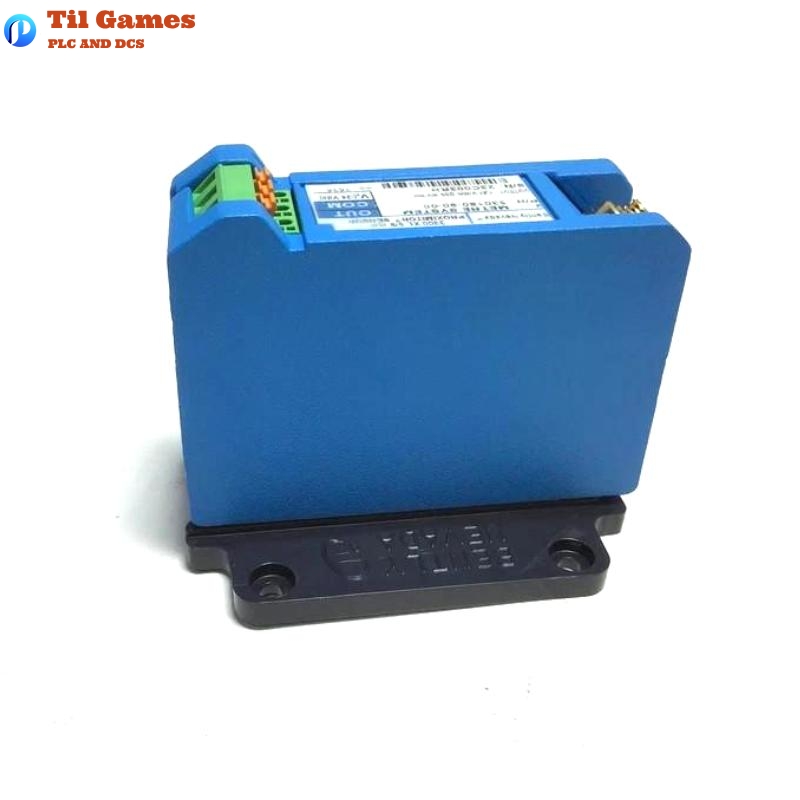

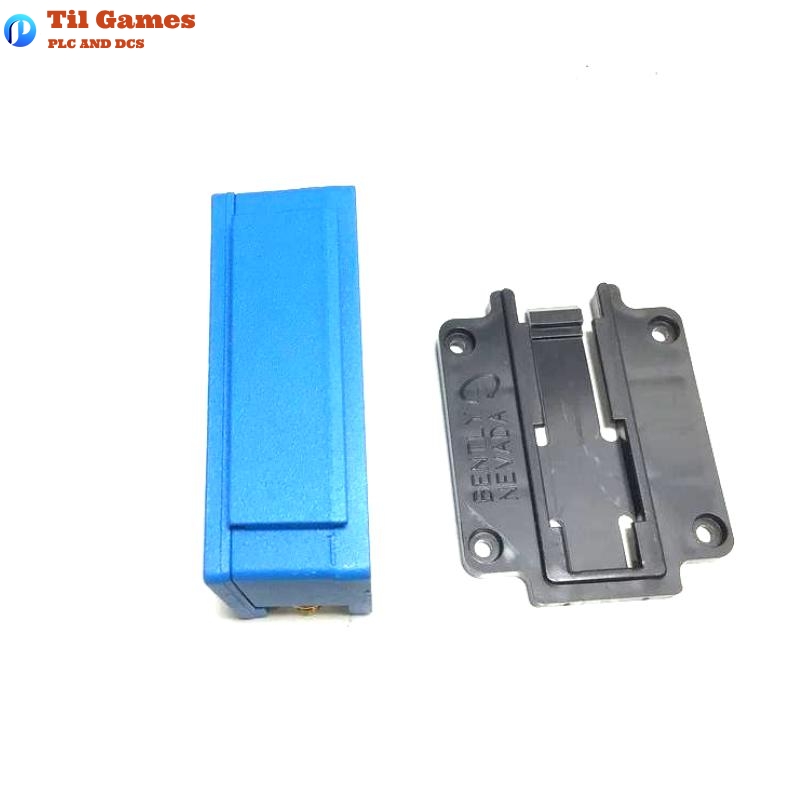

| Model Number | 330180-90-10 |
| System Total Length | 9.0 meters (29.5 feet) |
| Weight (Total System) | 0.7 kg (including sensor, probe, cable) |
| Weight (Sensor Only) | 246 g (0.246 kg) |
| Linear Range | 0.25 mm to 2.3 mm (10 mils to 90 mils) |
| Recommended Gap | 1.27 mm (50 mils), corresponding to –9 Vdc |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±6.5% (9m system) |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Storage Temperature (Sensor) | -52°C to +105°C |
| Power Supply | -17.5 Vdc to -26 Vdc (12 mA max) |
| Output Resistance | 50 Ohms |
| Frequency Response | 0 – 10 kHz (+0/-3 dB) |
| Probe Material | Stainless Steel 303/304, PPS Tip |
| Cable Type | Triaxial FEP insulated (optional PFA for high temp) |
| Bend Radius (Minimum) | 25.4 mm (1.0 in) |

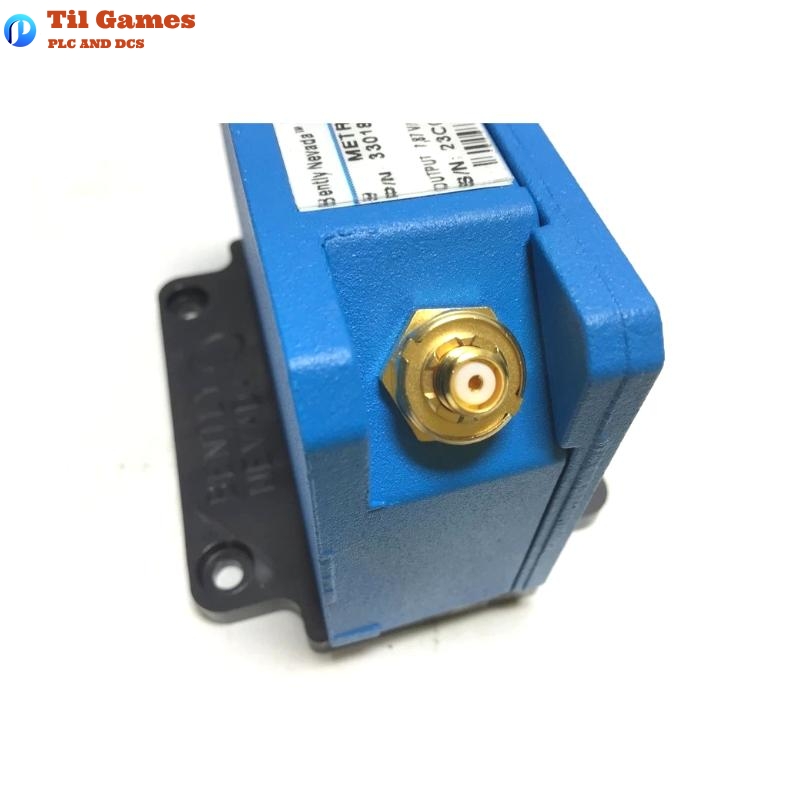

| Connector Type | ClickLoc gold-plated connectors |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the 330180-90-10 sensor?
A1: It is designed for non-contact vibration and position measurement in fluid-film bearing machines.
Q2: Can I use it in high-temperature environments?
A2: Yes, with ETR (Extended Temperature Range) probe and cables, it can operate up to 218°C (probe tip) and 260°C (cable).
Q3: What is the output signal type?
A3: The sensor provides a voltage output proportional to the distance between probe and target, suitable for static and dynamic measurements.
Q4: Is the sensor compliant with API 670?
A4: Yes, the 3300 XL 8 mm system including this sensor is compliant with API 670 standards.
Q5: Are probes and cables interchangeable?
A5: Yes, all 3300 XL components are fully interchangeable with other XL components without recalibration.
Q6: Does the sensor require special installation tools?
A6: No, the SpringLoc terminal strip allows for tool-free wiring.
Q7: What is the recommended shaft size for optimal performance?
A7: Shaft diameter should be at least 76.2 mm (3 inches) for best accuracy.
Q8: Is the sensor resistant to electromagnetic interference?
A8: Yes, it has enhanced RFI/EMI immunity and meets CE standards without needing shielded conduits.
