Technical Specifications
| Parameter Type | Detailed Specification |
|---|---|

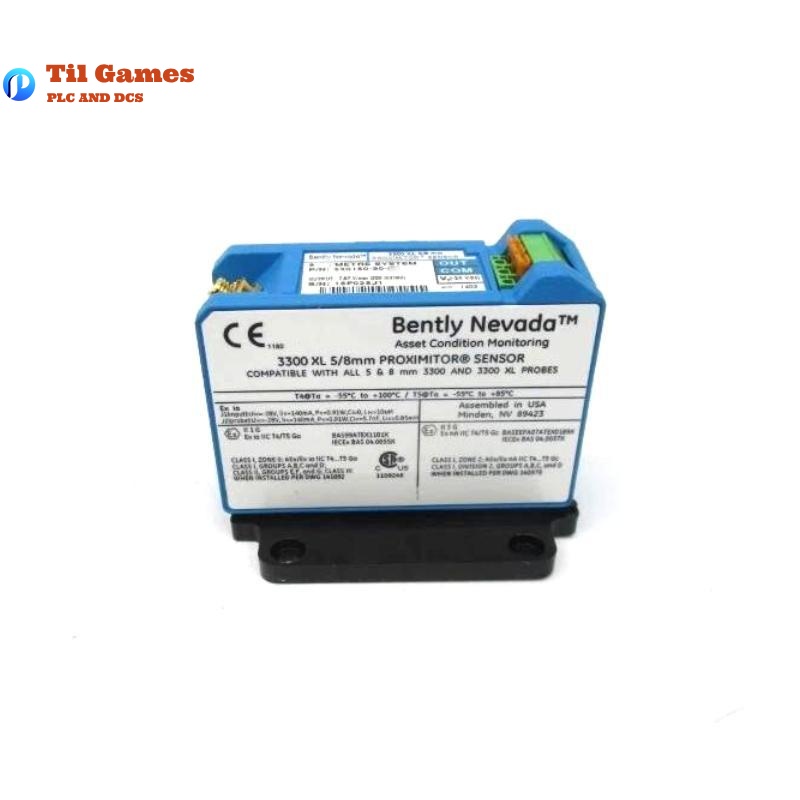

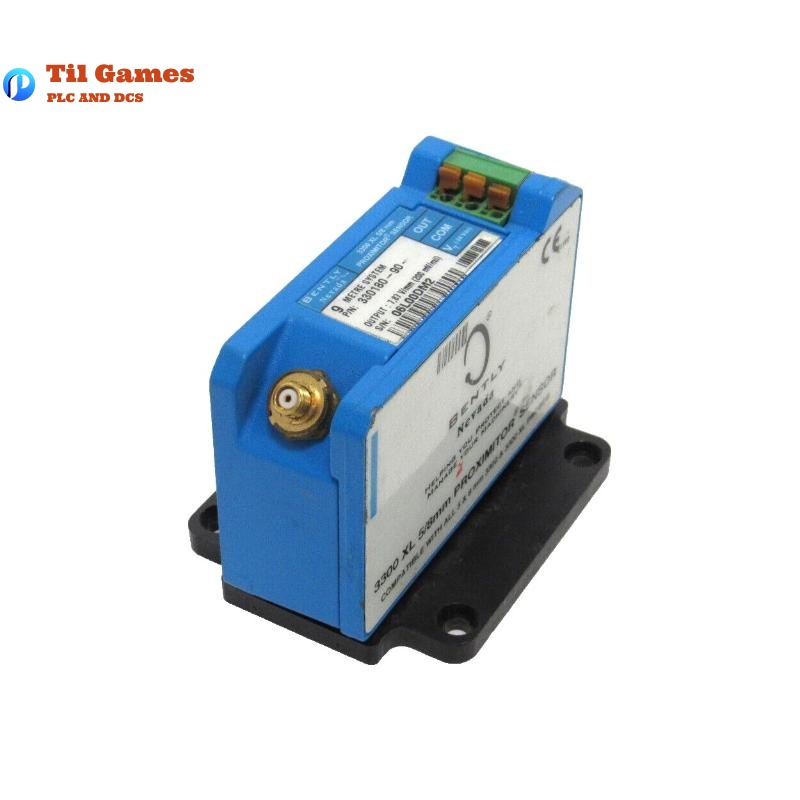

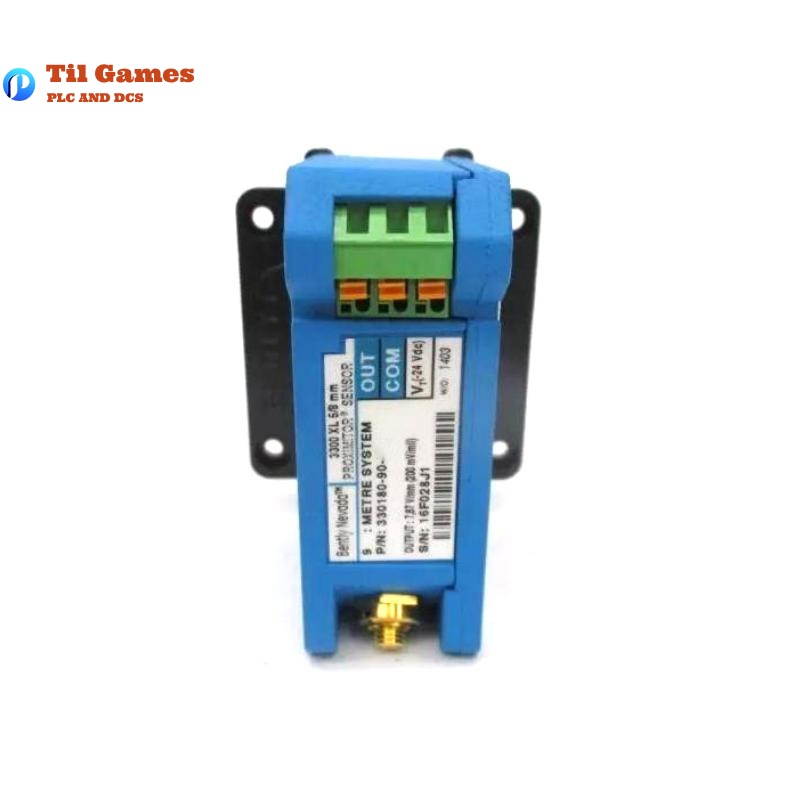

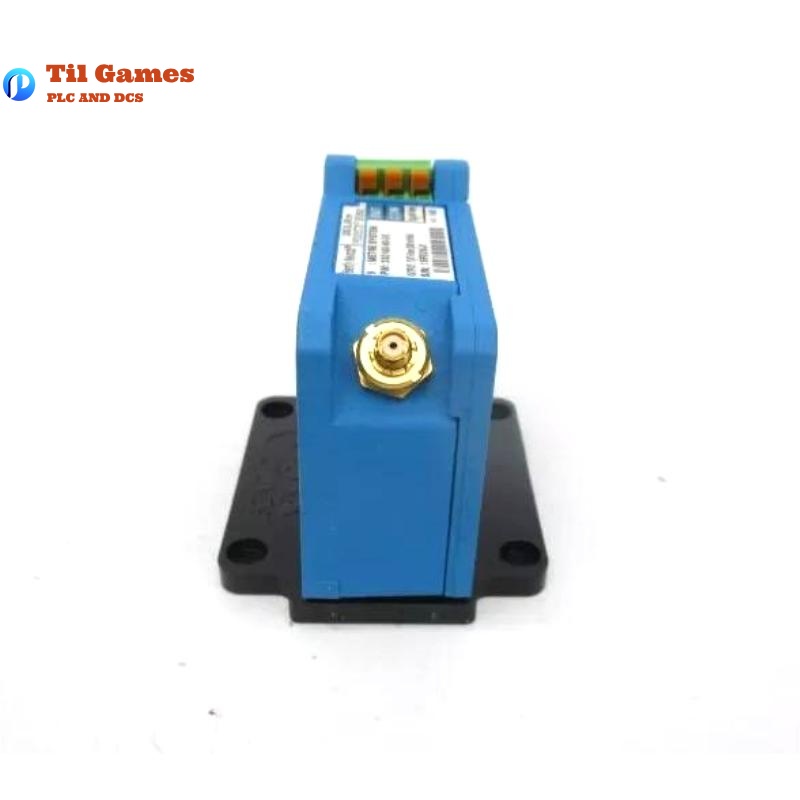

| System Composition | Includes 8 mm Probe + Extension Cable + Proximitor Sensor |
| Measurement Types | Measures both static position and dynamic vibration |
| Power Supply | -17.5 Vdc to -26 Vdc, max current 12 mA |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap | -9 Vdc (approximately 1.27 mm or 50 mils) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±6.5% (for 9-meter system) |
| Frequency Response | 0 to 10 kHz (+0/-3 dB) |
| Recommended Shaft | Minimum shaft diameter 50.8 mm; recommended minimum 76.2 mm |
| Probe Temperature | -52°C to +177°C (standard); up to +218°C (ETR version) |
| Cable Temperature | -52°C to +177°C (standard); up to +260°C (ETR version) |
| Sensor Temperature | Operating: -52°C to +100°C; Storage: -52°C to +105°C |
| Cable Bend Radius | Minimum 25.4 mm |
| Probe Material | PPS tip, SST stainless steel body |
| Cable Type | 75Ω triaxial FEP-insulated cable |
| Total Length | 9.0 meters |
| Total Weight | 0.246 kg |
FAQ
FAQ
Q1: What is the total supported system length for model 330180-90-CN?
A1: This model supports a total system length of 9.0 meters.
Q2: Can the probe, extension cable, and sensor be replaced independently?
A2: Yes. All components are fully interchangeable without recalibration.
Q3: What shaft diameter is recommended for proper operation?
A3: The recommended minimum shaft diameter is 76.2 mm, but it supports as low as 50.8 mm.
Q4: What is the acceptable power supply range?
A4: The unit operates between -17.5 Vdc and -26 Vdc, typically at -24 Vdc.
Q5: What mounting options are supported?
A5: The sensor supports both DIN-rail and panel mounting for high-density applications.
Q6: Does the sensor have RFI/EMI protection?
A6: Yes, it is designed for high immunity against radio-frequency and electromagnetic interference and meets CE requirements.
Q7: Is it suitable for high-temperature applications?
A7: Yes, the ETR version of the probe and cable supports temperatures up to 218°C and 260°C respectively.
Q8: Is this sensor compliant with API 670 standards?
A8: Yes, the 3300 XL 8 mm system meets the API 670 standard for mechanical configuration, linearity, and thermal stability.
