Technical Specifications
| Parameter | Specification |
|---|---|

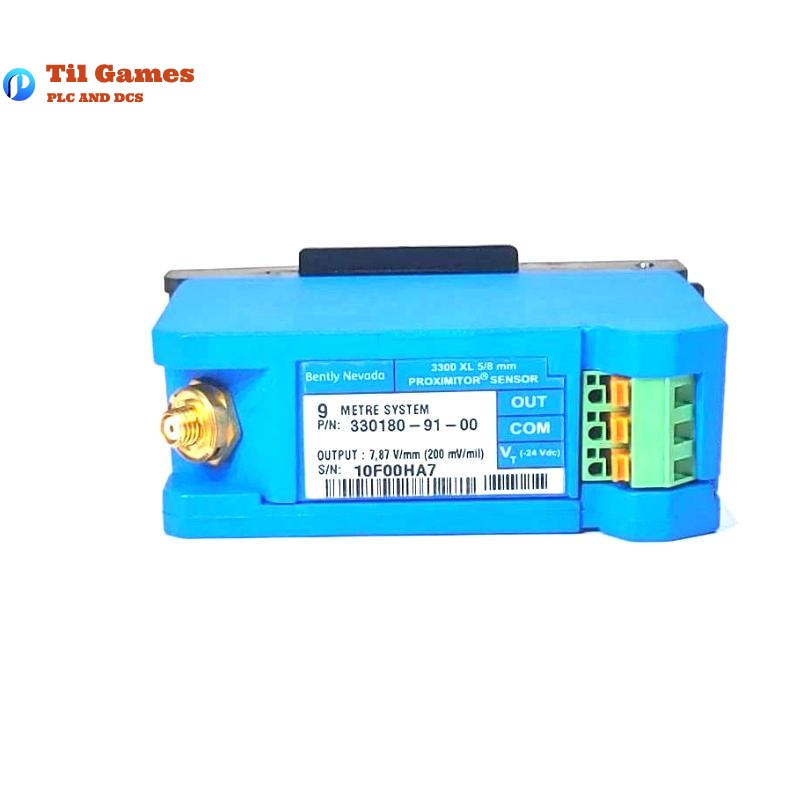

| Product Model | 330180-91-00 |
| Total System Length | 9.0 meters |
| System Components | 8 mm Probe, Extension Cable, Proximitor Sensor |
| Linear Range | 2 mm (80 mils), typical from 0.25 mm to 2.3 mm |
| Recommended Gap Voltage | -9 VDC ≈ 1.27 mm (50 mils) |
| Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ± 6.5% (9m system) |
| Deviation from Best Fit Line (DSL) | ±0.038 mm (±1.5 mils) |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Storage Temperature (Sensor) | -52°C to +105°C |
| Frequency Response | 0–10 kHz, +0/-3 dB (with up to 305m field wiring) |
| Probe Material | PPS tip, 303/304 Stainless Steel case |
| Cable Type | 75Ω triaxial FEP or PFA insulation |
| Environmental Protection | IP54 minimum (panel/DIN mount) |
| Output Resistance | 50 Ω |
| Power Requirement | -17.5 to -26 VDC (12 mA max) |
| Humidity Resistance | <3% change in scale factor @ 93% RH for 56 days |
| Minimum Target Diameter | 15.2 mm (flat), Shaft: ≥50.8 mm (recommended ≥76.2 mm) |
| Electromagnetic Immunity | CE compliant without shielded conduit |
| Mechanical Connector Torque | Max: 0.565 N·m (5 in·lbf) |
| Total Weight | 0.246 kg (Sensor Only), Total System ~0.7 kg |

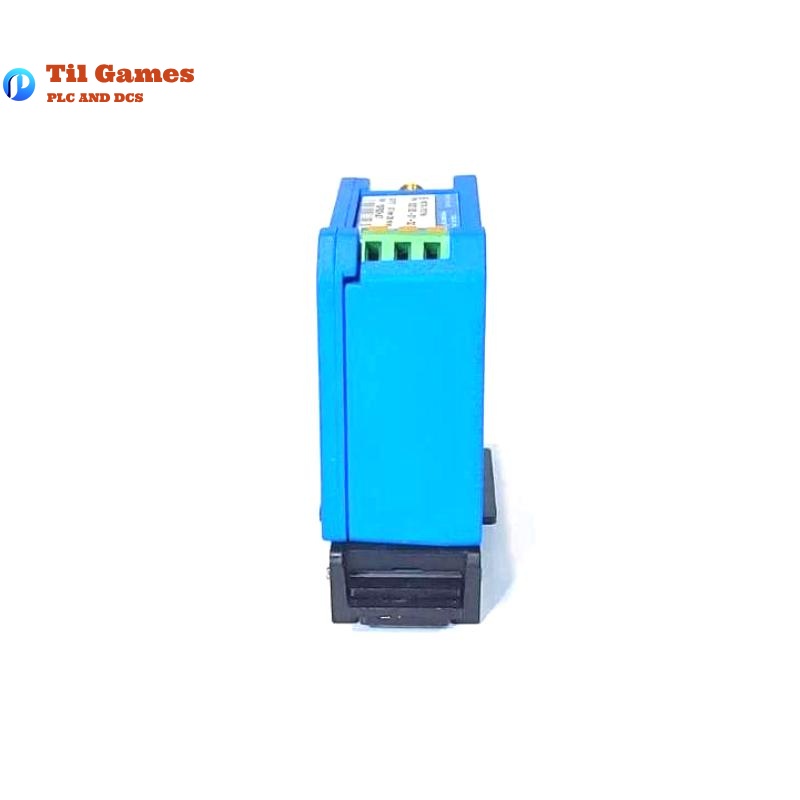

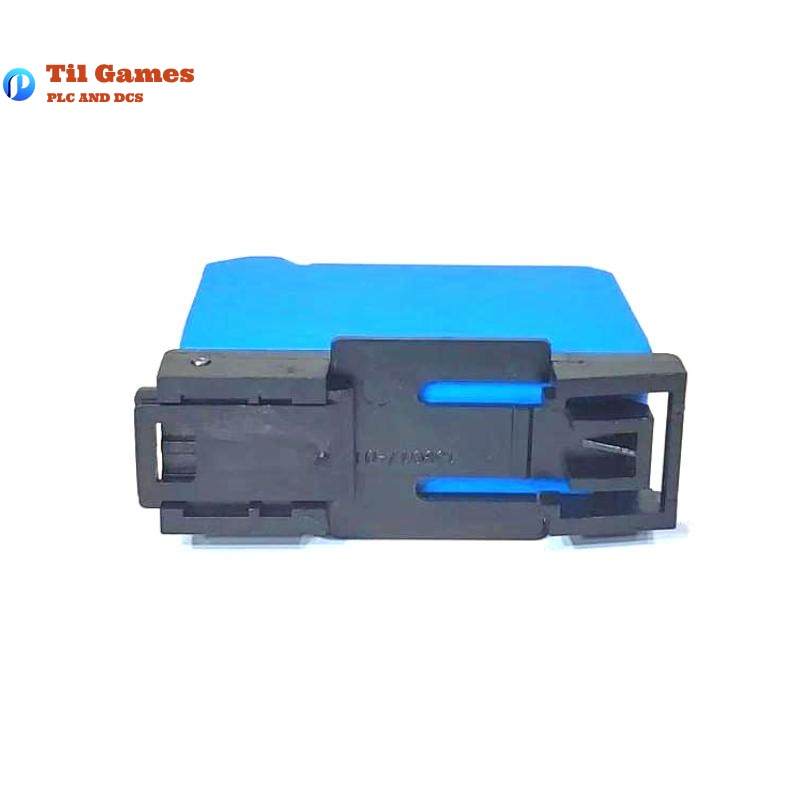

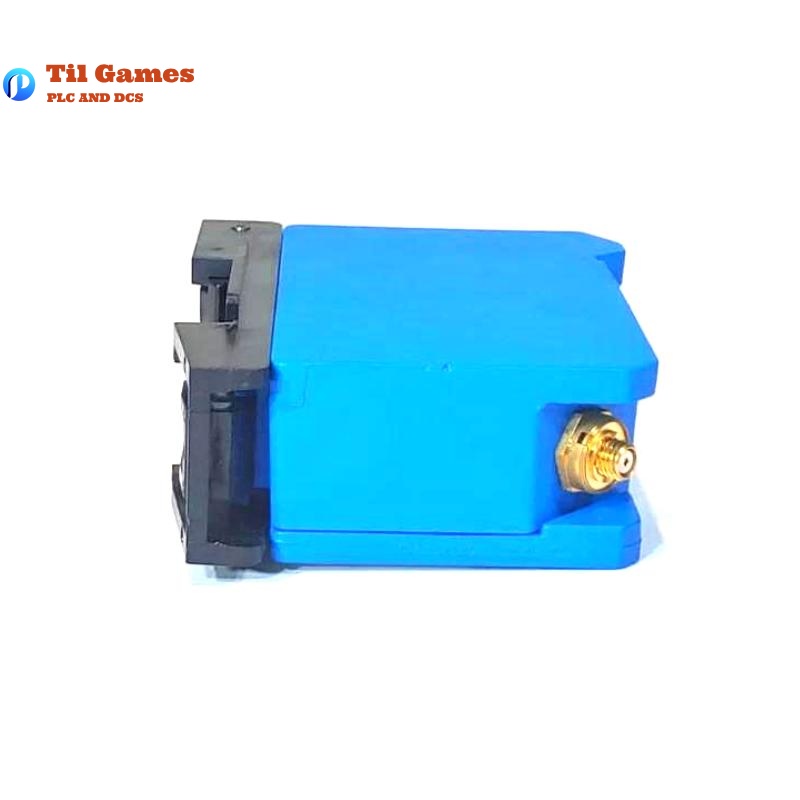

| Dimensions (Sensor Housing) | DIN mount: 89.4 mm (L) × 35 mm (DIN rail width) |
FAQ
FAQs
Q1: What is the total length of the 330180-91-00 Proximitor Sensor system?
A1: The total system length is 9.0 meters, including probe and extension cable.
Q2: Is the 330180-91-00 sensor compatible with non-XL components?
A2: Yes, it is electrically and physically compatible with non-XL 3300 8 mm and 5 mm components.
Q3: What is the output voltage scale factor of this system?
A3: 7.87 V/mm (200 mV/mil) ±6.5% for 9-meter systems.
Q4: Can the sensor operate in high electromagnetic environments?
A4: Yes, it has improved RFI/EMI immunity and meets CE marking without shielded conduit.
Q5: What materials are used for the sensor’s construction?
A5: The probe tip is made of PPS; the case is stainless steel (AISI 303 or 304).
Q6: What are the power requirements for the Proximitor Sensor?
A6: It requires -17.5 VDC to -26 VDC, with 12 mA max current draw.
Q7: What is the recommended minimum shaft diameter for installation?
A7: The shaft should be at least 50.8 mm, with a recommended minimum of 76.2 mm.
Q8: Does the product support hazardous area certifications?
A8: Yes, it supports CSA, ATEX, IECEx for Zone 0, Zone 2, and Division 2 installations.
