Technical Parameter Table
| Category | Specification |
|---|---|
| Model | 330180-91-05 |

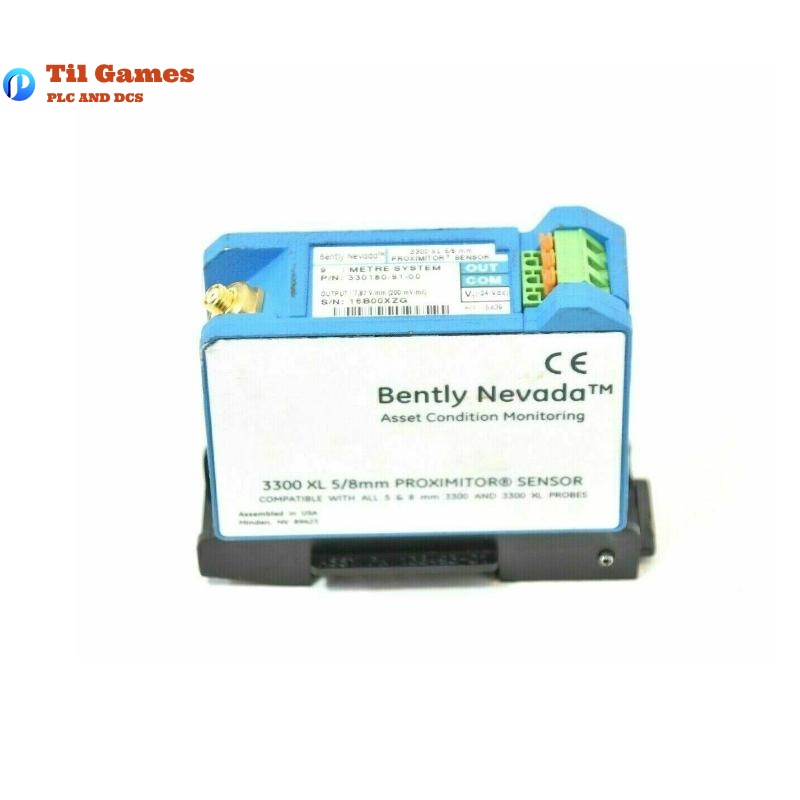

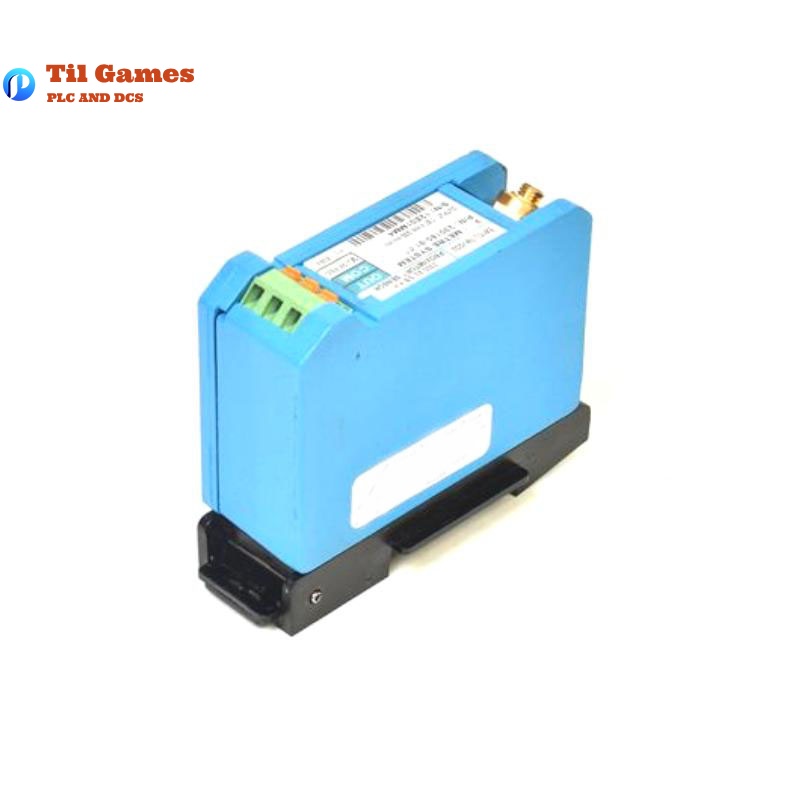

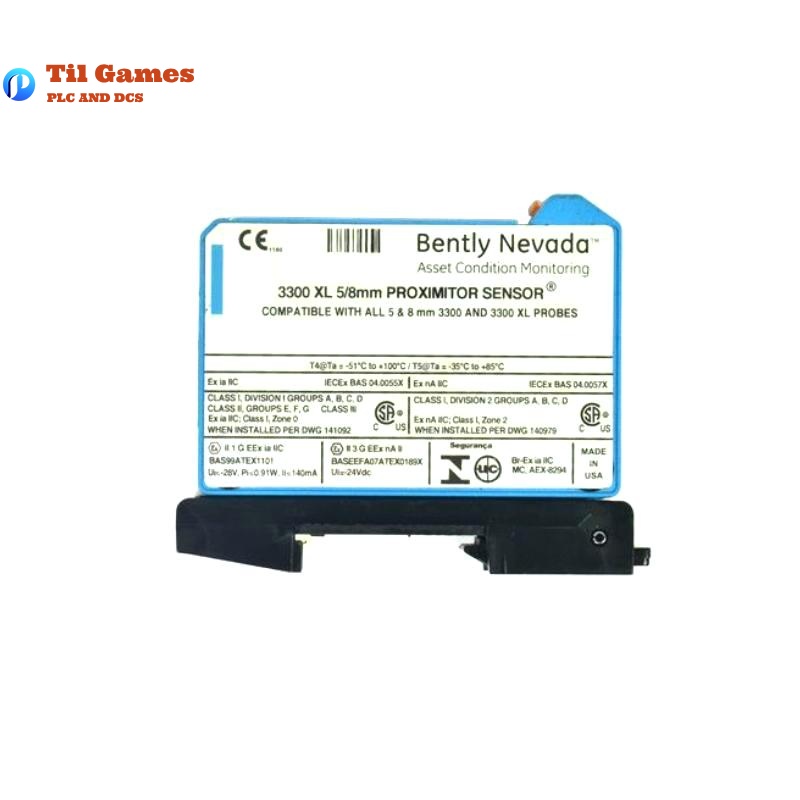

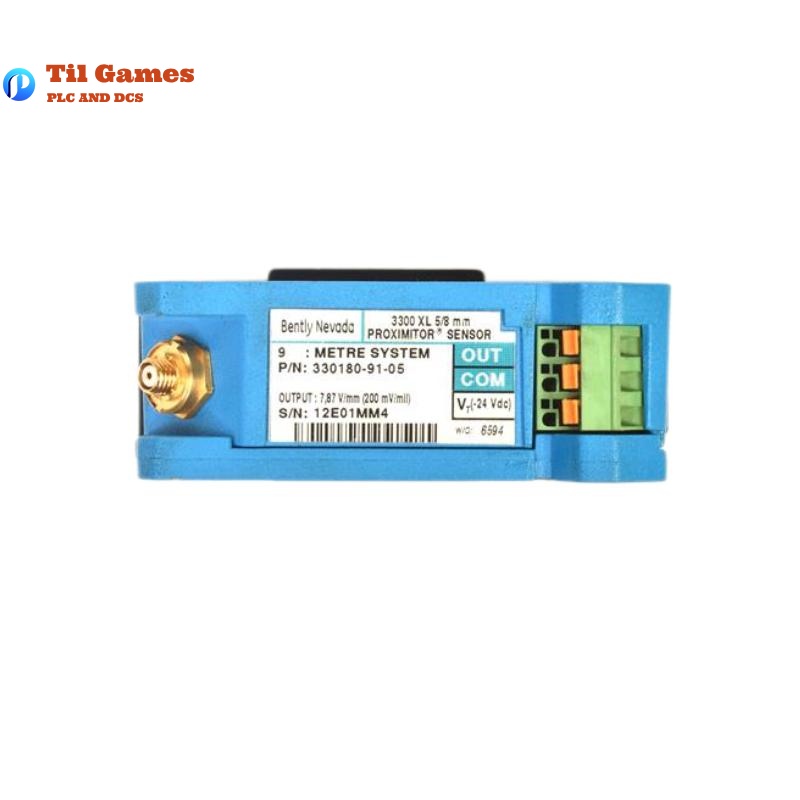

| Product Name | 3300 XL Proximitor Sensor |
| Total Length | 9.0 meters |
| Weight | 0.246 kg (Proximitor Sensor portion) |
| Power Requirement | -17.5 Vdc to -26 Vdc, max current 12 mA |
| Output Resistance | 50 Ω |
| Supply Sensitivity | <2 mV change per volt change in supply |
| Linear Range | 0.25 mm to 2.3 mm (approx. -1 to -17 Vdc) |
| Recommended Gap | -9 Vdc (approx. 1.27 mm) |
| Scale Factor | 7.87 V/mm ±6.5% (200 mV/mil) |
| Accuracy Deviation | Max ±0.038 mm (±1.5 mil) |
| Frequency Response | 0–10 kHz, +0, -3 dB, up to 305 meters of signal cable |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Probe Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | ClickLoc gold-plated coaxial connector |
| Min Target Size | Flat target ≥15.2 mm diameter |
| Recommended Shaft | ≥76.2 mm diameter |
| Operating Temp | -52°C to +100°C (Proximitor Sensor) |
| Storage Temp | -52°C to +105°C |
| Humidity Effect | <3% ASF variation under 93% RH for 56 days (per IEC 68-2-3) |
| Mounting Options | DIN rail or panel mount compatible with older sensors |
| Environmental Prot. | Connector protectors recommended for enhanced protection |
FAQ
Frequently Asked Questions
Q1: Where can this sensor be used?
A1: It is primarily used for vibration and position monitoring in fluid-film bearing machinery, as well as Keyphasor reference and speed applications.
Q2: Is the 330180-91-05 compliant with API 670?
A2: Yes, it complies with API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability.
Q3: Is it compatible with older 3300 series products?
A3: Yes, it is fully electrically and physically compatible with non-XL 3300 5 mm and 8 mm components.
Q4: What are the installation options?
A4: It supports both DIN rail and panel mounting, with a base that matches older sensor footprints.
Q5: Are special tools needed for installation?
A5: No, SpringLoc terminals and ClickLoc connectors allow tool-free, reliable installation.
Q6: How does it perform under high temperature conditions?
A6: Optional ETR (Extended Temperature Range) components are available for up to 218°C (probe) and 260°C (cable).
Q7: Does the system need individual calibration?
A7: No, all components are interchangeable and factory calibrated — no pairing or on-site calibration needed.
Q8: What is the total weight and length of this system?
A8: The total system length is 9 meters, with the Proximitor Sensor weighing 0.246 kg.
