Technical Specifications
| Parameter | Specification |
|---|---|

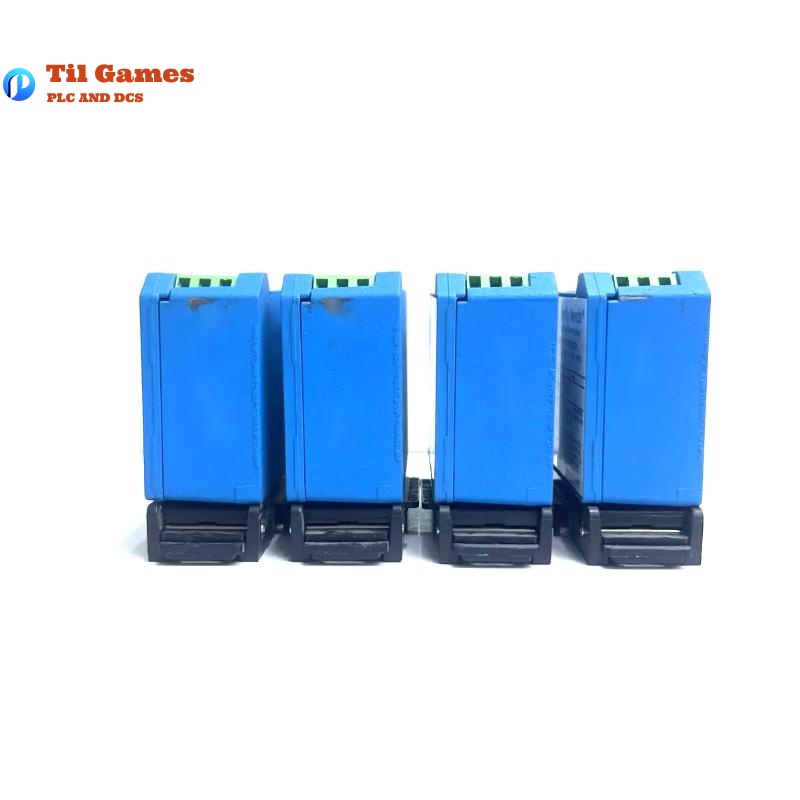

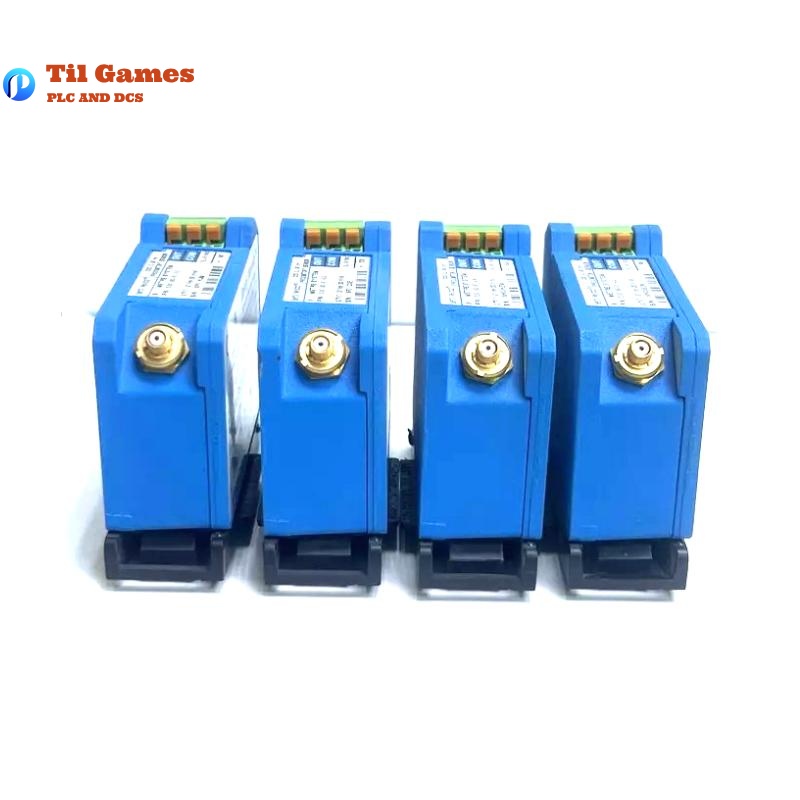

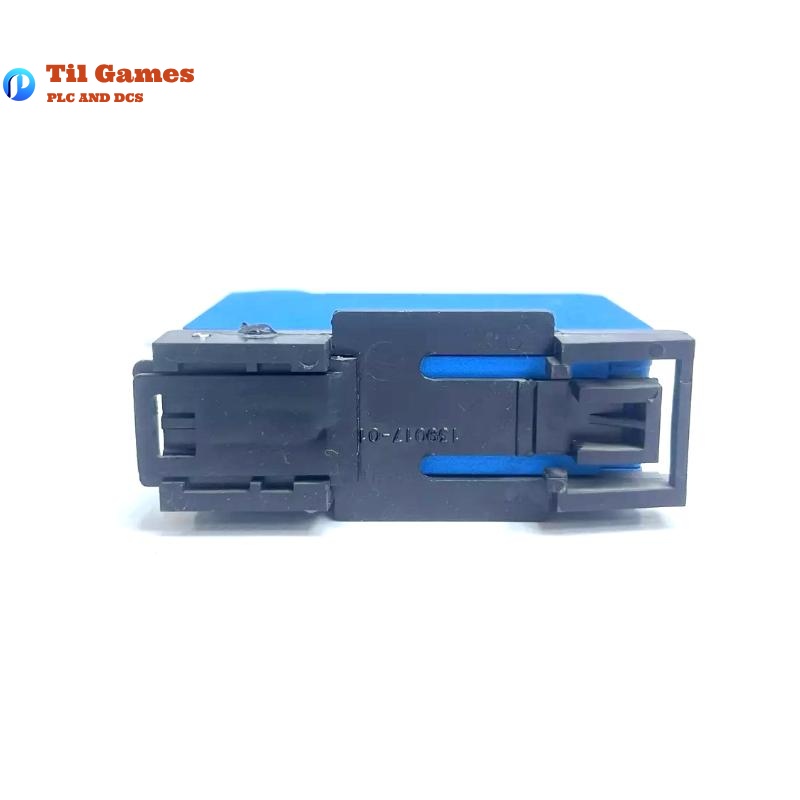

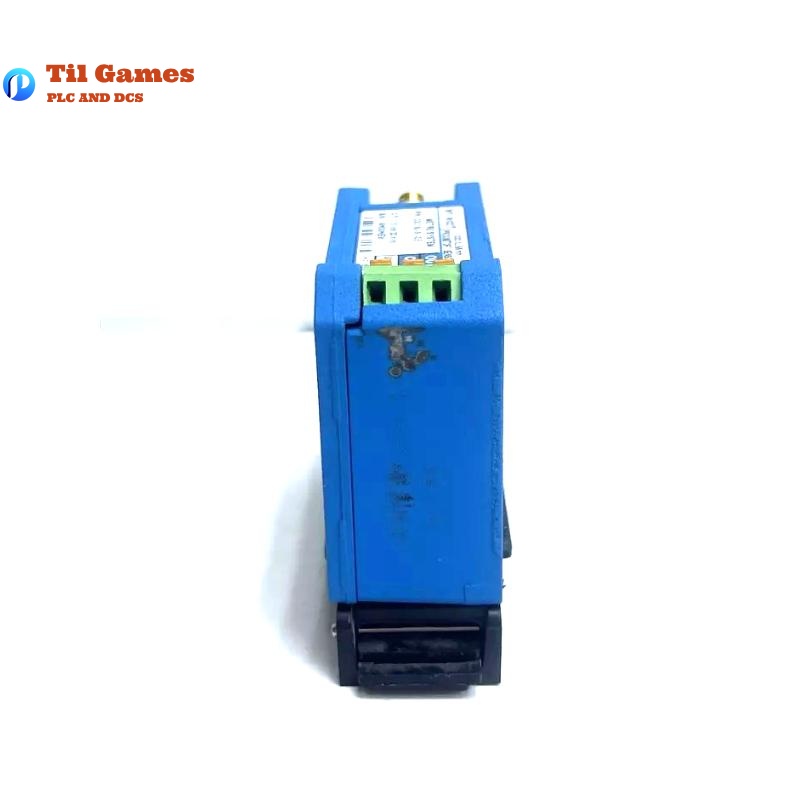

| Model | Bently Nevada 330180-91-BR 3300 XL Proximitor Sensor |
| System Components | Probe, Extension Cable, Proximitor Sensor |
| System Length | 9.0 meters |
| Power Supply Voltage | –17.5 Vdc to –26 Vdc |
| Power Consumption | Max 12 mA |
| Output Resistance | 50 Ω |
| Operating Temperature (Sensor) | –52°C to +100°C |
| Storage Temperature (Sensor) | –52°C to +105°C |
| Linear Range | 0.25 mm to 2.3 mm (10 mils to 90 mils) |
| Recommended Gap | –9 Vdc (≈1.27 mm or 50 mils) |
| ISF (9 m system) | 7.87 V/mm (200 mV/mil) ±6.5% |
| DSL (Deviation from Linearity) | ≤ ±0.038 mm (±1.5 mils) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Extension Cable Type | 75Ω Triaxial, FEP Insulated |
| Minimum Bend Radius | 25.4 mm |
| Minimum Target Size | 15.2 mm diameter |
| Minimum Shaft Diameter | 50.8 mm (Recommended: ≥76.2 mm) |
| Environmental Protection | IP54 (with proper mounting per installation guide) |
| Certifications | CSA, ATEX, IECEx, CE, RoHS, FCC, SIL 2/3 |
| Total Length | 9.0 meters |
| Total Weight | Approx. 0.246 kg (8.67 oz) [Sensor Only] |
FAQ
FAQ
Q1: What is the main application of the 330180-91-BR sensor?
A1: It is primarily used for measuring shaft vibration and position in fluid-film bearing machines.
Q2: Is the system compliant with API 670?
A2: Yes, the standard 5 m and 9 m systems fully meet API 670 mechanical configuration and performance requirements.
Q3: Can I use this sensor in high electromagnetic interference (EMI) environments?
A3: Yes, the sensor has high immunity to RFI/EMI and can be installed without shielded conduit in many cases.
Q4: What is the recommended gap voltage setting for radial vibration measurements?
A4: –9 Vdc, which corresponds to approximately 1.27 mm (50 mils) gap.
Q5: Can I mix XL and non-XL series components in the same system?
A5: While possible, it reduces the system accuracy to that of the older non-XL components.
Q6: Does the sensor support extended temperature operations?
A6: Yes, the ETR (Extended Temperature Range) option supports up to 260°C for cables and 218°C for probes.
Q7: What is the sensor made of?
A7: The Proximitor sensor housing is made of A308 aluminum, with gold-plated brass or beryllium copper connectors.
Q8: What is the minimum shaft size for reliable readings?
A8: The minimum recommended shaft diameter is 76.2 mm (3 inches) to avoid cross-talk and ensure accuracy.
