Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 330180-X0-00 |

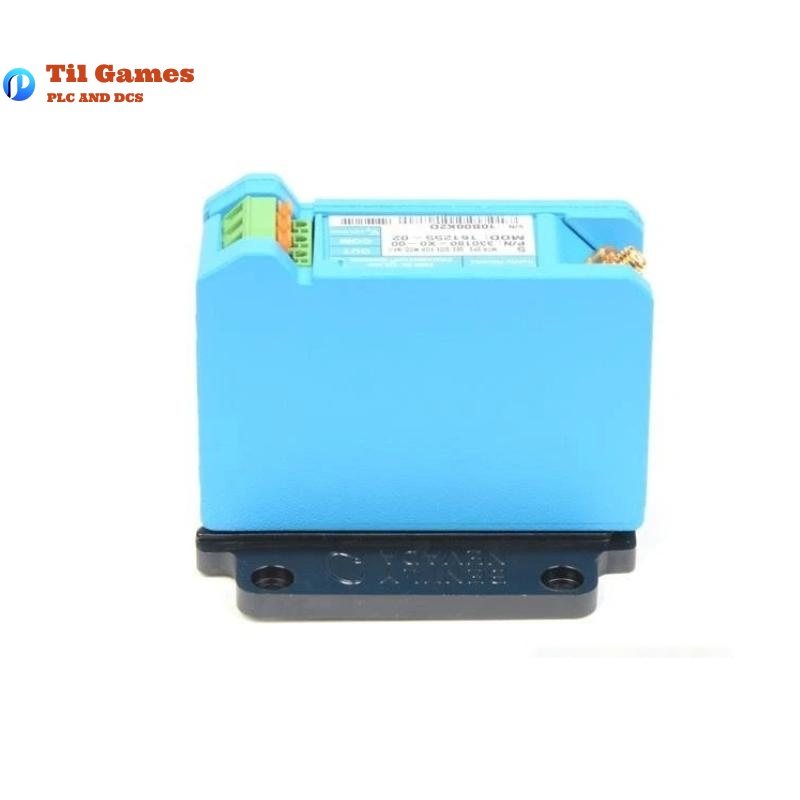

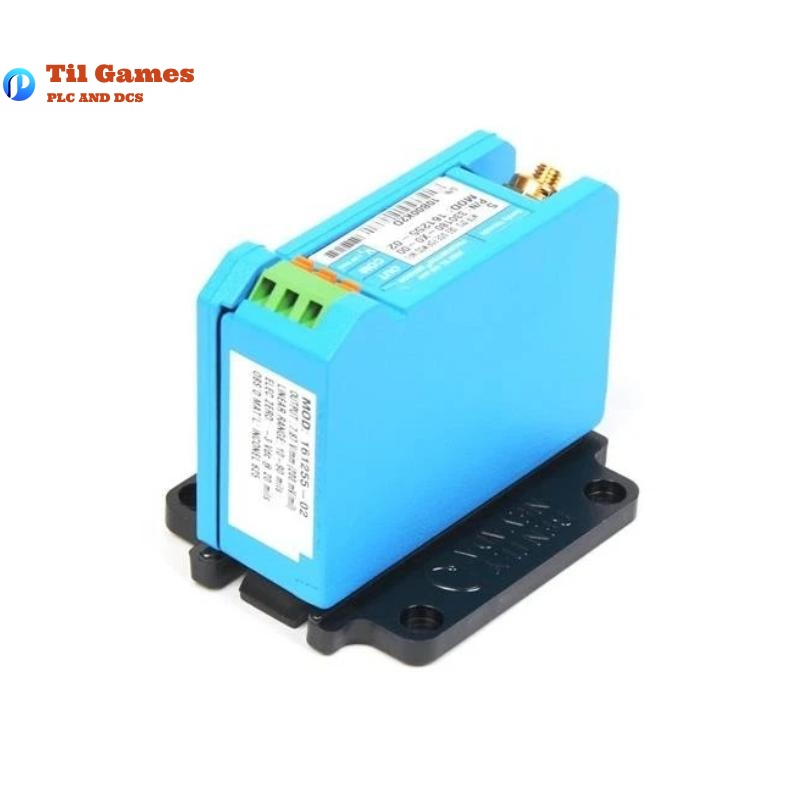

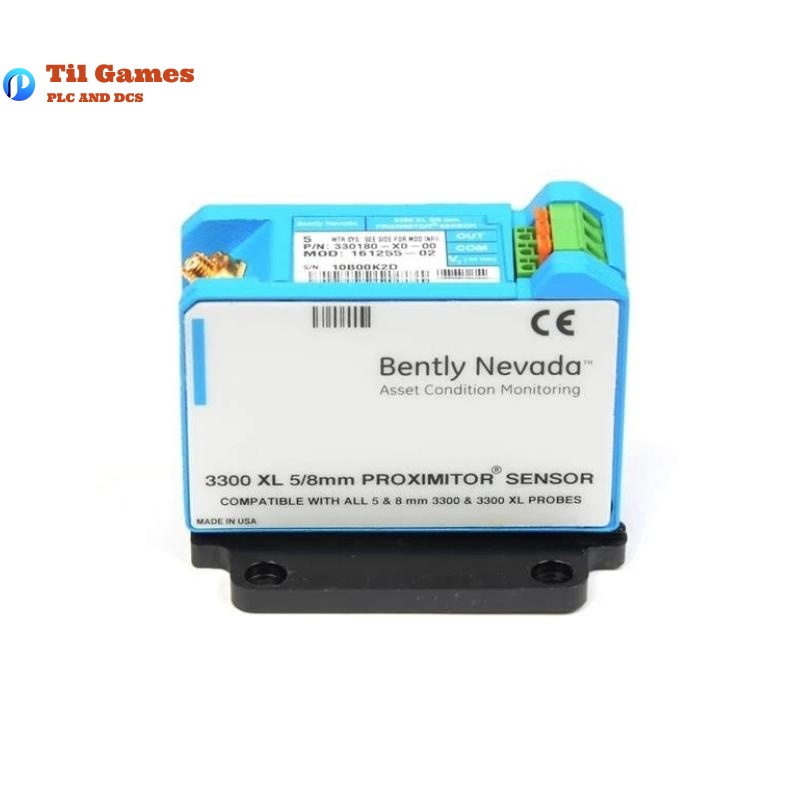

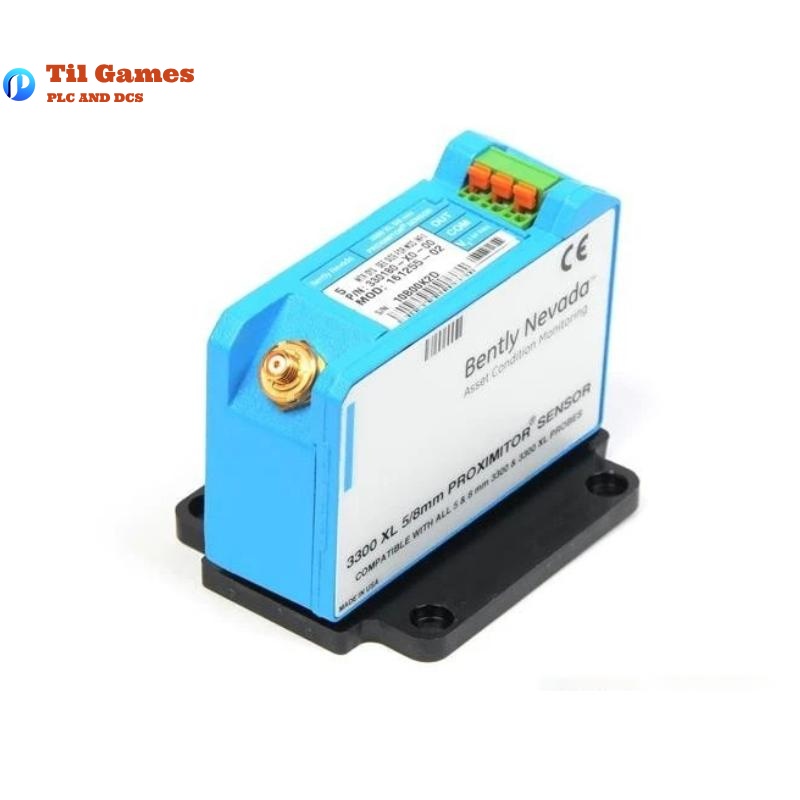

| Type | 3300 XL Proximitor Sensor |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | -9 Vdc (approx. 1.27 mm) |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ± 5% (5 m) / ± 6.5% (9 m) |
| Power Requirement | -17.5 V to -26 V DC (max 12 mA) |
| Frequency Response | 0–10 kHz (+0/-3 dB) |
| Minimum Target Size | 15.2 mm (flat surface) |
| Recommended Shaft Ø | 76.2 mm |
| Connector Type | ClickLoc gold-plated connectors |
| Operating Temp. | -52°C to +100°C |
| Storage Temp. | -52°C to +105°C |
| Mounting Method | DIN rail or panel mount (4-hole base) |
| Housing Material | Aluminum (A308) |
| Weight | 0.246 kg (8.67 oz) |
| Dimensions | 81.3 mm × 35.1 mm × 63.5 mm |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary application of the 330180-X0-00 Proximitor Sensor?
A1: It is used for measuring shaft position and vibration on rotating machinery, especially fluid-film bearing equipment.
Q2: What mounting options are supported?
A2: Supports both DIN rail and panel mounting, with a 4-hole standard base.
Q3: Is it compatible with legacy 3300 series probes?
A3: Yes, it is electrically and physically compatible with 3300 5 mm and 8 mm non-XL components.
Q4: What are the power supply requirements?
A4: Requires -17.5 VDC to -26 VDC, with a maximum current draw of 12 mA.
Q5: What is the recommended gap setting?
A5: -9 Vdc, which corresponds to approximately 1.27 mm (50 mils).
Q6: What is the linear measurement range?
A6: From 0.25 mm to 2.3 mm (10 to 90 mils).
Q7: Is it resistant to electromagnetic interference?
A7: Yes, it offers enhanced RFI/EMI immunity and complies with CE standards without needing shielded conduit.
Q8: Can it be used in high-temperature applications?
A8: Yes, when used with ETR probes and cables, it supports temperatures up to +260°C.
