Product Specifications
| Parameter | Description |
|---|---|

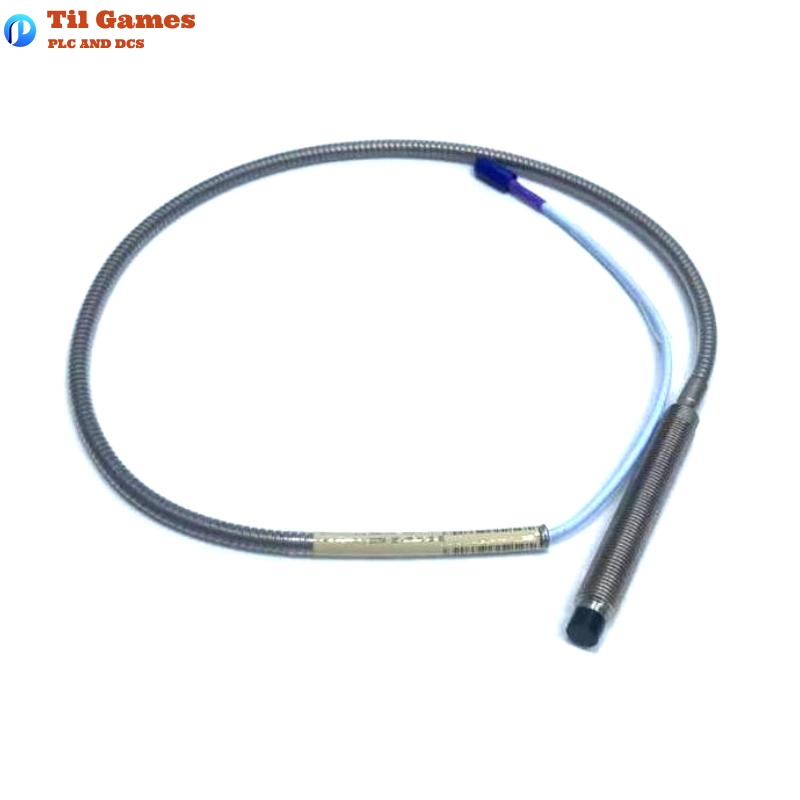

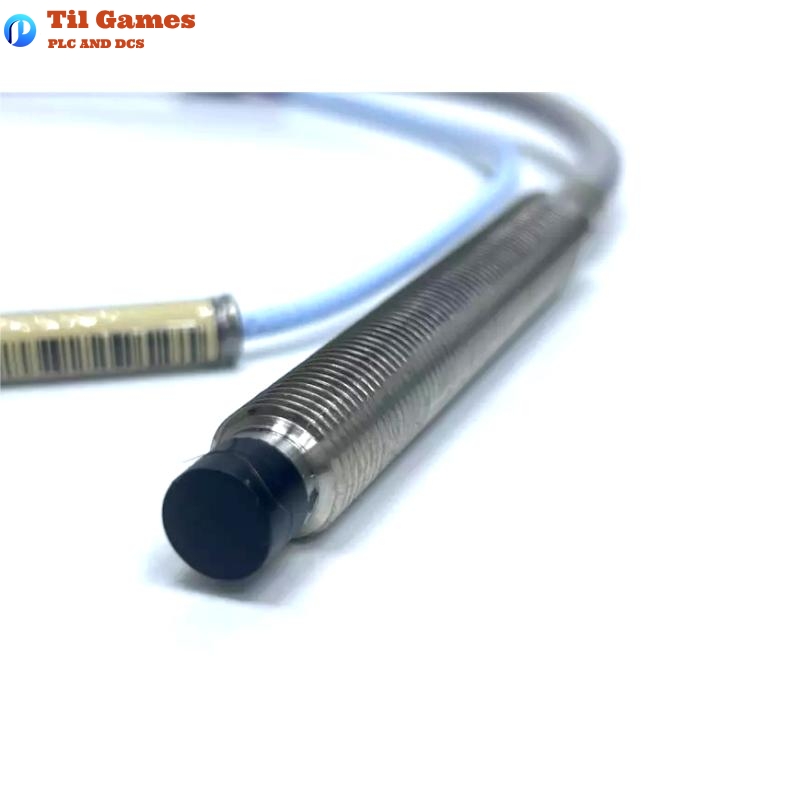

| Product Name | Bently Nevada 330704-000-050-10-02 3300 XL 11 mm Proximity Probe |
| Product Type | 11 mm Proximity Probe with Armor |
| Probe Type | 3300 XL 11 mm Proximity Transducer |
| Operating Temperature | -52°C to +177°C (-62°F to +351°F) |
| Storage Temperature | -52°C to +177°C (-62°F to +351°F) |
| Voltage Input | -17.5 Vdc to -26 Vdc (12 mA maximum current consumption) |
| Operating Current | 12 mA maximum |
| Frequency Range | 0-8 kHz |
| Output Voltage | 3.94 V/mm (100 mV/mil) |
| Maximum Gap | 4.5 mm (180 mils) |
| Linear Range | 4.0 mm (160 mils) |
| Linear Deviation | Standard range: ±0.10 mm (±4 mils); Extended range: ±0.15 mm (±6 mils) |
| Output Resistance | 50 Ω |

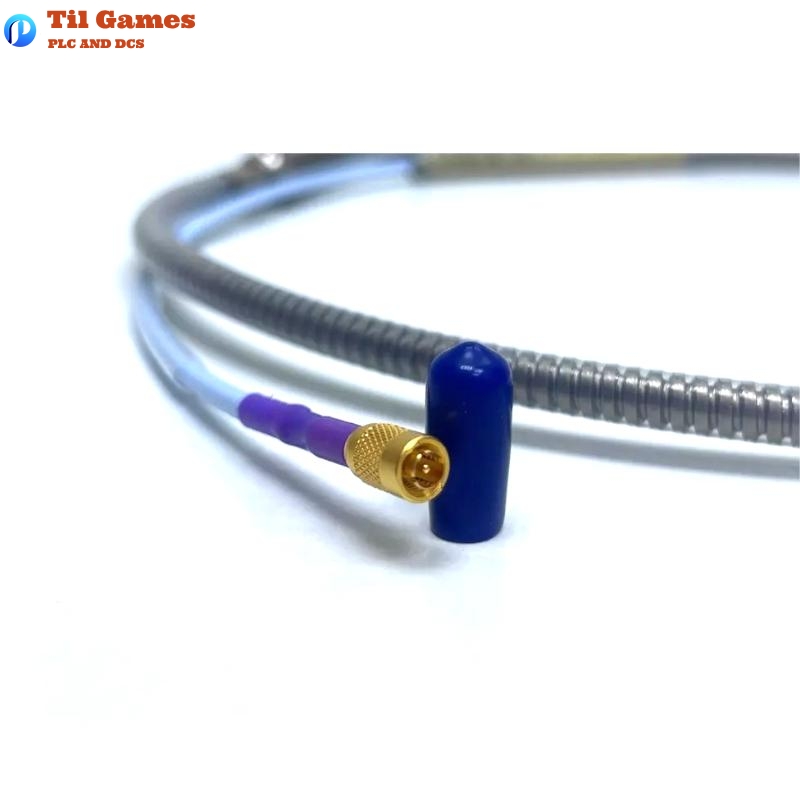

| Cable Type | 75 Ω triaxial cable, fluoropolymer (FEP) insulated |
| Probe Weight | 70 g (2.5 oz) (minimum length probe, without armor) |
| Total Length | 1.0 meter (3.3 feet) |
| Total Weight | 0.17 kg |
FAQ
FAQ (Frequently Asked Questions)
Q1: What are the main applications of the Bently Nevada 3300 XL 11 mm Proximity Probe?
A1: This product is mainly used for non-contact vibration and displacement measurements on fluid film bearing machines, including axial (thrust) position measurements, ramp differential expansion measurements on steam turbines, rod position or rod drop measurements on reciprocating compressors, tachometer and zero speed measurements, and phase reference (Keyphasor) signals.
Q2: What is the operating temperature range for this product?
A2: The operating temperature range is from -52°C to +177°C (-62°F to +351°F).
Q3: Which monitoring systems are compatible with the 3300 XL 11 mm Proximity Probe?
A3: The probe is compatible with both 3300 and 3500 monitoring systems, though updating the configuration software for compatibility may be required.
Q4: What is the linear range of the 3300 XL 11 mm Proximity Probe?
A4: The linear range is 4.0 mm (160 mils), beginning approximately 0.5 mm (20 mils) from the target and extending to 4.5 mm (180 mils).
Q5: What type of cable is used with the 3300 XL 11 mm Proximity Probe?
A5: The cable is a 75 Ω triaxial cable with fluoropolymer (FEP) insulation.
Q6: What is the output voltage of the 3300 XL 11 mm Proximity Probe?
A6: The output voltage is 3.94 V/mm (100 mV/mil), including interchangeability error.
Q7: What environments is this product suitable for?
A7: This product is suitable for industrial environments with high immunity to electromagnetic interference (EMI) and radio-frequency interference (RFI), and it can operate in high temperatures and humidity conditions, meeting CE certification requirements.
Q8: What is the maximum thread engagement for this probe?
A8: The maximum thread engagement depends on the thread type: for the 1/2-20 UNF threaded probe, it is 0.75 inches; for the M14 x 1.5 threaded probe, it is 21 mm.
