Technical Specifications
| Parameter | Description |
|---|---|
| Total Length | 1.0 meter (3.3 feet) |
| Weight | 0.17 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 304 stainless steel (SST) |
| Probe Cable Specification | 75 Ω triaxial, FEP insulated |
| Extension Cable Length | 4.0 meters (13.1 feet) / 8.0 meters (26.2 feet) |
| Extension Cable Armor (optional) | AISI 302 SST with FEP outer jacket |
| Probe Cable Tensile Strength | 330 N (75 pounds) |

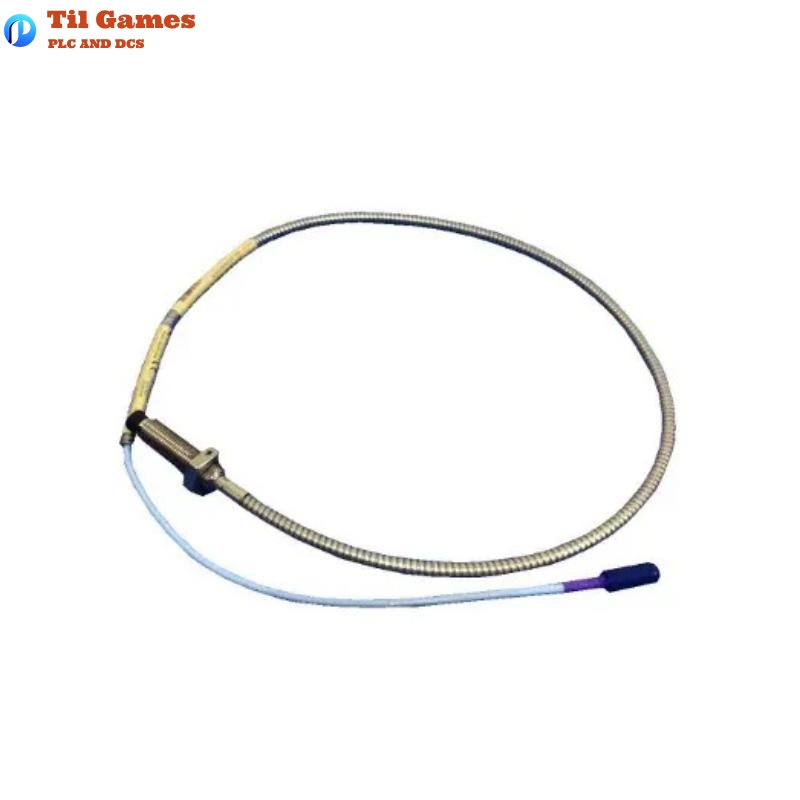

| System Weight (Typical) | Probe: 70 g (non-armored) / 170 g (armored) |
| Operating Temperature Range | -52°C to +177°C (-62°F to +351°F) |
| Storage Temperature Range | -52°C to +177°C (-62°F to +351°F) |
| Linear Range | 0.5 mm to 4.5 mm (20 mils to 180 mils) |
| Incremental Scale Factor (ISF) | 3.94 V/mm (100 mV/mil) ±10% |
| Frequency Response | 0 to 8 kHz |
| Shaft Diameter (Min) | 152 mm (6.0 in) |
| Target Size (Min) | 30.5 mm (1.2 in) |
FAQ
FAQ
-
Q: What applications is the 3300 XL 11 mm Proximity Probe used for?
-
A: The probe is used for axial position measurements, ramp differential expansion measurements on steam turbines, rod position or rod drop measurements on reciprocating compressors, tachometer and zero-speed measurements, and phase reference (Keyphasor) signals.
-
-
Q: What is the typical frequency response of the 3300 XL 11 mm Proximity Probe?
-
A: The typical frequency response is 0 to 8 kHz.
-
-
Q: What materials are used for the probe tip and case?
-
A: The probe tip is made from polyphenylene sulfide (PPS), and the case is made from AISI 304 stainless steel (SST).
-
-
Q: What is the recommended gap setting for the probe?
-
A: The recommended gap setting is 2.5 mm (100 mils).
-
-
Q: What is the maximum operating temperature of the probe?
-
A: The maximum operating temperature for the probe is +177°C (+351°F).
-
-
Q: What is the weight of the probe?
-
A: The weight of the probe is 70 g (2.5 oz) for the non-armored version and 170 g (6.0 oz) for the armored version.
-
-
Q: Can the 3300 XL 11 mm Proximity Probe be used with non-Bently Nevada monitoring systems?
-
A: No, when upgrading from older systems, you must use the 3300 XL 11 mm components and ensure that the monitoring system is compatible, especially for 3500 Monitoring Systems.
-
-
Q: What is the recommended minimum shaft diameter for use with this probe?
-
A: The recommended minimum shaft diameter is 152 mm (6.0 in).
-
