Technical Specifications
| Item | Specification |
|---|---|
| Model | 330780-50-00 |

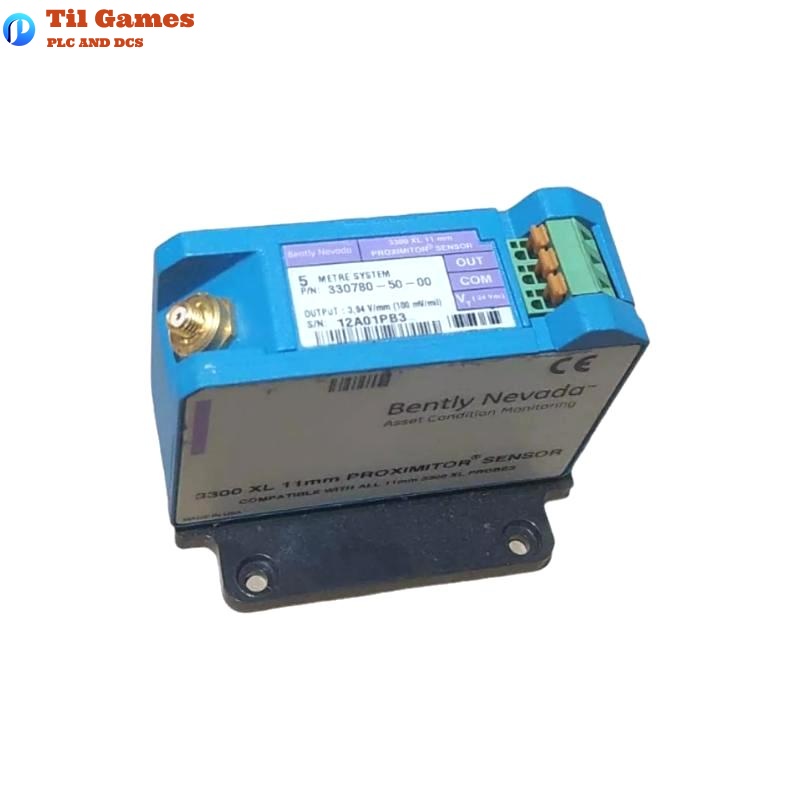

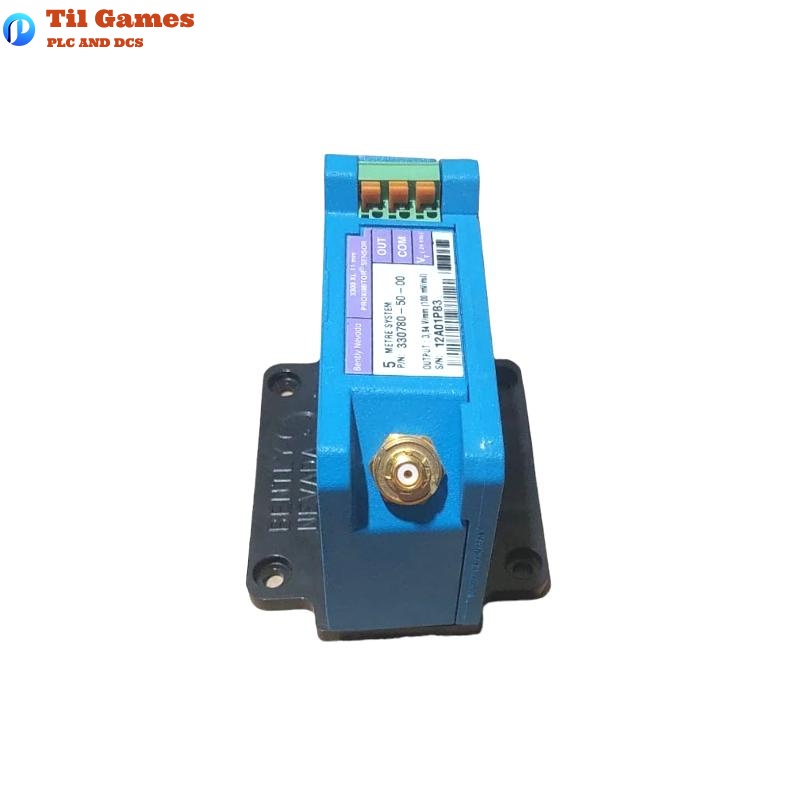

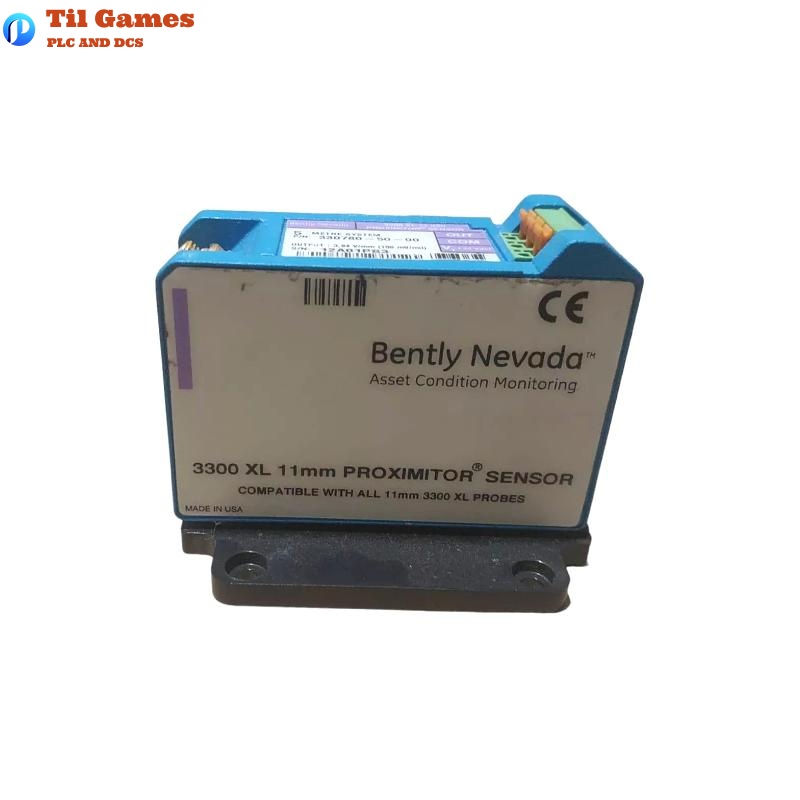

| Sensor Type | 3300 XL 11 mm Proximitor Sensor |
| Total System Length | 5.0 meters |
| Total Weight | 0.255 kg |
| Output Sensitivity | 3.94 V/mm (100 mV/mil) ±10% |
| Linear Range | 0.5 mm to 4.5 mm (20 mils to 180 mils) |
| Recommended Gap | 2.5 mm (100 mils) |
| Frequency Response | 0 to 8 kHz (+0, -3 dB typical) |
| Operating Temp (Proximitor) | -52°C to +100°C |
| Storage Temp (Proximitor) | -52°C to +105°C |
| Operating Temp (Probe) | -52°C to +177°C |
| Storage Temp (Probe) | -52°C to +177°C |
| Humidity | 100% condensing, non-submersible (connectors must be protected) |
| Power Requirement | -17.5 Vdc to -26 Vdc, max current 12 mA |
| Output Impedance | 50 ohms |
| Proximitor Housing Material | A380 aluminum |
| Probe Case Material | AISI 304 stainless steel |
| Cable Type | 75-ohm triaxial FEP-insulated (optional armored) |
| Min Bend Radius | 25.4 mm |
| Cable Tensile Strength | 330N (probe to lead), 270N (lead to extension cable connectors) |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is the 330780-50-00 sensor backward-compatible with the older 7200 series?
A1: No, all components of the 3300 XL 11 mm system must be used together; 7200 series components are not compatible.
Q2: What is the sensitivity of the output signal?
A2: The output sensitivity is 3.94 V/mm (100 mV/mil) ±10%.
Q3: What is the recommended gap between the probe and the target?
A3: The recommended gap is 2.5 mm (100 mils).
Q4: Can it be used for axial position and Keyphasor measurements?
A4: Yes, it is suitable for axial position, Keyphasor, speed, and thrust measurements.
Q5: What is the maximum field wiring length supported?
A5: Up to 305 meters (1,000 feet), depending on signal frequency.
Q6: Is this product suitable for use in humid environments?
A6: Yes, with proper connector protection to prevent water ingress.
Q7: Can the sensor operate in high EMI environments?
A7: Yes, it features enhanced EMI/RFI immunity and meets CE requirements.
Q8: Is hazardous area certification available?
A8: Yes, it has multiple ATEX, IECEx, and North American hazardous area certifications (ia, nA, ec types).
