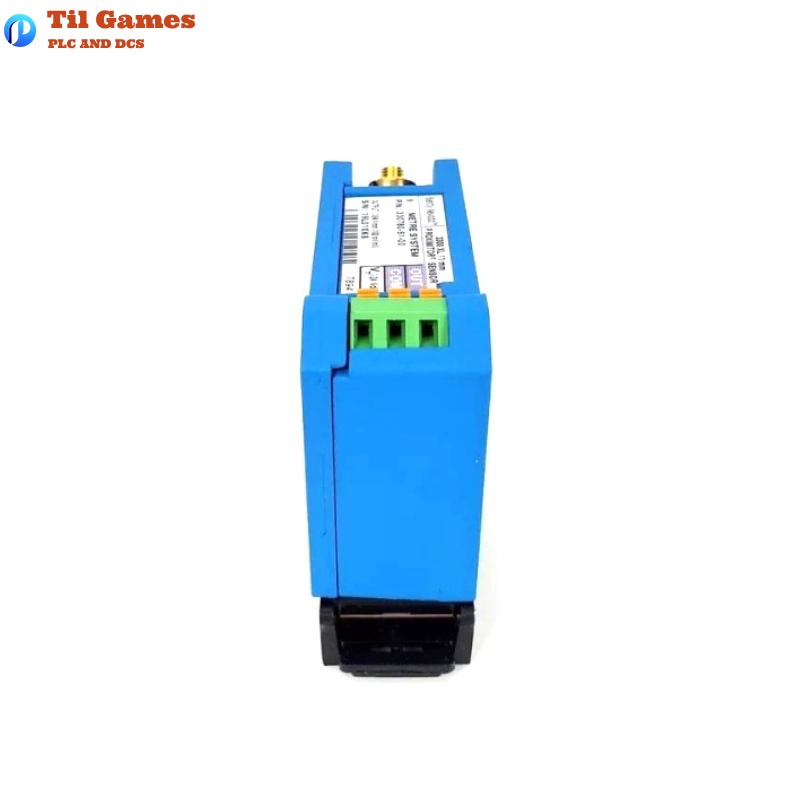

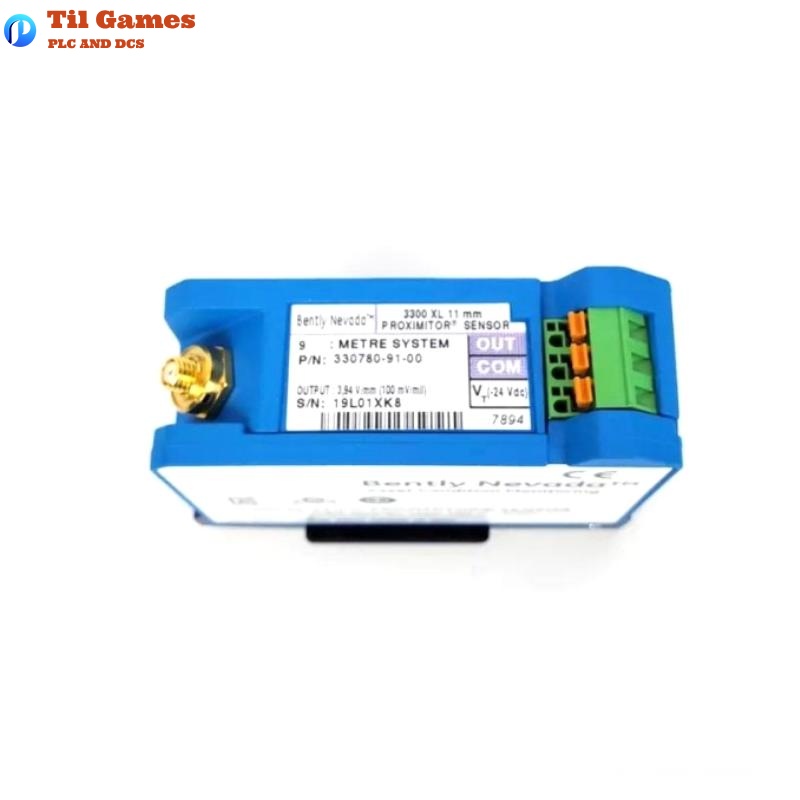

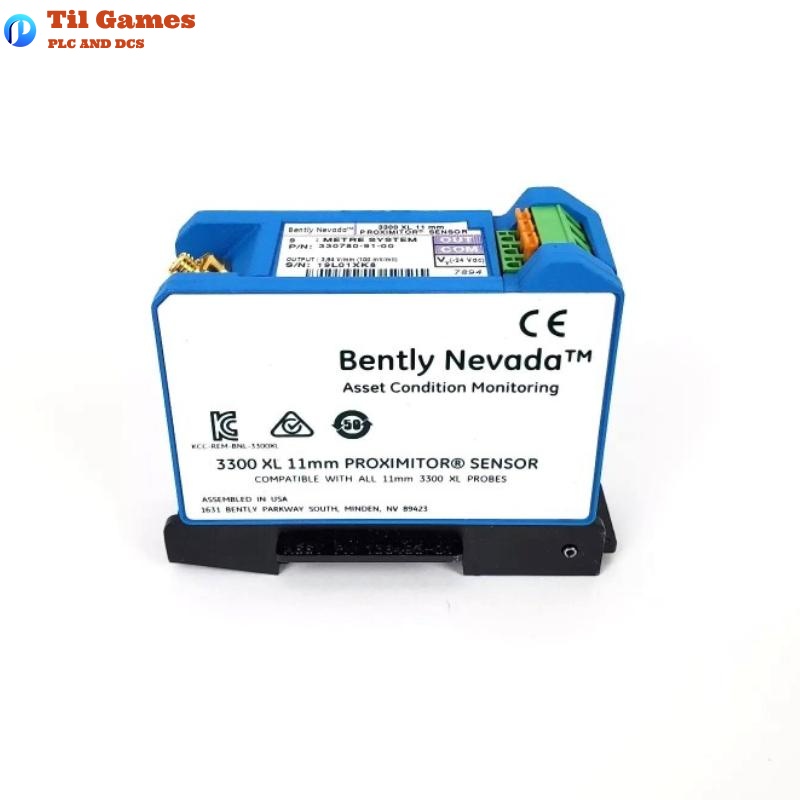

Bently Nevada 330780-91-00 3300 XL 11 mm Proximitor Sensor

Manufacturer：Bently Nevada

Product Number：330780-91-00

Product Type：3300 XL 11 mm Proximitor Sensor

Origin：USA

Total Length：9.0 meters

Weight：0.255 kg

Frequently Asked Questions (FAQ)

Q1: What is the primary application of this sensor?
A1: It is designed for non-contact vibration and displacement measurements including thrust position, differential expansion, rod drop, tachometer, and Keyphasor signals.

Q2: What advantage does the 11 mm system have over the 8 mm system?
A2: The 11 mm system offers a longer linear range (up to 5 mm), making it more suitable for applications like thrust or expansion measurements.

Q3: Can this sensor be used interchangeably with the older 7200 series?
A3: No. The 3300 XL 11 mm system components are not compatible with the 7200 series and must be replaced entirely.

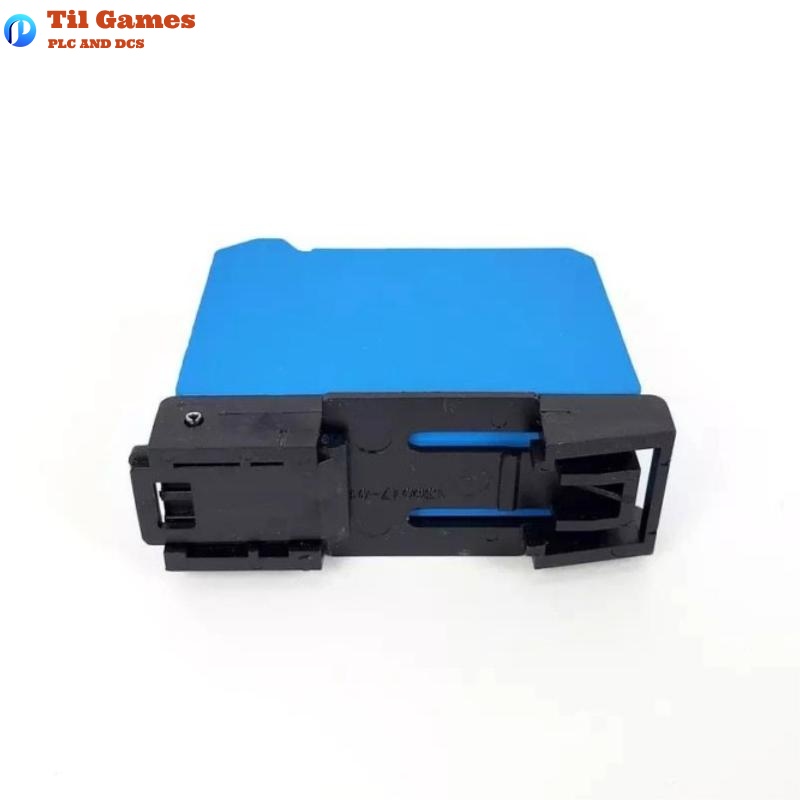

Q4: Does the sensor support DIN rail mounting?
A4: Yes. The 330780-91-00 model is specifically designed for DIN rail installation.

Q5: Is the probe suitable for high-temperature environments?
A5: Yes. The probe supports temperatures up to +177°C, ideal for industrial applications.

Q6: Does the system have electromagnetic interference resistance?
A6: Yes. It includes enhanced RFI/EMI immunity and meets CE certification requirements.

Q7: What is the maximum allowable cable length?
A7: The combined probe and extension cable length must not exceed 9.0 meters. Field wiring to monitor can extend up to 305 meters.

Q8: Are there hazardous area certifications available?
A8: Yes. The sensor is certified for intrinsic safety (ia) and non-incendive (nA/ec) operation, supporting Zone 0 and Zone 2 classifications.

3300 XL 11 mm Proximitor Sensor 330780-91-00 Bently Nevada
