Technical Specifications
| Parameter | Specification |
|---|---|

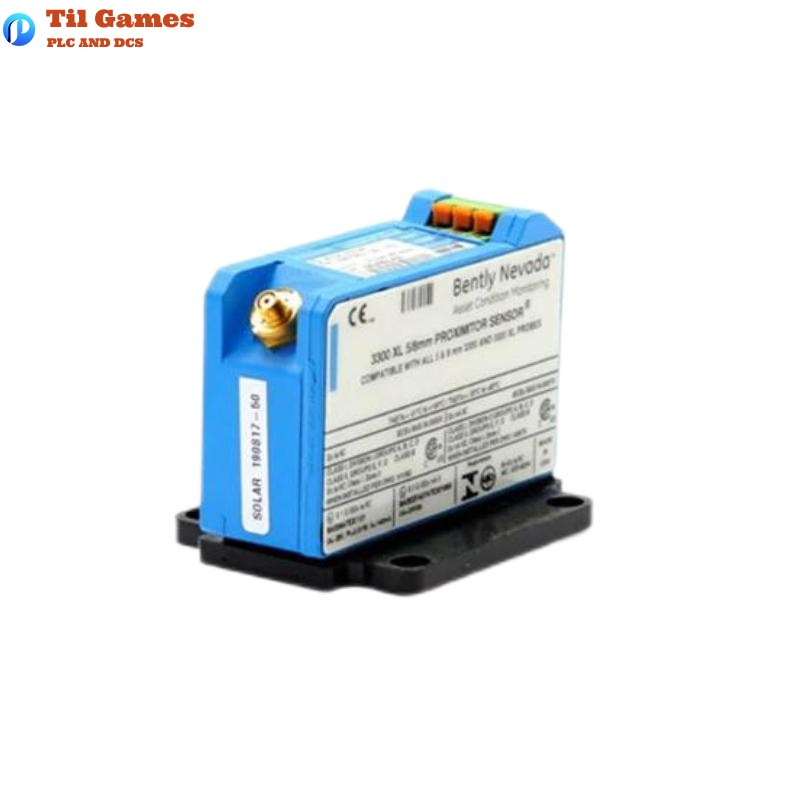

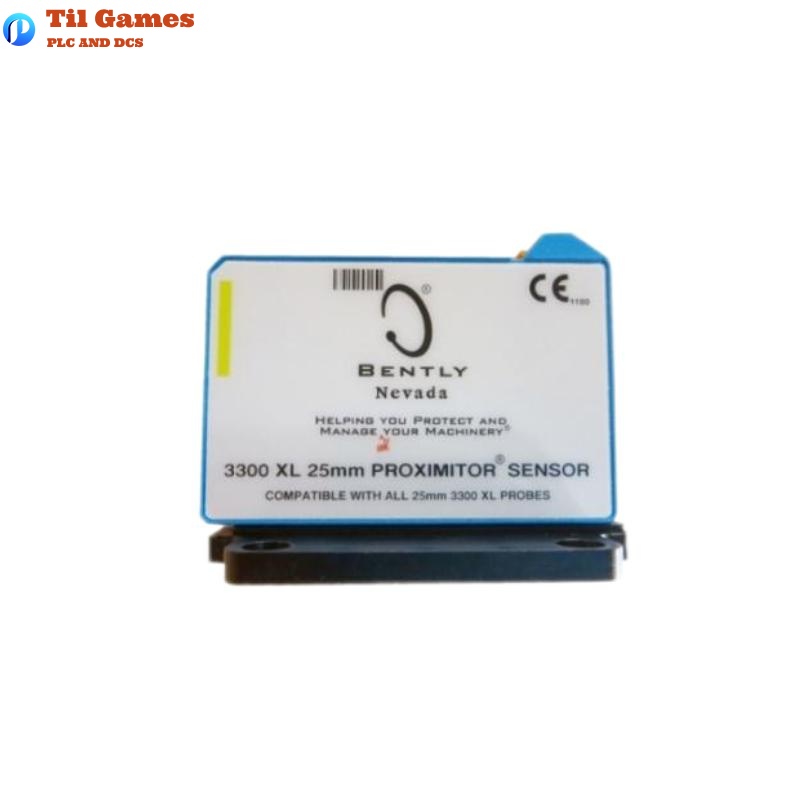

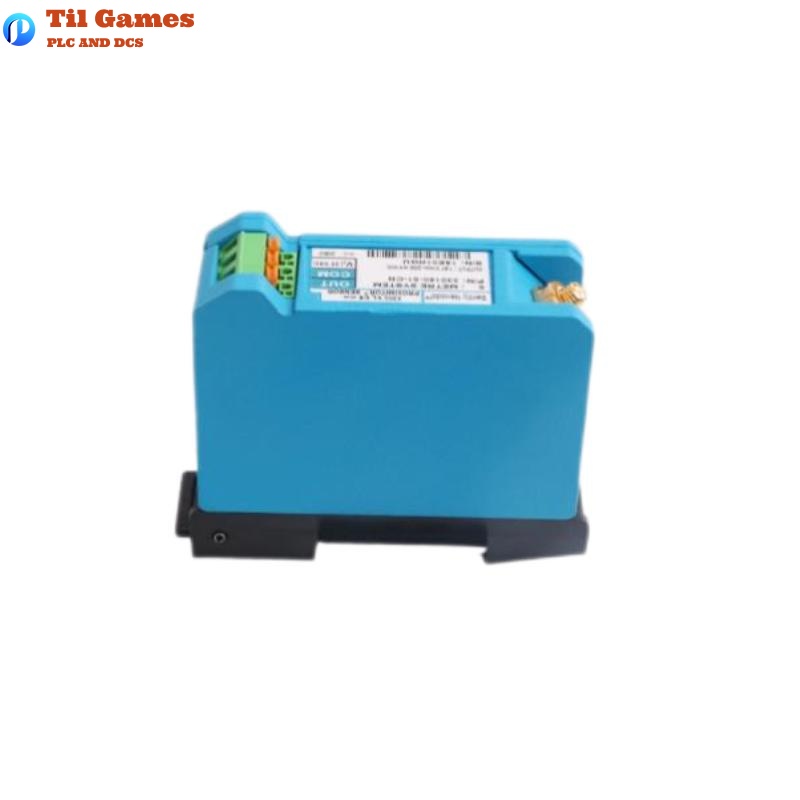

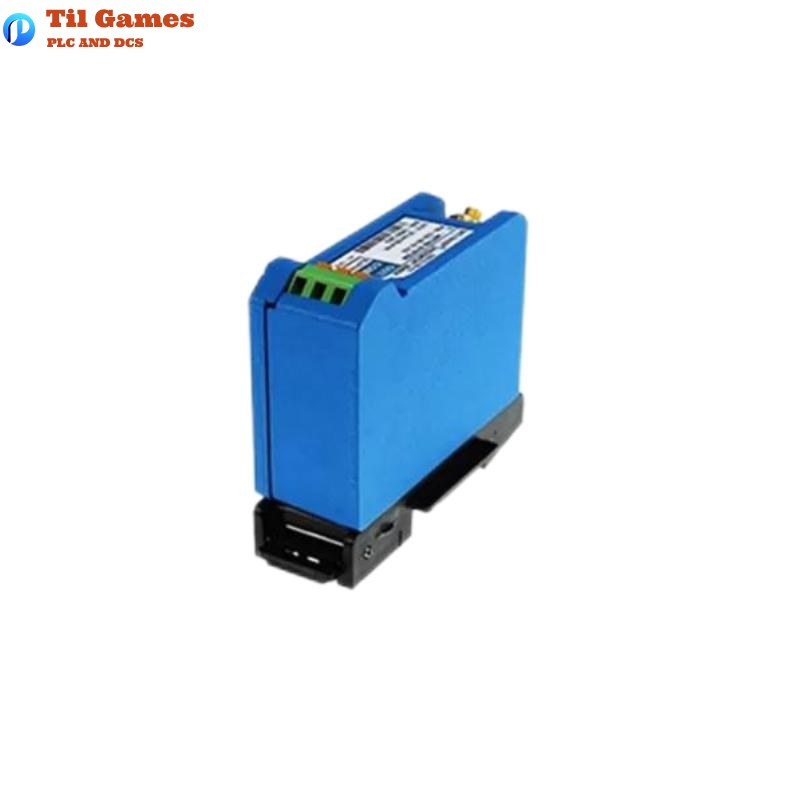

| Product Name | Bently Nevada 330850-50-05 3300 XL 25 mm Proximitor Sensor |
| Linear Range | 12.7 mm (500 mils) |
| Scale Factor | 0.787 V/mm (20 mV/mil) nominal |
| Power Supply | -17.5 Vdc to -26 Vdc at 12 mA (max) |
| Output Resistance | 50 Ω |
| Frequency Response | 0 to 2.7 kHz, +0/-3 dB |
| Recommended Target Size | ≥ 61 mm (2.4 in) diameter flat target |
| Probe Tip Material | Polyetheretherketone (PEEK) |
| Probe Case Material | AISI 304 Stainless Steel |
| Extension Cable Material | 75 Ω PFA-insulated FluidLoc triaxial cable |
| Sensor Housing Material | A380 Aluminum |
| Environmental Protection | 100% humidity, non-submersible when sealed |
| Operating Temperature (Sensor) | -51°C to +100°C (-60°F to +212°F) |
| Operating Temperature (Probe) | -35°C to +200°C (short-term up to 250°C / 482°F) |
| Cable Capacitance | 69.9 pF/m typical |
| Min Bend Radius | 25.4 mm (1 in) |
| Compliance | CE, RoHS, ABS, FCC Part 15, ATEX, CSA/NRTL/C, IECEx |
| Electrical Classification | Suitable for hazardous areas (Ex ia, Ex nA, Ex ec) |
| Total Length | 5.0 meters |
| Weight (Total System) | Approx. 0.255 kg (255 g) |
FAQ
Frequently Asked Questions (FAQs)
Q1: What is the primary function of the 330850-50-05 sensor?
A1: It is used to measure differential expansion (DE) in steam turbines, especially between rotor and stator components.
Q2: What is the linear measurement range of this sensor?
A2: It offers a linear range of 12.7 mm (500 mils).
Q3: What is the nominal voltage output per unit displacement?
A3: 0.787 V/mm or 20 mV/mil.
Q4: What target material is the sensor calibrated to by default?
A4: AISI 4140 steel.
Q5: What is the environmental tolerance for humidity?
A5: It can withstand 100% condensing humidity if connectors are protected.
Q6: Can the sensor operate in high-temperature environments?
A6: Yes, the probe withstands up to 200°C continuously and 250°C short-term.
Q7: What is the minimum bend radius for the cable?
A7: 25.4 mm (1.0 inch).
Q8: Is this sensor certified for use in hazardous locations?
A8: Yes, it complies with ATEX, CSA/NRTL/C, and IECEx standards for hazardous areas.
