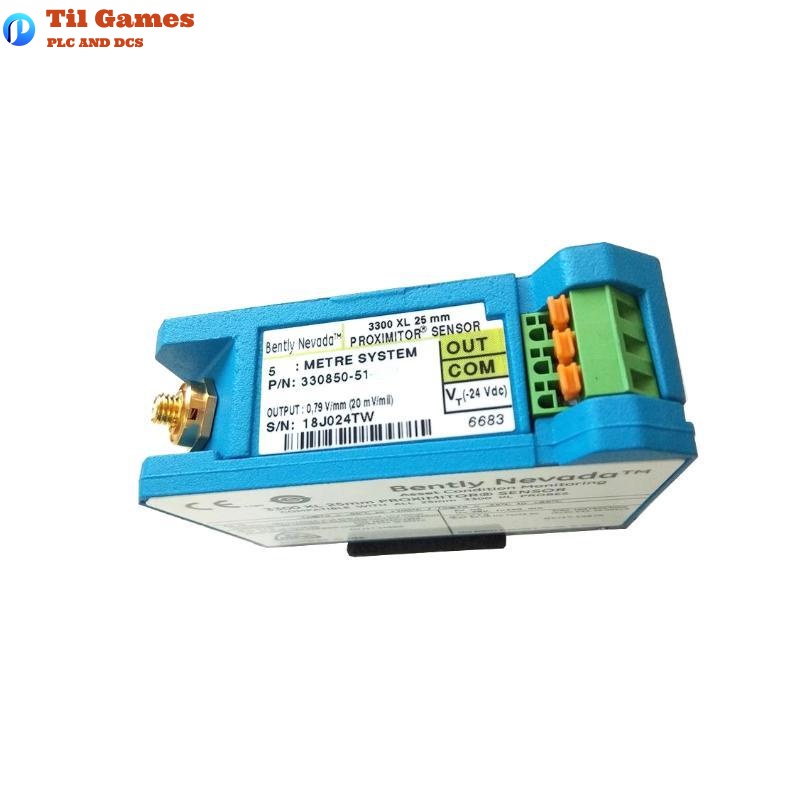

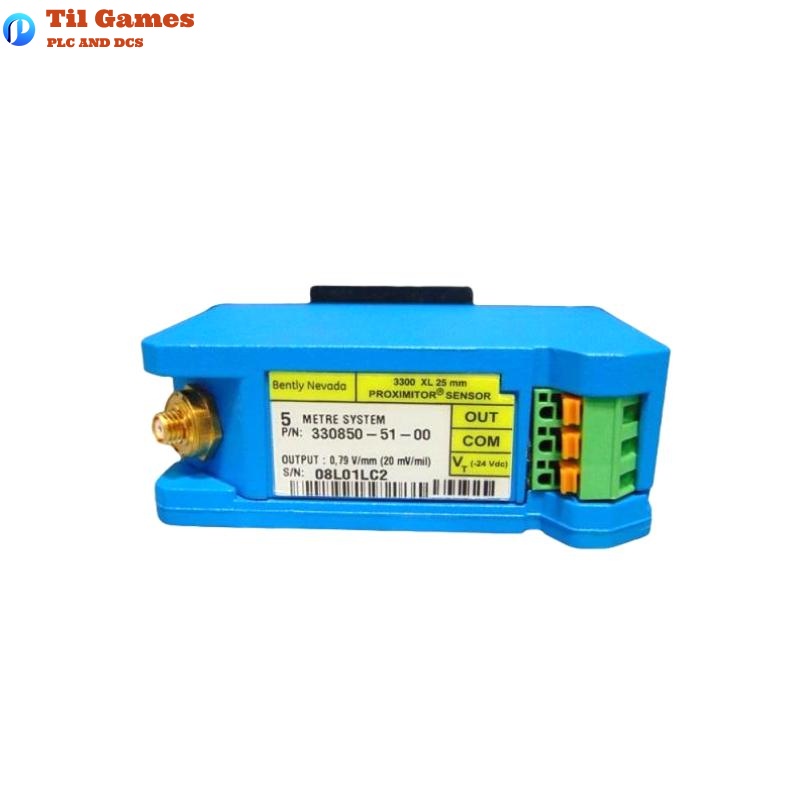

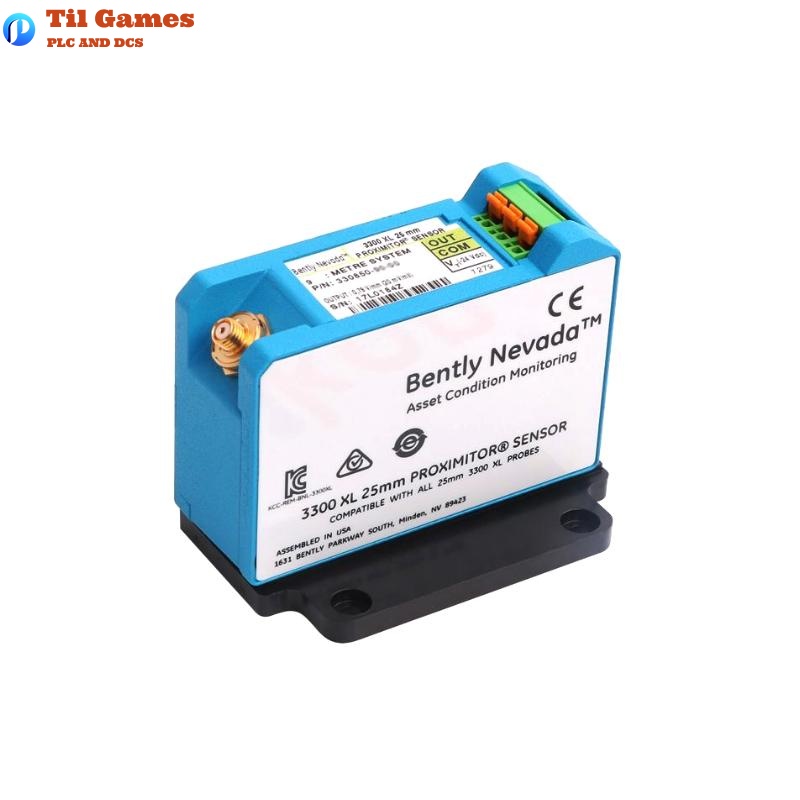

Technical Specifications

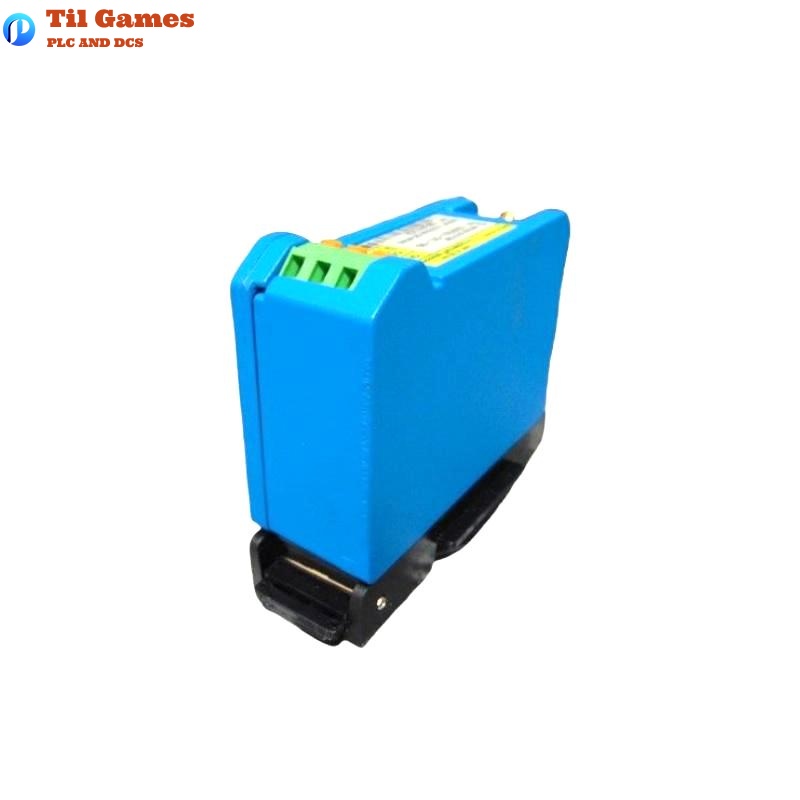

| Item | Specification |
|---|---|
| Linear Range | 12.7 mm (500 mils), voltage output range –1.5 to –11.5 Vdc |
| Scale Factor | 0.787 V/mm (20 mV/mil) nominal |
| Power Supply | -17.5 Vdc to -26 Vdc (no barriers), -23 Vdc to -26 Vdc (with barriers) |
| Supply Sensitivity | <2 mV output change per 1 V input change |
| Output Resistance | 50 Ω |
| Probe Operating Temp. | -35°C to +200°C (max 250°C short-term) |
| Cable Operating Temp. | -35°C to +200°C |
| Proximitor Operating Temp. | -51°C to +100°C |
| Storage Temp. | -51°C to +105°C |
| Frequency Response | 0–2.7 kHz typical, up to 305 m of field wiring |
| Target Size (min.) | Flat surface ≥ 61 mm diameter |
| Probe Case Material | AISI 304 stainless steel |
| Cable Type | 75 Ω triaxial FluidLoc cable with PFA insulation |
| Proximitor Material | A380 aluminum |
| Mounting | DIN rail or panel mount |
| Total Length | 5.0 meters |
| Weight | 255 g (0.255 kg) |
| IP Rating | IP54 when properly sealed |
| EMC | EN 61000-6-2, EN 61000-6-4, CE certified |
| Hazardous Area Certs | CSA, ATEX, IECEx (see datasheet for full details) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary measurement application for this sensor?
A1: It is used for measuring differential expansion (DE) in steam turbines caused by axial growth differences.
Q2: What is the linear measuring range of the system?
A2: The linear range is 12.7 mm (500 mils).
Q3: What power supply voltage does it require?
A3: Requires -17.5 to -26 Vdc (without barriers) or -23 to -26 Vdc (with barriers).
Q4: What is the temperature tolerance for the probe and cable?
A4: Continuous operation up to 200°C, and intermittent up to 250°C.
Q5: What is the total system length for this model?
A5: This model has a total system length of 5.0 meters.
Q6: Is the probe available with armor?
A6: Yes, optional stainless steel armor is available for enhanced protection.
Q7: What mounting options are available for the sensor?
A7: Both DIN rail and panel mounting are supported.
Q8: What material is the default calibration based on?
A8: Factory calibrated to AISI 4140 steel; custom calibration is available upon request.
