Technical Specifications
| Parameter | Value/Description |
|---|---|

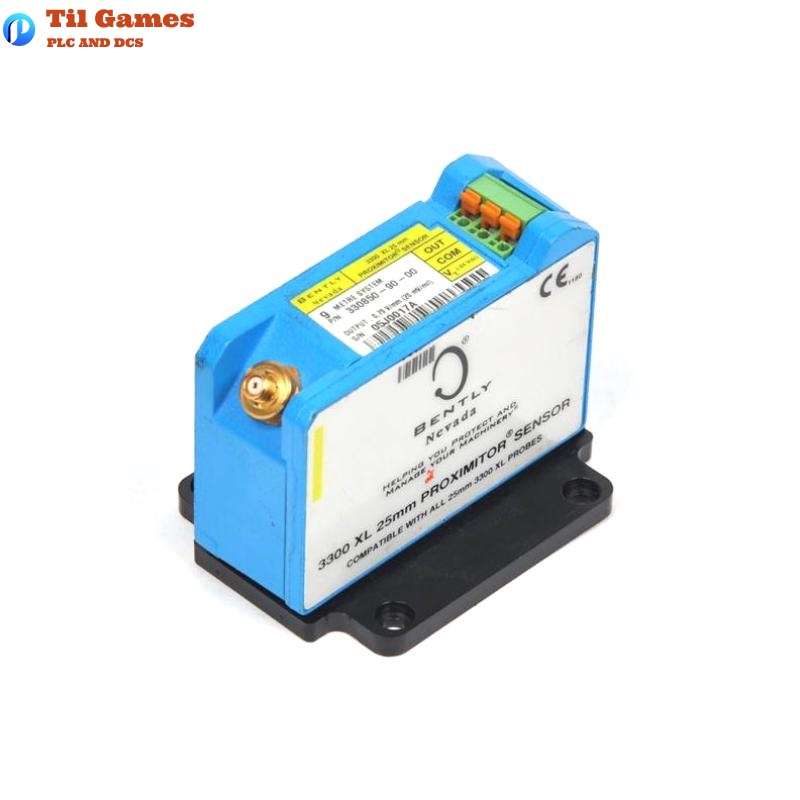

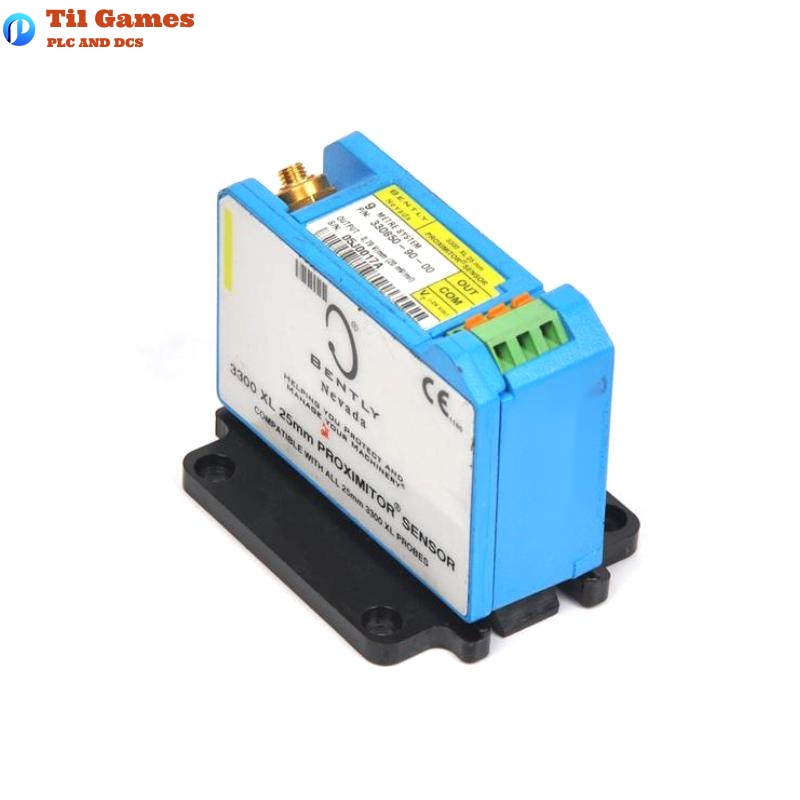

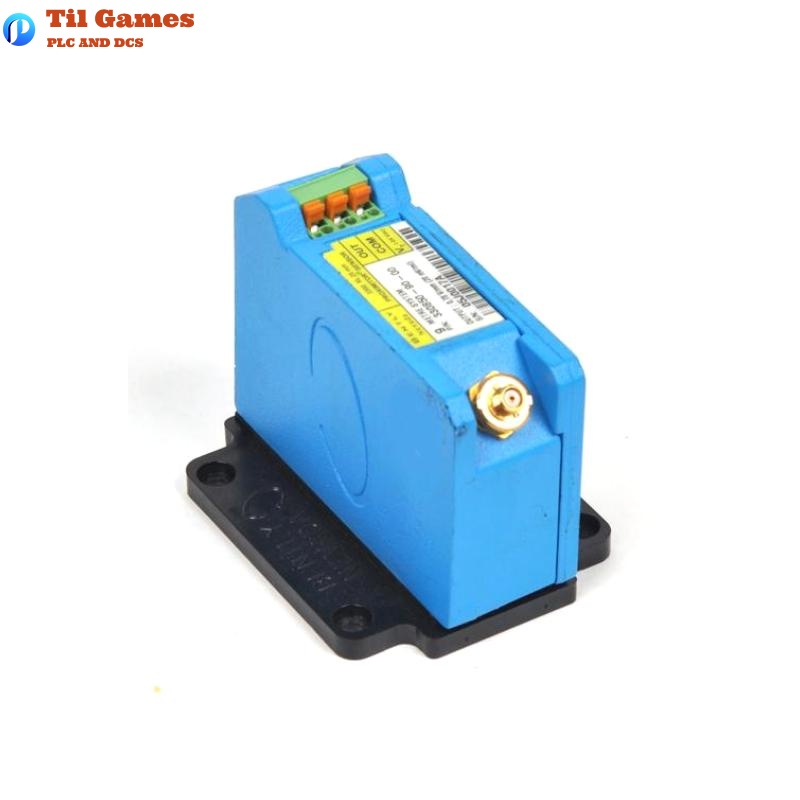

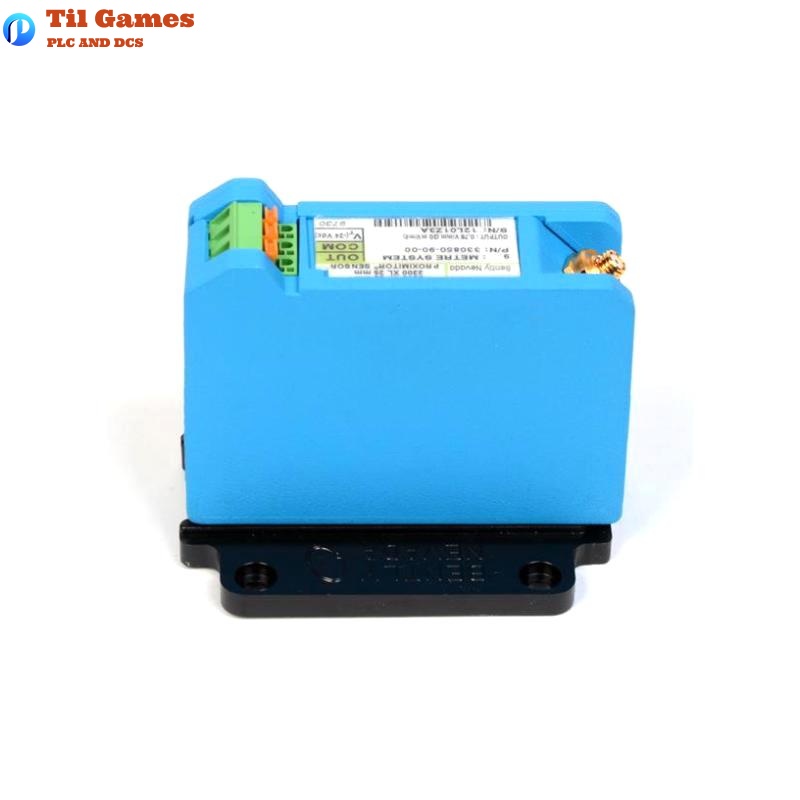

| Model | 330850-90-00 |
| Total System Length | 9.0 meters |
| Output Sensitivity | 0.787 V/mm (20 mV/mil) |
| Linear Range | 12.7 mm (500 mils) |
| Recommended Target Size | 61 mm (2.4 in) diameter |
| Power Supply | -17.5 Vdc to -26 Vdc, max 12 mA |
| Probe Operating Temp | -35°C to +200°C |
| Sensor Operating Temp | -51°C to +100°C |
| Sensor Storage Temp | -51°C to +105°C |
| Probe Case Material | AISI 304 Stainless Steel |
| Sensor Housing Material | A380 Aluminum |
| Cable Type | 75Ω triaxial, PFA-insulated FluidLoc |
| Frequency Response | 0 – 2.7 kHz (+0/-3 dB) |
| EMI Immunity | Meets EN 61000-6-2, EN 61000-6-4 |
| Sensor Weight (Typical) | 255 g (9.0 oz) |
| System Total Weight | Approx. 0.255 kg (9.0 m total length) |
| Min. Cable Bend Radius | 25.4 mm (1.0 in) |
FAQ
Frequently Asked Questions (FAQ)
Q1: Can this product replace older 7200 series probes?
A1: Yes, the 3300 XL 25 mm Proximitor Sensor is fully compatible with 7200 25 mm and 35 mm systems, ideal for system upgrades.
Q2: What are the typical applications?
A2: Primarily used for Differential Expansion (DE) monitoring in mid-to-large steam turbine generators.
Q3: Is the probe designed for high-temperature environments?
A3: Yes, it continuously operates up to 200°C and can withstand up to 250°C for short periods.
Q4: Do I need all three components to use the system?
A4: Yes, the system requires the 3300 XL 25 mm probe, extension cable, and Proximitor Sensor as a complete set.
Q5: How can the sensor be mounted?
A5: It supports both panel mount and DIN rail mount configurations.
Q6: Can it be calibrated for different target materials?
A6: Yes, default calibration is for AISI 4140 steel. Calibration for other materials is available on request.
Q7: What level of protection does it offer?
A7: When using official connector protectors, the system is resistant to moisture and dust but is not rated for submersion.
Q8: What accessories are available?
A8: Optional accessories include sliding brackets, armored/unarmored cables, connector protectors, test plugs, and a dial indicator kit.
