Technical Specifications
| Parameter | Specification |
|---|---|

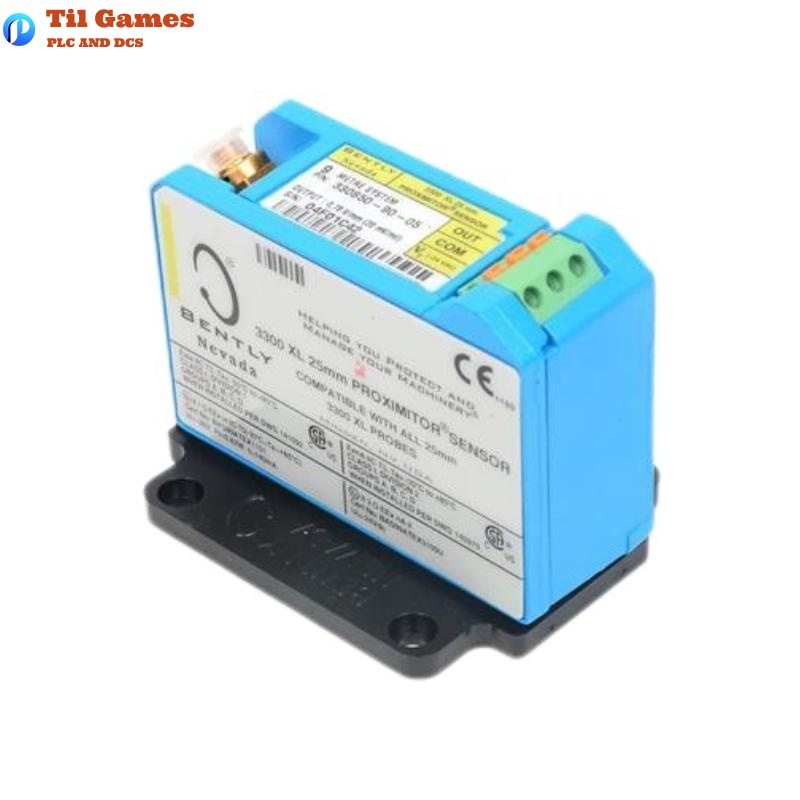

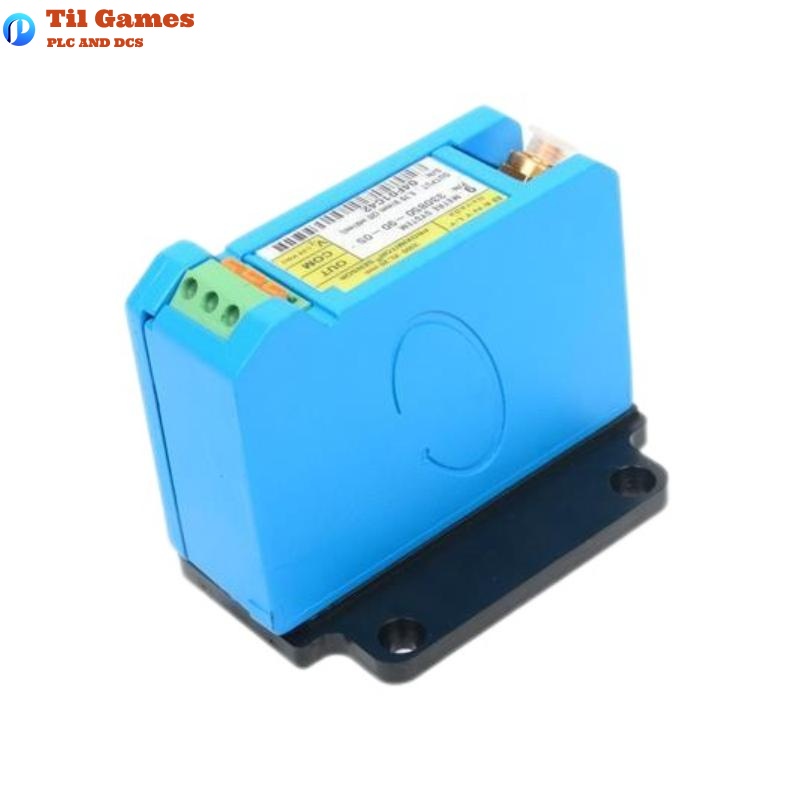

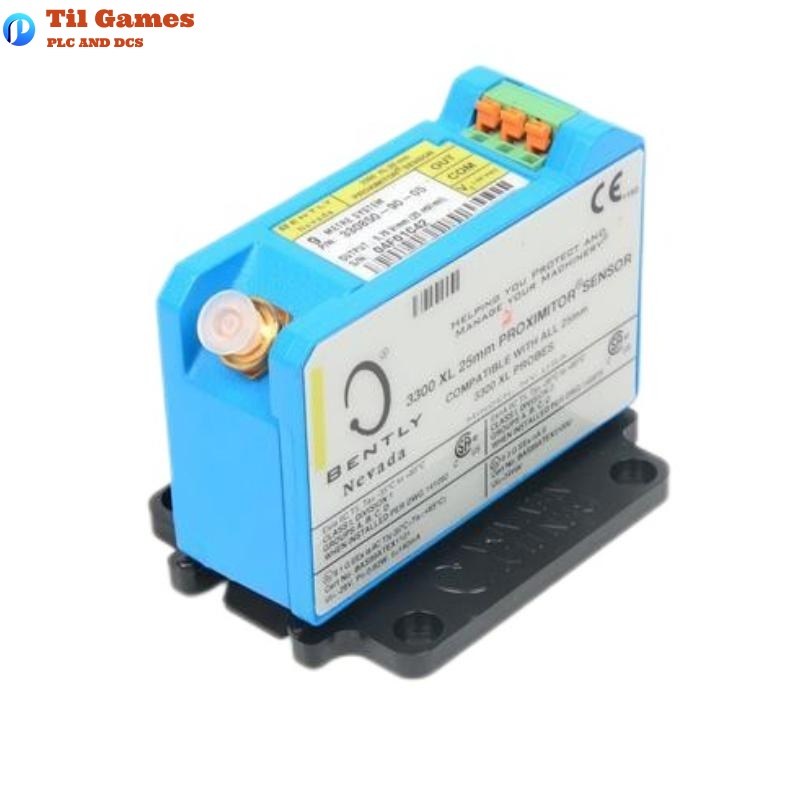

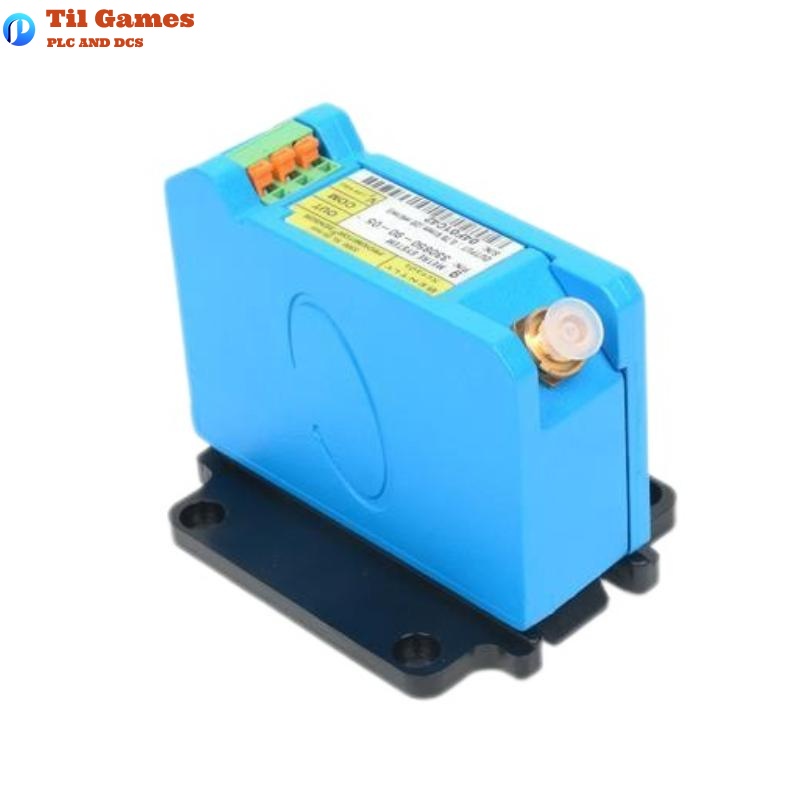

| Product Name | Bently Nevada 330850-90-05 3300 XL 25 mm Proximitor Sensor |
| Linear Range | 12.7 mm (500 mils) |
| Scale Factor | 0.787 V/mm (20 mV/mil) |
| Operating Power | –17.5 Vdc to –26 Vdc (12 mA max) |
| Output Resistance | 50 Ω |
| Frequency Response | 0 to 2.7 kHz (typical, with 305 m max field wiring) |
| Temperature Range – Probe | –35°C to +200°C (short term up to 250°C) |
| Temperature Range – Extension Cable | –35°C to +200°C |
| Temperature Range – Sensor | Operating: –51°C to +100°C; Storage: –51°C to +105°C |
| Probe Tip Material | PEEK (Polyetheretherketone) |
| Probe Case Material | AISI 304 Stainless Steel |
| Sensor Housing Material | A380 Aluminum |
| Cable Type | 75 Ω triaxial PFA-insulated FluidLoc cable |
| Probe Length Options | 1 m, 5 m, 9 m |
| Extension Cable Length Options | 4 m, 8 m |
| Total System Length | 9.0 meters |
| Weight (Total System) | Approx. 0.255 kg |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Connector Material | Gold-plated brass and beryllium copper |
| Compliance | CE, FCC Part 15, RoHS, CSA/NRTL/C, ATEX, IECEx |
FAQ
FAQ
Q1: What is the linear measurement range of the 330850-90-05 sensor?
A1: The linear range is 12.7 mm (500 mils), beginning at approximately 0.63 mm from the target.
Q2: What is the scale factor for voltage output in this sensor system?
A2: The system provides 0.787 V/mm or 20 mV/mil.
Q3: What is the operating temperature range for the proximity probe?
A3: The probe operates from –35°C to +200°C and can withstand short-term exposure up to +250°C.
Q4: Can this sensor system replace older 7200 series systems?
A4: Yes, it is compatible as a drop-in replacement for standard 7200 25 mm, 35 mm, and DE integral systems.
Q5: What type of cable is used for the probe and extension?
A5: Both use a 75 Ω triaxial FluidLoc PFA-insulated cable.
Q6: What is the maximum recommended total system length?
A6: The total system length for this configuration is 9.0 meters.
Q7: How much does the entire system weigh approximately?
A7: The total weight is about 0.255 kg, depending on armor configuration.
Q8: What are the environmental compliance standards supported?
A8: The sensor complies with CE, FCC Part 15, RoHS, CSA, ATEX, and IECEx certifications.
