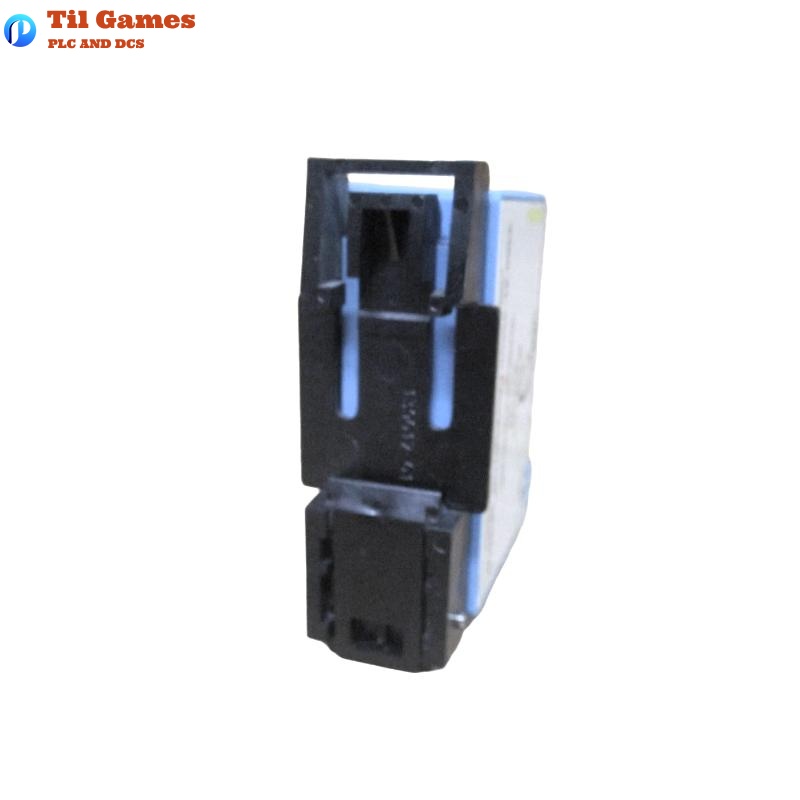

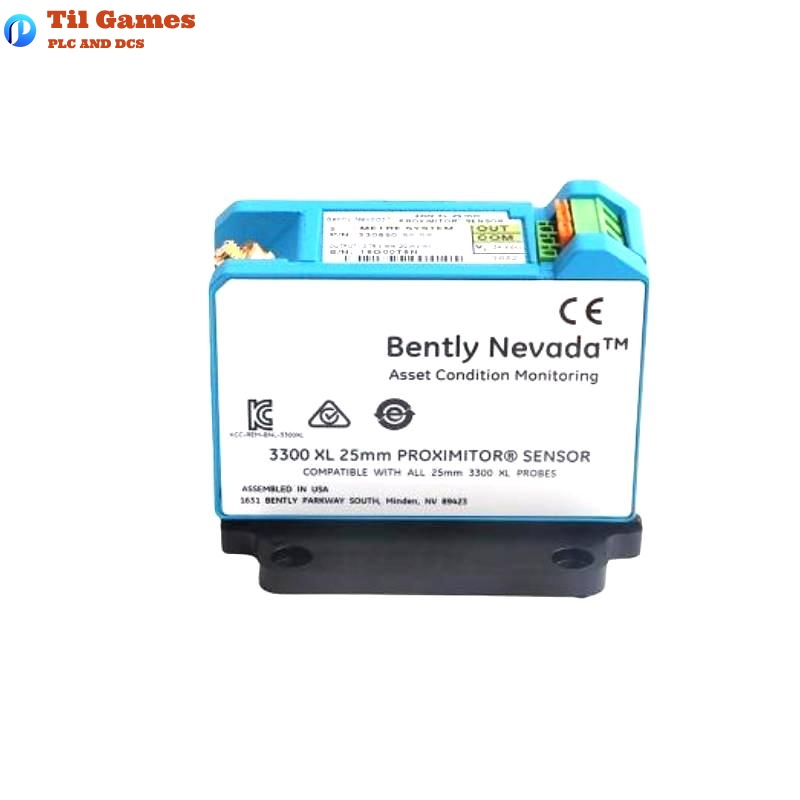

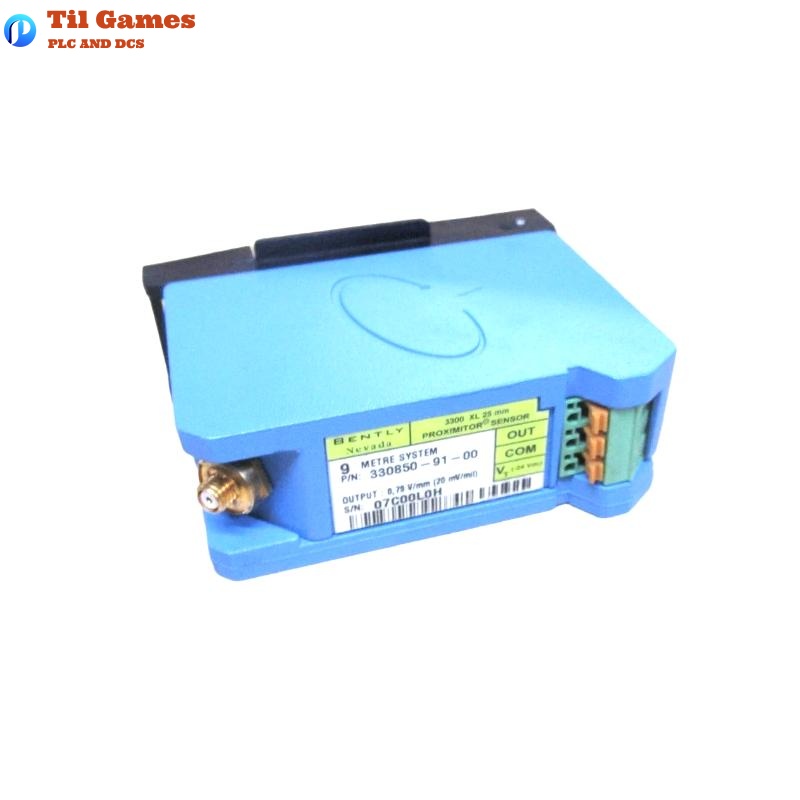

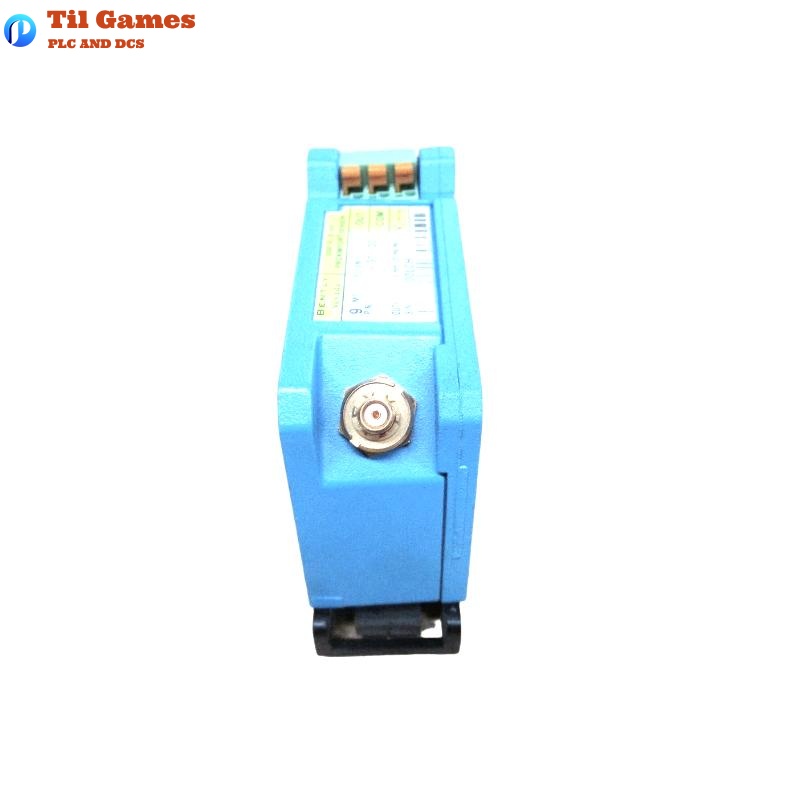

Bently Nevada 330850-91-00 3300 XL 25 mm Proximitor Sensor

Manufacturer：Bently Nevada

Product Number：330850-91-00

Product Type：3300 XL 25 mm Proximitor Sensor

Origin：USA

Total Length：9.0 meters

Weight：0.255 kg

Frequently Asked Questions (FAQ)

Q1: What is the measurement range of the 330850-91-00 sensor?
A1: It offers a linear measurement range of 12.7 mm (500 mils), ideal for differential expansion (DE) in turbines.

Q2: What is the maximum temperature it can withstand?
A2: The probe operates continuously up to +200°C and up to +250°C short-term. The sensor operates from -51°C to +100°C.

Q3: Is it compatible with older 7200 systems?
A3: Yes, it physically replaces all 7200 25 mm/35 mm transducers and retains the same output for easy upgrades.

Q4: What are the power supply requirements?
A4: Requires -17.5 Vdc to -26 Vdc, with a maximum current of 12 mA.

Q5: Must I calibrate with AISI 4140 target material?
A5: Yes, for best accuracy, calibration is factory-tuned for AISI 4140 steel.

Q6: Can this be used in high humidity environments?
A6: Yes, up to 100% condensing humidity, as long as connectors are protected; not fully submersible.

Q7: How is the sensor mounted?
A7: It supports DIN rail and panel mount options, with sliding brackets for alignment.

Q8: What does the 9.0 meter system length refer to?
A8: It includes both the probe and extension cable. The Proximitor Sensor itself weighs 0.255 kg in this configuration.

3300 XL 25 mm Proximitor Sensor 330850 330850-91-00 Bently Nevada
