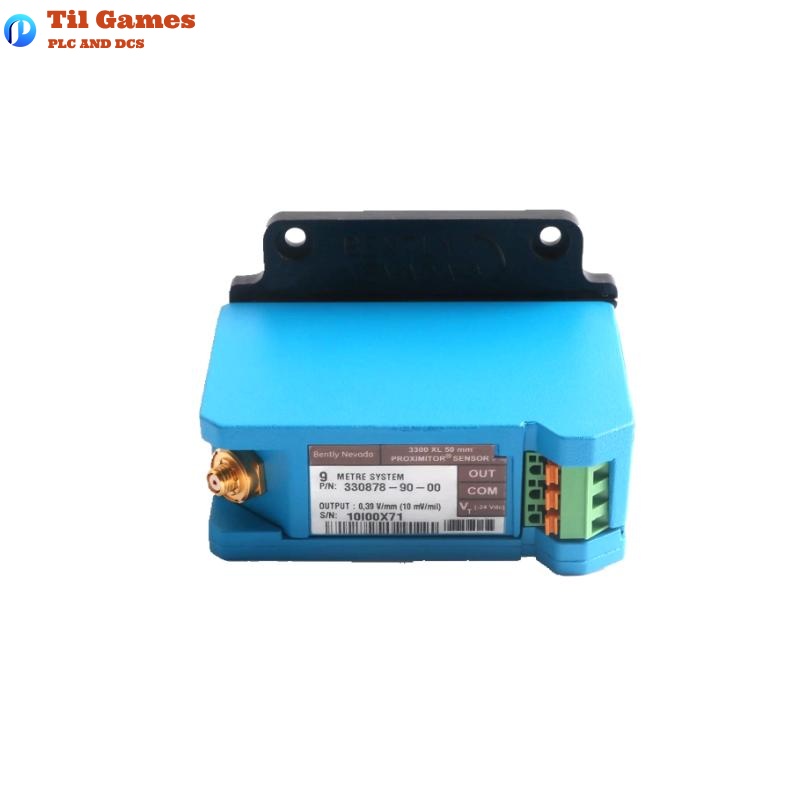

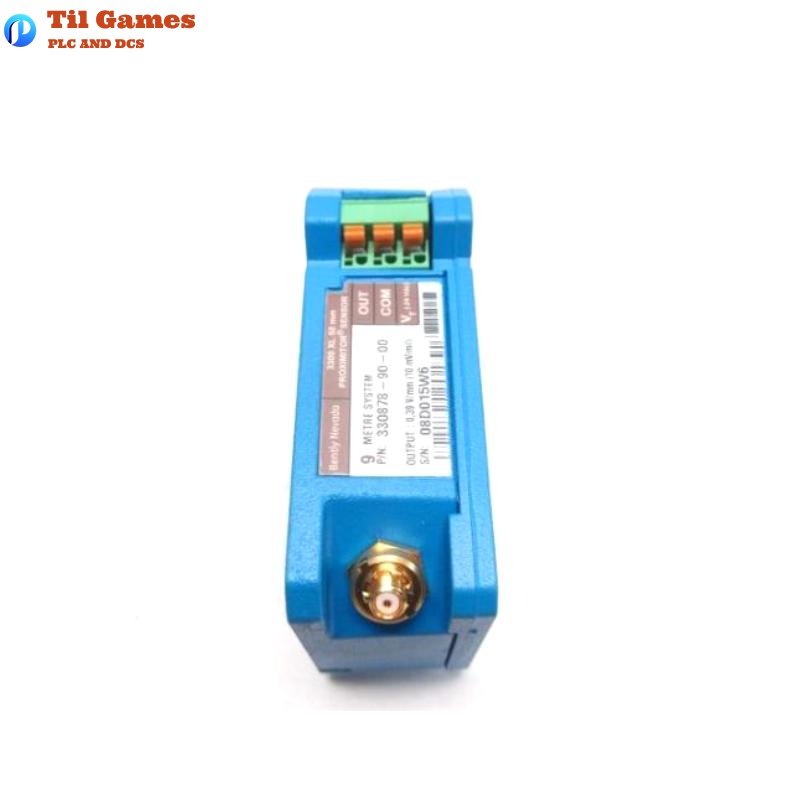

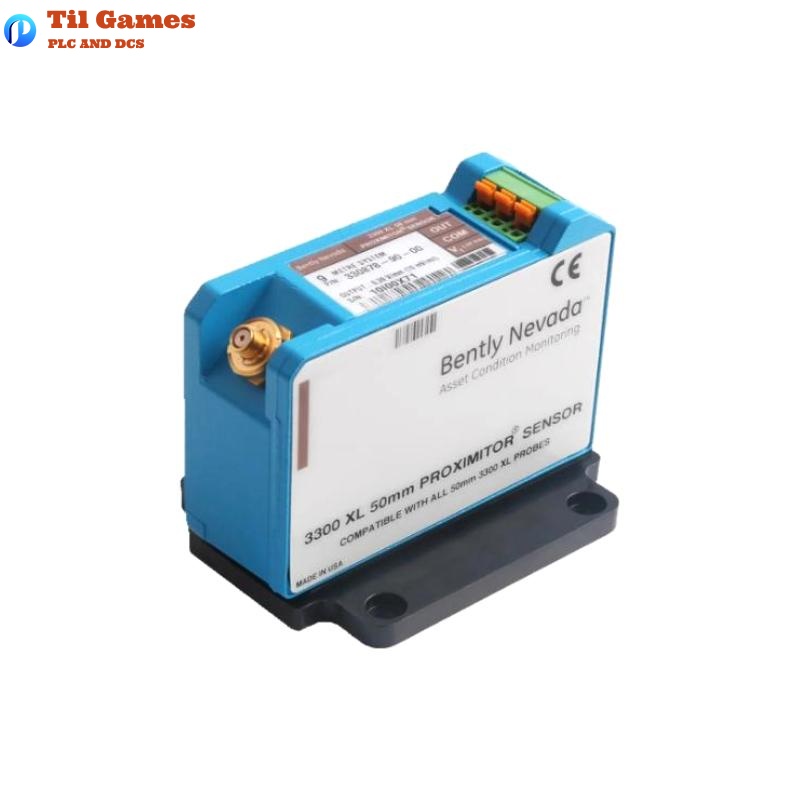

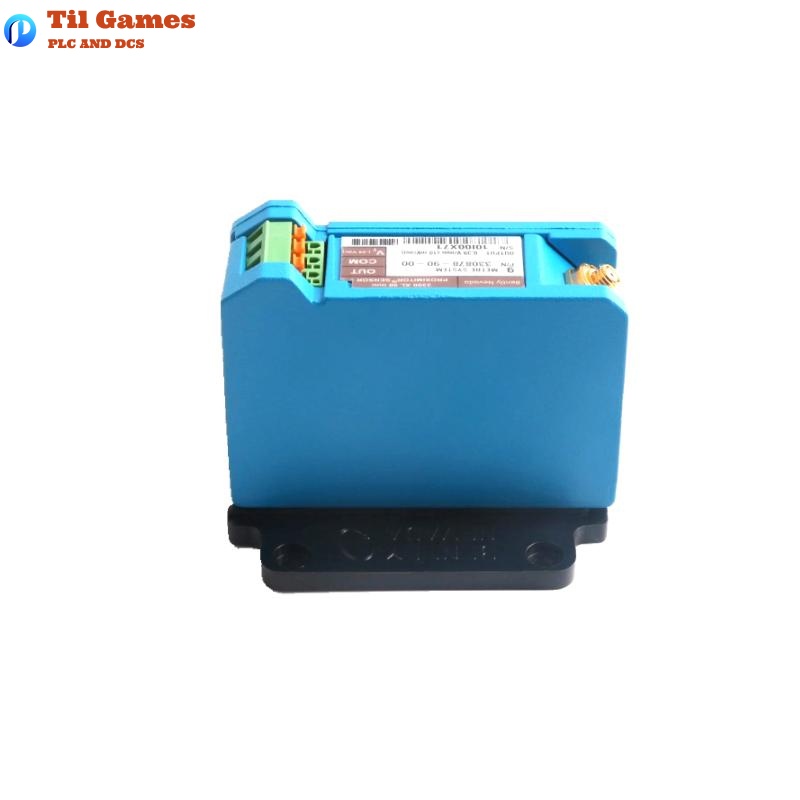

Bently Nevada 330878-90-00 3300 XL 50 mm Proximitor Sensor

Manufacturer：Bently Nevada

Product Number：330878-90-00

Product Type：3300 XL 50 mm Proximitor Sensor

Origin：USA

Total Length：9.0 meters

Weight：0.22 kg

FAQ

Q1: What is the linear measurement range of the 330878-90-00 sensor?
A1: The linear range is 27.9 mm (1.1 inches), beginning at 1.3 mm from the target.

Q2: Is this sensor suitable for high-temperature environments?
A2: Yes, the probe can operate continuously up to 200°C and withstand 250°C for short durations.

Q3: Can this sensor be used in hazardous areas?
A3: Yes, it has multiple hazardous area approvals including ATEX, IECEx, and cNRTLus classifications.

Q4: What is the output scale factor?
A4: The sensor provides an average scale factor of 394 mV/mm (10 mV/mil).

Q5: What is the required power supply range?
A5: It requires a -17.5 Vdc to -26 Vdc power supply.

Q6: Does it require a specific target material?
A6: It is factory calibrated for AISI 4140 steel; other materials require recalibration.

Q7: What is the recommended field wiring for this sensor?
A7: Use 3-conductor shielded triad cables sized between 0.2 to 1.5 mm² (16–24 AWG).

Q8: Can this sensor be mounted on both DIN rails and panels?
A8: Yes, it supports both DIN rail and traditional panel mounting options.

3300 XL 50 mm Proximitor Sensor 330878 330878-90-00 Bently Nevada
