Specifications
| Parameter | Description |
|---|---|

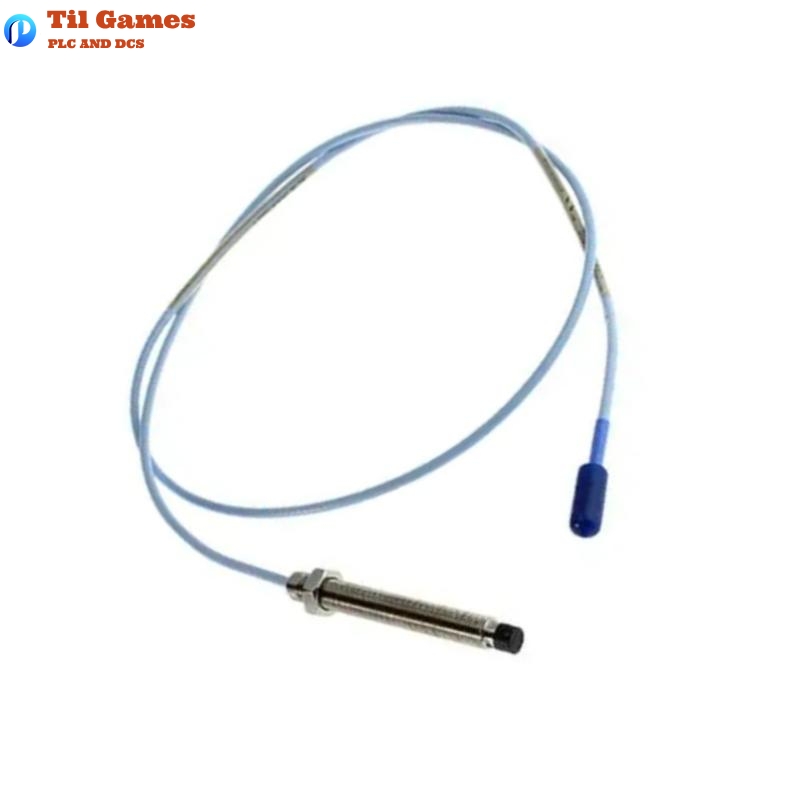

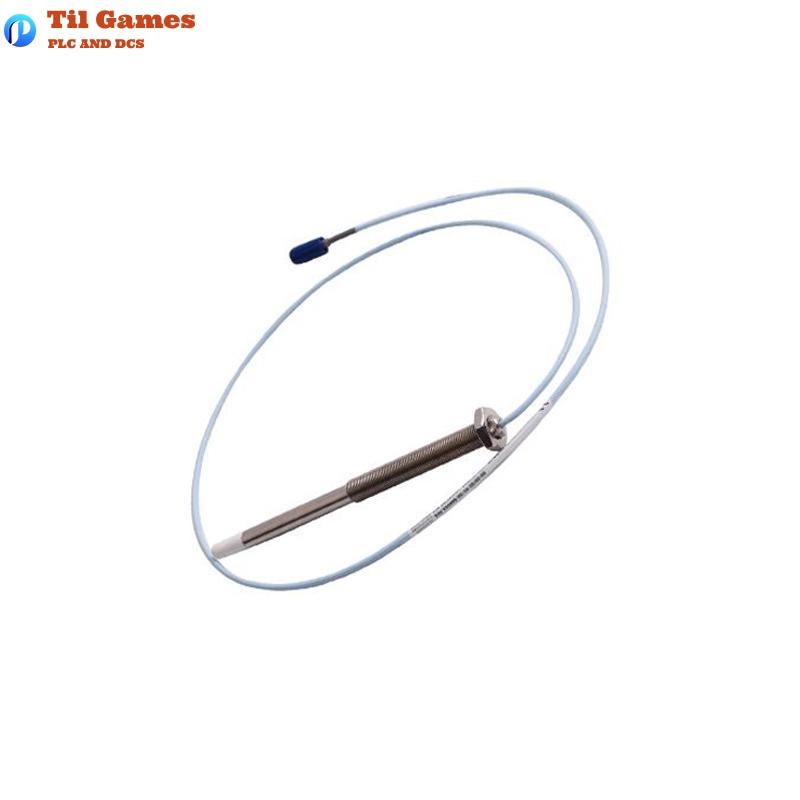

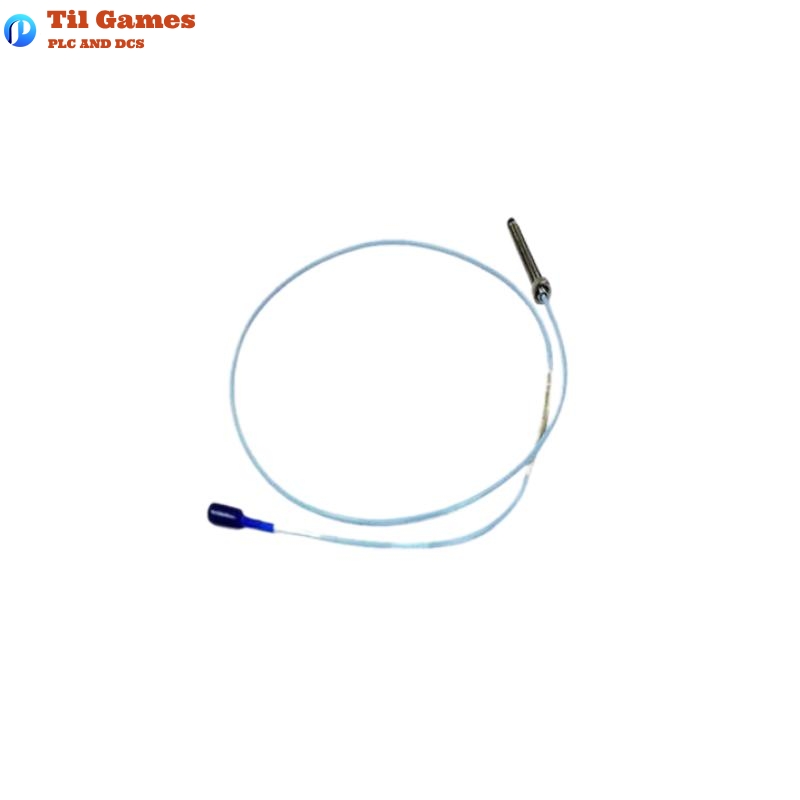

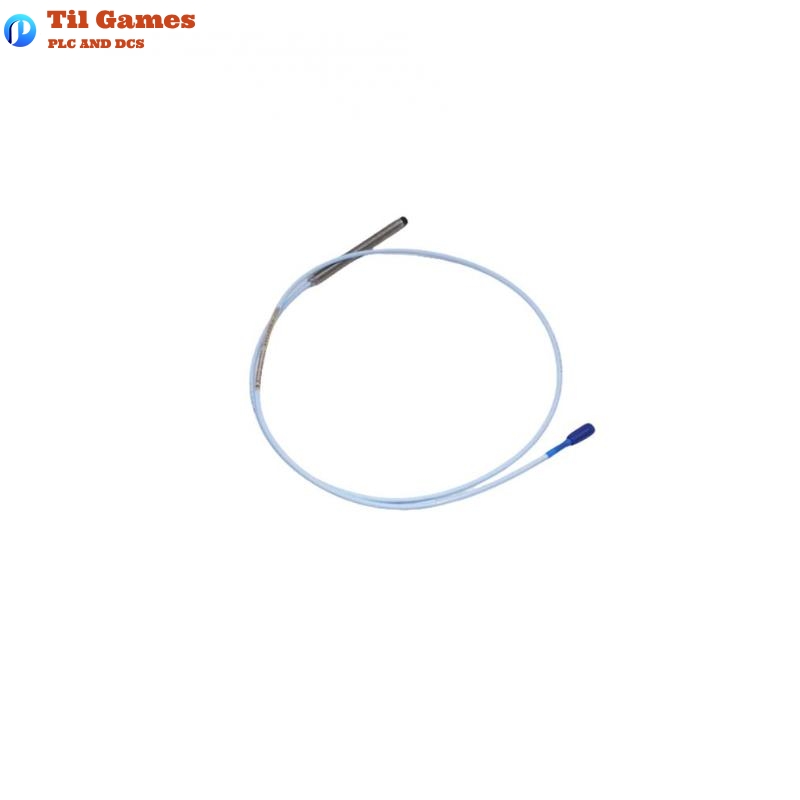

| Model | 3300 NSv Proximity Probe |
| Total Length | 1.0 meter (1.0 meter) |
| Weight | 0.07 kg (0.07 kg) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel (SST) |
| Probe Cable Specifications | 75 Ω Coaxial, Fluoroethylene Propylene (FEP) Insulated |
| Probe DC Resistance | 4.2 ± 0.5 Ohms (1 meter) |
| Output Resistance | 50 Ω |
| Linear Range | 1.5 mm (60 mils) |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz, +0, -3 dB |
| Recommended Gap Setting | 1.0 mm (40 mils) |
| Operating Temperature Range | -52°C to +177°C (-62°F to +351°F) |
| Storage Temperature Range | -52°C to +177°C (-62°F to +351°F) |
| Relative Humidity | 100% Condensing, Non-Submersible |
| Maximum Tensile Strength | 220 N (50 lb) |
| Extension Cable Capacitance | 69.9 pF/m (21.3 pF/ft) |
FAQ
FAQs
Q1: What is the maximum operating temperature of the 3300 NSv probe?
A1: The maximum operating temperature of the 3300 NSv probe is +177°C (+351°F).
Q2: What is the linear range of the 3300 NSv probe?
A2: The linear range of the 3300 NSv probe is 1.5 mm (60 mils), with a recommended gap setting of 1.0 mm (40 mils).
Q3: What applications is this product used for?
A3: It is used for radial vibration, axial position measurements, zero speed, and phase reference applications on fluid-film bearing machines, especially in small shaft or reduced side-view applications.
Q4: Is the 3300 NSv probe suitable for chemical environments?
A4: Yes, the 3300 NSv probe has improved chemical resistance compared to the 3300 RAM probe, making it suitable for many process compressor applications.
Q5: What is the incremental scale factor of the system?
A5: The incremental scale factor of the 3300 NSv system is 7.87 V/mm (200 mV/mil).
Q6: What is the maximum extension cable length for the 3300 NSv probe?
A6: The maximum extension cable length for the 3300 NSv probe is 7.0 meters (23.0 feet).
Q7: What is the weight of the system?
A7: The weight of the 3300 NSv probe is approximately 0.07 kg (0.07 kg), and the extension cable weighs 45 g/m.
Q8: Does the 3300 NSv probe offer any water protection?
A8: The 3300 NSv probe is protected against 100% condensation but is not suitable for full submersion in water.
