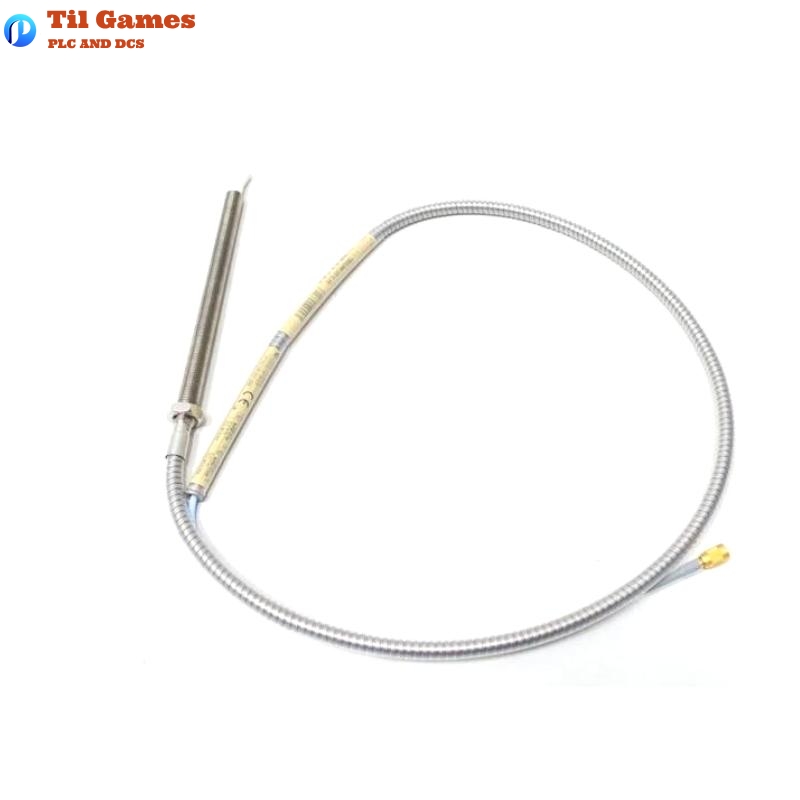

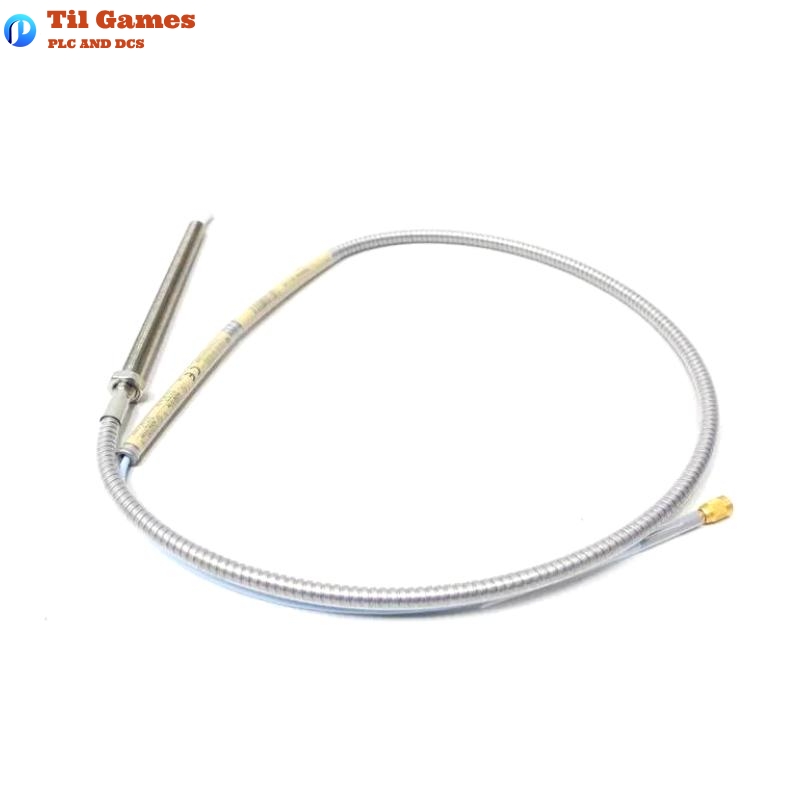

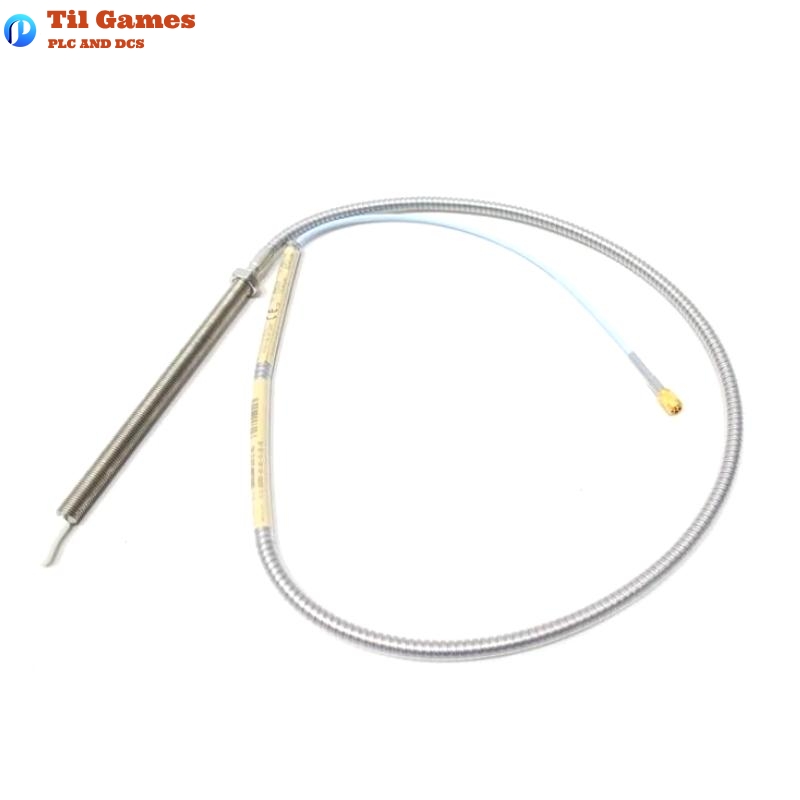

3300 NSv Proximity Probe Technical Specifications
| Parameter | Specification |
|---|---|
| Total Length | 0.5 Meter |
| Weight | 0.162 kg |
| Probe Length Options | 0.5 Meter, 1.0 Meter, 5.0 Meter, 7.0 Meter |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel |
| Probe Cable Specs | 75 Ω Coaxial, Fluoroethylene Propylene (FEP) Insulated |
| Extension Cable Material | 75 Ω Coaxial, Fluoroethylene Propylene (FEP) Insulated |
| Probe DC Resistance | 4.0 ± 0.5 Ω (for 0.5 Meter Length) |
| Probe Operating Temperature Range | -52°C to +177°C |
| Extension Cable Operating Temperature Range | -52°C to +177°C |
| Power Consumption | Max 12 mA (No barriers) |
| Output Resistance | 50 Ω |
| Recommended Gap Setting | 1.0 mm |
FAQ
FAQ (Frequently Asked Questions)
Q1: What applications is the 3300 NSv Proximity Probe used for?
A1: The probe is primarily used for fluid-film bearing machines, and it is suitable for measuring radial vibration, axial position, zero speed, and phase reference (Keyphasor signals).
Q2: What is the linear range of the probe?
A2: The probe has a linear range of 1.5 mm (60 mils), with the range extending from approximately 0.25 mm (10 mils) to 1.75 mm (70 mils).
Q3: What is the operating temperature range of the probe?
A3: The probe operates within a temperature range of -52°C to +177°C.
Q4: How much does the probe weigh?
A4: The 3300 NSv probe weighs approximately 0.162 kg.
Q5: What is the minimum shaft diameter the probe can be used with?
A5: The minimum shaft diameter that the probe can be used with is 30 mm (1.2 inches).
Q6: What is the material of the probe cable?
A6: The probe cable is made of 75 Ω coaxial Fluoroethylene Propylene (FEP) insulation.
Q7: How is the 3300 NSv probe installed?
A7: The probe uses ClickLoc connectors and can be easily installed without the need for special tools.
Q8: What are the power requirements for the probe?
A8: The probe requires a power supply between -17.5 Vdc and -26 Vdc with a maximum current consumption of 12 mA.
