Technical Specifications
| Parameter Category | Detailed Specification |
|---|---|

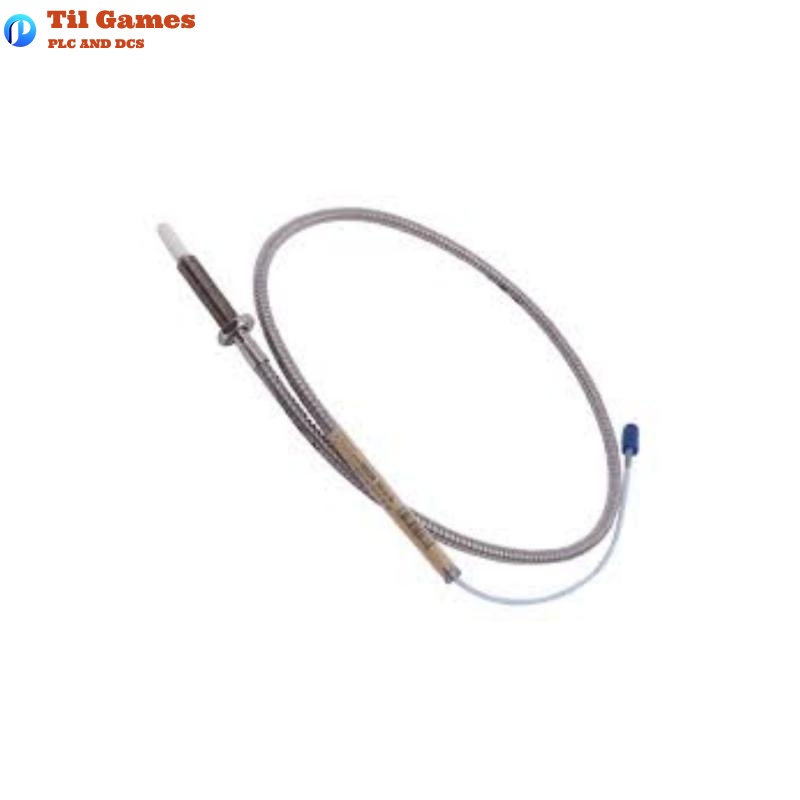

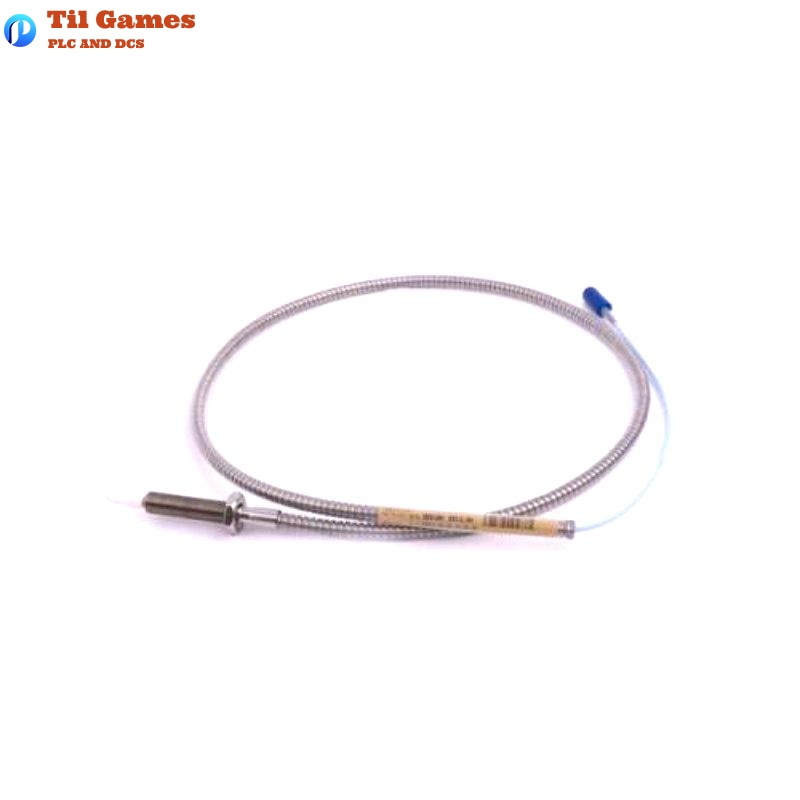

| Model Number | 330910-00-11-10-02-05 |
| Thread Type | M10x1 with armor |
| Total Length | 1.0 meter |
| Weight | Approx. 0.15 kg (including armored cable) |
| Probe Material | AISI 304 SST, tip made of PPS |
| Cable Type | FEP-insulated 75Ω coaxial cable |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 1.5 mm (60 mils), recommended gap: 1.0 mm |
| Min Bend Radius | 25.4 mm (with or without armor) |
| Temp Range (Probe) | -52°C to +177°C |
| Temp Range (Sensor) | -52°C to +100°C (operating), +105°C (storage) |
| Humidity | 100% condensing, non-submersible |
| Pressure Rating | Sealed with Viton O-ring, not factory tested |
FAQ
Frequently Asked Questions (FAQ)
Q1: What are the typical applications of the 330910 probe?
A1: It is primarily used in small-shaft equipment and space-restricted installations such as small fluid-film bearing machines, compressors, etc.
Q2: Is it suitable for detecting high-frequency vibration?
A2: Yes, the probe supports a frequency response up to 10 kHz, ideal for most rotating machinery.
Q3: Is it compatible with legacy 3300 RAM systems?
A3: Yes, provided all components (probe, extension cable, sensor) are from the NSv series.
Q4: Does it require recalibration for targets not made of AISI 4140 steel?
A4: Yes, default calibration is for AISI 4140; recalibration is required for other materials.
Q5: Are protective features available for connectors?
A5: Yes, it uses ClickLoc locking connectors and supports optional connector protectors for liquid ingress prevention.
Q6: How can electromagnetic interference between probes be prevented?
A6: Maintain a minimum separation of 25 mm between tips in XY or parallel setups.
Q7: Does the model support marine or hazardous area certifications?
A7: Yes, it meets ATEX, IECEx, cNRTLus, and SIL 2/3 standards for harsh industrial conditions.
Q8: Can the probe length be customized?
A8: Yes, unthreaded length, case length, total cable length, and connector type can all be customized.
