Technical Specifications
| Parameter | Specification |
|---|---|

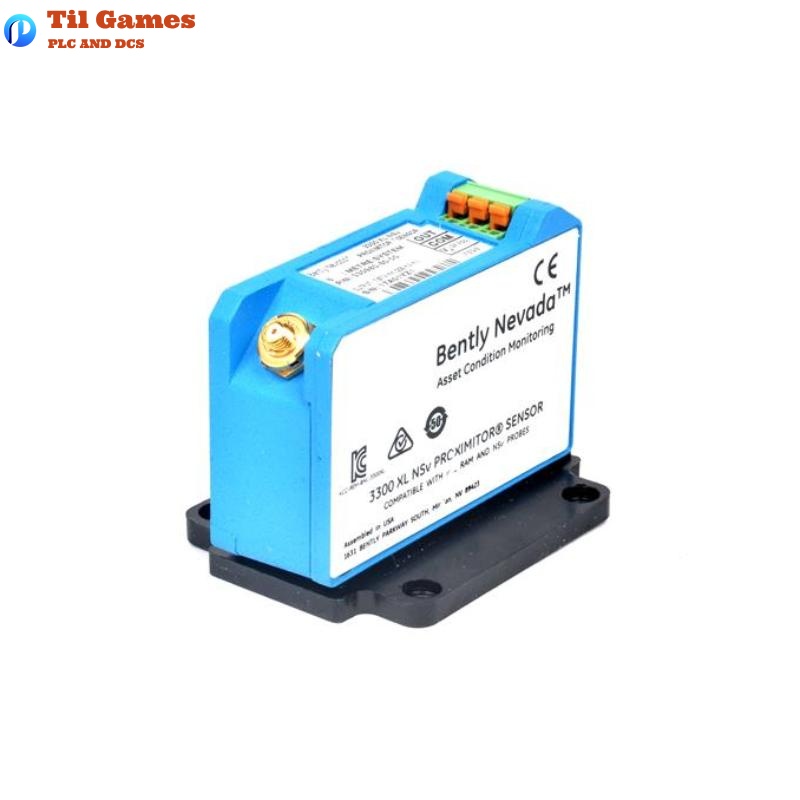

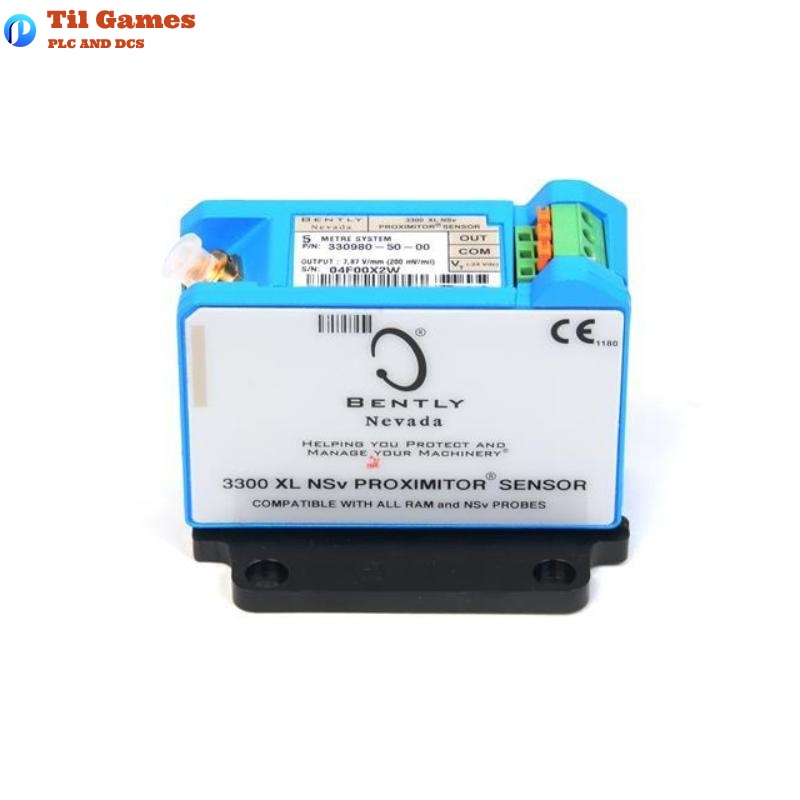

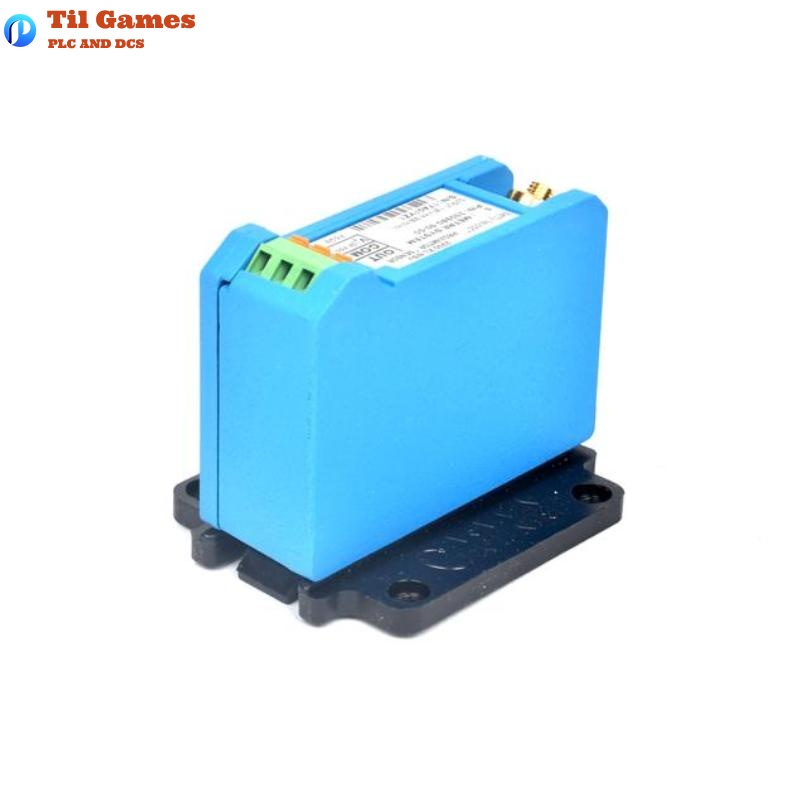

| Product Model | Bently Nevada 330980-50-00 3300 XL NSv Proximitor Sensor |
| System Length | 5.0 meters (including probe and extension cable) |
| Total Weight | Approx. 0.255 kg |
| Input | Accepts one 3300 NSv or RAM proximity probe and extension cable |
| Power Supply | -17.5 Vdc to -26 Vdc, 12 mA max (without barriers) |
| Output Resistance | 50 Ω |
| Linear Range | 1.5 mm (60 mils), from 0.25 mm to 1.75 mm |
| Recommended Gap | 1.0 mm (40 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Deviation from Straight Line (DSL) | < ±0.06 mm (±2.3 mils) |
| Frequency Response | 0 to 10 kHz, typical ±3 dB |
| Target Size | ≥13 mm (flat target), shaft ≥30 mm |
| Material (Probe Tip) | PPS (Polyphenylene sulfide) |
| Material (Probe Case) | AISI 304 stainless steel |
| Material (Sensor Housing) | A380 aluminum |
| Cable Type | 75 Ω coaxial, FEP insulated |
| Operating Temp (Probe) | -52°C to +177°C |
| Operating Temp (Sensor) | -52°C to +100°C |
| Minimum Bend Radius | 25.4 mm (with/without armor) |
| Max Tensile Strength | 220 N (probe/cable) |
| Environmental Rating | 100% condensing humidity (non-submersible) |
FAQ
FAQ
Q1: What is the total system length of the 330980-50-00 sensor?
A1: The total system length is 5.0 meters, including the probe and extension cable.
Q2: What material is used for the probe case?
A2: The probe case is made of AISI 304 stainless steel.
Q3: What is the linear measurement range?
A3: The linear range is from 0.25 mm to 1.75 mm, totaling 1.5 mm (60 mils).
Q4: What is the typical operating temperature range for the proximitor sensor?
A4: The operating range is from -52°C to +100°C.
Q5: Can the system operate in high humidity conditions?
A5: Yes, it is rated for 100% condensing humidity but is not submersible.
Q6: What is the output scale factor of the system?
A6: The system provides 7.87 V/mm or 200 mV/mil.
Q7: What is the recommended minimum target diameter?
A7: The recommended flat target diameter is at least 13 mm.
Q8: What is the typical weight of the system?
A8: The typical weight is approximately 0.255 kg for a 5.0-meter system.
