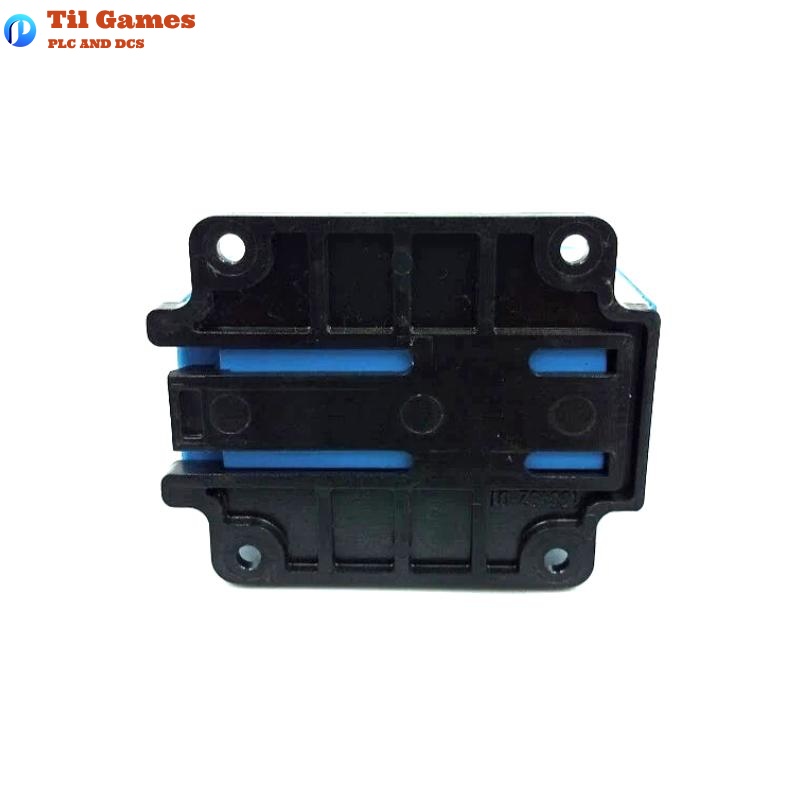

Technical Specifications
| Parameter | Specification |
|---|---|

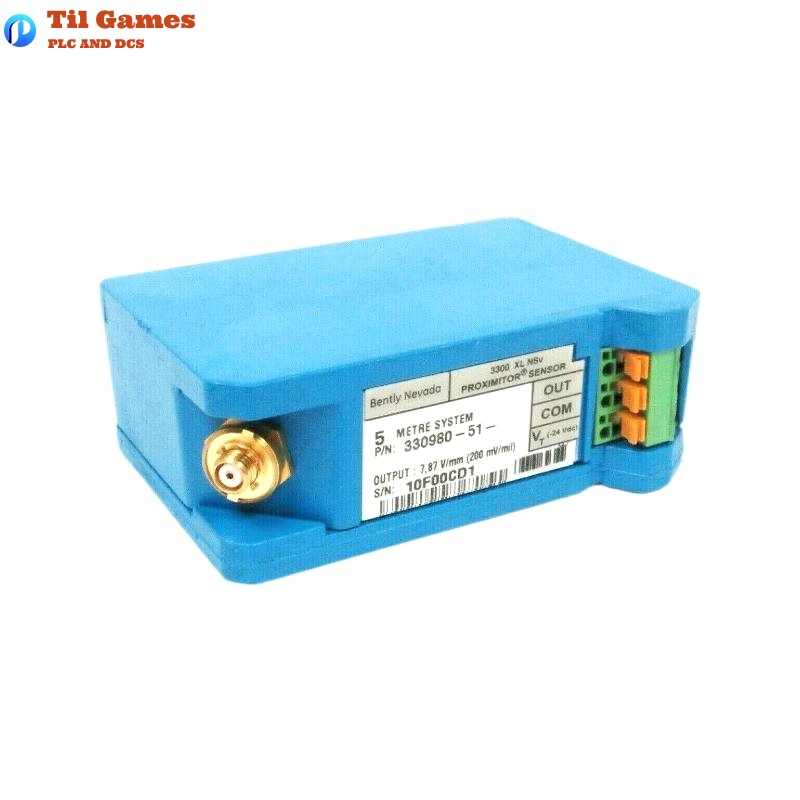

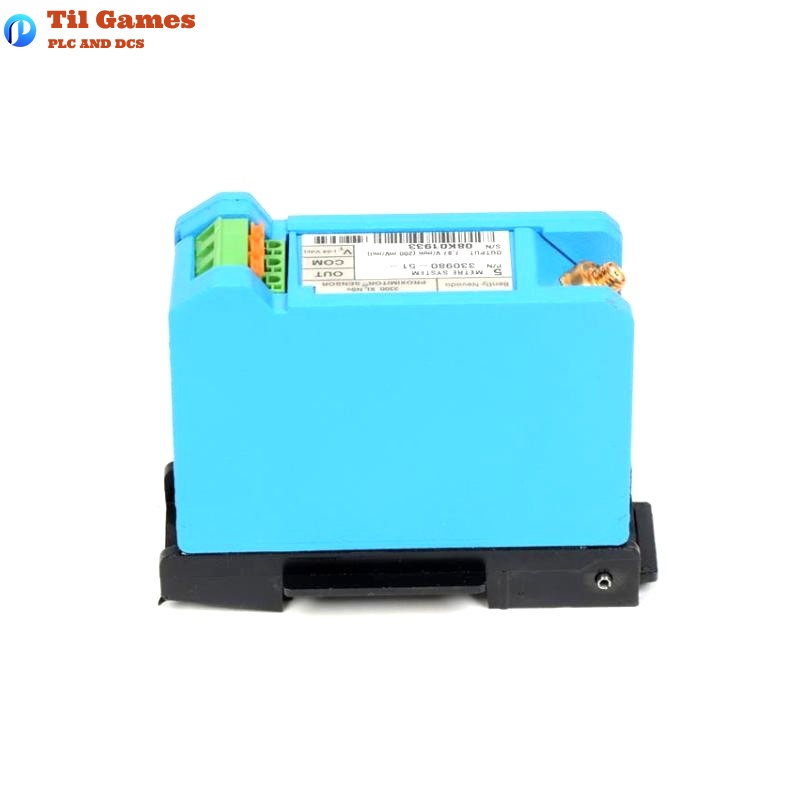

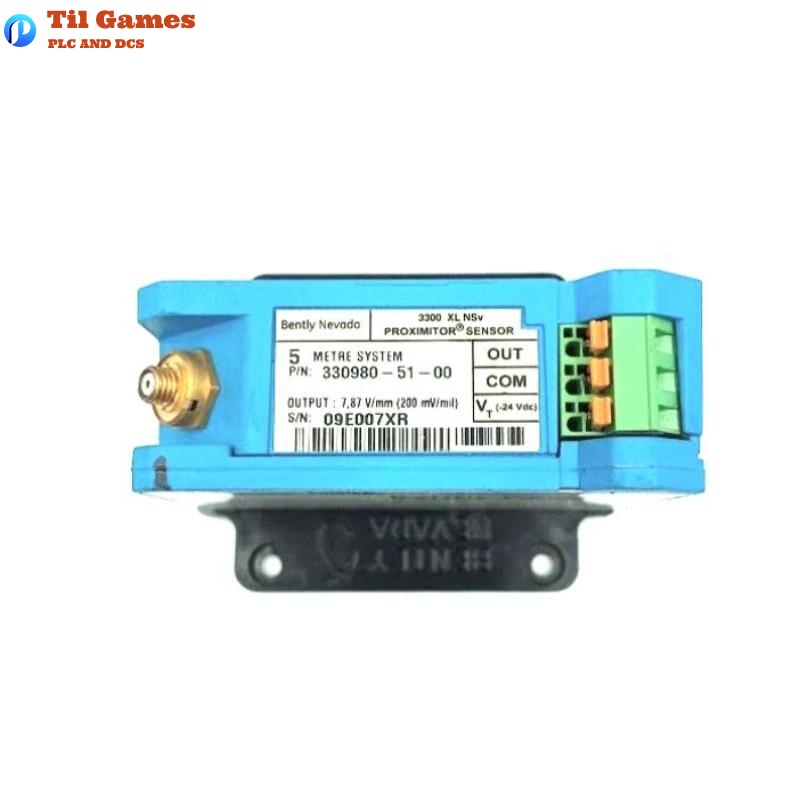

| System Type | 3300 XL NSv Proximity Transducer System |
| Power Supply | -17.5 Vdc to -26 Vdc (max 12 mA) |
| Linear Range | 1.5 mm (60 mils) |
| Recommended Gap Setting | 1.0 mm (40 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil), ±12.5% / -20% |
| Deviation from Best Fit Line | < ±0.06 mm (±2.3 mils) |
| Frequency Response | 0 to 10 kHz (±3 dB typical) |
| Target Material | AISI 4140 steel (standard calibration) |
| Minimum Target Diameter | 8.9 mm (recommended ≥13 mm) |
| Minimum Shaft Diameter | 30 mm standard, 20 mm with X-Y offset |
| Counterbore Minimum | 9.5 mm (recommended ≥13 mm) |
| Operating Temperature (Probe) | -52°C to +177°C (-62°F to +351°F) |
| Operating Temp (Sensor) | -52°C to +100°C (-62°F to +212°F) |
| Relative Humidity | 100% condensing, non-submersible (with connector protection) |
| System Length | 5.0 meters |
| Total Weight | 0.255 kg (255 g) |
| Extension Cable Material | FEP insulated coaxial cable |
| Connector Material | Gold-plated brass |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 304 stainless steel |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the standard output scale factor of the 330980-51-00 sensor?
A1: The standard scale factor is 7.87 V/mm (200 mV/mil).
Q2: What is the linear range of the sensor?
A2: The linear measurement range is 1.5 mm, from approximately 0.25 mm to 1.75 mm gap.
Q3: What target material is used for calibration?
A3: The sensor is calibrated to AISI 4140 steel as standard.
Q4: What is the maximum temperature the probe can withstand?
A4: The probe can operate up to +177°C and withstand storage up to the same.
Q5: What is the system’s minimum target size requirement?
A5: The minimum flat target diameter is 8.9 mm, with 13 mm recommended.
Q6: Can this sensor be used in high EMI environments?
A6: Yes, the sensor is designed with enhanced EMI/RFI immunity and CE compliance.
Q7: What is the weight and length of the 330980-51-00 sensor system?
A7: The total length is 5.0 meters, and the typical system weight is approximately 0.255 kg.
Q8: Is the sensor certified for hazardous areas?
A8: Yes, it holds certifications for use in hazardous areas including ATEX, IECEx, and cNRTLus.
