Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330980-51-05 |
| Total System Length | 5.0 meters (includes probe + extension cable) |
| Weight | Approx. 0.255 kg (255 g / 9 oz) |
| Power Supply | -17.5 Vdc to -26 Vdc, max 12 mA |
| Linear Range | 1.5 mm (60 mils), from 0.25 mm to 1.75 mm |
| Recommended Gap | 1.0 mm (40 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil), ±20% |
| DSL (Linearity Error) | ≤ ±0.06 mm (±2.3 mils) |
| Frequency Response | 0–10 kHz, +0 / -3 dB |
| Target Size Requirement | Min. flat: 8.9 mm, recommended: 13 mm |
| Shaft Diameter Min. | 30 mm standard, 20 mm offset |
| Material – Probe Tip | PPS (Polyphenylene Sulfide) |
| Material – Probe Case | AISI 304 Stainless Steel |
| Material – Sensor | A380 Aluminum |
| Cable Type | 75 Ω Coaxial, FEP Insulated |
| Operating Temp (Probe) | -52°C to +177°C |
| Operating Temp (Sensor) | -52°C to +100°C |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| Connector Material | Gold-plated brass |
| Torque (Probe Mounting) | Max 33.9 N·m depending on thread type |
| Pressure Seal Rating | Not pressure-tested; sealed with Viton O-ring |
FAQ
Frequently Asked Questions (FAQ)

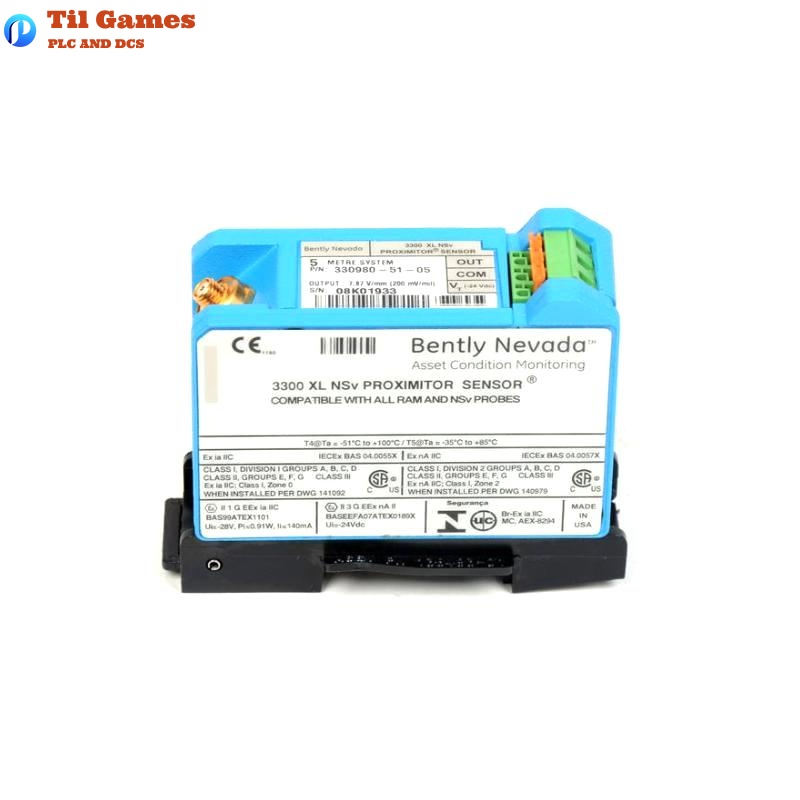

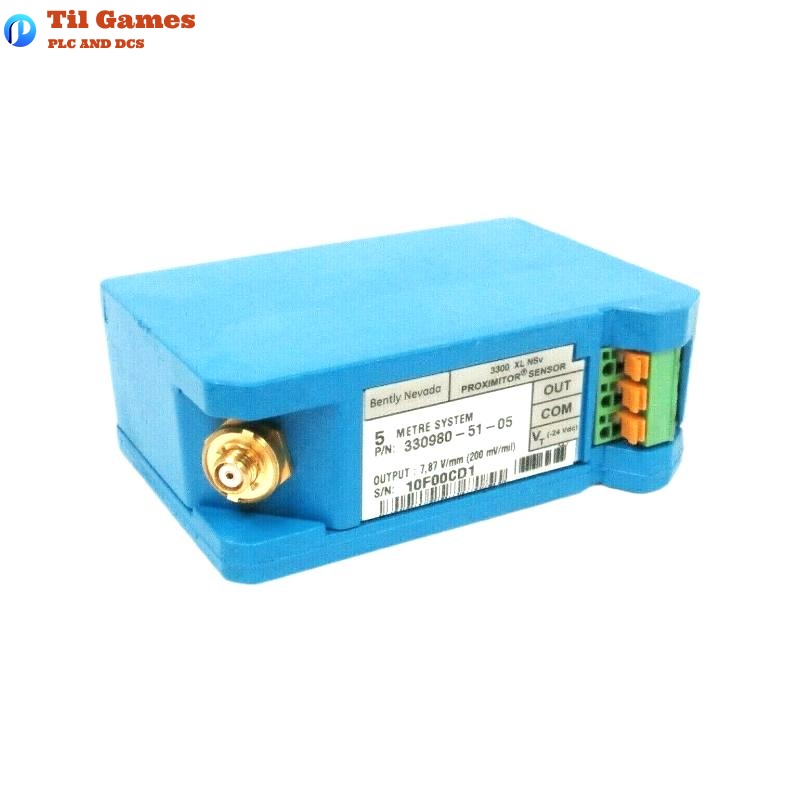

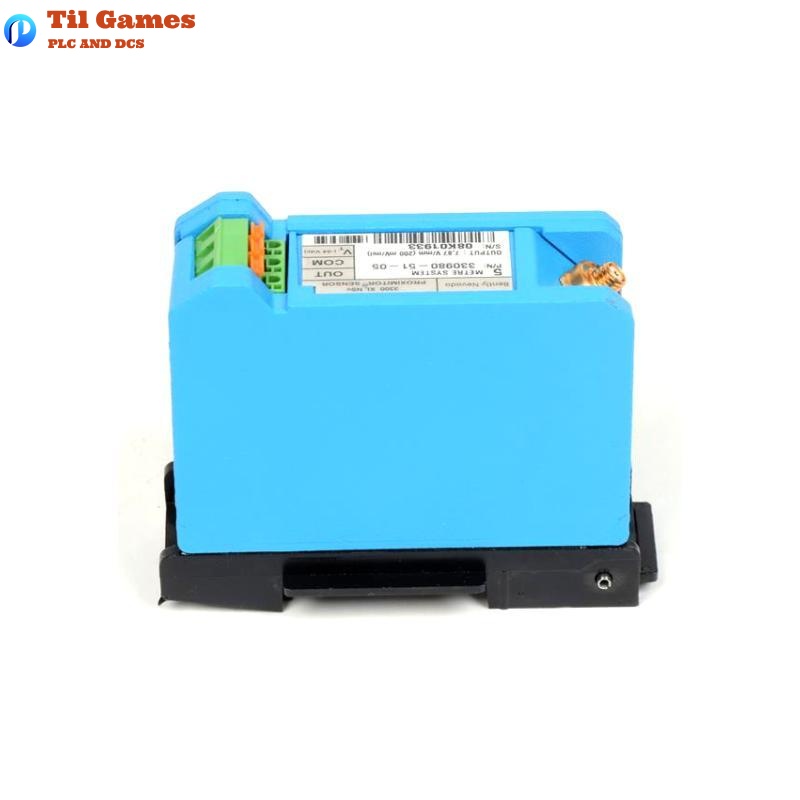

Q1: What is the primary application of the 330980-51-05 Proximitor Sensor?
A1: It is mainly used for radial vibration, axial position, and speed measurements in tight spaces like compressors with small shafts.
Q2: What is the standard system length and weight of this sensor?
A2: The standard length is 5.0 meters and the total system weight is approximately 0.255 kg.
Q3: What is the recommended gap setting for optimal performance?
A3: 1.0 mm (40 mils) is the recommended gap setting.

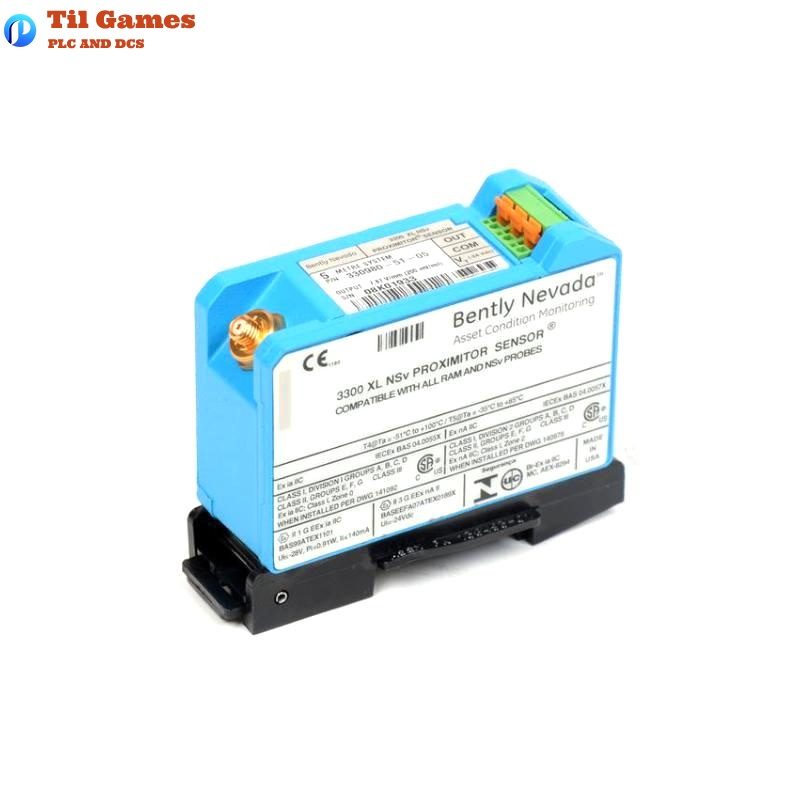

Q4: Can this sensor be mounted on a DIN rail?
A4: Yes, model 330980-51-05 is specifically designed for DIN rail mounting.
Q5: What is the linear measurement range of this sensor?
A5: The linear range is 1.5 mm, starting at approximately 0.25 mm up to 1.75 mm.
Q6: What materials are used for the probe and sensor housing?
A6: The probe case is made of AISI 304 stainless steel, and the sensor is made of A380 aluminum.
Q7: How is the sensor protected against electromagnetic interference?
A7: It is designed with improved RFI/EMI immunity and complies with CE standards.
Q8: Is the sensor suitable for use in hazardous areas?
A8: Yes, it supports multiple hazardous area certifications including ATEX, IECEx, and cNRTLus.
