Technical Specifications
| Item | Specification |
|---|---|

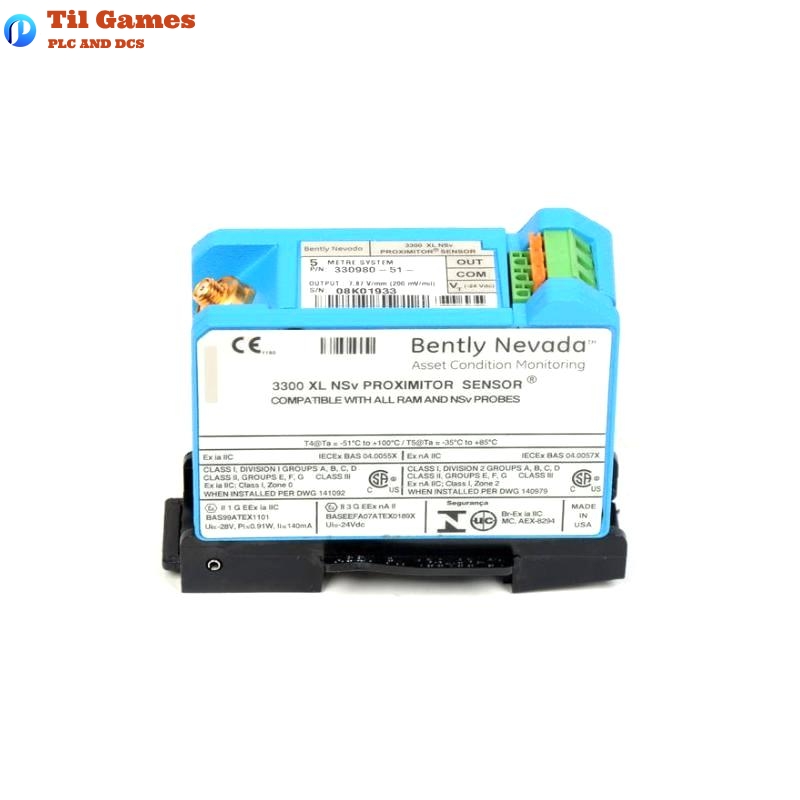

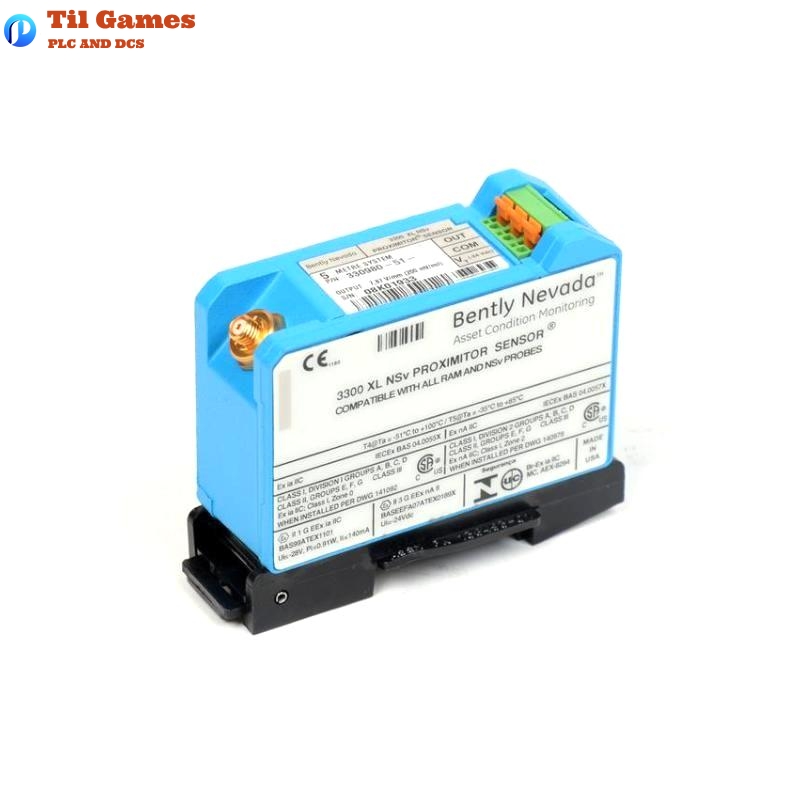

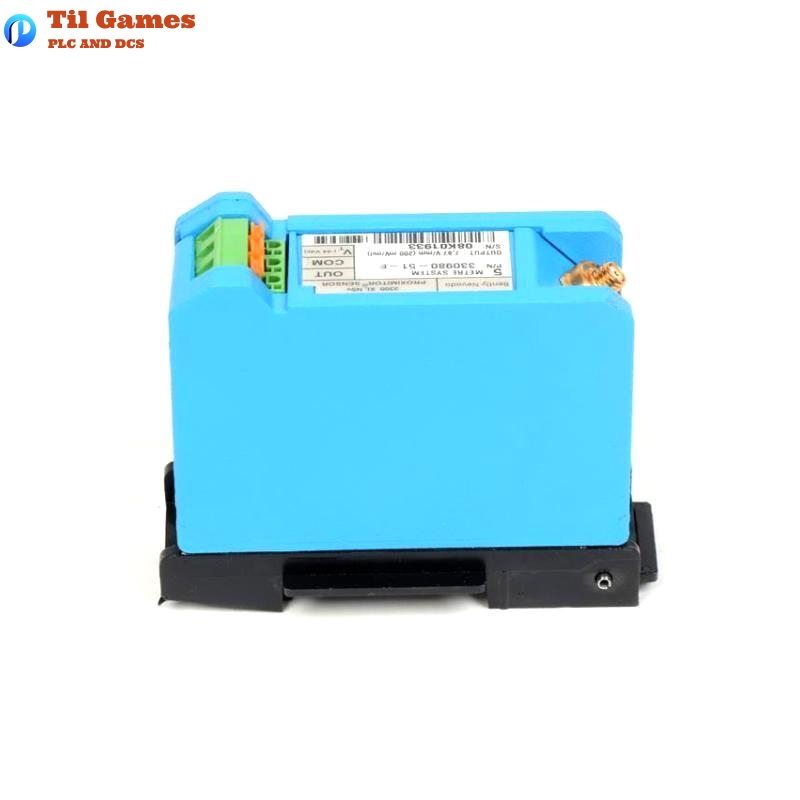

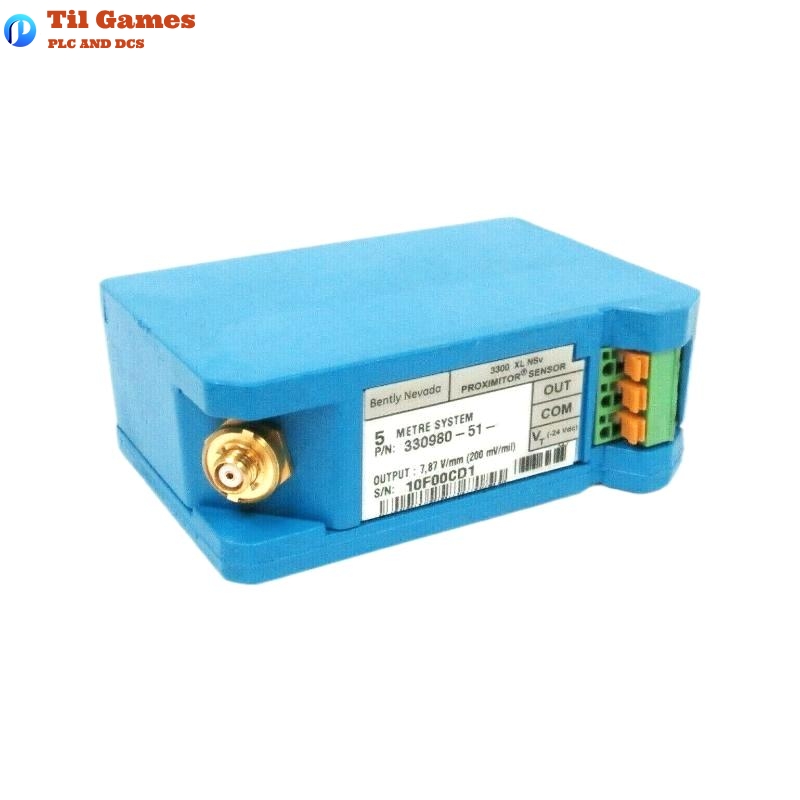

| Sensor Model | Bently Nevada 330980-51-CN |
| System Composition | Includes 3300 NSv probe, extension cable, and Proximitor sensor |
| Power Supply Requirement | -17.5 Vdc to -26 Vdc (non-barrier), max 12 mA |
| Recommended Gap Setting | 1.0 mm (40 mils) |
| Linear Range | 1.5 mm (60 mils), from 0.25 mm to 1.75 mm |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz (with 305 m field wiring) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 304 stainless steel |
| Probe Cable | 75 Ω coaxial, FEP insulated, lengths: 0.5 / 1 / 5 / 7 meters |
| Extension Cable Material | 75 Ω coaxial, FEP insulated |
| Mounting Options | DIN rail or panel mount |
| Minimum Recommended Shaft Diameter | 30 mm (standard X-Y config) |
| Minimum Flat Target Size | 13 mm diameter |
| Tensile Strength | 220 N (50 lb) |
| Minimum Bend Radius | 25.4 mm (1.0 in) with or without armor |
| Total System Length | 5.0 meters (including extension cable) |
| System Weight | 0.255 kg (255 g) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of equipment is this sensor suitable for?
A1: It is suitable for centrifugal air compressors, refrigeration compressors, and process gas compressors with tight installation spaces.
Q2: What is the recommended probe gap setting?
A2: The recommended gap setting is 1.0 mm (40 mils).
Q3: What is the output scale factor of the system?
A3: The output scale factor is 7.87 V/mm (200 mV/mil).
Q4: What target material is the system calibrated for?
A4: Factory default is AISI 4140 steel; other materials can be specified on request.
Q5: Can this sensor replace older systems like 3300 RAM?
A5: Yes, it is compatible and can replace the 3300 RAM system directly using existing probes and cables.
Q6: What temperature range can the system handle?
A6: Probe: -52°C to +177°C; Proximitor Sensor: -52°C to +100°C.
Q7: Does the system provide electromagnetic interference protection?
A7: Yes, it features high RFI/EMI immunity and complies with European CE standards.
Q8: Are special tools required for installation?
A8: No, SpringLoc terminal strips allow tool-free, reliable field wiring.
