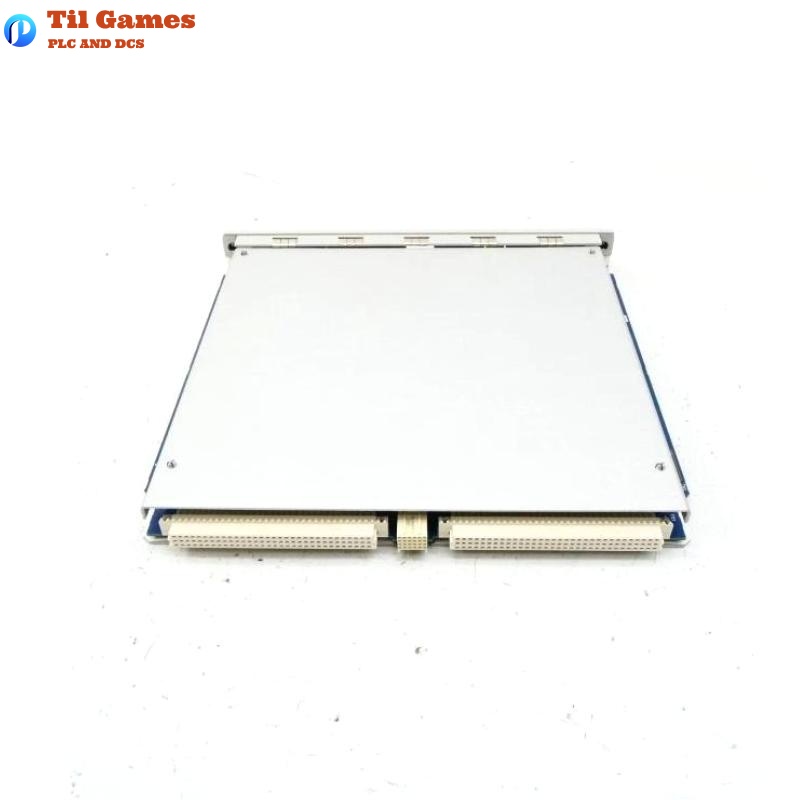

Technical Specifications
| Category | Specification |
|---|---|
| Power Consumption | 10.5 W |
| Communication Ports | USB-B (front), 10Base-T/100Base-TX RJ-45, 100Base-FX MT-RJ |
| Waveform Sampling | 48 channels, synchronous/asynchronous, multiple frequency ranges |
| Speed Support Range | 1 rpm up to 100,000 rpm (based on enabled channels) |
| Dynamic Channel Support | Up to 48 channels with Channel Enabling Disk |
| Alarm Data Capture | Static: 10 mins before + 1 min after (1s), 20s before + 10s after (100ms); Waveform: 2.5 mins before + 1 min after (10s intervals) |

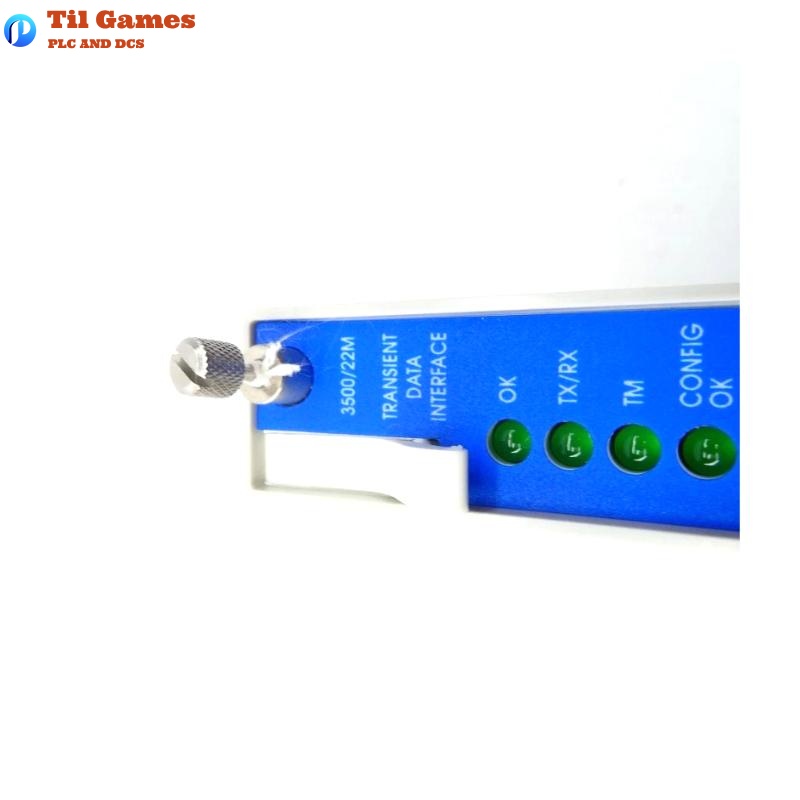

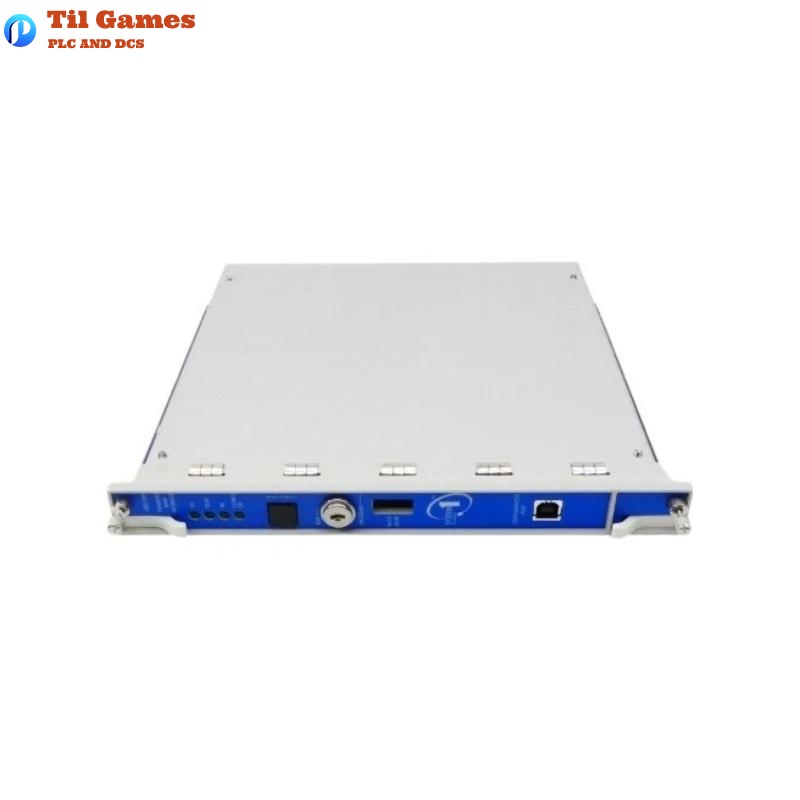

| Front Panel LEDs | OK, TX/RX, TM, CONFIG OK |
| Controls | Rack Reset, Address Switch, RUN/PROGRAM Keylock |
| I/O Module Contacts | Trip Multiply, Alarm Inhibit, Rack Reset (dry contact) |
| Communication Protocols | BN Host Protocol, BN TDI Protocol via TCP/IP |
| USB Baud Rate | Max 115.2 kbaud (auto-baud) |
| Ethernet Cable Max Length | 100m (copper), 2000m (fiber) |
| Operating Temp | -30°C to +65°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Battery Life | 38 years powered, 12 years unpowered (@50°C) |
| Dimensions (Main) | 241.3 x 24.4 x 241.8 mm |
| Weight (Main) | 0.91 kg |
| Rack Slot Required | 1 full-height front slot (TDI), 1 full-height rear slot (I/O) |
FAQ
Frequently Asked Questions (FAQ)
Q1: Can the 3500/22M module operate standalone?
A1: No. It must be used with the 3500 rack system and compatible monitoring modules. It occupies Slot 1 next to the power supply.
Q2: Can it replace the 3500/20 RIM module?
A2: Yes, but you must also replace the corresponding I/O module to avoid damage. RIM I/O must not be used with the TDI.
Q3: Does it support transient and waveform data collection?
A3: Yes. When the optional Channel Enabling Disk is installed, it supports dynamic and high-resolution data capture.
Q4: What communication protocols are supported?
A4: Supports BN Host Protocol and BN TDI Protocol over Ethernet TCP/IP.
Q5: What are the environmental limitations?
A5: It operates from -30°C to +65°C and up to 95% non-condensing humidity, suitable for industrial conditions.
Q6: Will configuration be lost during power loss?
A6: No. The module has non-volatile memory and retains settings even when powered off.
Q7: How many channels of data can it collect?
A7: It supports up to 48 dynamic waveform channels depending on licensing.
Q8: Can the USB port be used for configuration?
A8: Yes. The front panel USB-B allows configuration and data retrieval with an isolated USB cable included.
