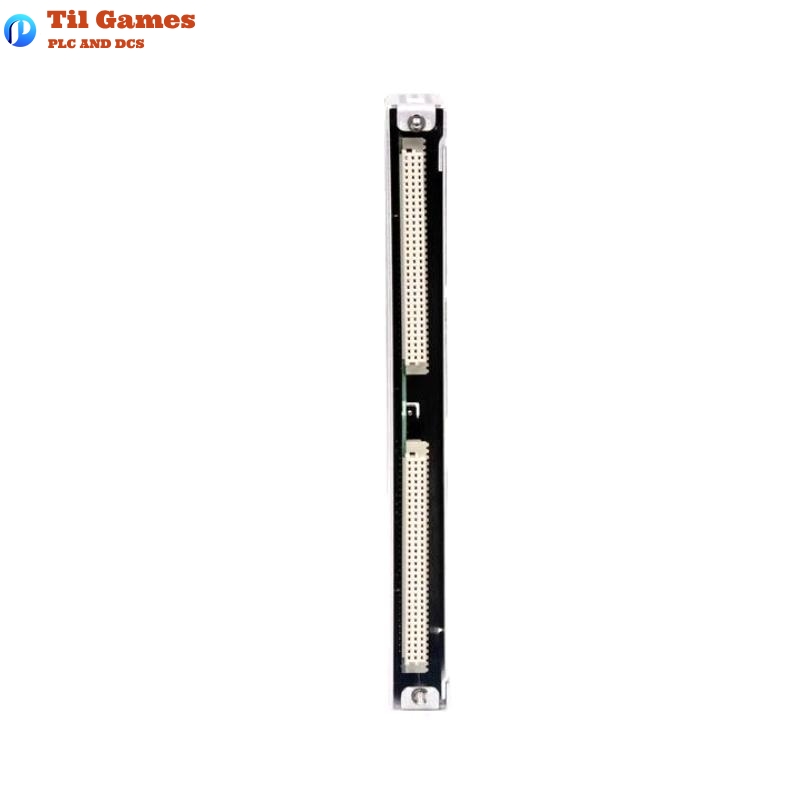

Product Specifications
| Parameter | Specification |
|---|---|
| Input Signal Range | +0.8V to -21.0V (Non-Isolated I/O Module) +5V to -11V (Isolated I/O Module) |
| Input Impedance | 21.8 kΩ minimum |
| Input Frequency Range | 1 to 1,200,000 cpm (0.017 to 20 kHz) |
| Output Frequency Range | 1 to 99,999 cpm (0.017 to 1,667 Hz) |
| Frequency Signal Accuracy | 0.017 to 100 Hz … ±1 cpm 101 to 500 Hz … ±8 cpm 501 to 20 kHz … ±1% of cpm |
| Output Impedance | Maximum 504 Ω |
| Front Panel LEDs | OK LED, TX/RX LED |
| Power Consumption | 3.2 Watts |
| Transducer Power Supply | -24 Vdc, 40 mA maximum per channel |
| Operating Temperature | -30°C to +65°C (Non-Isolated I/O Module) 0°C to +65°C (Isolated I/O Module) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Dimensions | 119.9 mm x 24.4 mm x 256.5 mm |
| Weight | 0.34 kg |
FAQ
FAQ

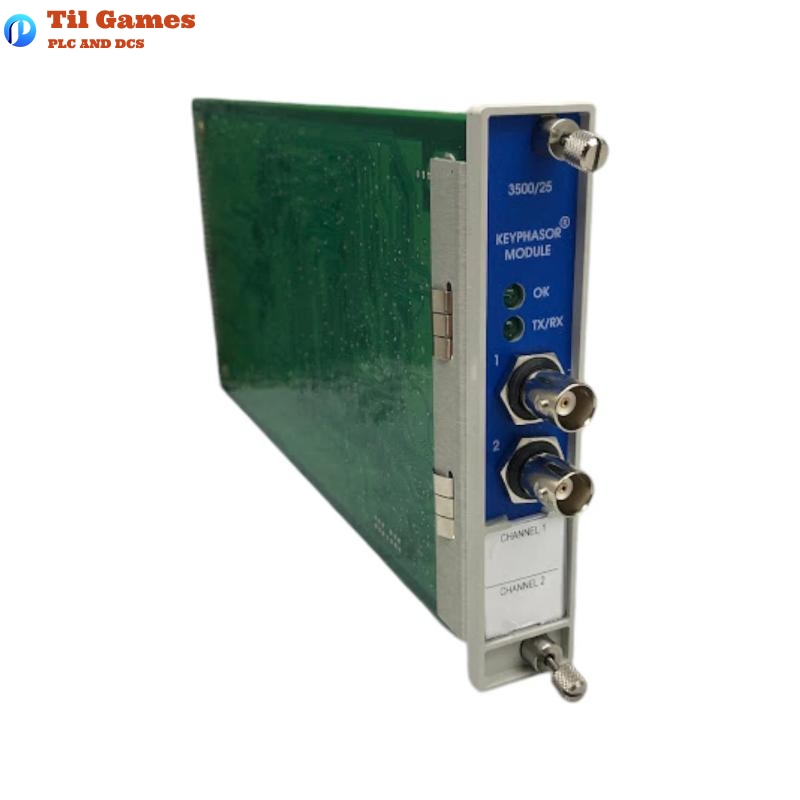

Q1: What applications is the Bently Nevada 3500/25 Enhanced Keyphasor Module used for?
A1: The module is used to convert input signals from proximity probes or magnetic pickups into Keyphasor signals for measuring shaft speed and phase. It is used in machinery protection systems and vibration monitoring applications.
Q2: How many Keyphasor signals can the module accept?
A2: The module can accept up to four Keyphasor signals for normal configuration and up to eight signals in a paired configuration.
Q3: How is the module connected to sensors?
A3: The module accepts input signals from proximity probes or magnetic pickups and converts them into Keyphasor signals.
Q4: What is the input frequency range of the Bently Nevada 3500/25 Enhanced Keyphasor Module?
A4: The input frequency range is from 1 to 1,200,000 cpm (0.017 to 20 kHz).
Q5: What outputs does the module provide?
A5: The module provides two buffered Keyphasor outputs, located at the front and rear of the rack, using coaxial and Euro-style connectors.
Q6: What is the power consumption of the module?
A6: The typical power consumption of the module is 3.2 Watts.
Q7: What are the dimensions and weight of the module?
A7: The dimensions of the module are 119.9 mm x 24.4 mm x 256.5 mm, and the weight is 0.34 kg.
Q8: What are the environmental requirements for the module?
A8: The operating temperature range is -30°C to +65°C (Non-Isolated I/O Module), storage temperature range is -40°C to +85°C, and humidity is 95%, non-condensing.
