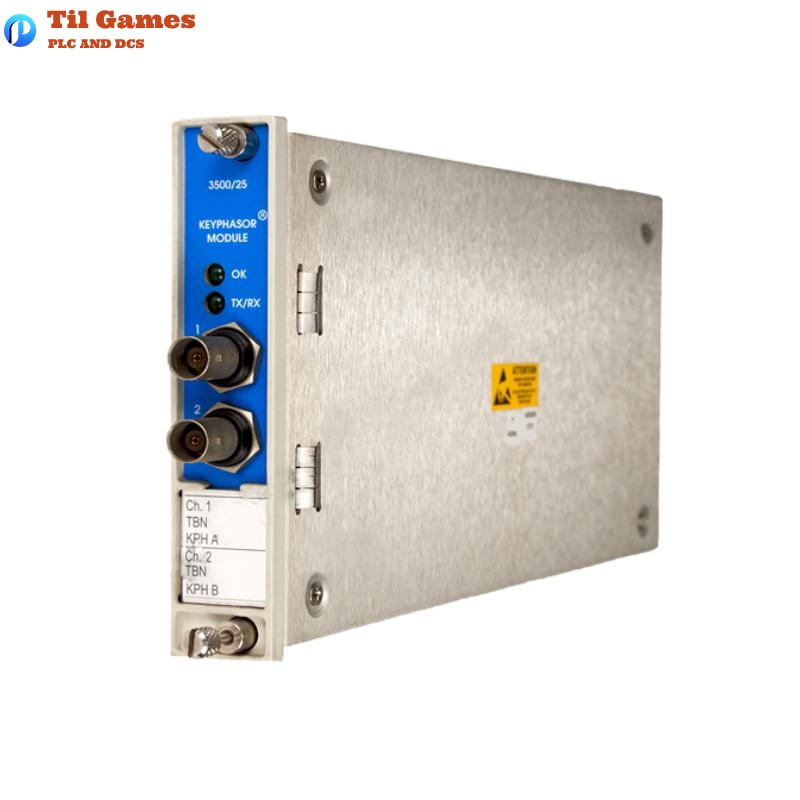

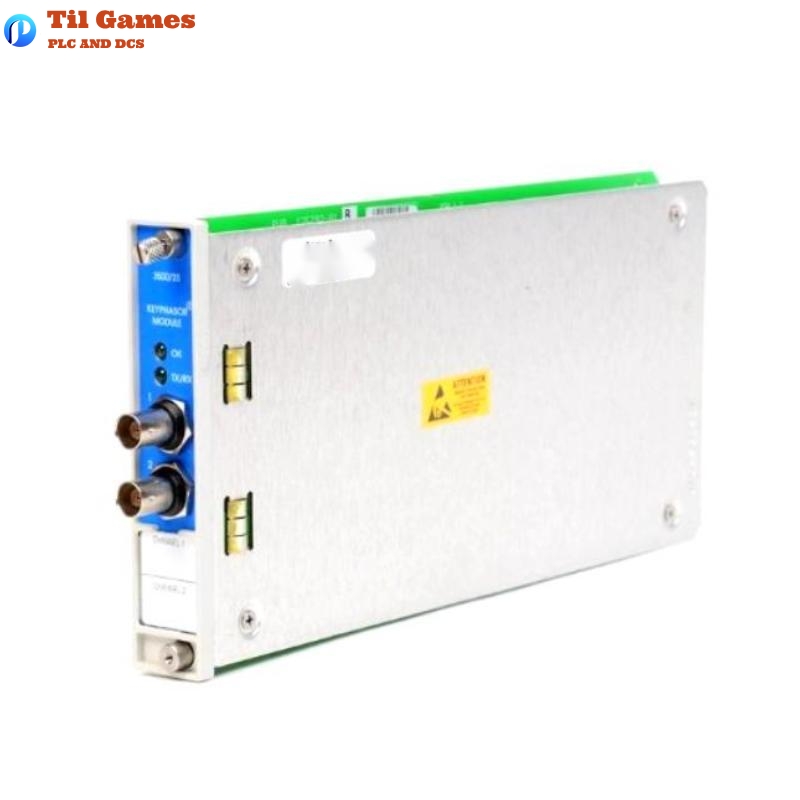

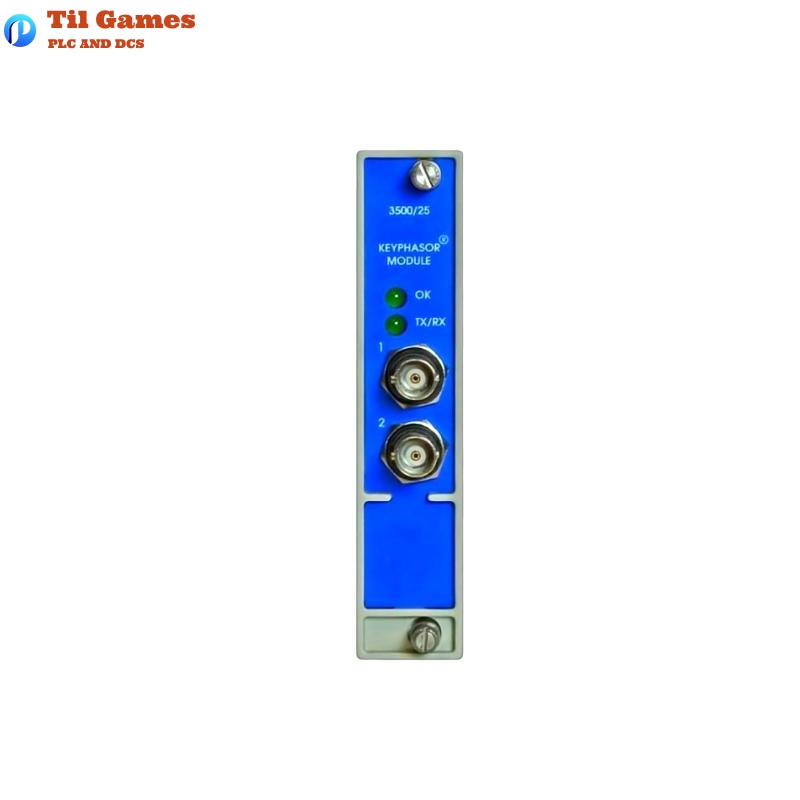

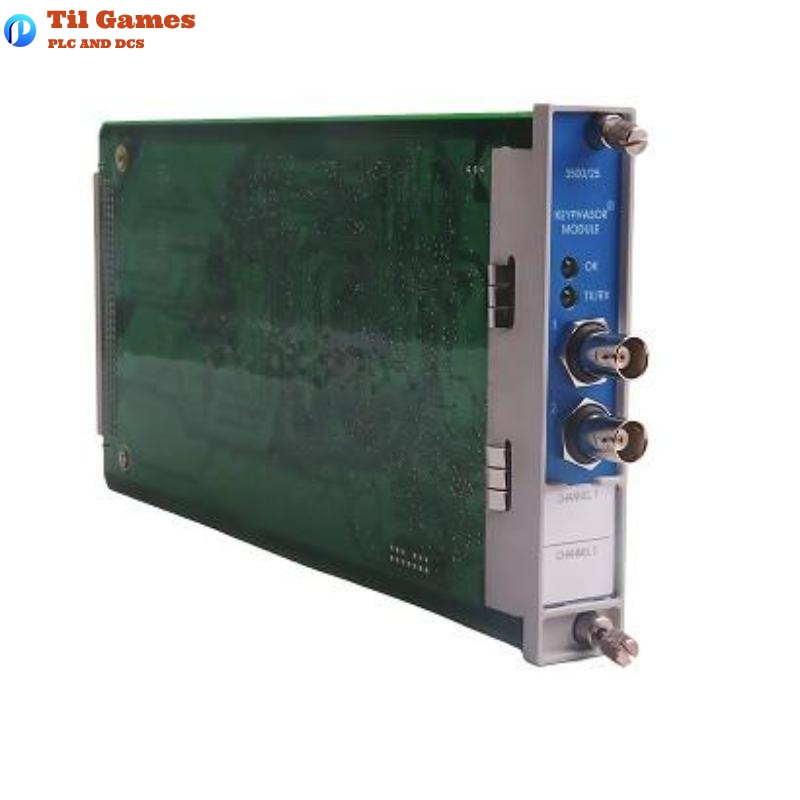

| Product Model | 3500/25 128726-01 Keyphasor External Termination Block |
| Connector Type | Terminal Strip Connectors |
| Compatibility | Designed for use with 126648-01 and 126648-02 I/O modules (External Terminations) |
| Application | Used to interface Keyphasor I/O modules with field wiring in a modular system |
| Dimensions (H x W x D) | 241.3 mm x 24.4 mm x 103.1 mm |
| (9.50 in x 0.96 in x 4.06 in) | |
| Weight | 0.46 kg (1.01 lbs.) |
| Installation Location | External – requires external termination cables and mounting provisions |
| Wiring Interface | Terminal strip for field signal input |
| Cabling Requirements | Requires 129530-AAAA-BB series cables for connection to Keyphasor I/O Module |
| Material | Industrial-grade material, optimized for harsh environments |
| Certifications | Designed to support applications with ATEX, IECEx, and cNRTLus compliance |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 128726-01 Keyphasor External Termination Block?
A1: It provides a termination interface between the Keyphasor I/O module and the external field wiring. It is responsible for organizing and securing signal connections from proximity probes or magnetic pickups.
Q2: Can the 128726-01 be used with internal termination Keyphasor I/O modules?
A2: No, this termination block is specifically designed for use with I/O modules that support external terminations only, such as 126648-01 and 126648-02.
Q3: What type of connectors does the 128726-01 use?
A3: The 128726-01 uses terminal strip connectors, which allow for secure screw-type wiring connections.
Q4: Is the 128726-01 compatible with isolated I/O modules?
A4: Yes, it can be used with isolated Keyphasor I/O modules that are configured for external terminations, such as 126648-02.
Q5: What is the difference between 128718-01 and 128726-01?
A5: The 128718-01 uses Euro-style connectors, while the 128726-01 uses terminal strip connectors for wiring. Both are external termination blocks but designed for different wiring preferences.
Q6: What is the recommended cable for connecting this termination block to the Keyphasor I/O module?
A6: The recommended cable is the 129530-AAAA-BB series, which is available in lengths from 5 to 100 feet and can be ordered assembled or unassembled.
Q7: Can this termination block be mounted in any standard rack system?
A7: It requires proper mounting provisions within the control cabinet or rack. It is not rack-mounted itself but externally mounted near the I/O module’s location.
Q8: What are the environmental durability characteristics of this termination block?
A8: It is built with materials suitable for industrial environments, supporting harsh temperature conditions and ensuring reliable mechanical stability during extended operations.
