Technical Specifications
| Item | Specification |
|---|---|

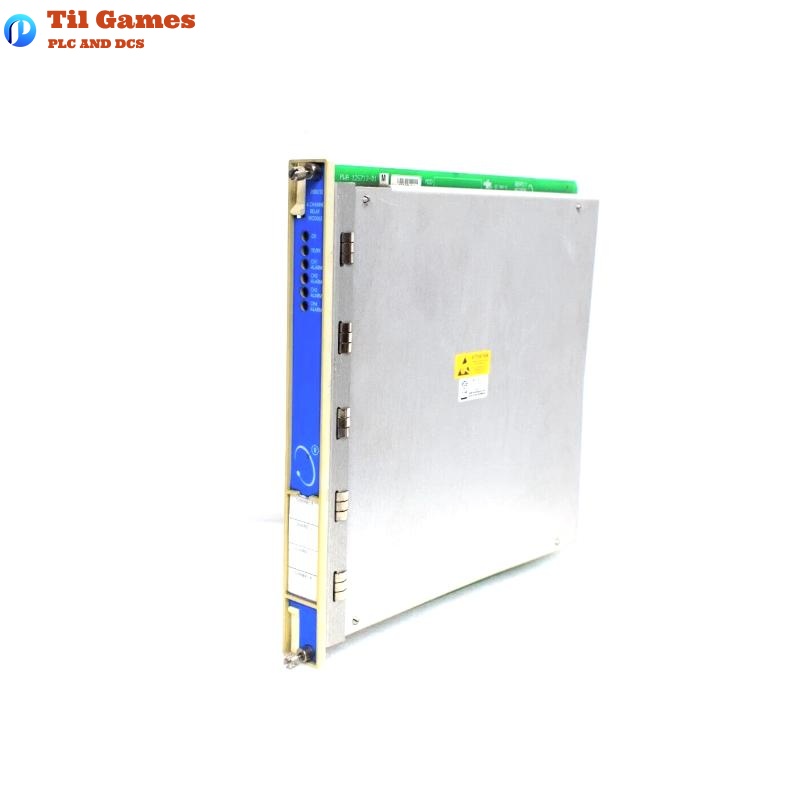

| Model | 3500/32 125720-02 + 125712-01 |
| Function | Provides four independently programmable relay outputs with voting logic |
| Slot Requirement | 1 full-height front slot + 1 full-height rear I/O slot |
| Power Consumption | 5.8 Watts (typical) |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Relay Type | SPDT, epoxy-sealed, 250 Vrms arc suppressor |
| Contact Life | 100,000 cycles @ 5A, 24VDC or 240VAC |
| Contact Ratings (Standard) | DC: 2A @ 30V; AC: 2A @ 250VAC, 450VA max power |
| Contact Ratings (Hazardous) | Max voltage: 30VDC or 30VAC, Max current: 2A |
| Module Dimensions (Main) | 241 x 24.4 x 242 mm |
| Module Weight (Main) | 0.7 kg |

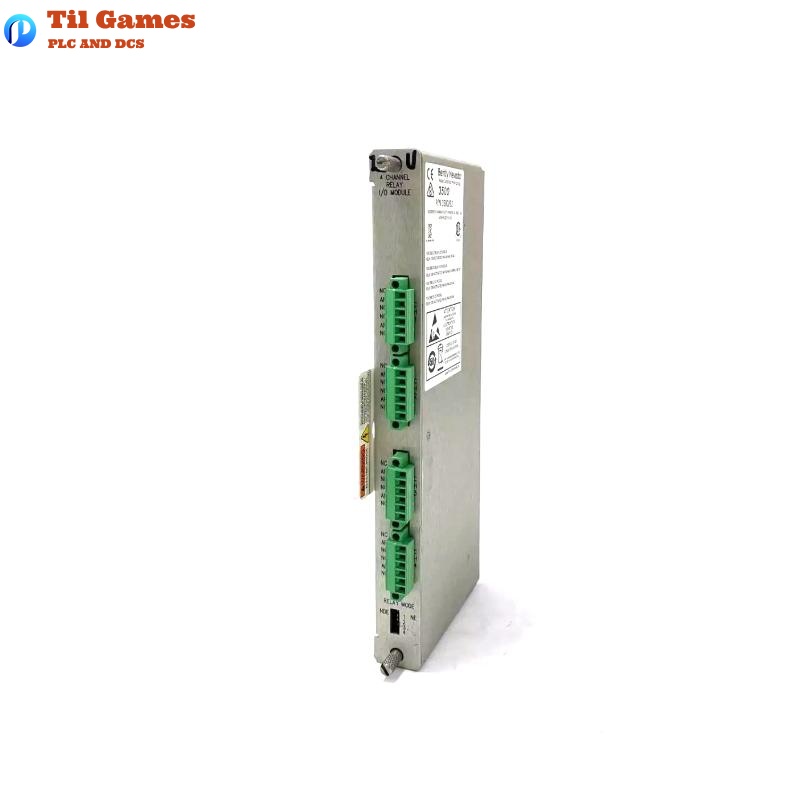

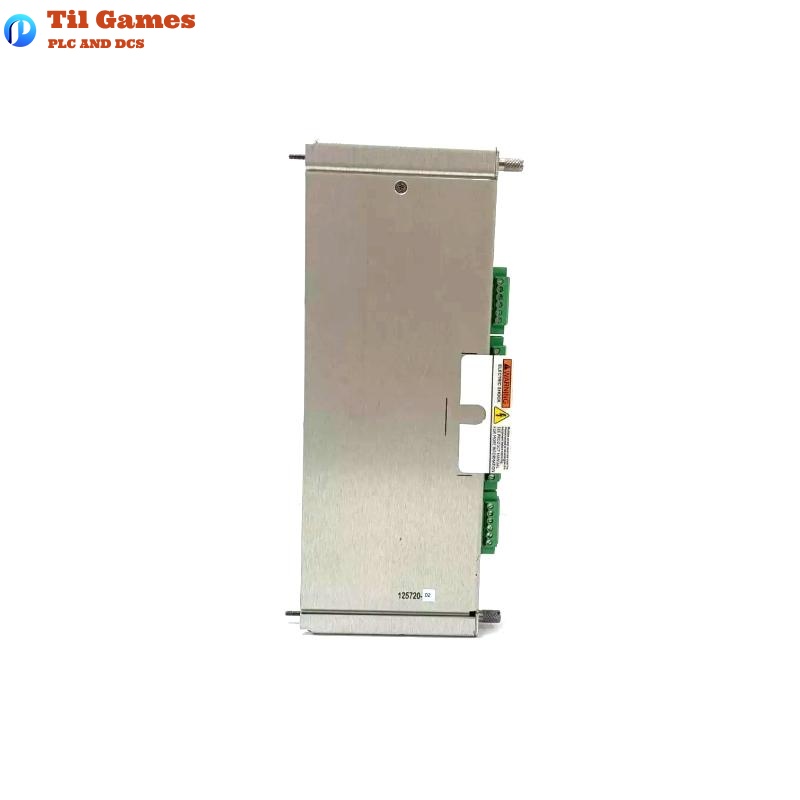

| I/O Module Dimensions | 241 x 24.4 x 99.1 mm |
| I/O Module Weight | 0.4 kg |
| Status Indicators | OK, TX/RX, CH ALARM |
| Certifications | cNRTLus, ATEX, IECEx, FCC, EMC, RoHS, ABS, DNV GL |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main application of this module?
A1: It is used to provide four independent relay outputs, supporting alarm drive logic and voting logic in the 3500 monitoring system.
Q2: How is the alarm logic configured?
A2: Alarm logic is configured via 3500 Rack Configuration Software using AND/OR logic with inputs from various monitor channels.
Q3: Is it suitable for hazardous areas?
A3: Yes, model 125720-02 is designed for use in functional safety systems and hazardous areas (Zone 2, SIL-compliant).
Q4: What is the maximum switching voltage supported?
A4: Standard systems: up to 250VAC or 125VDC. Hazardous systems: limited to 30VAC or 30VDC.
Q5: Can relay operation mode be changed?
A5: Yes, relays can be set to Normally Energized or Normally De-energized via DIP switch.
Q6: What indicators are available on the module?
A6: Three LEDs: OK (module status), TX/RX (communication), CH ALARM (channel alarm).
Q7: Are specific software versions required?
A7: Yes, minimum required software: Rack Config ≥ Rev 4.5, Data Acquisition ≥ Rev 2.4, Display ≥ Rev 1.4.
Q8: Does the module carry protection certifications?
A8: Yes, includes RoHS, EN61010-1, EN61000-6 series, electrical safety, and maritime standards.
