Technical Specifications
| Item | Specification |
|---|---|

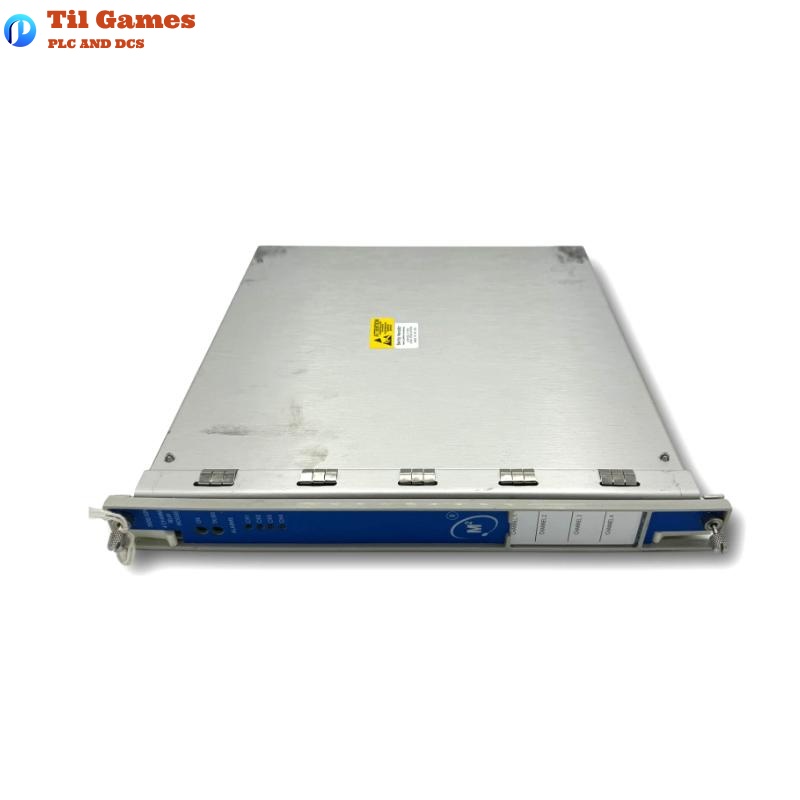

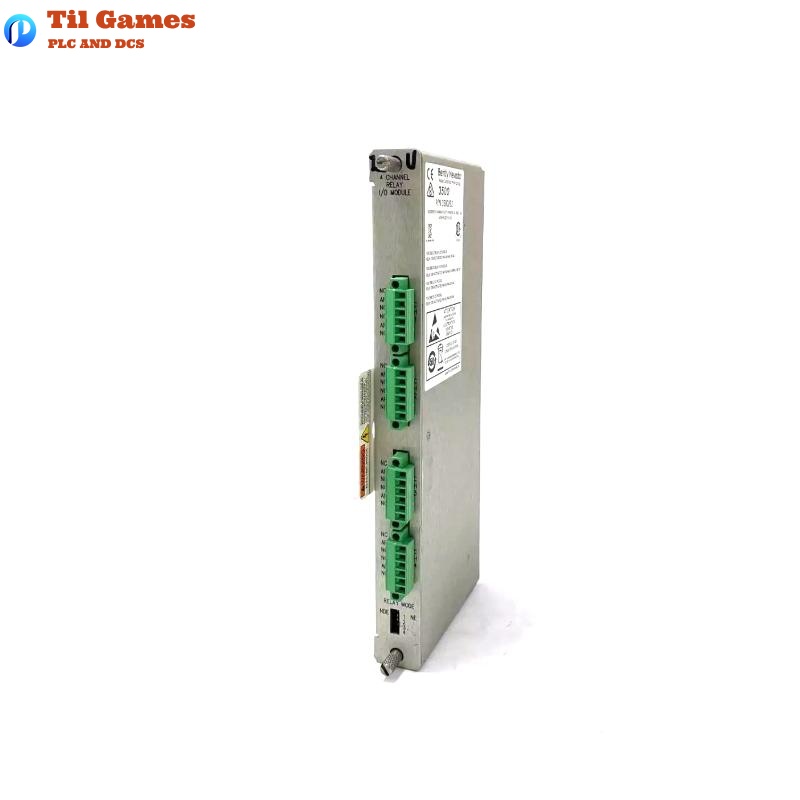

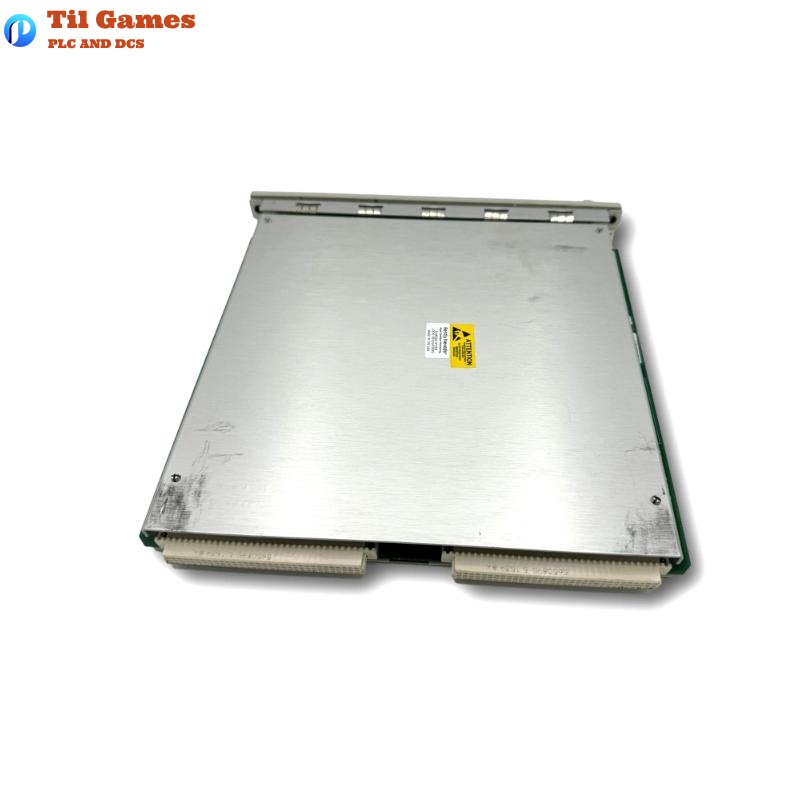

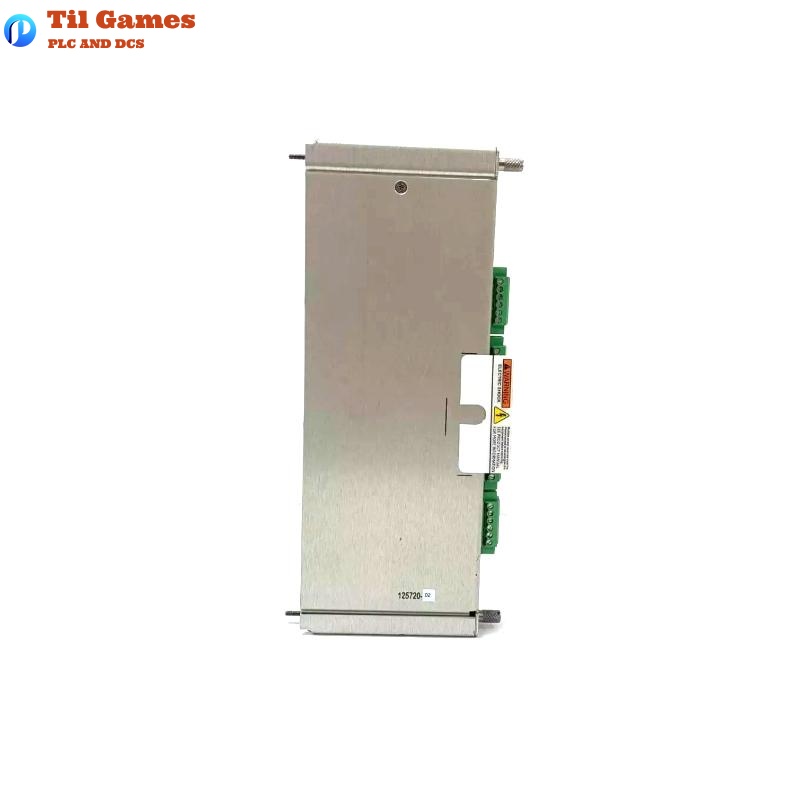

| Product Name | Bently Nevada 3500/32 4-Channel Relay Module |
| Part Number | 125720-02 + 149986-02 |
| Power Consumption | 5.8 W typical |
| Relay Type | Single-pole, double-throw (SPDT) |
| Operating Mode | Switch selectable: Normally De-energized or Energized |
| Contact Life | 100,000 cycles @ 5 A, 24 Vdc or 240 Vac |
| Environmental Sealing | Epoxy-sealed |
| Arc Suppressor | 250 Vrms, standard |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Limit | 95%, non-condensing |
| Communication Indicator | TX/RX LED flashing indicates proper communication |
| Alarm LED | CH ALARM LED lights up when channel is in alarm |
| Installation | Requires 1 full-height front slot and 1 rear slot |
| Dimensions (Main Module) | 241 x 24.4 x 242 mm |
| Weight (Main Module) | 0.7 kg |
| Dimensions (I/O Module) | 241 x 24.4 x 99.1 mm |
| Weight (I/O Module) | 0.4 kg |
| Max DC Switched Current | 2 A @ 30 Vdc, 0.75 A @ 48 Vdc, 0.2 A @ 125 Vdc |
| Max DC Switched Voltage | 125 Vdc (standard); 30 Vdc (hazardous/safety systems) |
| Max AC Switched Voltage | 250 Vac (standard); 30 Vac (hazardous/safety systems) |
| Max AC Switched Current | 2 A |
| Max AC Switched Power | 450 VA |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many relay channels does this module support?
A1: The module provides 4 independently programmable relay output channels.
Q2: Can each relay logic be customized?
A2: Yes. Alarm drive logic for each channel is configurable via 3500 Rack Configuration Software.
Q3: Are the relays configurable for Normally Open or Closed?
A3: Yes, each relay channel can be configured as normally de-energized or energized.
Q4: Does the module have status indicators?
A4: Yes, it includes OK, TX/RX, and channel-specific ALARM LEDs.
Q5: Can the module be installed in any slot?
A5: It can be installed in any full-height slot to the right of the TDI module.
Q6: Is the module suitable for functional safety systems?
A6: Yes, but only the 125720-02 variant and within the specified voltage limits.
Q7: Is the module sealed for harsh environments?
A7: Yes, it features epoxy sealing for protection.
Q8: What is the maximum operating temperature?
A8: The maximum is +65°C and the minimum is -30°C.
