Product Specifications
| Technical Specification | Value |
|---|---|
| Inputs | Accepts signals from 1 to 4 proximity transducers |
| Power Consumption | 7.7 W (typical) |
| Input Impedance | 10 kΩ |
| Sensor Sensitivity | Radial Vibration: 3.94 mV/μm or 7.87 mV/μm |
| Output Impedance | 550 Ω |
| Transducer Power Supply | -24 VDC |
| Frequency Response | User-programmable |
| Accuracy | ±0.33% (typical) for radial vibration, thrust, eccentricity, and differential expansion |
| Dimensions (Module) | 241.3 x 24.4 x 241.8 mm (9.50 in x 0.96 in x 9.52 in) |
| Weight (Module) | 0.91 kg (2.0 lb) |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) for internal/external termination I/O module |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
FAQ
Product FAQ

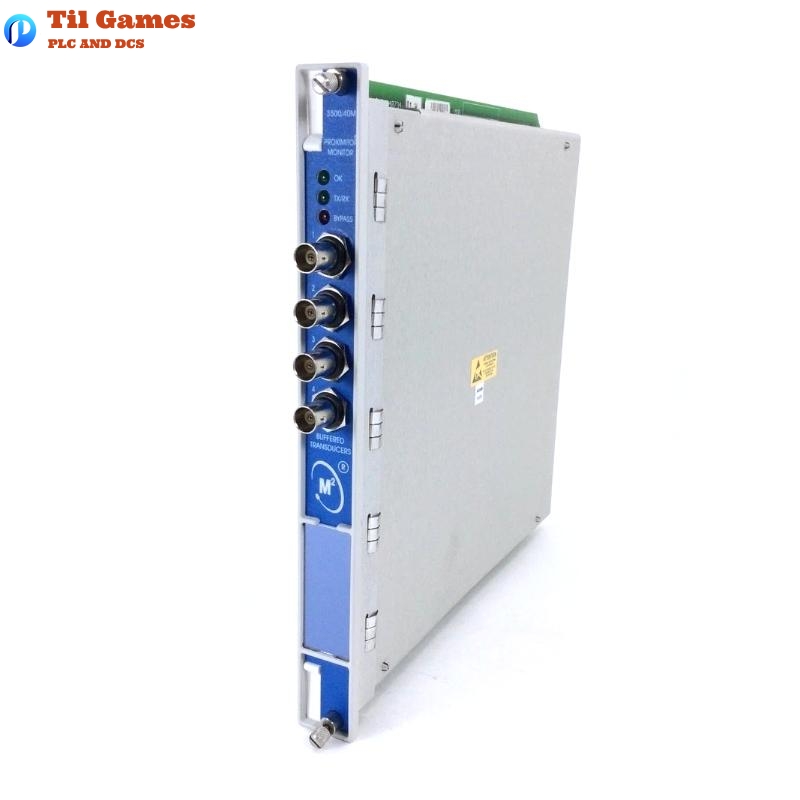

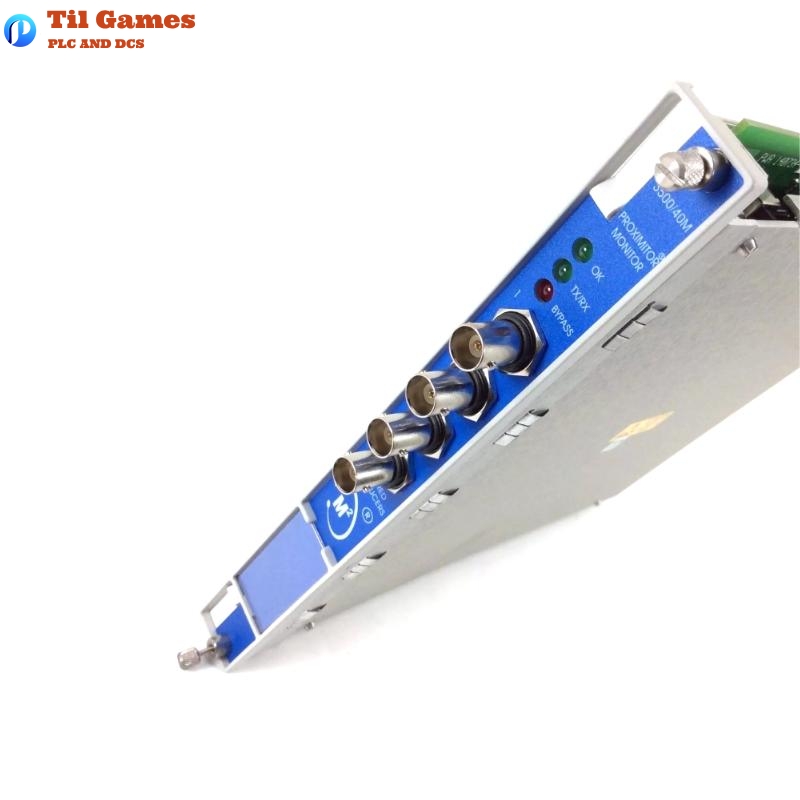

Q1: How many input signals can the 3500/40M Proximitor Monitor support?
-
A1: The 3500/40M Proximitor Monitor supports input signals from 1 to 4 proximity transducers.
Q2: What is the power consumption of the device?
-
A2: The power consumption of the device is 7.7 W (typical).
Q3: What types of vibration monitoring does this device support?
-
A3: This device supports radial vibration, thrust position, eccentricity, differential expansion, and other types of monitoring.
Q4: What is the operating temperature range of the device?
-
A4: The operating temperature range is from -30°C to +65°C (-22°F to +150°F) for internal/external termination I/O modules.
Q5: What are the dimensions and weight of the device?
-
A5: The device dimensions are 241.3 x 24.4 x 241.8 mm and the weight is 0.91 kg.
Q6: How can alarm and danger setpoints be configured?
-
A6: Alarm and danger setpoints can be configured using the Rack Configuration software for each measured value.
Q7: What is the accuracy of the 3500/40M Proximitor Monitor?
-
A7: The typical accuracy is ±0.33% of full-scale, with a maximum accuracy of ±1%.
Q8: Can the monitor be used at different shaft speeds?
-
A8: Yes, the 3500/40M supports operation at different shaft speeds with programmable filters for various shaft speeds.
