Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
| Temperature (Operating) | -30 to 65°C (-22 to 150°F) |
| Temperature (Storage) | -40 to 85°C (-40 to 185°F) |
| Humidity | 95% non-condensing |
| Circuit Parameters | Vmax (PWR) = 26.80 V, Imax (PWR) = 112.8 mA |
| Seismic Barrier Circuit | Vmax (B) = 27.25 V, Imax (B) = 91.8 mA |
| Proximitor Barrier Circuit | Vmax (SIG) = 14.05 V, Imax (SIG) = 2.82 mA |
| Frequency Response | 0.09 Hz to 16 times running speed |
FAQ
FAQ

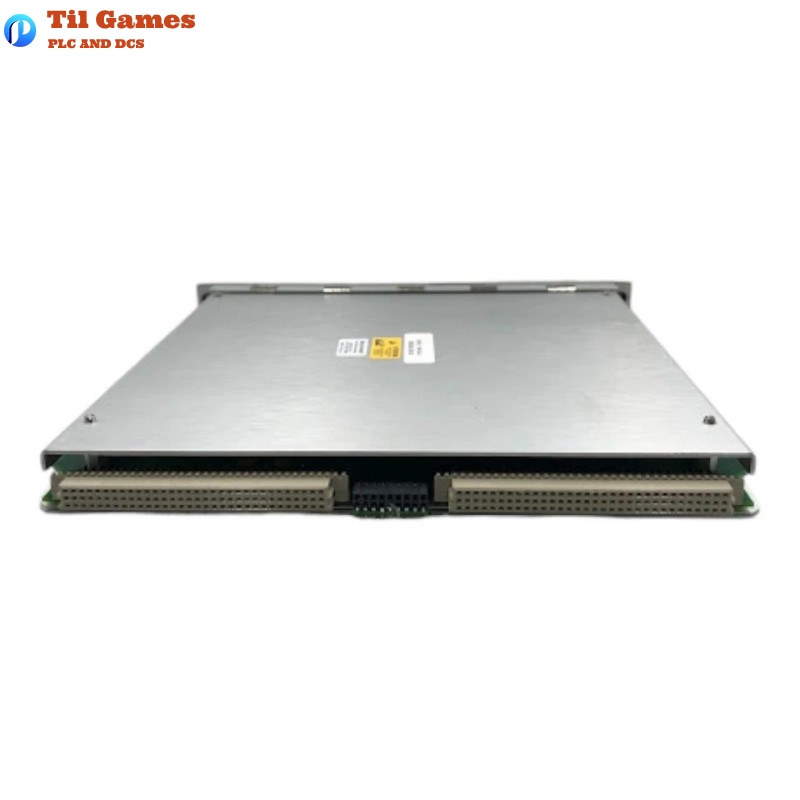

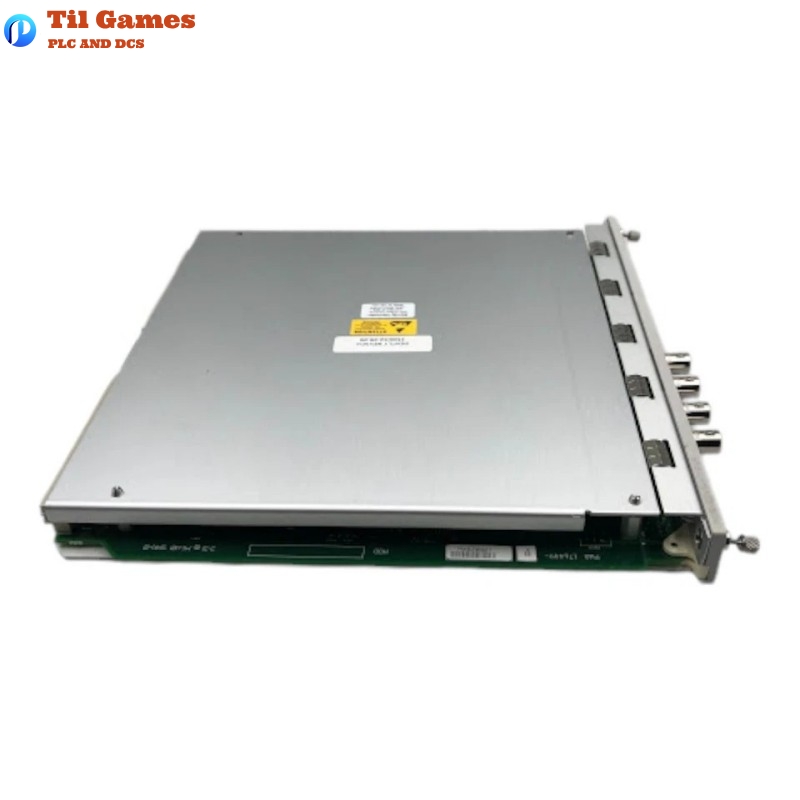

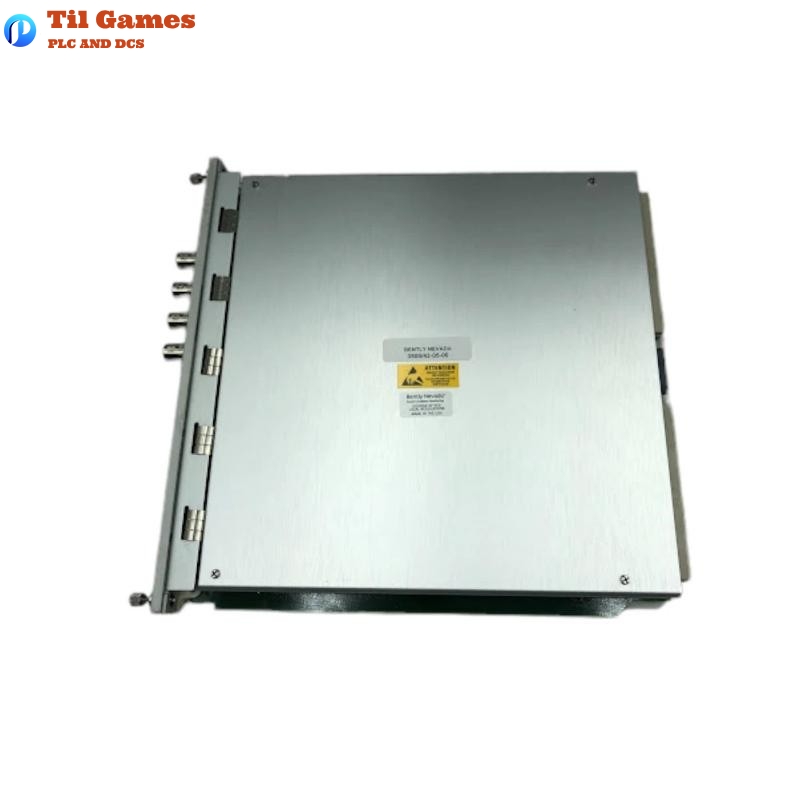

Q1: What is the primary purpose of the 3500/42 Proximitor/Seismic Monitor Module?
A1: The 3500/42 is designed to provide machinery protection by continuously monitoring vibration and other machine parameters. It alerts operators when measurements exceed pre-set thresholds.
Q2: How many channels does the module support?
A2: The module supports four channels of input, capable of monitoring various parameters such as radial vibration, thrust position, eccentricity, and more.
Q3: What types of transducers can the monitor accept?
A3: The module can accept input from Proximitor and Seismic Transducers, including those from Bently Nevada’s own series of transducers.
Q4: What are the environmental limits for this product?
A4: The module operates in temperatures ranging from -30°C to 65°C (operating with internal/external termination), with a storage temperature range of -40°C to 85°C. Humidity should not exceed 95%, non-condensing.
Q5: Can the module be used in a TMR (Triple Modular Redundant) configuration?
A5: Yes, the 3500/42 Proximitor/Seismic Monitor can be used in a TMR configuration, providing redundancy to ensure reliable monitoring.
Q6: How is the monitor configured?
A6: Configuration is performed using the 3500 Rack Configuration Software, where parameters such as alarm setpoints and proportional values can be configured.
Q7: Does the module have any certifications?
A7: Yes, it is CSA-NRTL/C and CENELEC approved, making it suitable for use in hazardous areas under Class I, Division 1 and 2, and other relevant classifications.
Q8: What is the power supply for this module?
A8: The module requires a power supply with specific voltage and current parameters, with a max supply voltage of 26.80 V and a maximum current of 112.8 mA for power circuits.
