Technical Specifications
| Parameter | Description |
|---|---|

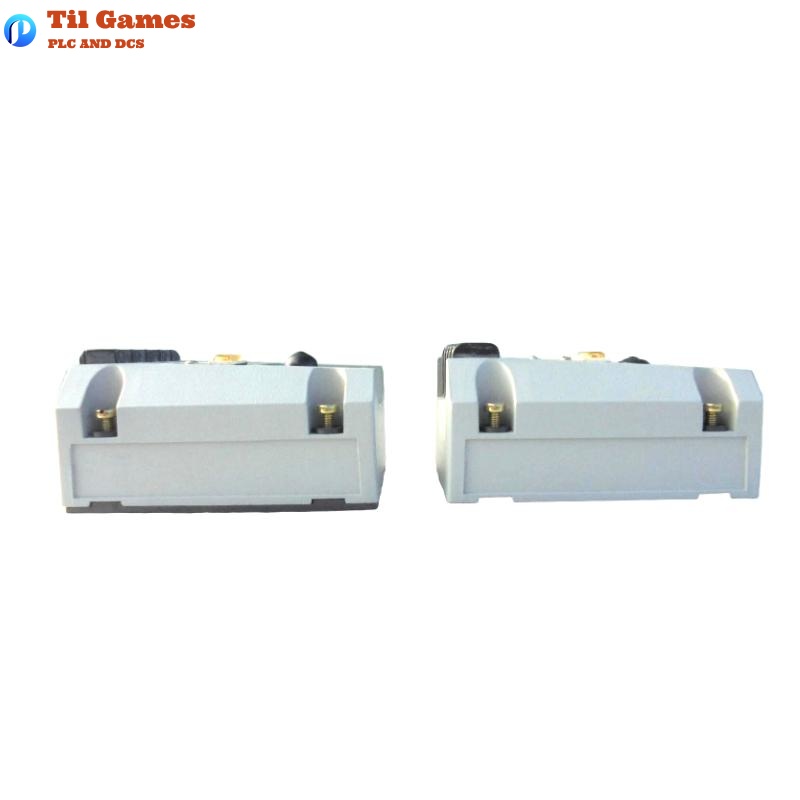

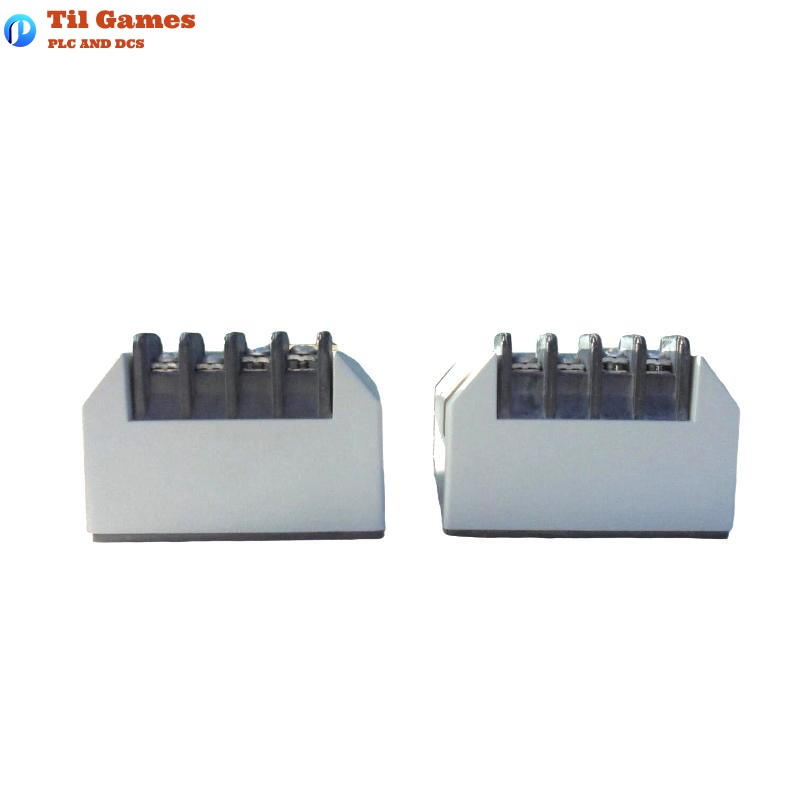

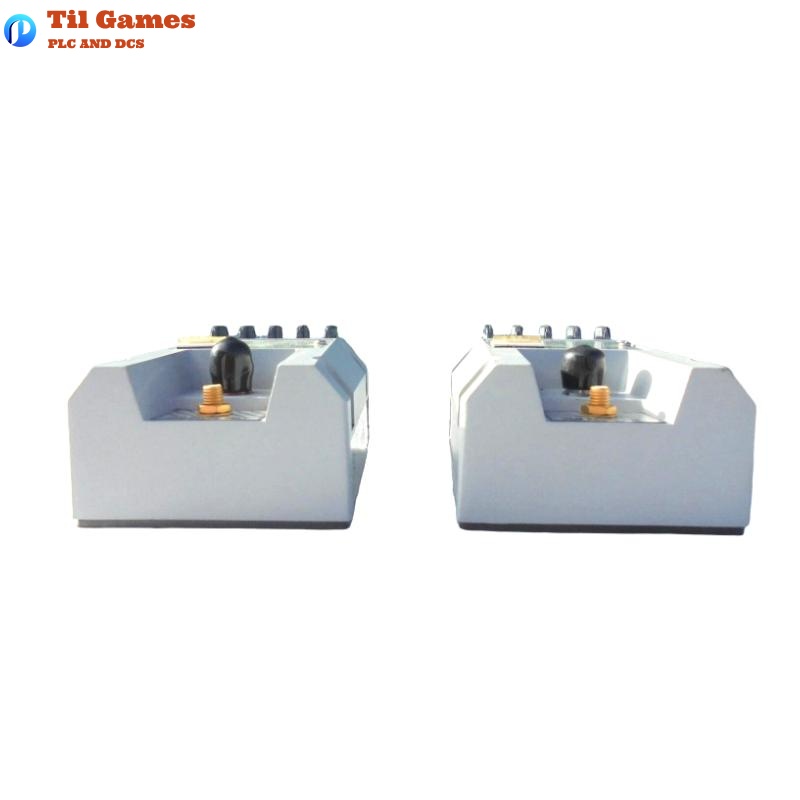

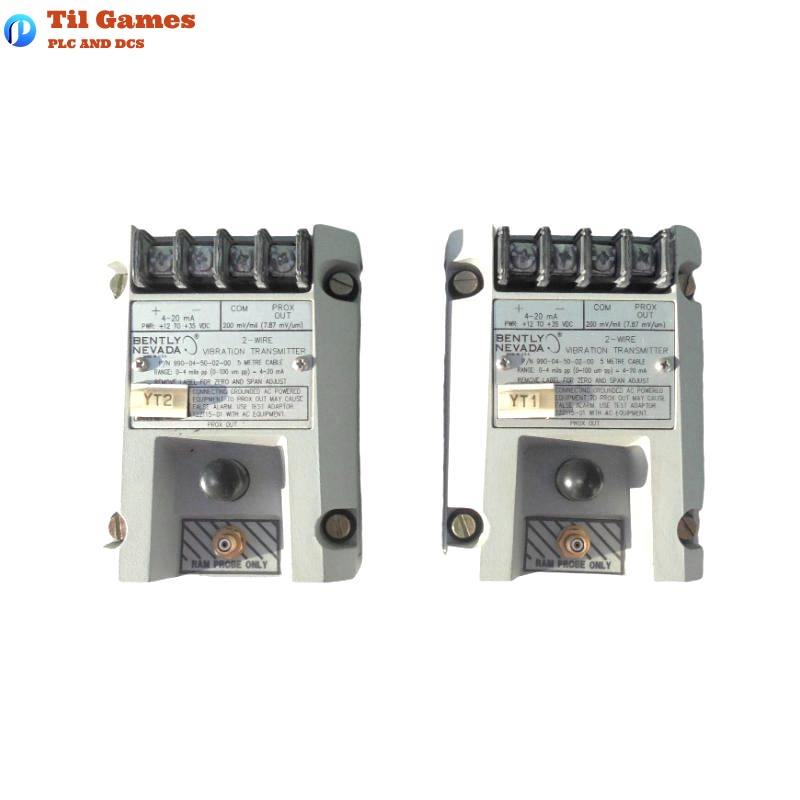

| Model | Bently Nevada 990-04-50-02-00 Vibration Transmitter |
| Dimensions | 100.1 x 73.9 x 53.3 mm |
| Weight | 0.43 kg |
| Input Signal | 3300 NSv non-contacting proximity probe and extension cable |
| Output Signal | 4 to 20 mA DC proportional to vibration amplitude |
| Power Supply | 12 to 35 VDC |
| Frequency Response | 5 Hz to 6,000 Hz (+0, -3 dB) |
| Linear Output Range | 1.4 mm (55 mils), starting at approx. 0.25 mm from surface |
| Incremental Scale Factor | 7.87 mV/μm (200 mV/mil), ±6.5% typical, ±10% worst case |
| Probe Gap Range | 0.5 to 1.75 mm (20 to 55 mils) |
| Max Loop Resistance | 1000 Ω at 35 VDC |
| Current Limit | 23 mA typical |
| Zero and Span Adjustment | Non-interacting external potentiometers |
| Power-up Inhibit | Output <3.6 mA for 2–3 s after power-on |
| Not OK/Signal Defeat | <3.6 mA within 100 μs; auto-recover in 2–3 s |
| Output Impedance | 10 kΩ (calibrated for 10 MΩ load) |
| PROX OUT Output | Non-isolated; use 122115-01 adapter for AC-powered tools |
| Operating Temp (Tx) | -35°C to +85°C |
| Storage Temp (Tx) | -52°C to +100°C |
| Operating Temp (Probe) | -52°C to +177°C |
| Storage Temp (Probe) | -52°C to +177°C |
| Relative Humidity | 100% condensing, non-submerged |
| Minimum Target Size | 9.5 mm diameter |
| Mounting Options | DIN rail clips or bulkhead screws |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is this transmitter compatible with all Bently Nevada probes?
A1: No. It is specifically designed for use with 3300 NSv probes. Other probe types may not function correctly.
Q2: Can this transmitter operate in high humidity environments?
A2: Yes. It features sealed construction suitable for up to 100% condensing humidity (non-submerged conditions).
Q3: Can I connect the PROX OUT signal directly to an oscilloscope?
A3: Not directly. The signal is non-isolated; use the 122115-01 test adapter to ensure safe and accurate measurement.
Q4: How does the system respond when a fault occurs?
A4: In case of a probe failure or loose connection, the transmitter drops its output below 3.6 mA within 100 μs.
Q5: Is it possible to adjust the measurement range?
A5: Yes. The transmitter includes accessible zero and span adjustments for fine-tuning.
Q6: What is the maximum loop cable length supported?
A6: With 35 VDC power, loop resistance must not exceed 1000 Ω. The actual cable length depends on wire specifications.
Q7: Is this device certified for hazardous areas?
A7: Yes. The 990 is certified for use in Zone 0/1 and Zone 2 hazardous areas under ATEX and CSA standards.
Q8: What happens when the device powers on after shutdown?
A8: Upon power-up, the transmitter holds output <3.6 mA for 2–3 seconds to indicate readiness status.
