Technical Specifications
| Parameter | Specification |
|---|---|
| Input | 3300 NSv proximity probe and extension cable |
| Power Supply | 12–35 VDC |
| Signal Output | 4–20 mA DC, proportional to vibration |
| Output Accuracy | ±1.5% over full scale |
| Probe Gap Range | 0.5–1.75 mm (20–55 mils) |
| Max Loop Resistance | 1000 Ω @ 35 VDC |
| Frequency Response | 5 Hz to 6,000 Hz |
| Prox Out Linear Range | 1.4 mm (55 mils) |
| Prox Out Scale Factor | 7.87 mV/µm (200 mV/mil) ±10% max |
| Output Impedance | 10 kΩ |
| Operating Temperature | -35°C to +85°C |
| Storage Temperature | -52°C to +100°C |
| Relative Humidity | 100% condensing |
| Transmitter Dimensions | 100.1 x 73.9 x 53.3 mm |
| Transmitter Weight | 0.43 kg (0.9 lb) |
| Environmental Rating | Suitable for high-humidity, non-submerged conditions |

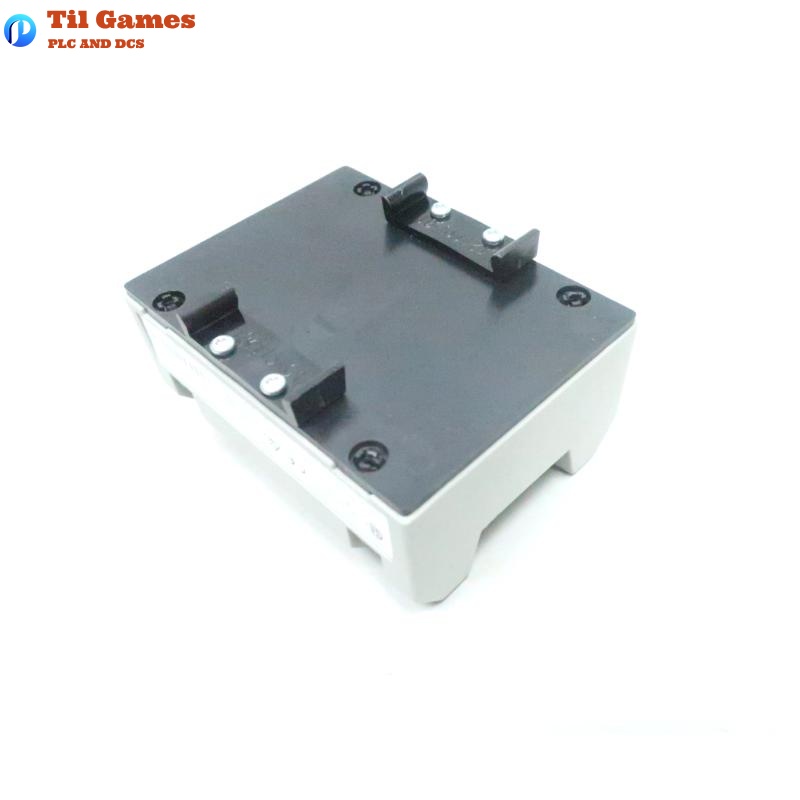

| Mounting Options | DIN rail clips or bulkhead screws |
| Compliance | FCC, CE (EN61000-6-2, EN61000-6-4), ATEX, RoHS, ABS |
FAQ
FAQ
Q1: What type of probe does the 990 transmitter support?
A1: It supports the 3300 NSv proximity probe and its matching extension cables.
Q2: What is the output signal of the transmitter?
A2: It outputs a standard 4–20 mA DC signal proportional to peak-to-peak vibration amplitude.
Q3: Is the transmitter loop-powered?
A3: Yes, the device is a two-wire, loop-powered transmitter.
Q4: What is the linear measuring range of the vibration signal?
A4: The linear range is approximately 1.4 mm (55 mils), starting from 0.25 mm (10 mils).
Q5: Can it be used in hazardous areas?
A5: Yes, it has certifications for ATEX Zone 0, Zone 2, and CSA Division 2 hazardous areas.
Q6: What is the power-up behavior of the transmitter?
A6: The signal output remains below 3.6 mA for 2–3 seconds after power is applied.
Q7: How is the vibration diagnostic signal accessed?
A7: Through the non-isolated “PROX OUT” BNC connector or terminal strip.
Q8: What are the mounting options for the 990 transmitter?
A8: It can be mounted using DIN rail clips or bulkhead screws, both provided as standard options.
