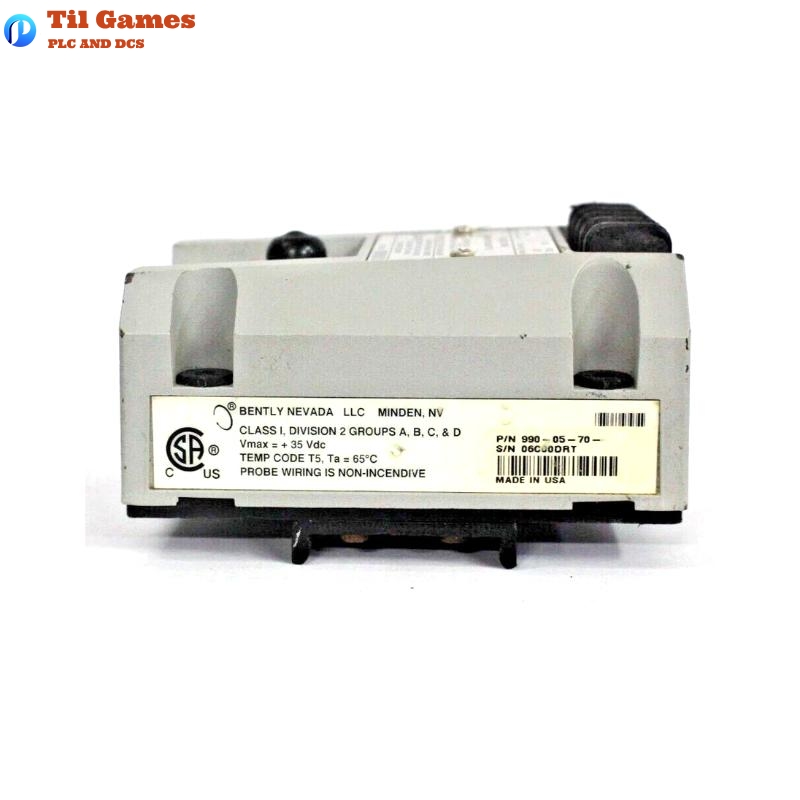

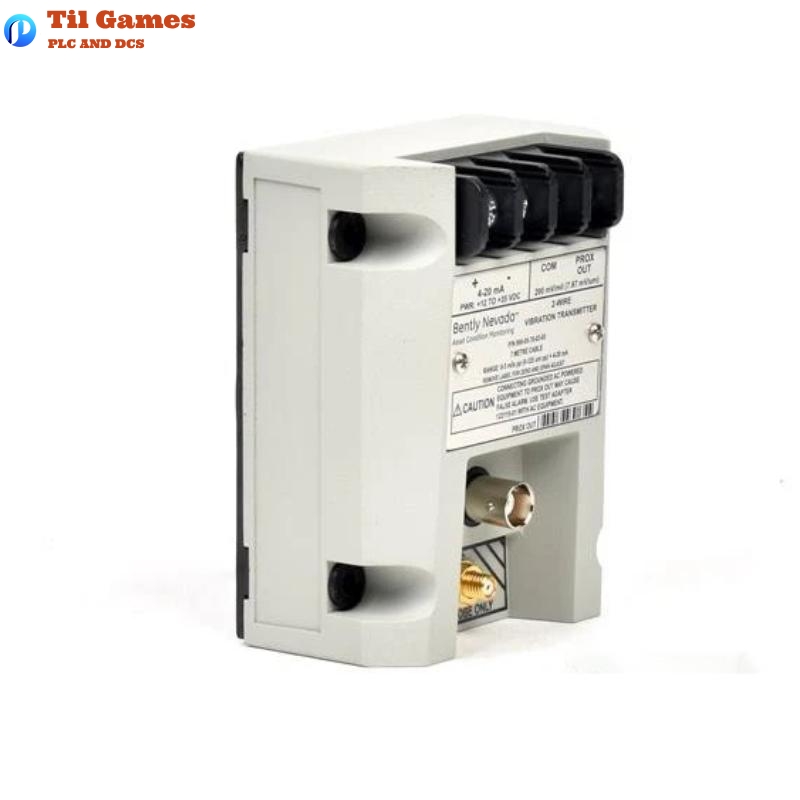

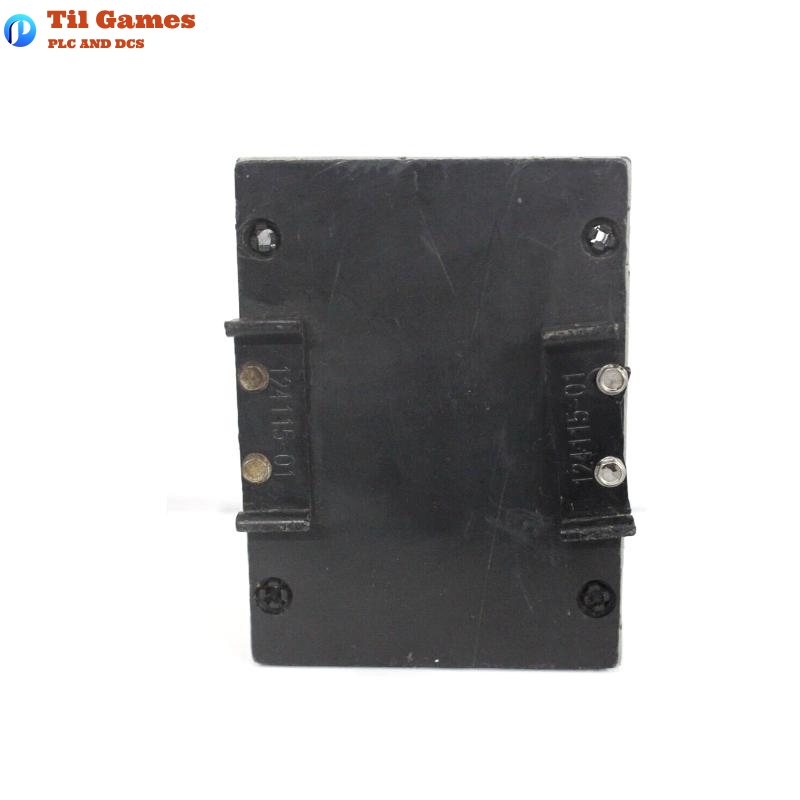

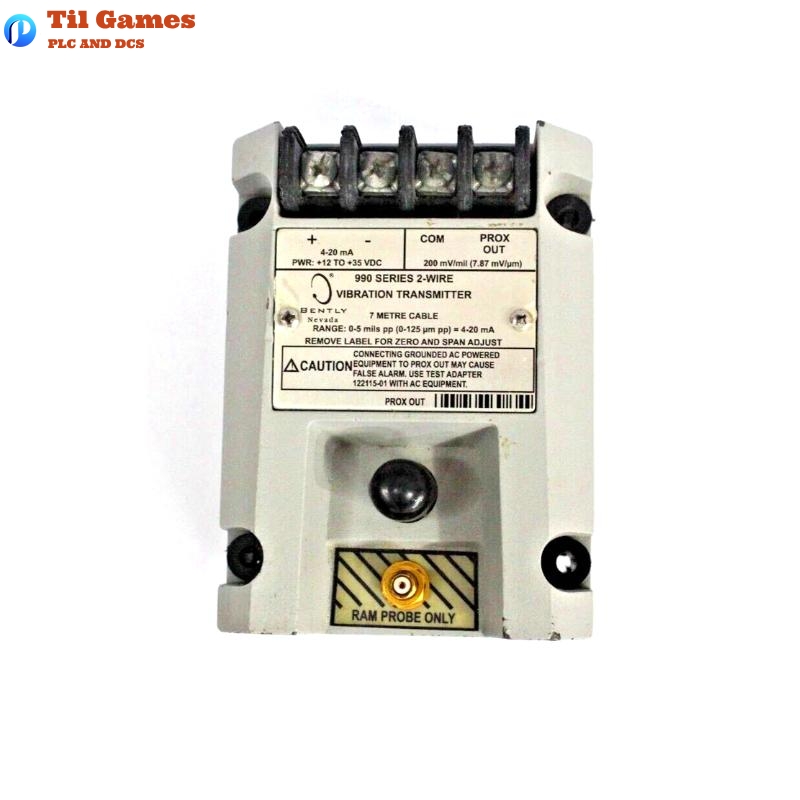

990 Vibration Transmitter Product Specifications
| Parameter | Description |
|---|---|
| Model | 990-05-70-01-CN |
| Dimensions | 100.1 x 73.9 x 53.3mm |
| Weight | 0.43 kg |
| Power Supply | +12 to +35 Vdc |
| Signal Output | 4 to 20 mA (DC) |
| Loop Resistance | Max 1000 Ω |
| Zero and Span Adjustment | External, non-interacting adjustments |
| Maximum Loop Resistance | 1,000 Ω (including cable) |
| Operating Temperature | -35°C to +85°C |
| Storage Temperature | -52°C to +100°C |
| Probe Gap | 0.5mm to 1.75mm |
| Frequency Response | 5 Hz to 6,000 Hz |
| Humidity | 100% condensing (non-submerged) |
| Material | PPS transducer tip, 304 stainless steel housing |
| Probe Cable | 75Ω coaxial, FEP insulated |
FAQ
FAQ
Q1: What is the operating temperature range of the 990 Vibration Transmitter?
A1: The operating temperature range of the 990 Vibration Transmitter is -35°C to +85°C.
Q2: What is the output signal of the 990 Vibration Transmitter?
A2: The output signal of the 990 Vibration Transmitter is a 4 to 20 mA DC signal.
Q3: What are the power requirements for the 990 Vibration Transmitter?
A3: The 990 Vibration Transmitter requires a +12 to +35 Vdc input power supply.
Q4: What is the maximum loop resistance of the 990 Vibration Transmitter?
A4: The maximum loop resistance of the 990 Vibration Transmitter is 1,000 Ω (including cable).
Q5: What probes are compatible with the 990 Vibration Transmitter?
A5: The 990 Vibration Transmitter is compatible with the 3300 NSv proximity probe, designed for non-contact installation.
Q6: What environments is the 990 Vibration Transmitter suitable for?
A6: The 990 Vibration Transmitter is suitable for high-humidity environments (up to 100% condensing) and is ideal for installation in tight spaces, such as centrifugal air compressors.
Q7: How are the zero and span adjusted on the 990 Vibration Transmitter?
A7: The zero and span are externally adjustable using non-interacting potentiometers.
Q8: Does the 990 Vibration Transmitter have an output for diagnostics?
A8: Yes, the 990 Vibration Transmitter features a non-isolated “PROX OUT” output, providing a dynamic signal for diagnostic purposes.
