Technical Specifications
| Parameter | Description |
|---|---|
| Model | EN-204 EN-204-00-000 |
| Type | Digital Servo Drive |
| Continuous Output Current | 4.5 A RMS |
| Peak Output Current | 9 A RMS (200% rated current for limited duration) |
| Input Voltage Range | 90 – 264 VAC (Single-phase only) |
| Input Frequency | 47 – 63 Hz |
| Input Current | 9.5 A @ full load |
| Dimensions | 297.08 mm x 175.24 mm x 47.12 mm |
| Weight | 2.9 kg |
| Protection Rating | Must be mounted inside sealed metal enclosure (NEMA 12 recommended) |
| Cooling Method | Air cooled; forced air required above 40°C ambient |
| Peak Current Duration | Dependent on load; consult factory curve |
| Mounting Orientation | Vertical mount with 2 inches clearance top and bottom |

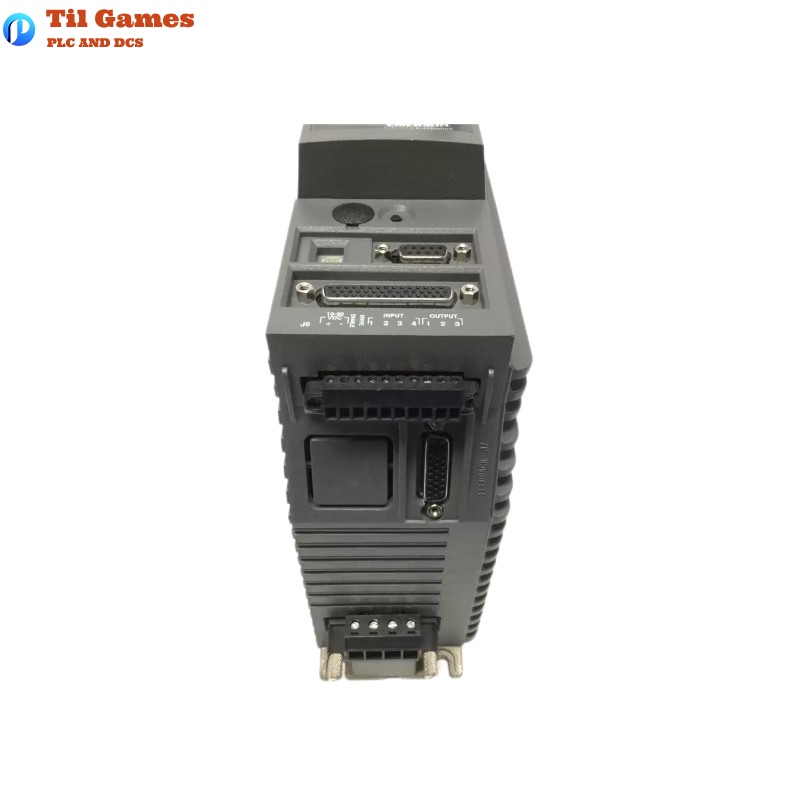

| Communication Interfaces | RS-485, Command Interface (J5), Serial (J4), etc. |
| Programming Tools | PowerTools-FM, PowerTools Pro |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does the EN-204 provide overload protection?
A1: Yes. The EN-204 supports overload protection and can output up to 200% of its rated current for a short duration.
Q2: What type of environment should the EN-204 be installed in?
A2: It should be mounted inside a sealed metal enclosure with pollution degree 2 (per IEC 664-1), free from moisture, dust, or corrosive substances.
Q3: Is modular expansion supported?

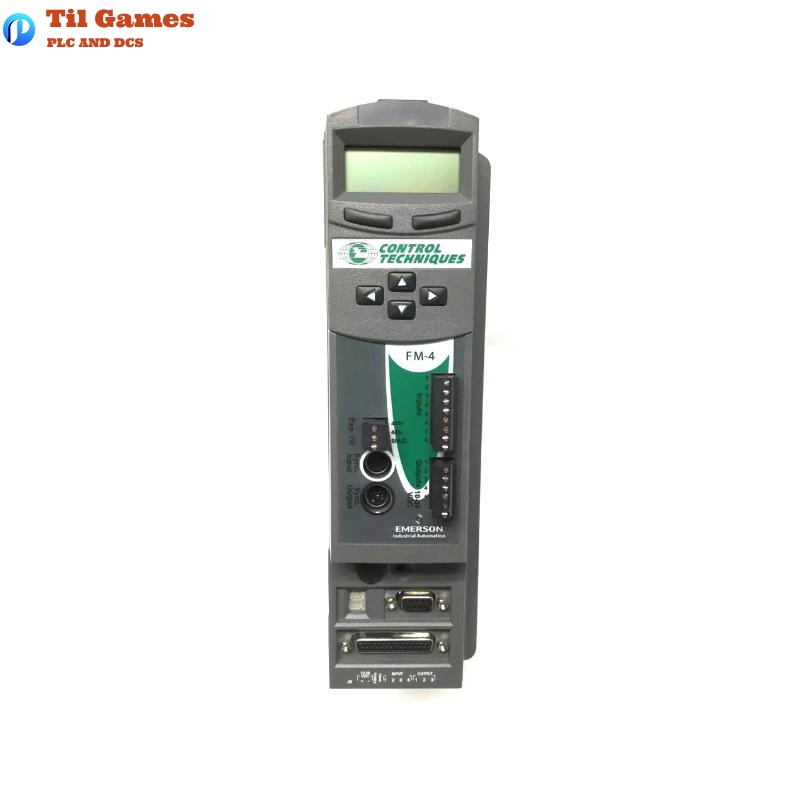

A3: Yes. Optional FM modules (FM-1 to FM-4) are supported for speed control, indexing, and advanced motion programming.
Q4: What type of encoder feedback is supported?
A4: The drive supports incremental encoders with U/V/W commutation channels. It is compatible with differential or open-collector outputs (RS-422 standard).
Q5: What are the cooling requirements?
A5: The unit operates safely up to 40°C ambient. Above this, output derates linearly at 3% per °C.
Q6: What power input is supported?
A6: EN-204 accepts single-phase AC input (90–264 VAC). Three-phase input is not supported.
Q7: Is grounding mandatory?
A7: Yes. Protective Earth (PE) connection is required and must not be fused or interrupted.
Q8: How is the auxiliary power used?
A8: The auxiliary power (127–373 VDC) maintains motor position and serial communication during AC power loss. Use isolated power supplies like ALP-130.
