Technical Specifications
| Parameter | Specification |
|---|---|

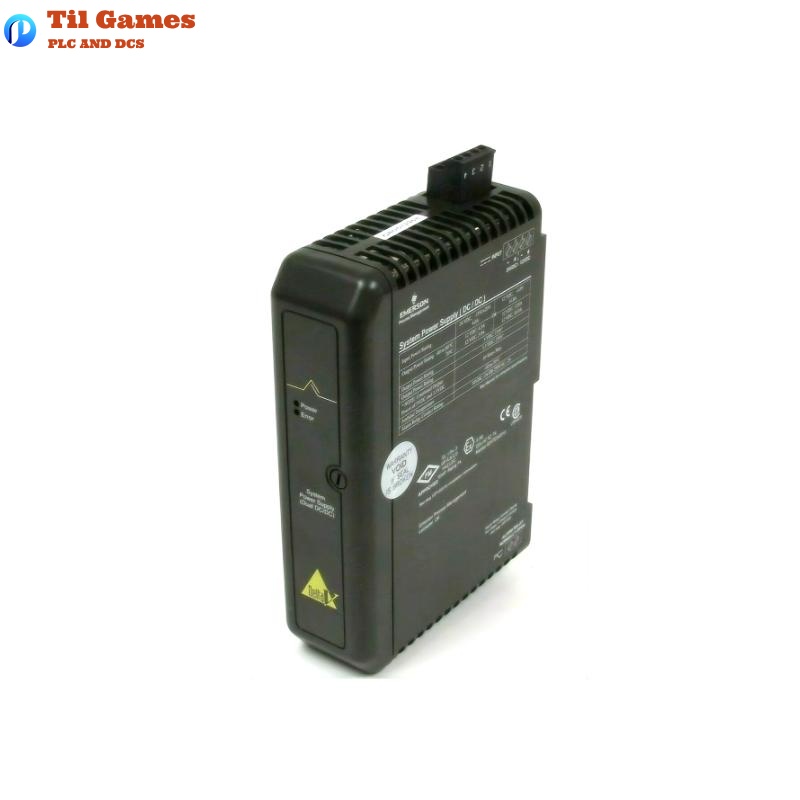

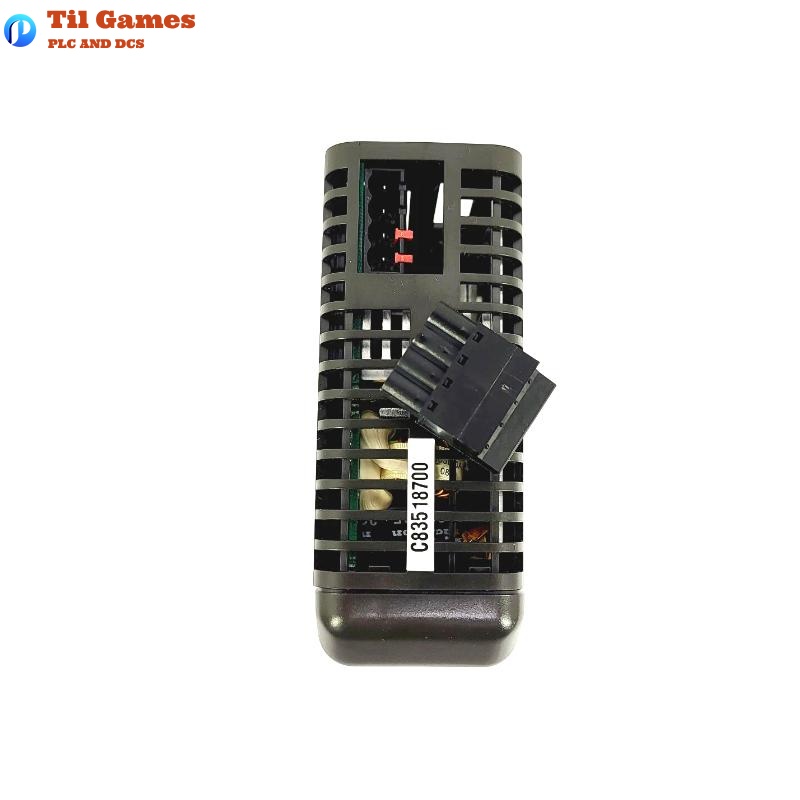

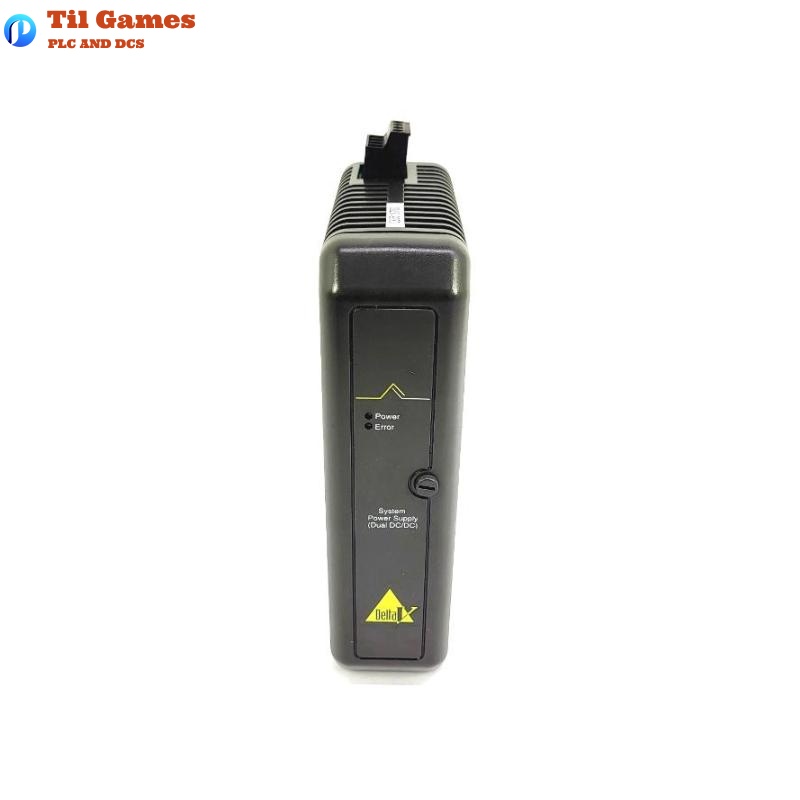

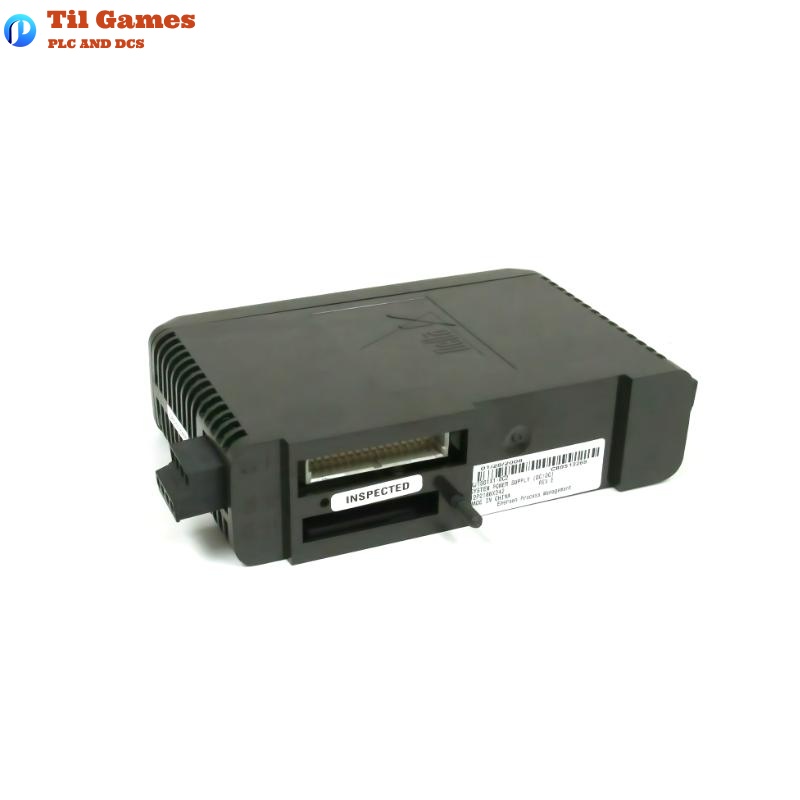

| Model Number | KJ1501X1-BC2 |
| Input Voltage Range | 12 VDC: 11.4 VDC to 12.6 VDC 24 VDC: 20.4 VDC to 28.8 VDC |
| Output Power (Total) | 10 W at 70°C (combined 5 VDC and 3.3 VDC outputs) |
| Output Ratings (12 VDC Input) | 12 VDC @ 13 A max (up to 60°C) 12 VDC @ 10 A max (up to 70°C) |
| Output Ratings (24 VDC Input) | 12 VDC @ 4.5 A max (up to 60°C) 12 VDC @ 3 A max (up to 70°C) |
| Additional Outputs | 5 VDC @ 2.0 A 3.3 VDC @ 2.0 A |
| Operating Temperature Range | -40°C to 70°C |
| Shock Resistance | 10 G, ½-sinewave, 11 ms |
| Vibration | 1 mm (5–16 Hz), 0.5 g (16–150 Hz) |
| Relative Humidity | 5% to 95% non-condensing |
| Airborne Contaminants Standard | ISA-S71.04 –1985 Class G3 |
| Hazardous Location Certifications | ATEX II 3 G, EEx nC IIC T4, CL. I Div 2 GP. A, B, C, D |
| Dimensions (W x H x D) | 96 x 86 x 202 mm |
| Weight | 0.7 kg |
FAQ
FAQ
Q1: What is the total power output capacity of the KJ1501X1-BC2?
A1: The module provides a total output power of 10 W at 70°C, combining 5 VDC and 3.3 VDC outputs.
Q2: Can the unit be hot-swapped while the system is energized?
A2: No, the unit must not be inserted or removed while system power is on.
Q3: What are the rated output currents when using a 12 VDC input?
A3: It supports up to 13 A at 60°C or 10 A at 70°C when powered with 12 VDC.
Q4: Is calibration required for the module?
A4: No calibration is required for this unit.
Q5: What hazardous certifications does the module comply with?
A5: It complies with ATEX II 3 G, EEx nC IIC T4, and Class I Division 2 GP. A, B, C, D.
Q6: What environmental conditions is the module designed for?
A6: It operates from -40°C to 70°C and in 5%–95% non-condensing humidity.
Q7: Does the unit require regular maintenance?
A7: No user-serviceable parts exist; no maintenance or disassembly is necessary.
Q8: What are the airborne contaminant standards met by the module?
A8: The module meets ISA-S71.04 –1985, Class G3 airborne contaminant standards.
