Technical Specifications
| Item | Description |
|---|---|

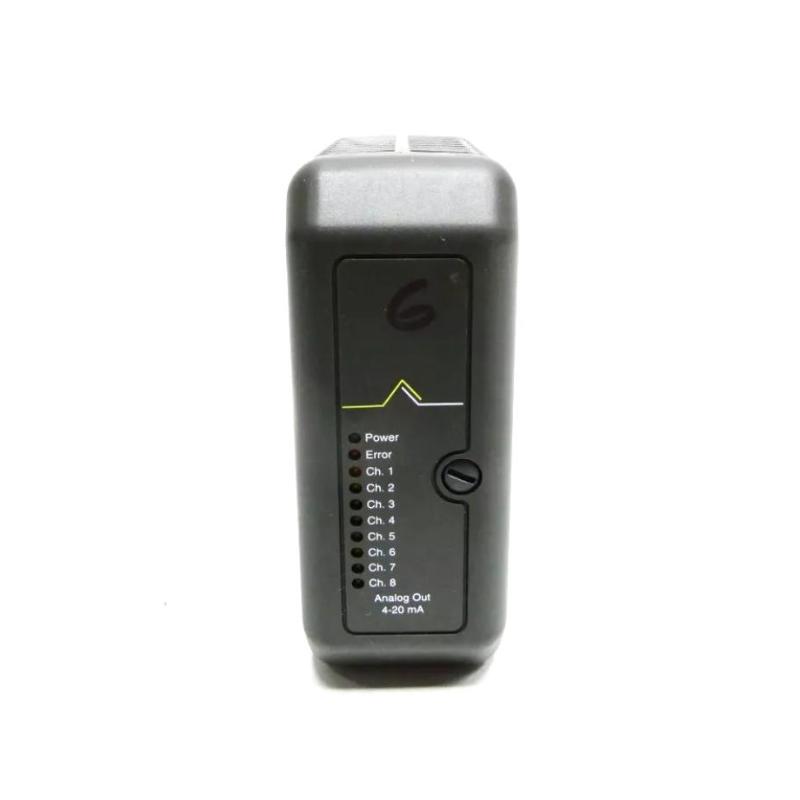

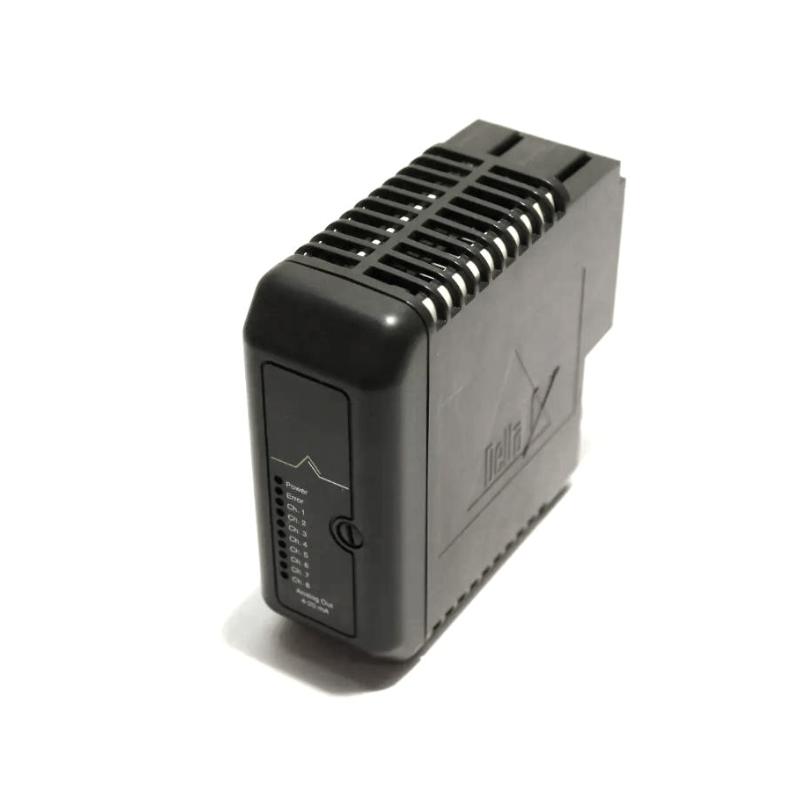

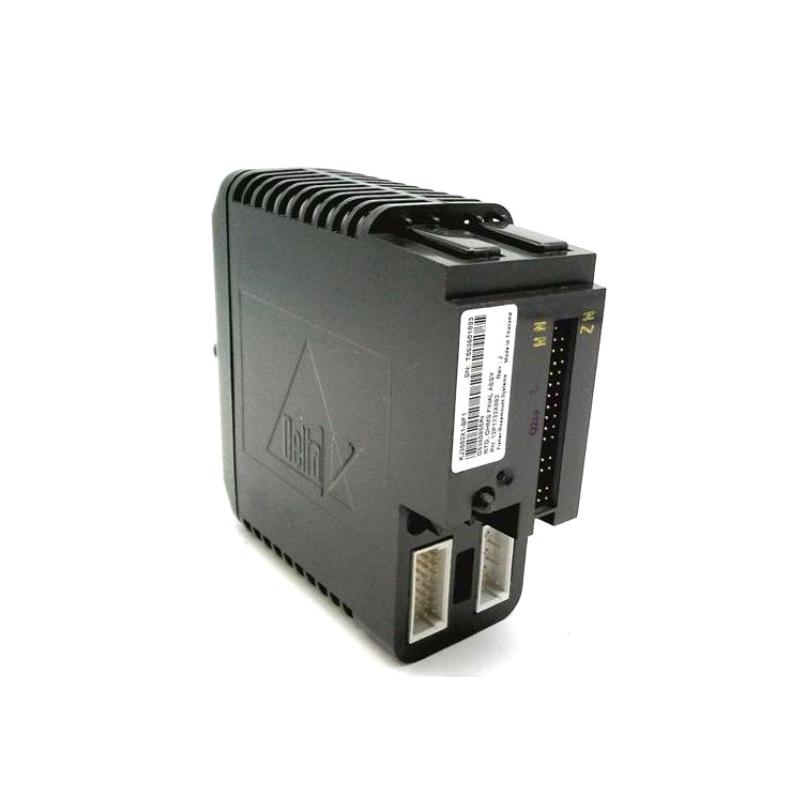

| Model | KJ3002X1-BB1 |
| Module Type | Analog Output Module (AO), 8-channel, 4-20 mA |
| LocalBus Power Supply | 12 VDC at 150 mA |
| Bussed Field Power | 24 VDC at 300 mA |
| Field Circuit per Channel | 24 VDC at 23 mA |
| Operating Temperature | 0°C to 60°C |
| Humidity Range | 5% to 95% non-condensing |
| Vibration Resistance | 1mm P-P (5–16Hz); 0.5g (16–150Hz) |
| Shock Resistance | 10g, ½ Sinewave for 11 ms |
| Air Contaminant Level | ISA-S71.04-1985 Class G3 |
| Protection Class | IP20 |
| Terminal Block Keying | A4 |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 1.13 kg |
| Safety Certifications | ATEX (EEx nL IIC T4), Class I Div.2, T4 |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many output channels does the KJ3002X1-BB1 module support?
A1: It supports 8 analog output channels, each delivering 4-20 mA.
Q2: What is the required power supply for the module?
A2: 12 VDC at 150 mA for LocalBus and 24 VDC at 300 mA for field power.
Q3: What is the ambient temperature range for operation?
A3: The operating temperature range is 0°C to 60°C.
Q4: Is hot swapping supported for this module?
A4: Yes, under certain conditions. Field power must be disconnected, and only one module may be swapped at a time.
Q5: Does the module require calibration?
A5: No, calibration is not required as the module is factory-calibrated.
Q6: Is this module certified for hazardous areas?
A6: Yes, it has ATEX and Class I, Div.2 certifications for use in hazardous environments.
Q7: What terminal block keying does the module use?
A7: It uses terminal blocks keyed to position A4.
Q8: Can the module be replaced while the system is powered?
A8: Yes, but only when specific power conditions and inductance limits are met as per installation guidelines.
