Technical Specifications
| Category | Specification |
|---|---|

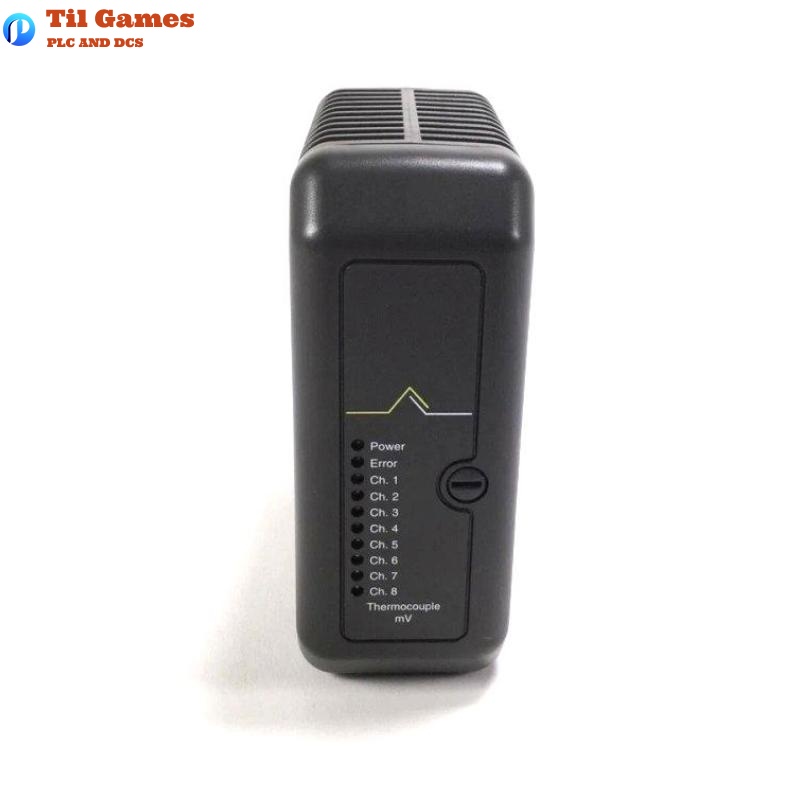

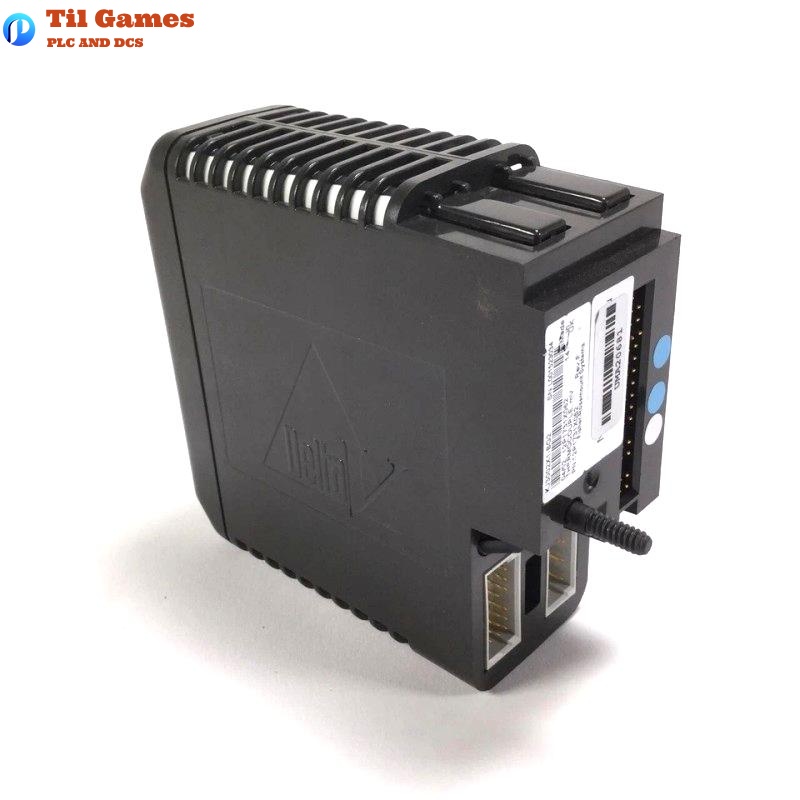

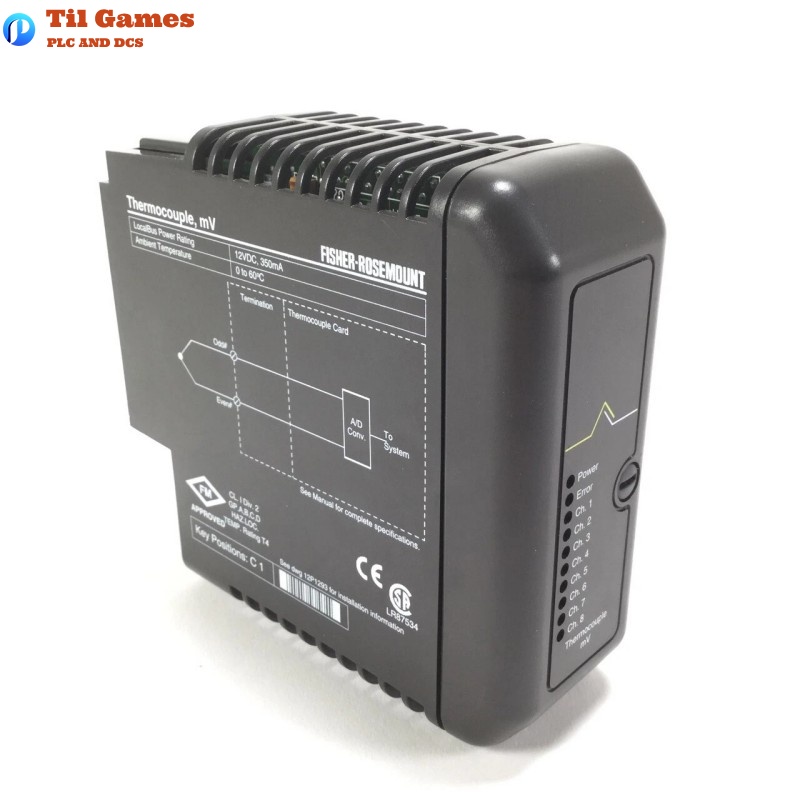

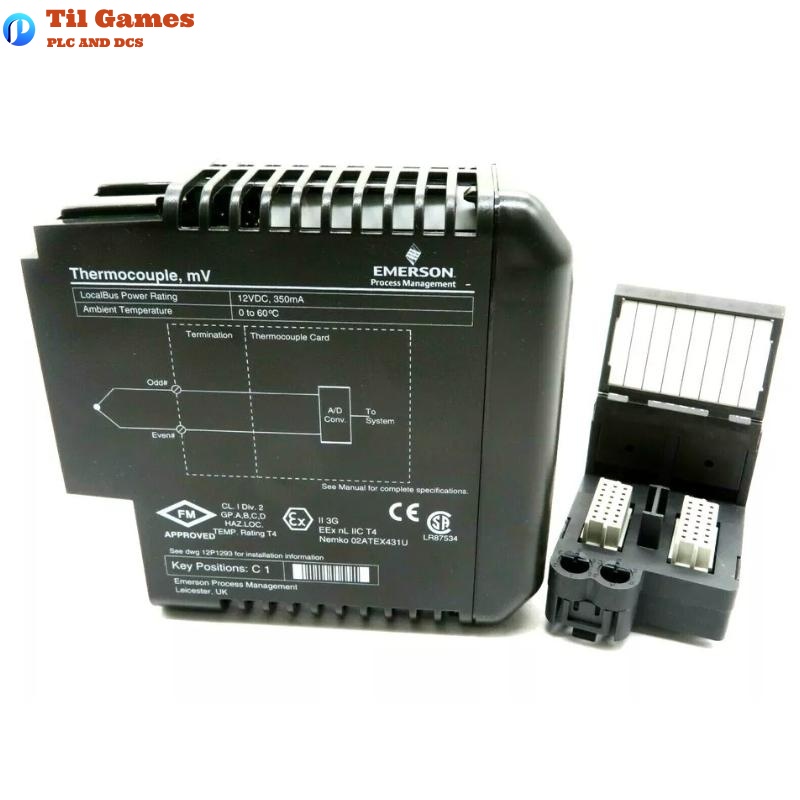

| Product Name | Emerson KJ3002X1-BG2 Thermocouple, mV Input Card |
| Part Number | 12P1731X062 |
| Intrinsic Safety | ATEX II 3 G / EEx nL IIC T4 |
| LocalBus Power | 12 VDC at 350 mA |
| Field Circuit Power | 5.5 VDC at 0.6 mA/channel |
| Temperature Range | 0 to 60°C |
| Relative Humidity | 5% to 95% non-condensing |
| Protection Rating | IP20 |
| Vibration | 1mm Peak-to-Peak (5–16Hz), 0.5g (16–150Hz) |
| Shock | 10g, ½ sinewave for 11 ms |
| Airborne Contaminants | ISA-S71.04 Class G3 |
| Terminal Block Key | B2 |
| Dimensions | 107 mm × 41 mm × 105 mm |
| Weight | 0.281 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What thermocouple types are supported by this card?
A1: Supported thermocouple types are not listed on the datasheet. Refer to the DeltaV system manual for detailed compatibility.
Q2: Can the module be hot-swapped?
A2: Yes, but only under specific conditions including low line inductance (<23 µH) and one card at a time.
Q3: Is periodic calibration required?
A3: No, calibration is not required. The module is factory-calibrated with no adjustable parts.
Q4: Are there any user-serviceable components?
A4: No. The module contains no user-serviceable parts and should not be opened.
Q5: Is the module certified for hazardous environments?
A5: Yes, the card is certified under ATEX and North American Class I Div 2 standards.
Q6: Can the terminal block fuse be replaced while powered?
A6: No. For non-sparking circuits, power must be disconnected before replacing the fuse.
Q7: How is the terminal block keyed to the module?
A7: A rotary keying system ensures alignment. The terminal block must be keyed to B2.
Q8: What is the IP rating of the module?
A8: The module has an IP20 rating, suitable for use within control enclosures.
