Technical Specifications
| Parameter | Description |
|---|---|

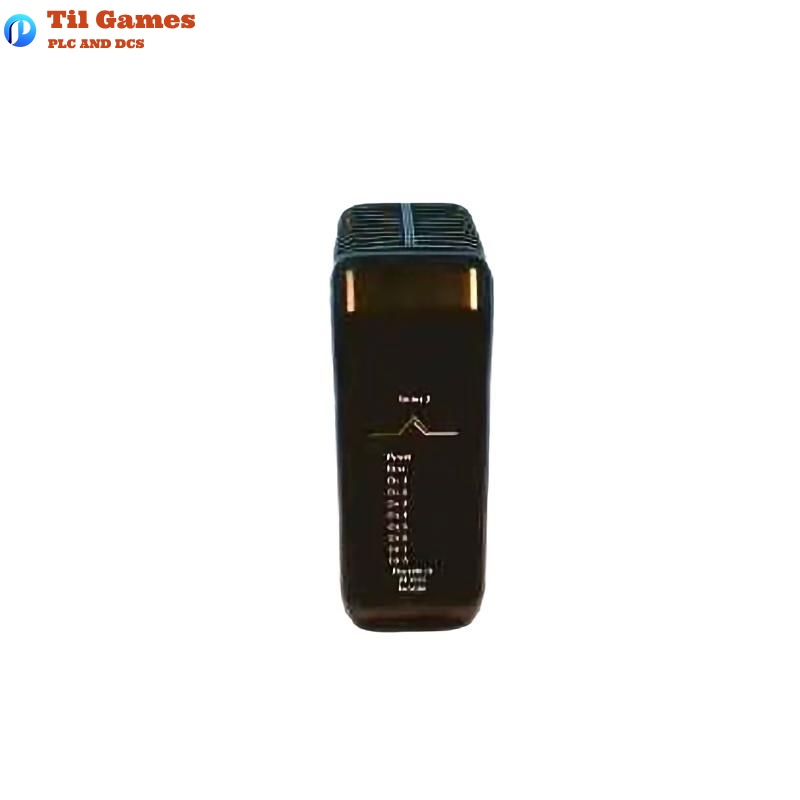

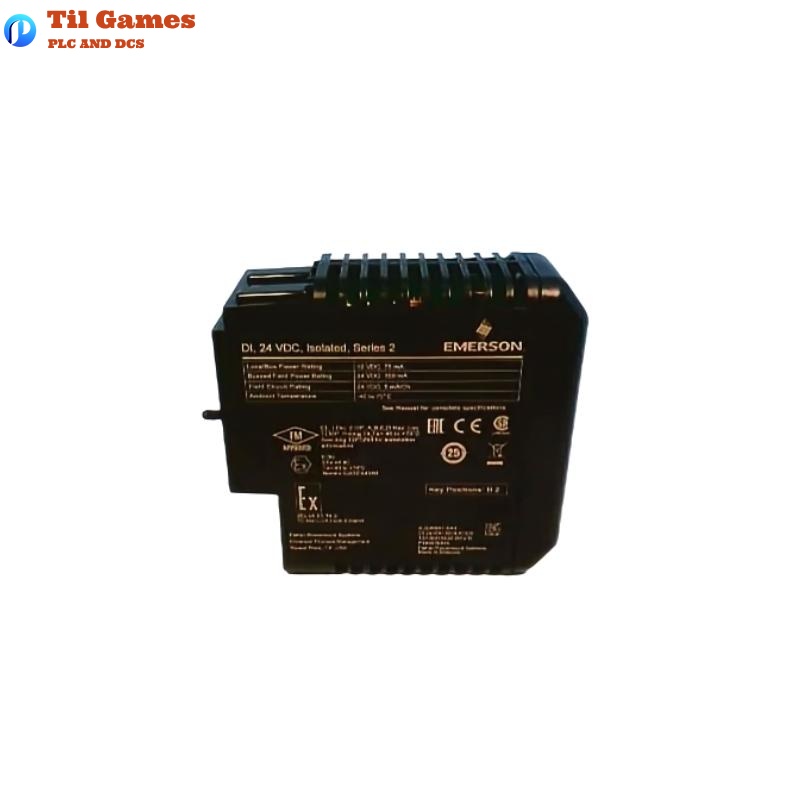

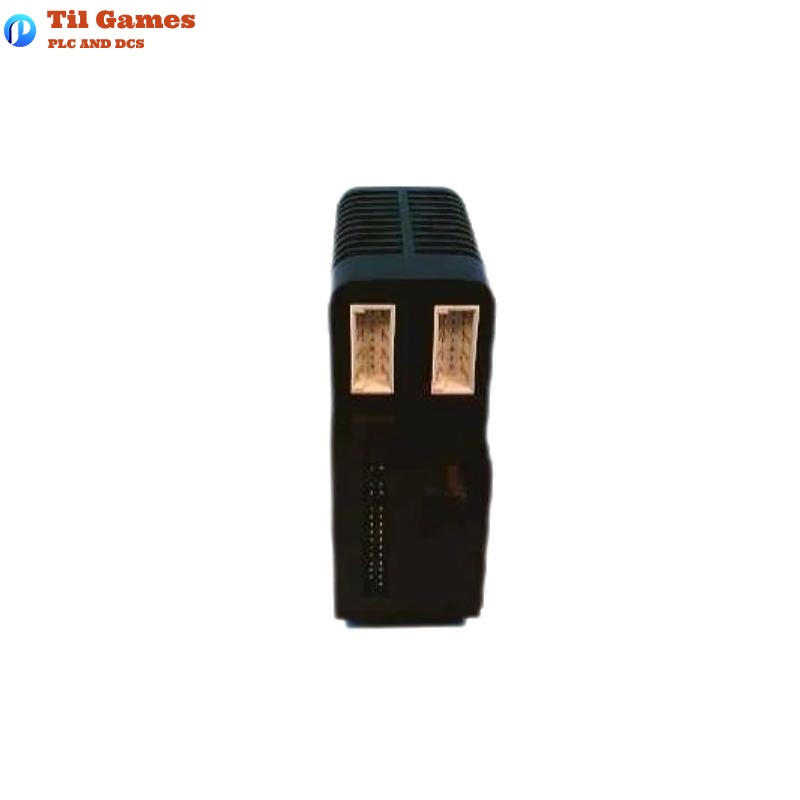

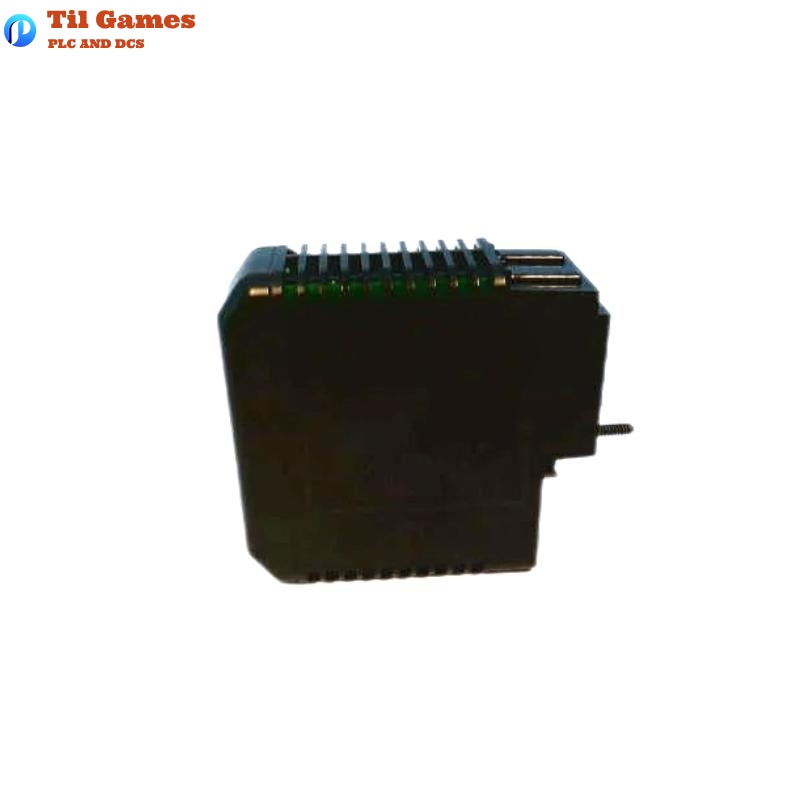

| Module Name | KJ3206X1-BA1 |
| Input Channels | 8 channels |
| Input Type | 24 VDC Isolated Digital Input |
| Local Bus Power | 12 VDC at 100 mA |
| Field Circuit Power | 24 VDC at 5 mA per channel |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | 1mm peak-to-peak (2–13.2Hz), 0.7g (13.2–150Hz) |
| Shock Resistance | 10g half-sinewave for 11 milliseconds |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Protection Rating | IP20 |
| Installation Notes | Hot-swapping not allowed; de-energize before handling |
| Calibration Required | Not required |
| Dimensions | 107 mm x 41 mm x 105 mm |
| Weight | 0.181 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many digital input channels does the module support?
A1: The module supports 8 isolated 24 VDC digital input channels.
Q2: Can the module be hot-swapped during operation?
A2: No. The module must be removed or inserted only when power is off unless in a verified non-hazardous area.
Q3: Does the module require regular calibration?
A3: No. The module is factory-calibrated and requires no user adjustments.
Q4: What is the operating temperature range of the module?
A4: The module operates between -40°C and +70°C.
Q5: How does the module perform under shock and vibration?
A5: It can withstand 1mm peak-to-peak vibration (2–13.2Hz), 0.7g (13.2–150Hz), and 10g shock for 11 ms.
Q6: What are the typical applications of this module?
A6: Commonly used in process control systems to acquire digital inputs like limit switches and contactors.
Q7: Is there a keying system to prevent incorrect terminal block installation?
A7: Yes, it uses a rotary keying system to ensure proper I/O card matching.
Q8: What is the protection class of the module?
A8: The module has an IP20 protection rating, suitable for installation inside control cabinets.
