Technical Specifications
| Category | Details |
|---|---|

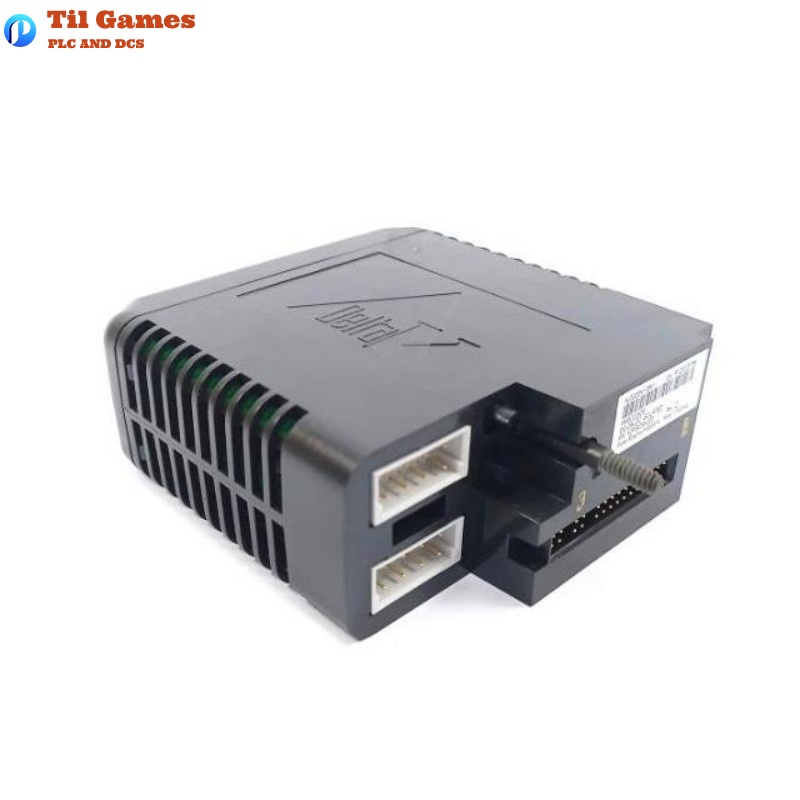

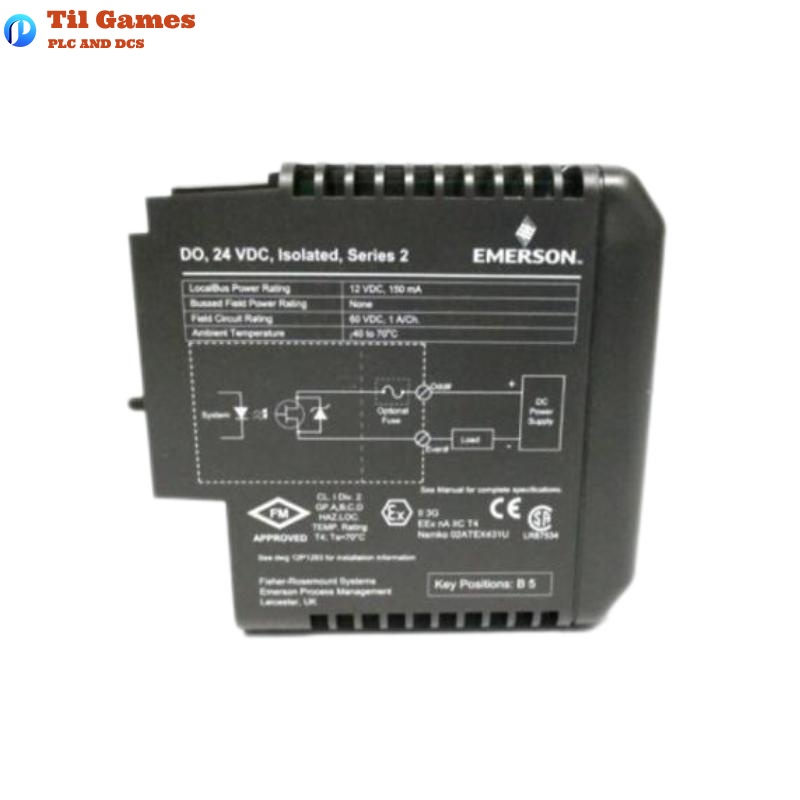

| Model | KJ3208X1-BA1 |

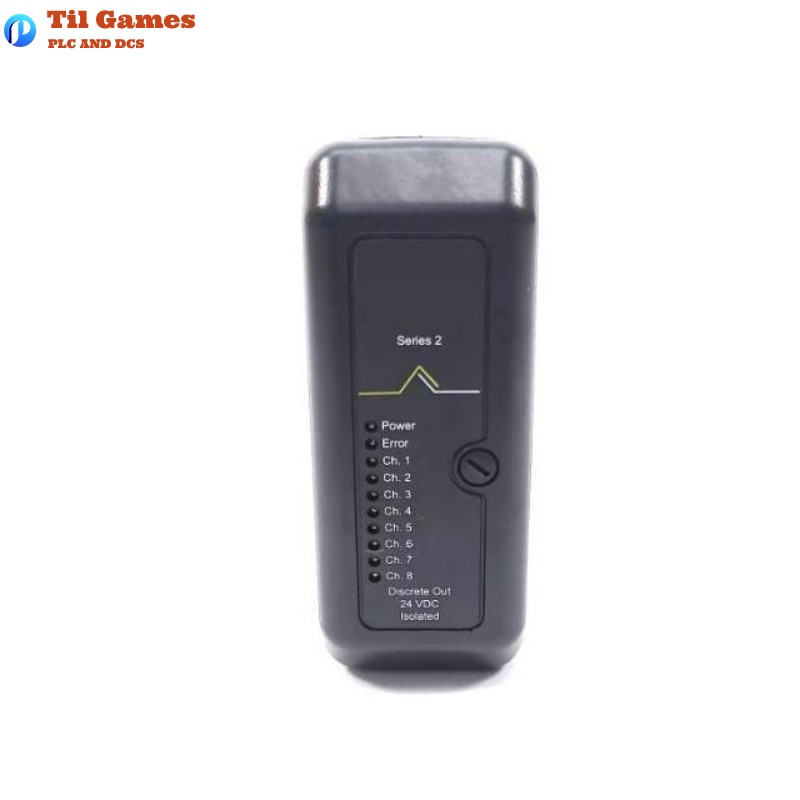

| Output Channels | 8 Isolated Digital Outputs |
| Output Voltage | 24 VDC |
| Max Current/Channel | 1 A |
| Local Bus Power | 12 VDC @ 150 mA |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% Non-Condensing |
| Vibration Resistance | 1 mm (2–13.2Hz), 0.7 g (13.2–150Hz) |
| Shock Resistance | 10 g, ½ sine wave for 11 ms |
| Air Contaminant Rating | ISA-S71.04–1985 Class G3 |
| Enclosure Protection | IP20 |
| Terminal Block Keying | B5 |
| Dimensions (mm) | 107 × 41 × 105 |
| Weight (kg) | 0.181 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is the KJ3208X1-BA1 hot-swappable?
A1: No. It must not be inserted or removed under power unless the area is confirmed non-hazardous and only one unit is handled at a time.
Q2: What is the maximum load per output channel?
A2: Each output channel can handle up to 1 ampere of current.
Q3: Does the module require calibration?
A3: No. The module requires no calibration or user adjustment.
Q4: What environments is this module suitable for?
A4: It is designed for industrial environments from -40°C to +70°C, with strong vibration and shock tolerance.
Q5: Does the module provide dust protection?
A5: Yes, with an IP20 enclosure rating, it offers basic dust protection.
Q6: Is the module certified for hazardous areas?
A6: Yes, it is ATEX and IECEx certified for Zone 2 hazardous areas when installed per instructions.
Q7: Must field power be disconnected before replacing the module?
A7: Yes, non-sparking field circuits must be de-energized before removal or insertion.
Q8: Are there any user-serviceable parts in the KJ3208X1-BA1?
A8: No, the unit contains no user-serviceable parts and should not be disassembled.
