Technical Specifications
| Parameter | Specification |
|---|---|

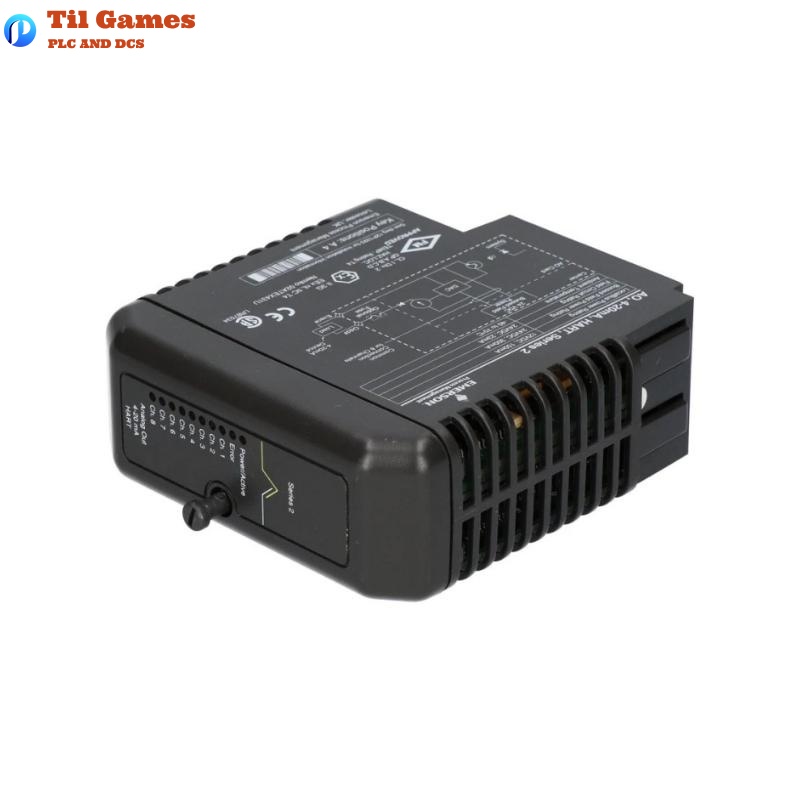

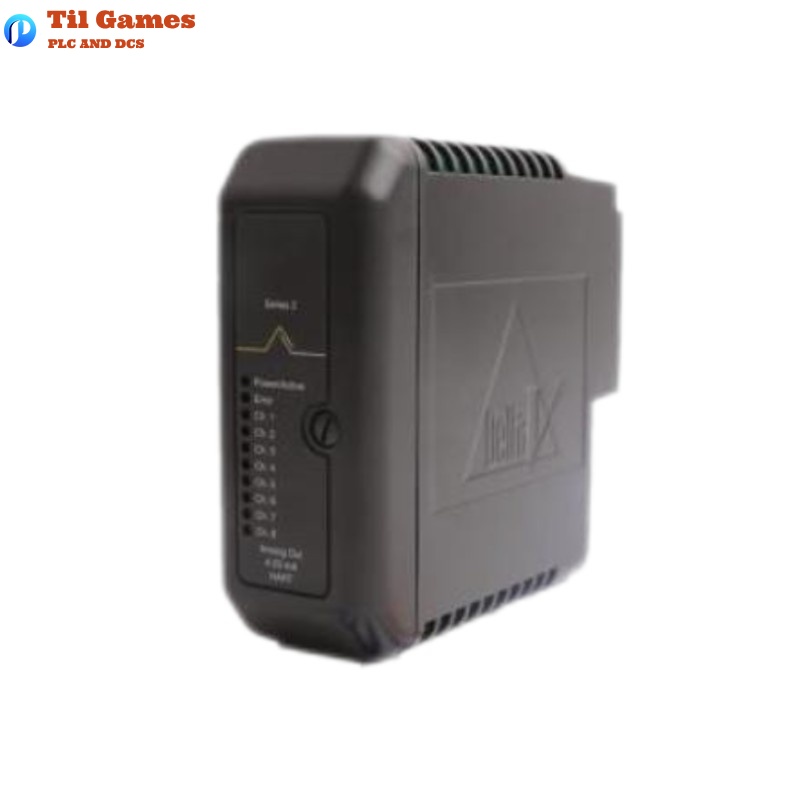

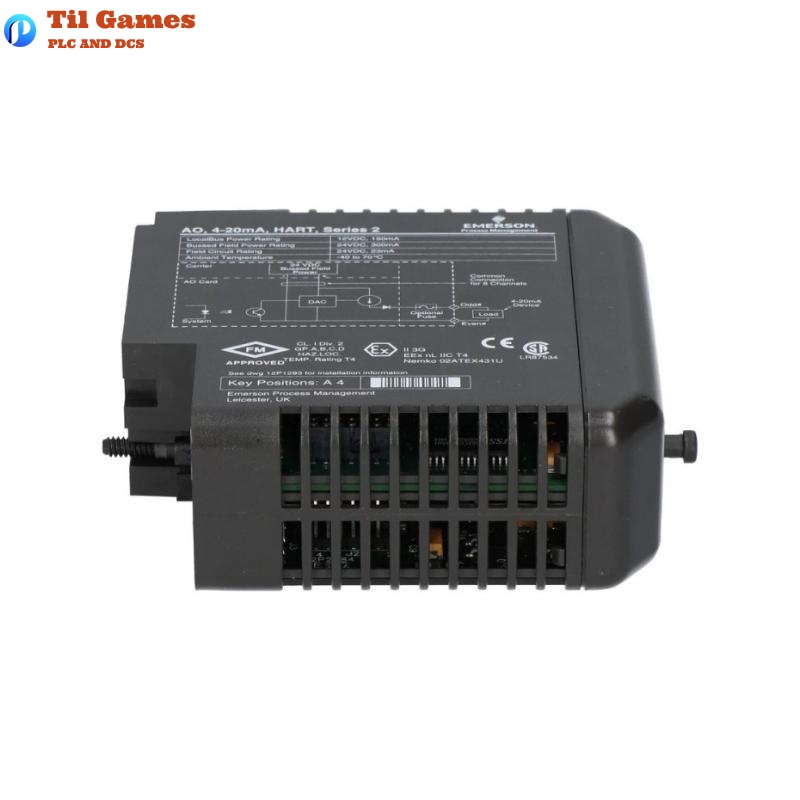

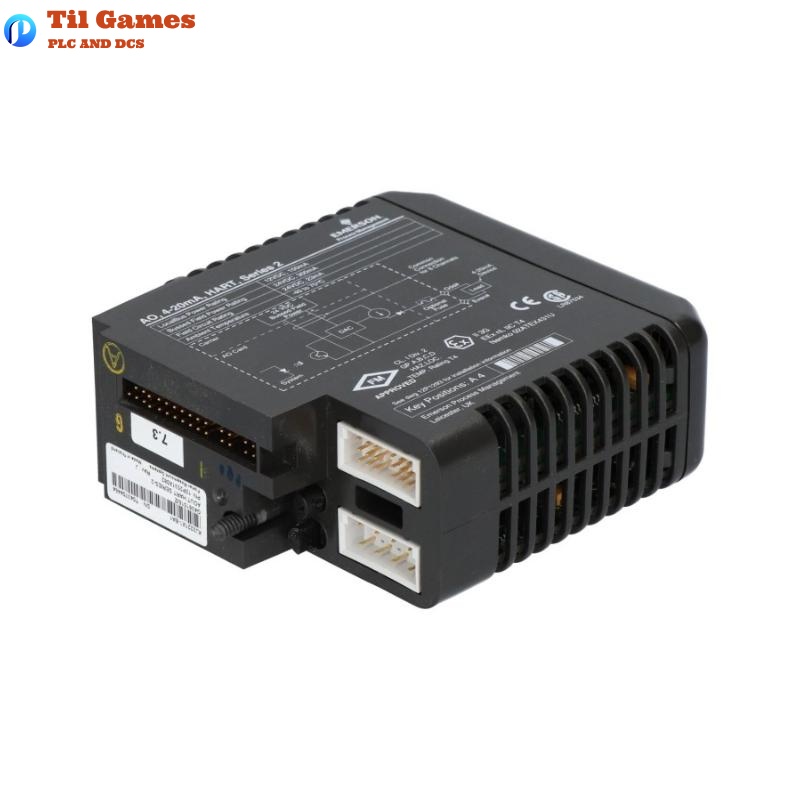

| Product Model | KJ3221X1-BA1 |
| Description | 8-Channel 4–20 mA HART Analog Output Module |
| Output Channels | 8 |
| Output Signal | 4–20 mA with HART |
| Local Bus Power | 12 VDC @ 150 mA |
| Bussed Field Power | 24 VDC @ 300 mA |
| Field Circuit Power | 24 VDC @ 23 mA per channel |
| Operating Temperature | -40°C to +70°C |
| Vibration Resistance | 1mm (2–13.2 Hz), 0.7g (13.2–150 Hz) |
| Shock Resistance | 10g, ½ sinewave, 11 ms |
| Humidity Range | 5% to 95% (non-condensing) |
| Protection Rating | IP20 |
| Airborne Contaminants | ISA-S71.04 –1985 Class G3 |
| Dimensions (W x H x D) | 107 x 41 x 105 mm |
| Weight | 0.231 kg |
| Certifications | ATEX, IECEx, FM |
FAQ
Frequently Asked Questions (FAQs)
Q1: What is the function of the KJ3221X1-BA1 module?
A1: It is used to output 4–20 mA analog signals with HART communication over 8 channels.
Q2: What type of signal does each channel output?
A2: Each channel outputs a 4–20 mA analog signal and supports HART digital communication.
Q3: Can the module be hot-swapped under power?
A3: No. It can only be removed or inserted when the system is de-energized and in a non-hazardous area.
Q4: Is calibration required for this module?
A4: No. The module is factory-calibrated and does not require user calibration.
Q5: What environmental standards does this module comply with?
A5: It meets ISA-S71.04 G3 airborne contaminants class and operates between -40°C and +70°C.
Q6: What is the vibration resistance level of the module?
A6: It withstands 1mm peak-to-peak (2–13.2 Hz) and 0.7g (13.2–150 Hz).
Q7: What is the IP protection rating of this module?
A7: The module has an IP20 rating.
Q8: What is the purpose of the rotary keying system?
A8: It ensures the correct terminal block is matched with the corresponding I/O module to prevent incorrect installation.
