Technical Specifications
| Parameter | Description |
|---|---|

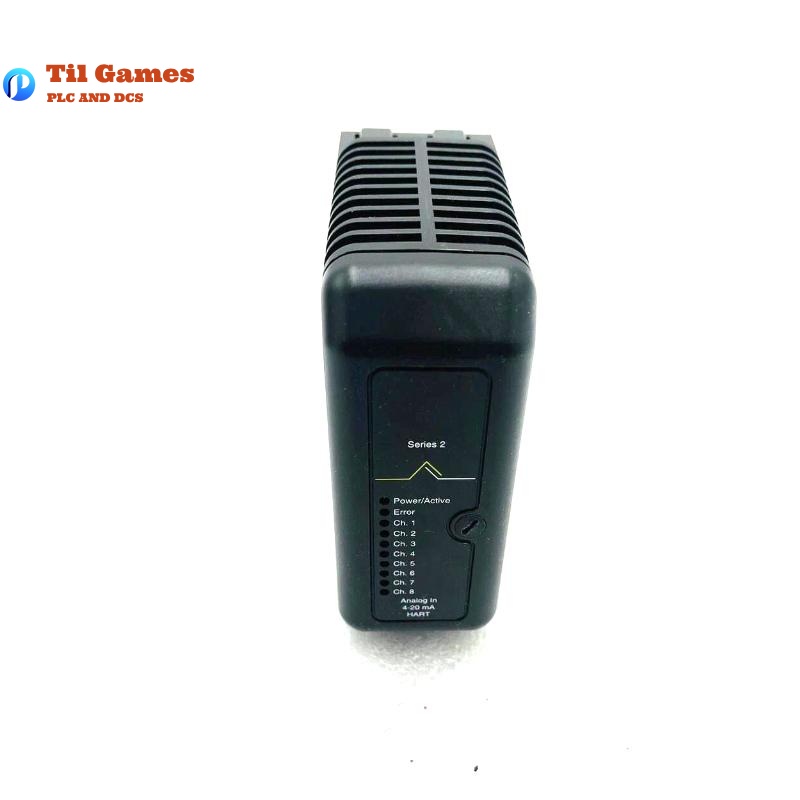

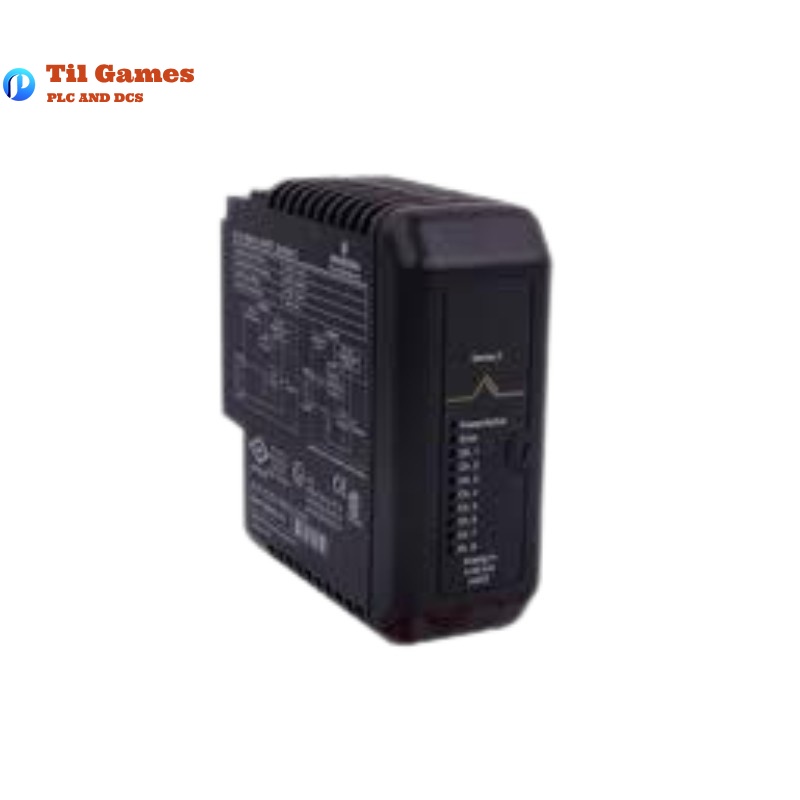

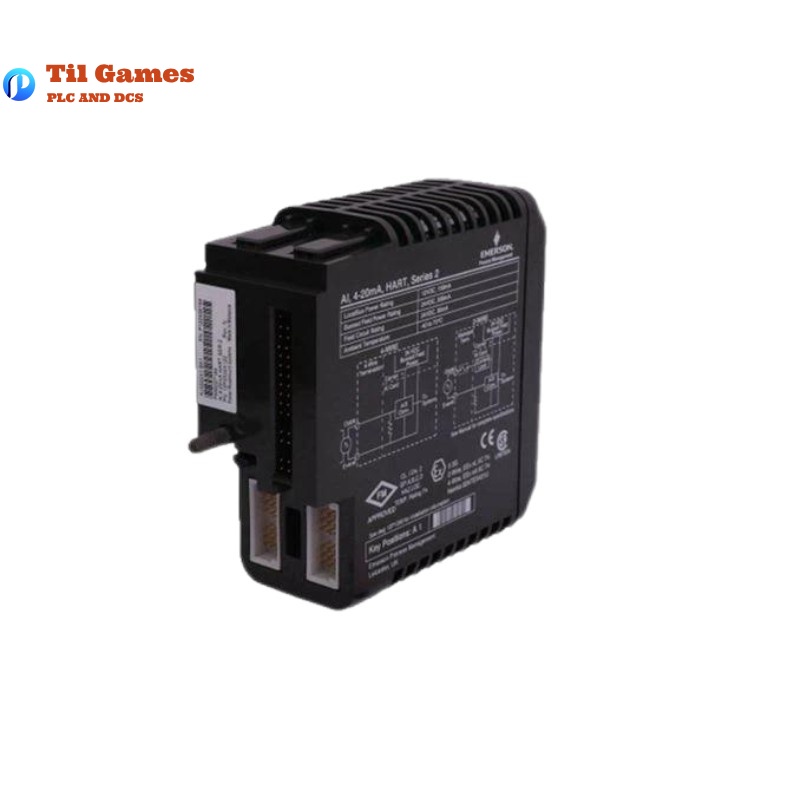

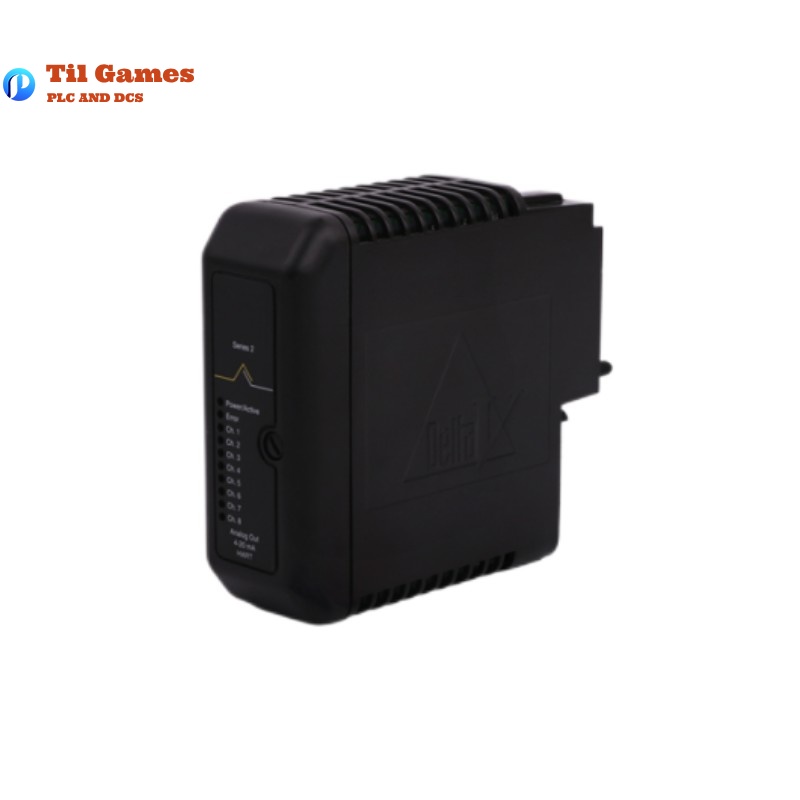

| Model | KJ3222X1-BA1 / 12P2532X072 / VE4003S2B1 |
| Type | Analog Input Card, 8-channel, 4–20 mA, HART enabled |
| Series | Series 2, Redundant |
| LocalBus Power | 12 VDC at 150 mA |
| Bussed Field Power | 24 VDC at 300 mA |
| Field Circuit Rating | 24 VDC at 30 mA per channel |
| Operating Temperature | -40 to 70°C |
| Humidity Range | 5% to 95% Non-Condensing |
| Shock Resistance | 10g, ½ sine wave for 11 ms |
| Vibration Resistance | 5–16Hz: 1mm peak-to-peak; 16–150Hz: 0.5g |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Ingress Protection | IP20 |
| Terminal Block Keying | A1 |
| Dimensions | 107 mm × 41 mm × 105 mm |
| Weight | 0.18 kg |
| Hazardous Location | ATEX, IECEx, FM Class I Div.2 Groups A-D |
| Temperature Rating | T4 |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many analog input channels does the module support?
A1: The KJ3222X1-BA1 module supports 8 analog input channels with 4–20 mA signals and HART communication.
Q2: Does the module have redundancy capabilities?
A2: Yes, it is a Series 2 redundant card designed for high-availability systems.
Q3: Can the module be inserted or removed while the system is powered?
A3: Yes, but only one module at a time, and the power supply’s input inductance must be under 23 µH.
Q4: Is calibration required for this module?
A4: No. The module is factory-calibrated and requires no field calibration.
Q5: Is it suitable for hazardous area installations?
A5: Yes, it has ATEX and IECEx certifications for use in Zone 2 environments.
Q6: What is the protection rating of the module enclosure?
A6: The module has an IP20 ingress protection rating.
Q7: Does the module support HART communication?
A7: Yes, all channels support HART for remote device communication and diagnostics.
Q8: What precautions should be taken during installation?
A8: Ensure field power is disconnected before removal/insertion and follow DeltaV Zone 2 installation guidelines.
