Parameter
Manufacturer：Emerson
Product Number：KJ3222X1-BA1 12P2532X092

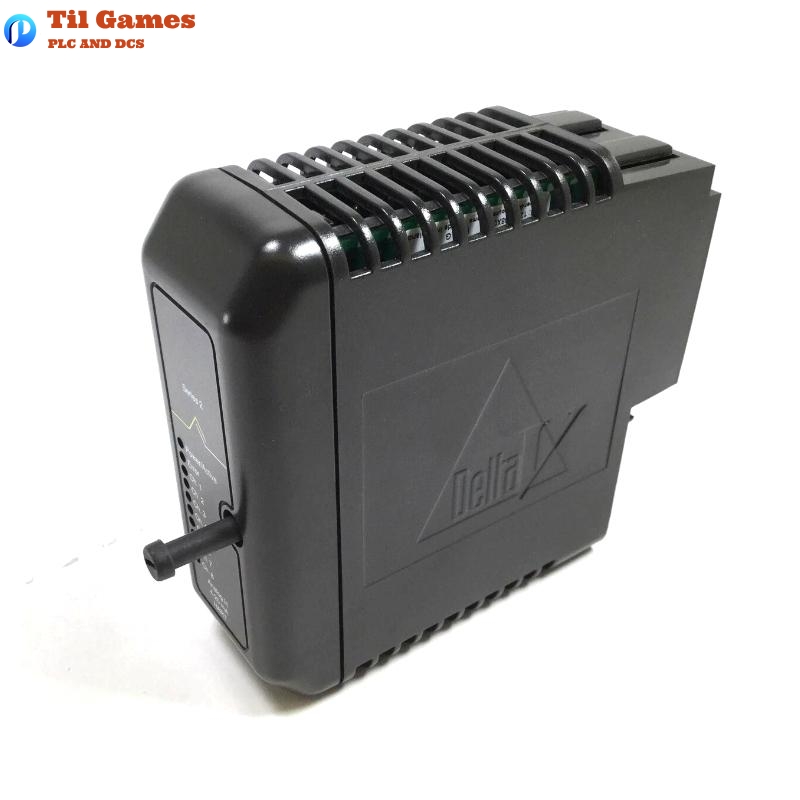

Product Type：DeltaV Analog Input Card
Origin：USA
Dimensions：107 x 41 x 105 mm
Weight：0.18 kg
FAQ
FAQ (Frequently Asked Questions)
Q1: What is the power supply requirement for the KJ3222X1-BA1 Analog Input Card?
A1: The power supply requirements are dual DC/DC, with a local bus power rating of 12 VDC at 150 mA and a bussed field power rating of 24 VDC at 300 mA.
Q2: What is the operating temperature range for the KJ3222X1-BA1?
A2: The operating temperature range is from -40°C to 70°C.
Q3: Is the KJ3222X1-BA1 suitable for use in hazardous areas?
A3: Yes, the KJ3222X1-BA1 is certified for use in hazardous atmospheres with certifications such as Ex nA IIC Gc and Ex nA [nL] IIC Gc.
Q4: How many channels does the KJ3222X1-BA1 card support?
A4: The KJ3222X1-BA1 supports 8 channels of 4-20 mA HART Series 2 signals.
Q5: What is the vibration resistance of the KJ3222X1-BA1?
A5: The KJ3222X1-BA1 is resistant to vibrations with a 1mm peak-to-peak from 5 to 16Hz, and 0.5g from 16 to 150Hz.
Q6: What are the field circuit and field power ratings?
A6: The field power rating is 24 VDC at 300 mA, and the field circuit rating is 24 VDC at 30 mA.
Q7: What safety certifications does the KJ3222X1-BA1 have?
A7: The KJ3222X1-BA1 has several safety certifications, including FM, ATEX, and IECEx approvals.
Q8: Can the KJ3222X1-BA1 be installed while the system is powered?
A8: Yes, the unit can be inserted or removed while the system power is on, but only one unit at a time and under specific conditions.
