Technical Specifications
| Parameter | Description |
|---|---|

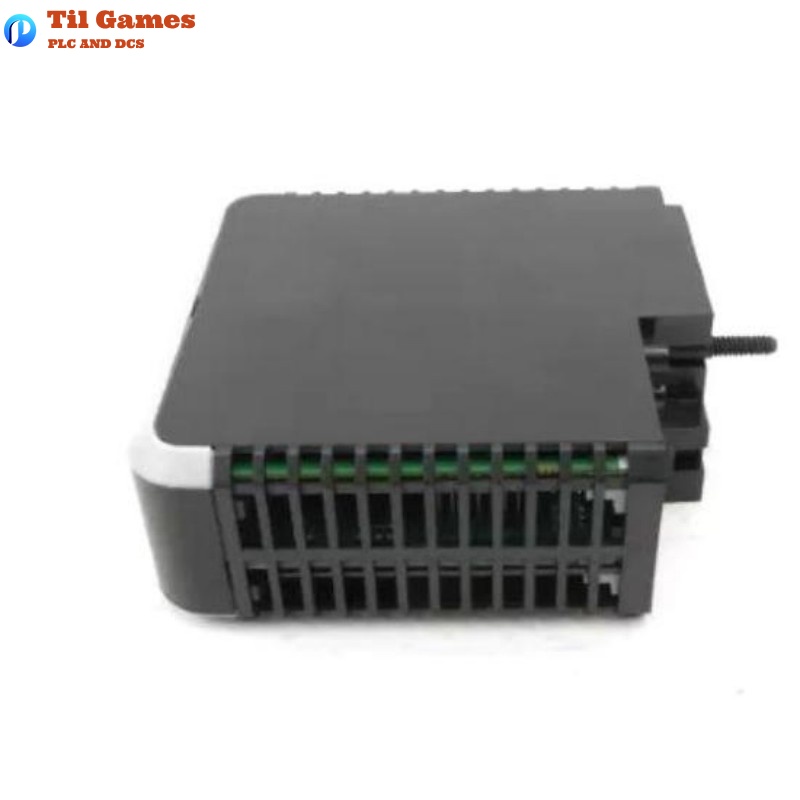

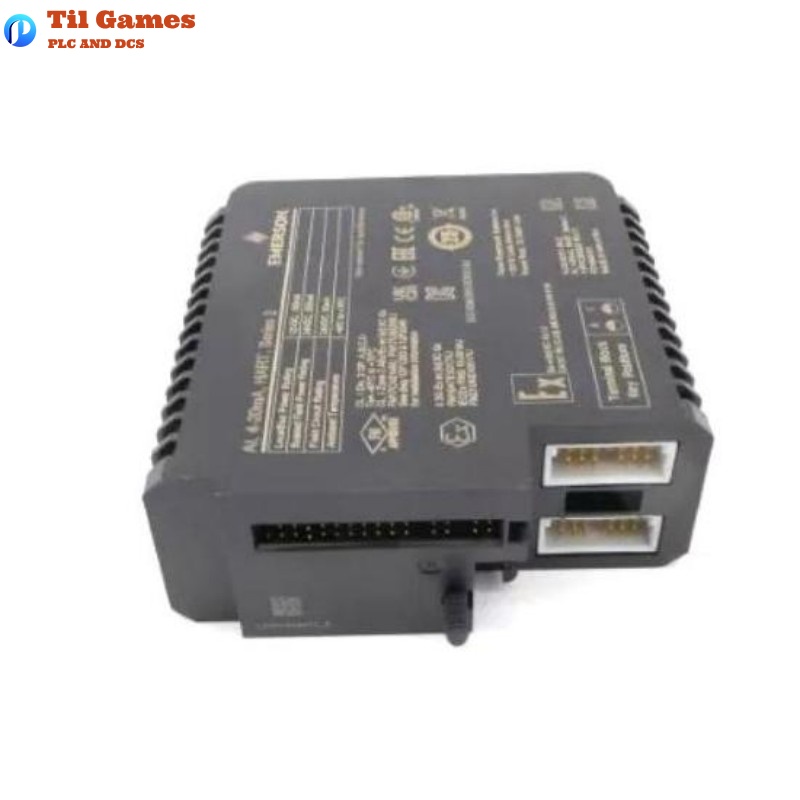

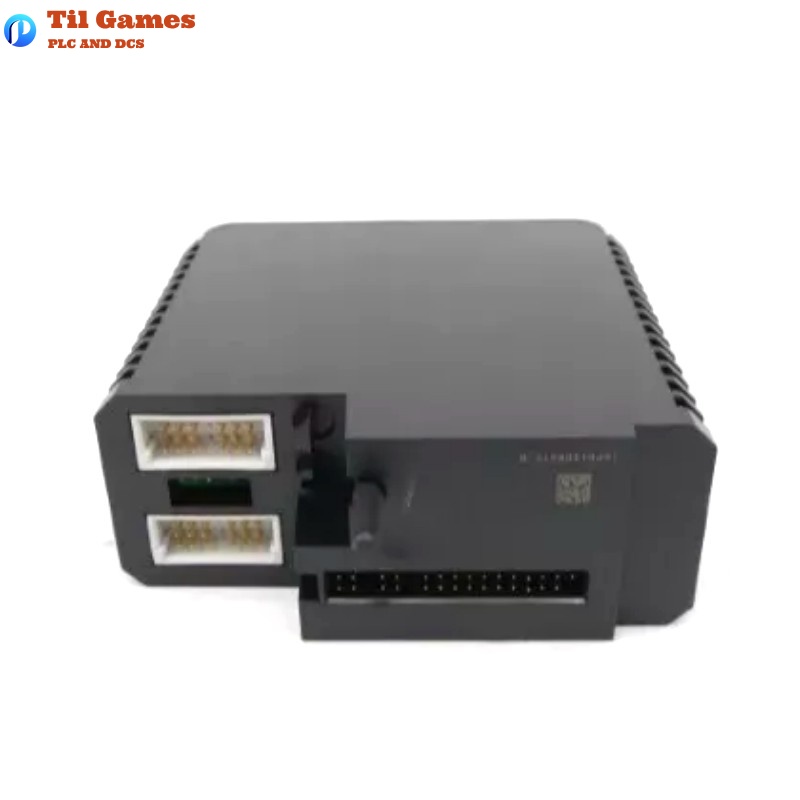

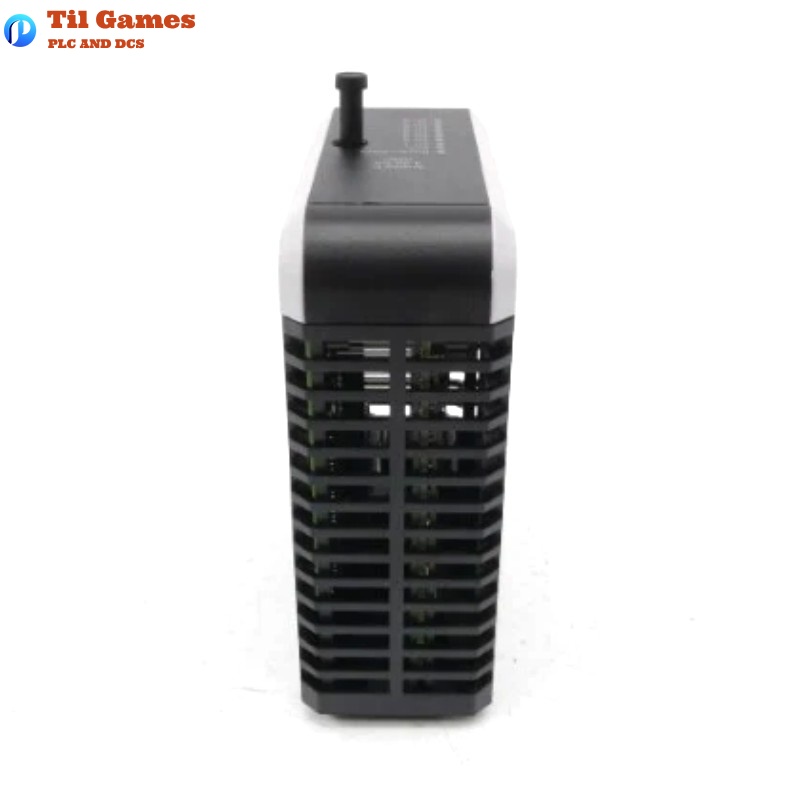

| Model | KJ3222X1-BA2 Series 2 Analog Input HART Card |
| Input Channels | 8 Channels |
| Input Signal | 4–20 mA with HART |
| Power – Local Bus | 12 VDC @ 150 mA |
| Power – Bussed Field | 24 VDC @ 300 mA |
| Power – Field Circuit | 24 VDC @ 30 mA per channel |
| Ambient Temperature | -40°C to +70°C |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration | 1 mm (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
| Humidity | 5% to 95% non-condensing |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Terminal Block Key Position | A1 |
| Dimensions (W x H x D) | 44 x 108 x 127 mm |
| Weight | 0.45 kg |
| Certifications | ATEX, IECEx, FM (US, Canada, UK), Zone 2 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the KJ3222X1-BA2 module?
A1: It provides 8 analog input channels with HART communication for process monitoring and control.
Q2: Can this card operate in hazardous environments?
A2: Yes, it is certified for use in Class I Division 2 and Zone 2 hazardous locations.
Q3: What power supply is required for this module?
A3: It requires 12 VDC at 150 mA for local bus and 24 VDC at 300 mA for bussed field power.
Q4: Is the module hot-swappable?
A4: No, the module must not be removed or inserted while the system is powered.
Q5: Does it support HART communication on all channels?
A5: Yes, all 8 channels support 4–20 mA analog input with HART protocol.
Q6: What is the environmental operating range?
A6: It operates between -40°C and +70°C with up to 95% non-condensing humidity.
Q7: Is calibration required for this module?
A7: No, the module does not require calibration.
Q8: What are the dimensions and weight of the module?
A8: The module measures 44 x 108 x 127 mm and weighs 0.45 kg.
